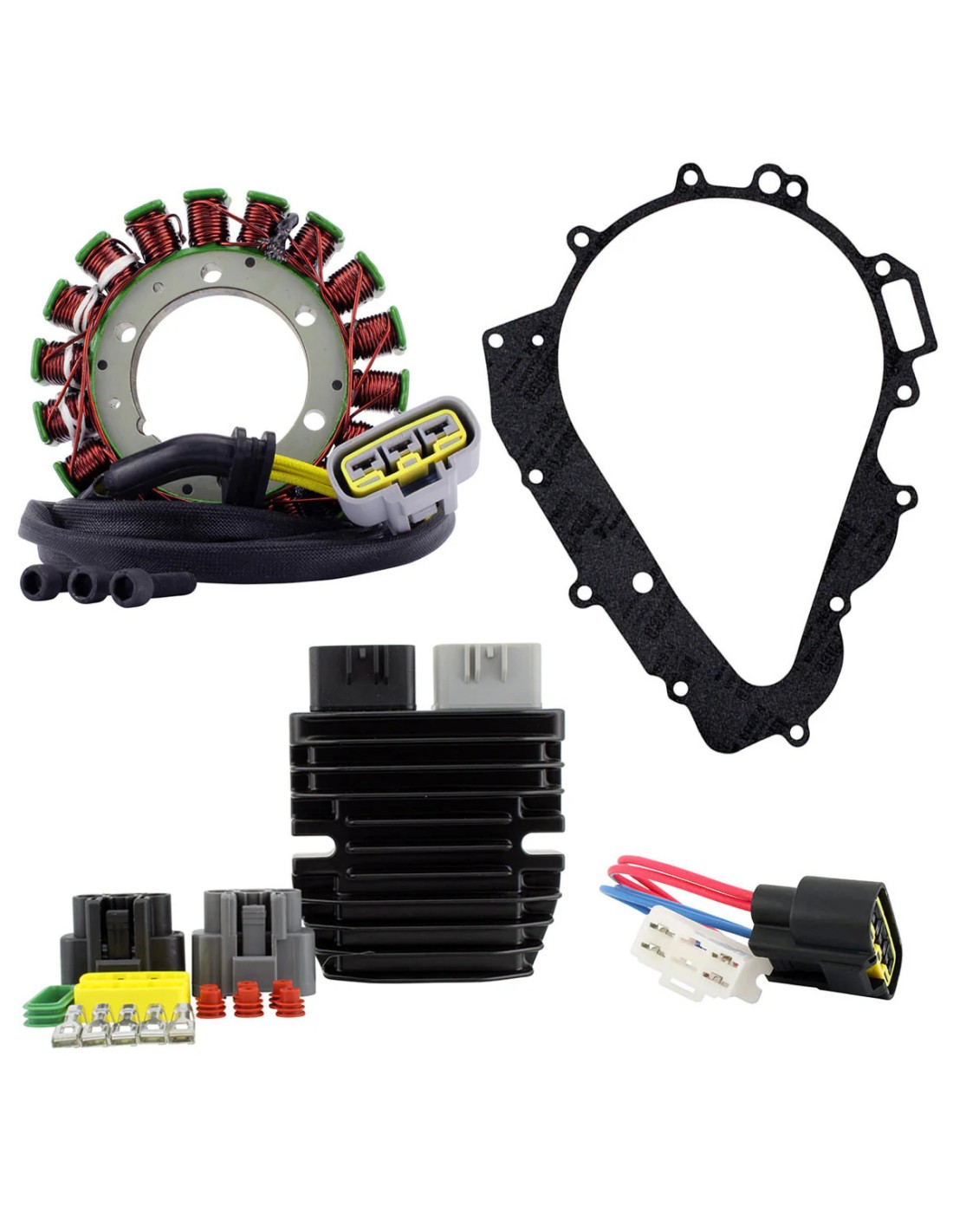

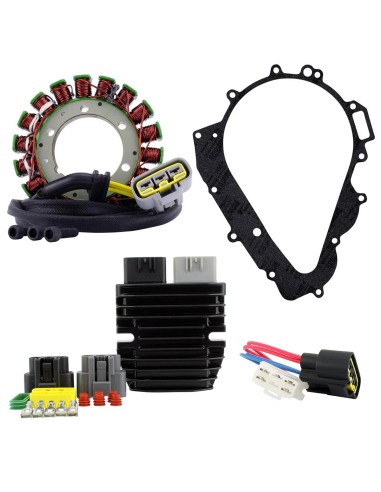

Stator Lithium Mosfet Regulator Rectifier Gasket Aprilia Tuono 1000R RSV1000R OEM AP0685330 AP8127144

Stator Lithium Mosfet Regulator Rectifier Gasket Aprilia Tuono 1000R RSV1000R OEM AP0685330 AP8127144

2009 Aprilia Tuono 1000 R
2008 Aprilia Tuono 1000 R
2008 Aprilia RSV 1000 R
2007 Aprilia Tuono 1000 R
2007 Aprilia RSV 1000 R
2006 Aprilia Tuono 1000 R
2006 Aprilia RSV 1000 R
2005 Aprilia RSV 1000 R
2004 Aprilia RSV 1000 R

OEM AP0685330 AP8127144 AP0650341

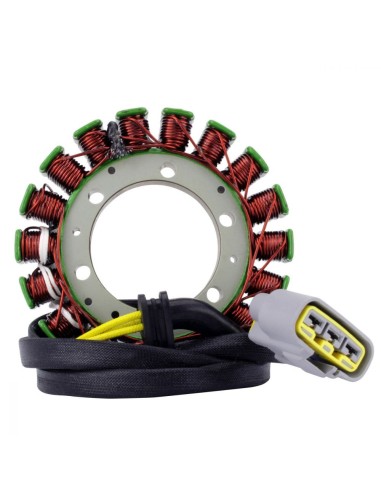

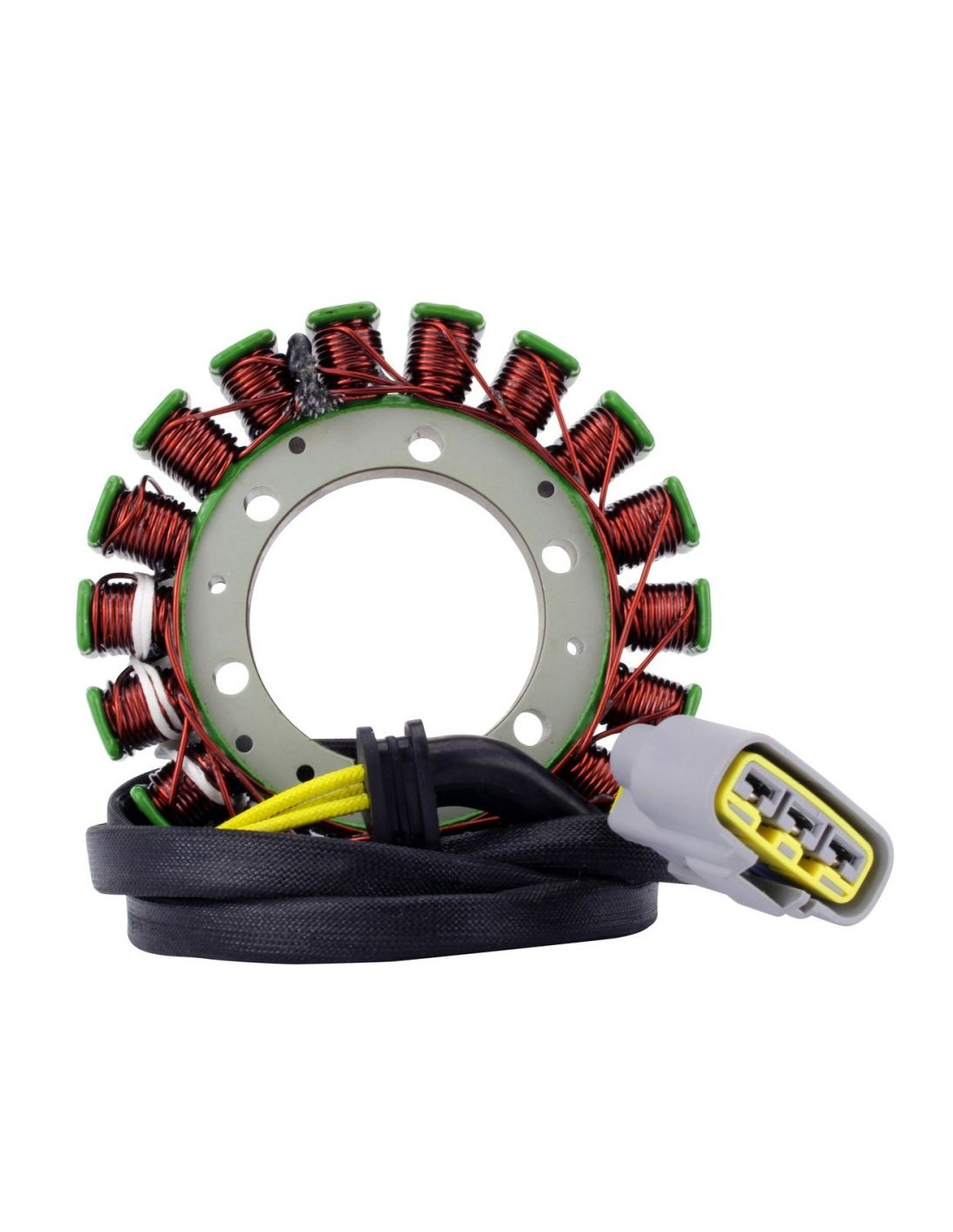

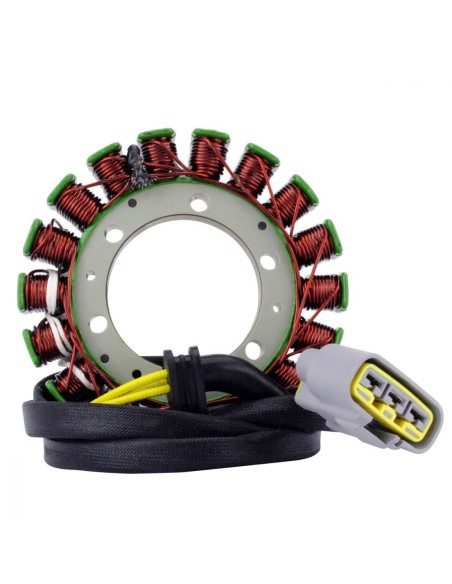

Stator:

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 115 mm

Thickness: 14 mm

Length of wires stator to grommet: 160 mm

Length of wires grommet to plug: 1180 mm

Other specifications:

Number of wires: 3

Number of plugs: 1

Number of pins: 3

Number of poles: 18

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.8 ohms +/-20%

Alternator: Yellow to ground = O.L

Lithium-ion Compatible Regulator:

Dimensions:

Width: 94 mm

Length: 92 mm

Height: 30 mm

Fixation holes center to center: 78 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C

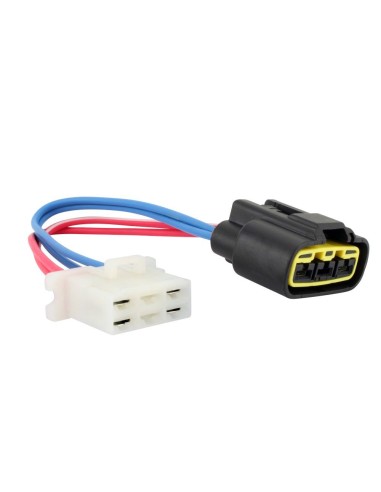

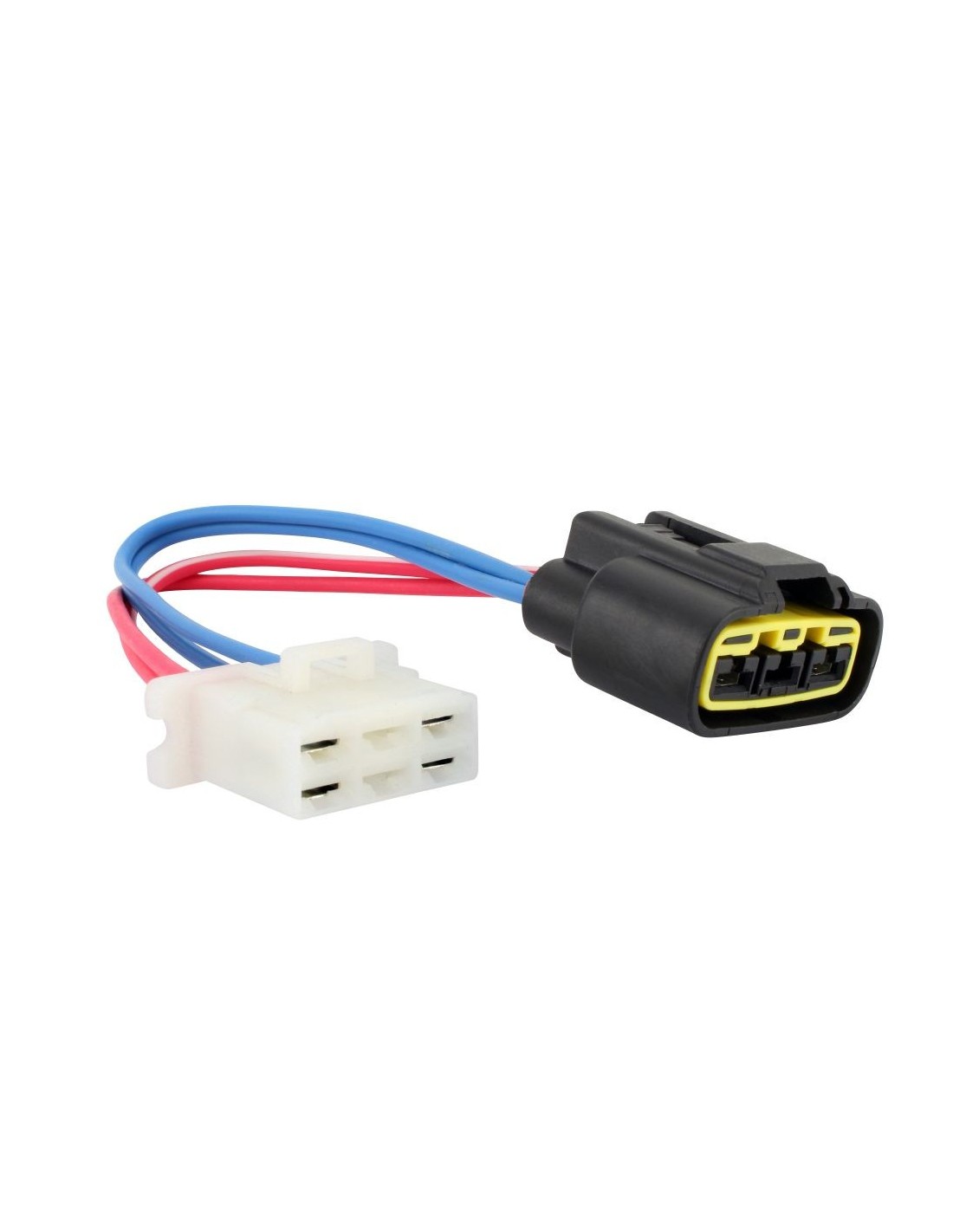

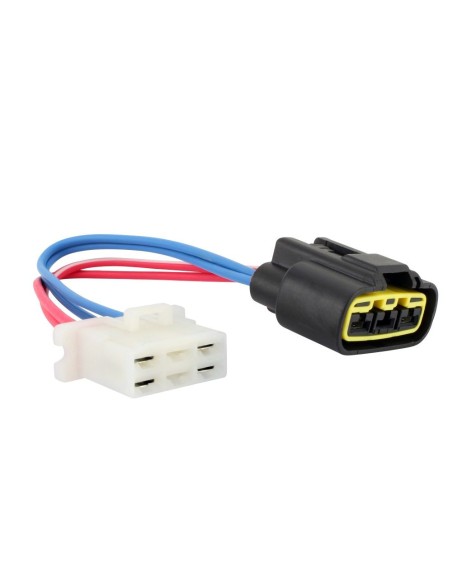

Conversion Harness:

Wires length: 150 mm

Number of plugs: 2

Plug-and-play, direct fit, easy installation

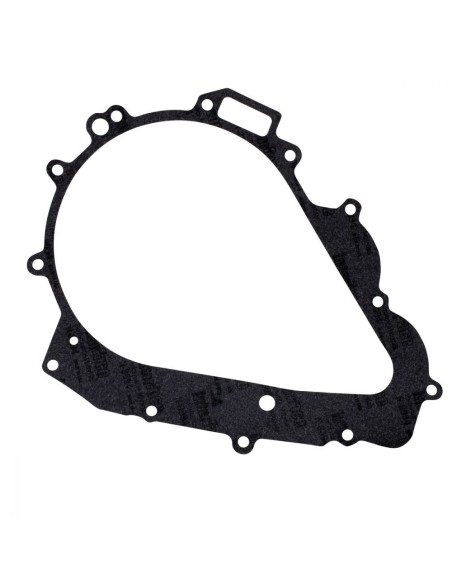

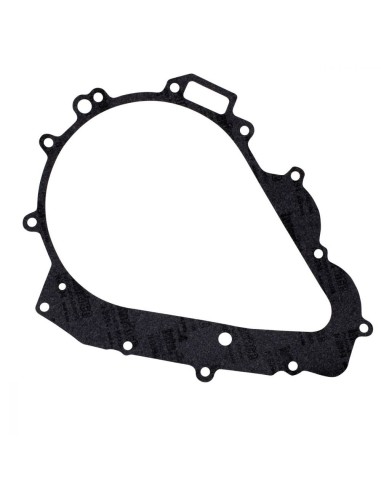

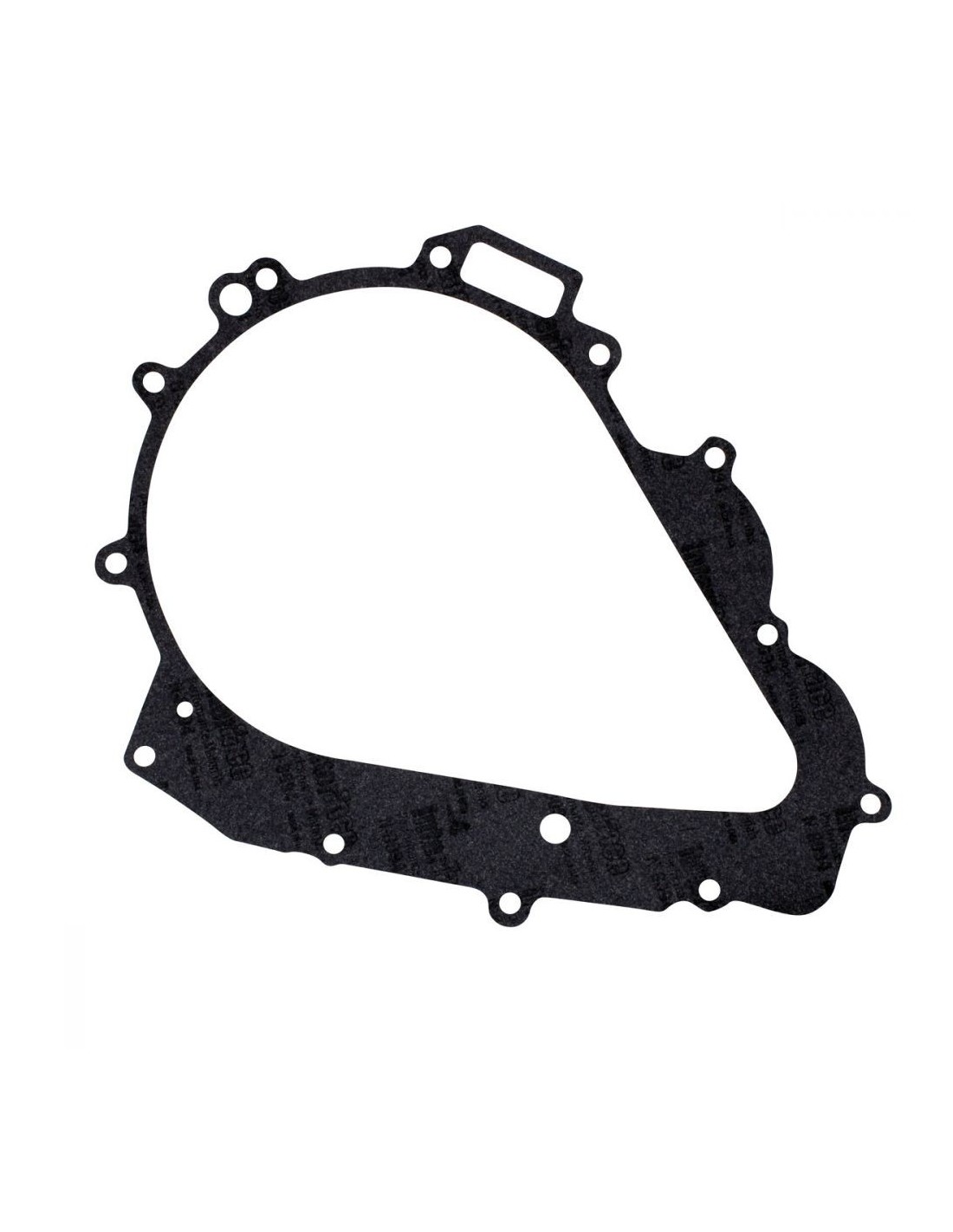

Harness and Gasket Included

Include 3X OF M6-1.00 X 30 Allen socket head

All shipped products are tested

The 2004-2009 Aprilia RSV and Tuono models are excellent motorcycles, but all suffered from a very unreliable charging system. The issue was an extremely strong magnetic flywheel that caused excess heat in the stator windings and common repeat failures. A replacement stator of the original design was simply not a reliable solution. The high output from the stator also caused regular voltage regulator failures, making for a very poor charging system.

To solve this problem, RMSTATOR has engineered a permanent solution kit to address all parts of the charging system. A thinner stator core is used that generates and retains less heat in use, and promotes cooling due to increased oil coverage from the extra space inside the flywheel. Paired with a MOSFET type voltage regulator compatible with lithium-ion batteries, the charging system is now bulletproof. For a complete and easy installation, we include shorter stator mounting bolts, a plug & play adapter harness for the new voltage regulator, and a stator cover gasket.
