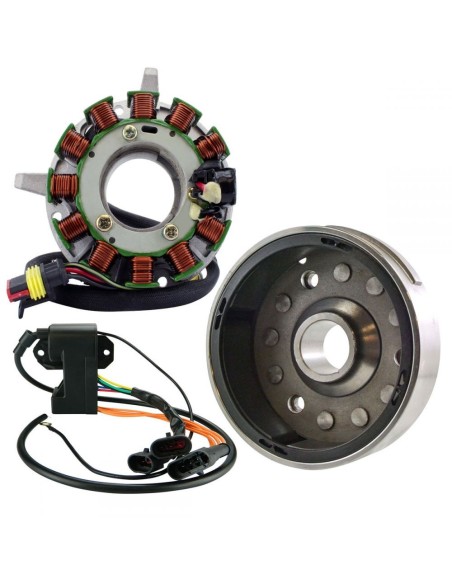

Ignition Replacement Kit Calibration Module SkiDoo Tundra 280 R

2005 Ski-doo Tundra 280 R Carb F/C
2004 Ski-doo Tundra 280 R Carb F/C
2003 Ski-doo Tundra 280 R Carb F/C
2002 Ski-doo Tundra 280 R Carb F/C
2000 Ski-doo Tundra 280 R Carb F/C
1998 Ski-doo Tundra 280 R Carb F/C

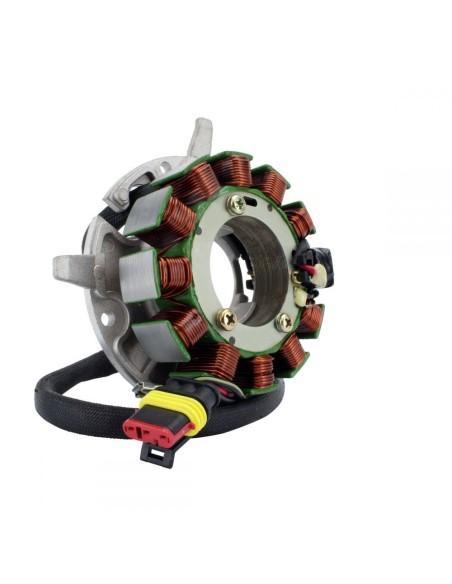

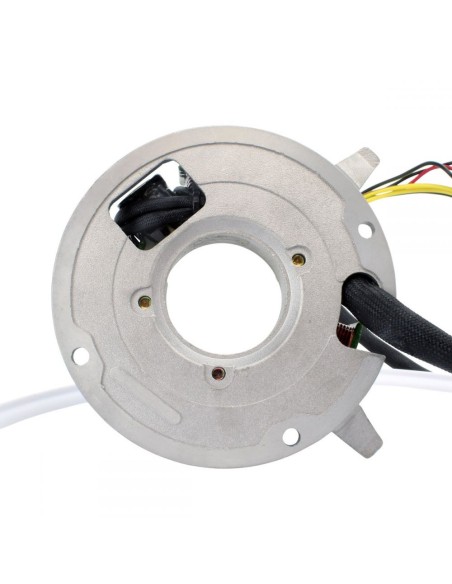

Stator Dimensions:
Interior diameter: 43 mm
Exterior diameter: 110 mm
Thickness: 32 mm
Length of wires clamp to plug: 500 mm

Other specifications:
Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 12

Wire to wire resistance :
Alternator: Yellow between each yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Source: Red to black = 8 ohms +-20%

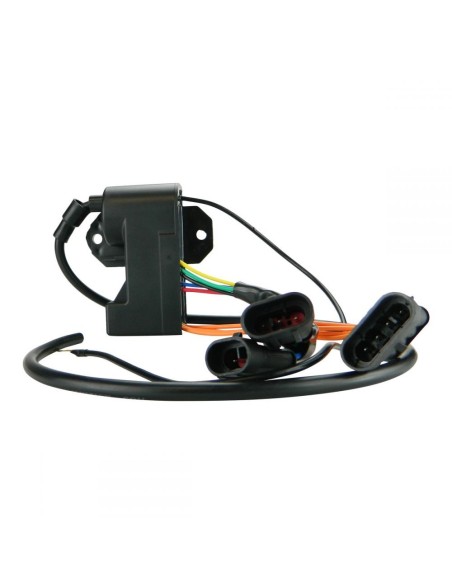

CDI Box Ignition Coil Calibration Module Dimensions:
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm
Other specifications:
Number of plugs: 3
Number of pins: 9

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

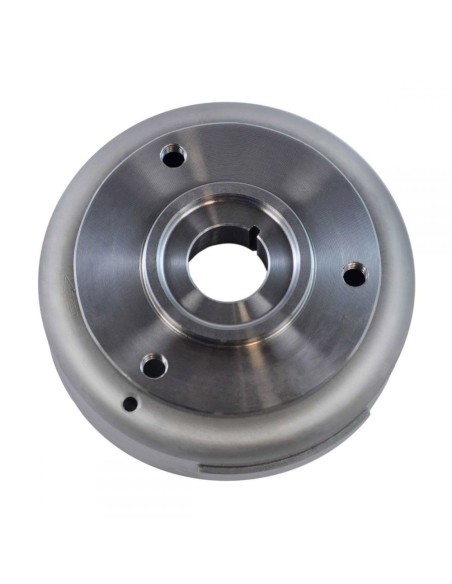

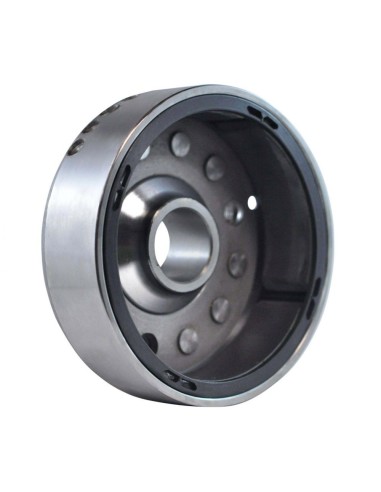

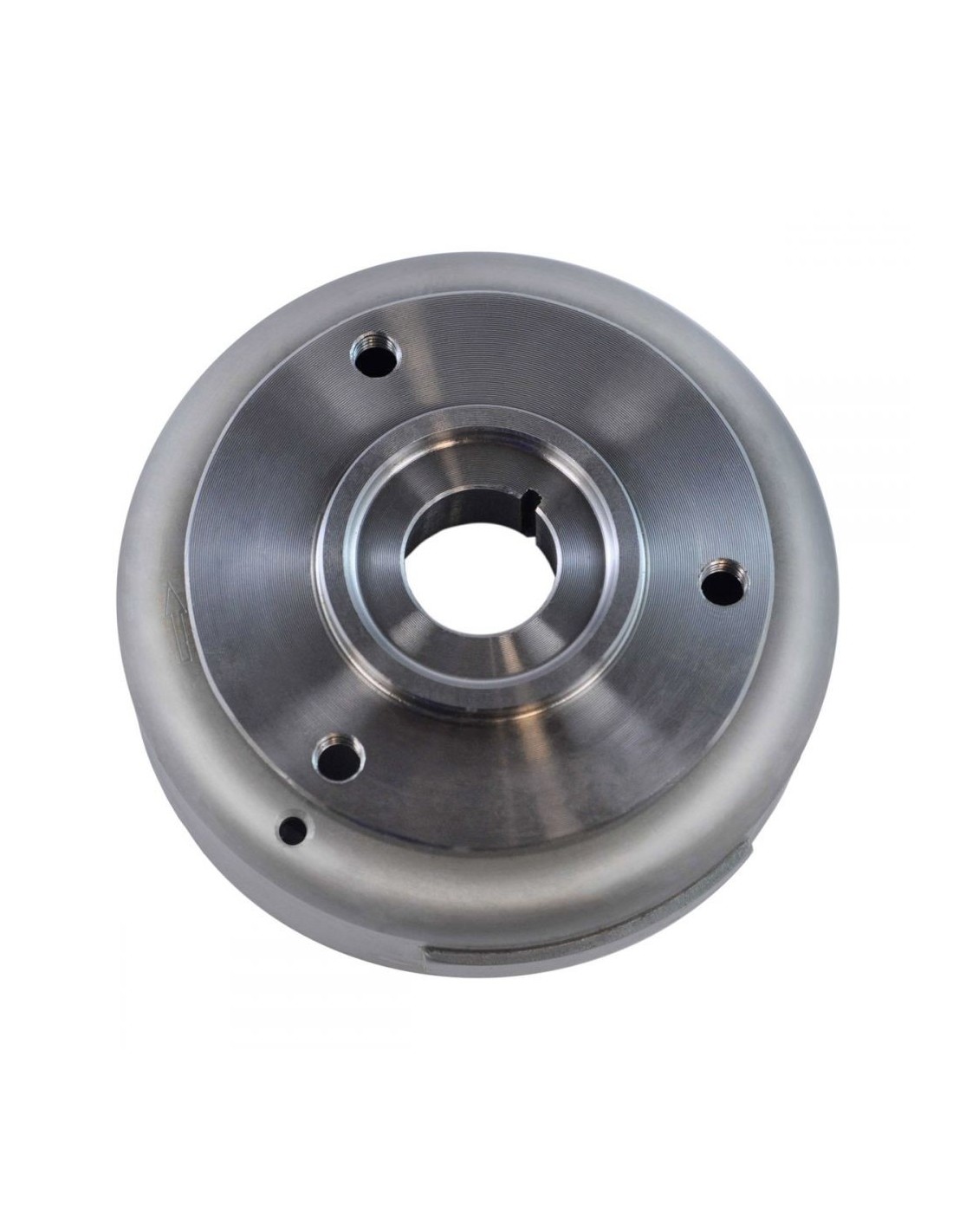

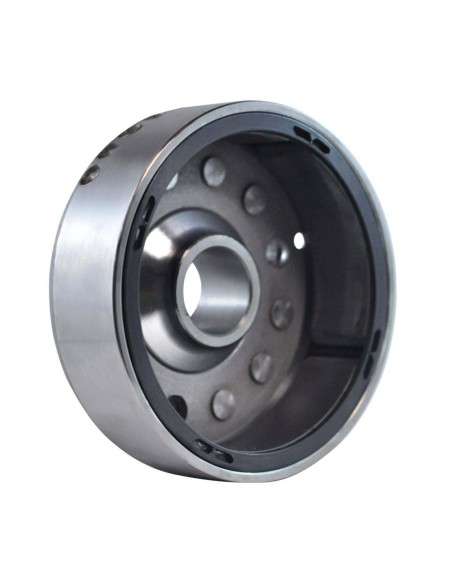

Flywheel Dimensions:
Exterior Diameter: 117 mm
Interior Diameter: 96 mm
Interior Diameter Center Housing: 24 mm
Exterior Diameter Center Housing: 35 mm
Thickness (exterior): 46 mm
Thickness (interior): 23 mm

WARNING : Ski-Doo Tundra R 1999-2005 models ; This stator has a different visual configuration than the OEM equipment, but works perfectly and exactly as a replacement part to your OEM stator.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please note: You will need to use the OEM connector for the three alternator wires and follow the OEM color codes.

Please Note : This CDI Box Ignition Coil Calibration Module fits on 1 cylinder RER models only and it doesn't fit on Tundra II 250 1998
