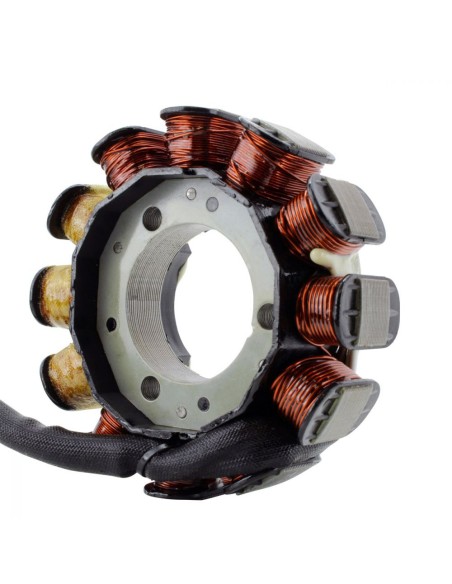

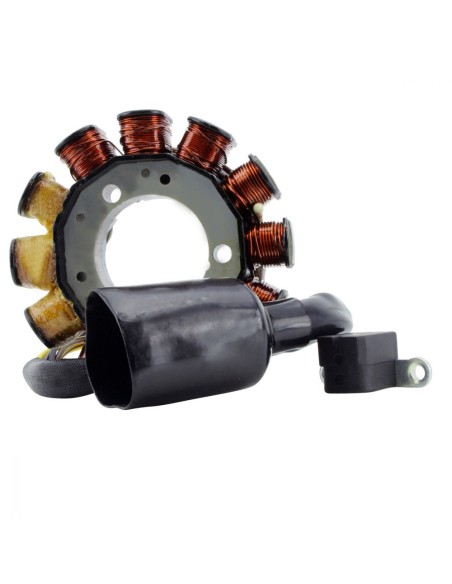

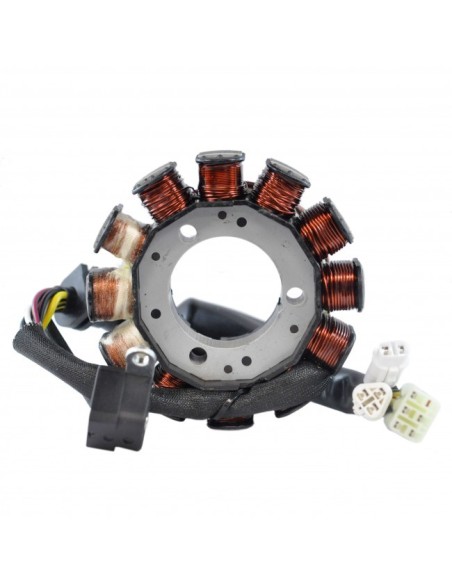

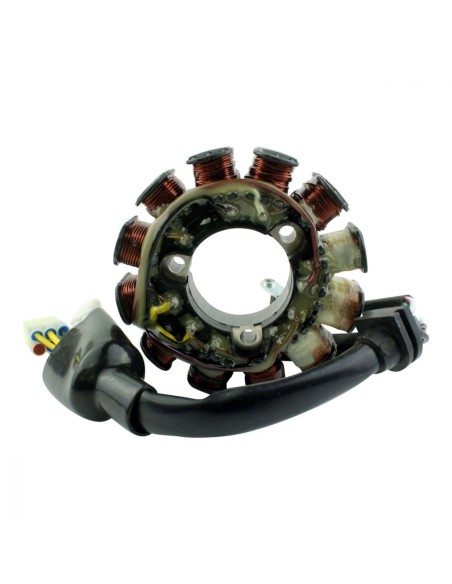

Stator Yamaha SRX600 SRX700 OEM 8DF-85510-00-00

Stator

1999 Yamaha SRX 600
1999 Yamaha SRX 700

1998 Yamaha SRX 600
1998 Yamaha SRX 700

OEM 8DF-85510-00-00

Dimensions :

Interior diameter : 42mm

Exterior diameter : 103mm

Thickness : 14mm

Length of wires stator to grommet : 70mm

Length of wires grommet to plug : 155mm

Length of pickup coil's wire to grommet : 70mm

Other specifications :

Number of wires : 10

Number of plugs : 3

Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Yellow/Black = 0.4 ohms +/-20%

Pickup : White/Green to White/Red = 200 ohms +/-20%

Source : Brown/Red to Black = 80 ohms +/-20%

Source 2: Black/Red to Brown = 450 ohms +/-20%

Highest grade copper windings, resistant to 200 degrees Celsius
