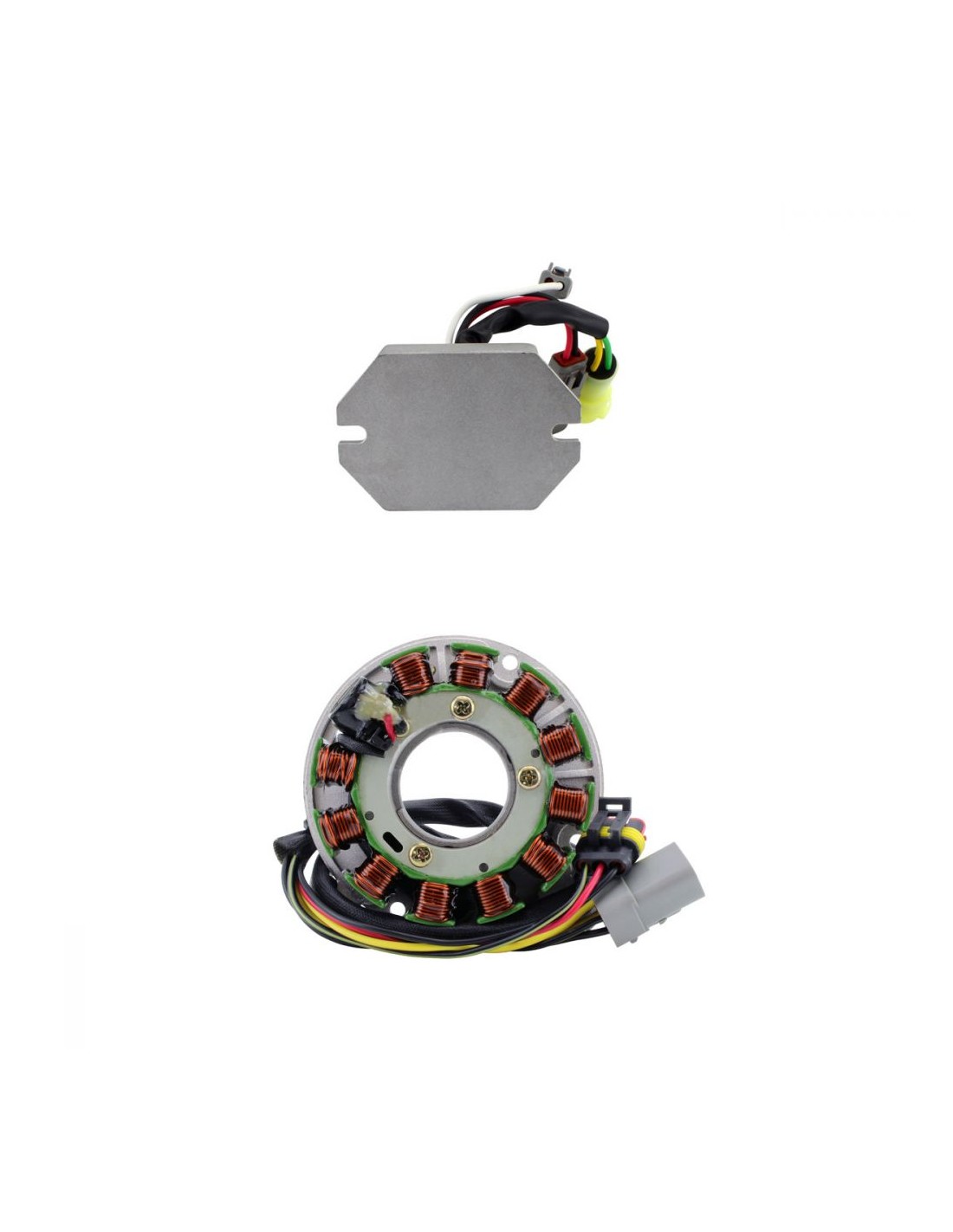

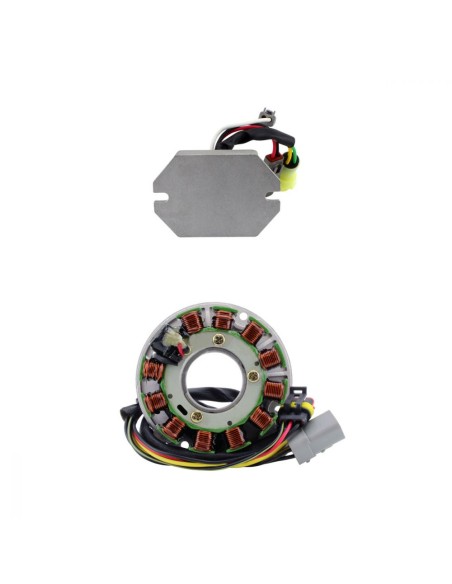

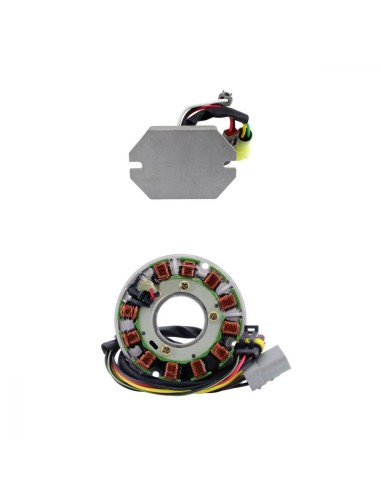

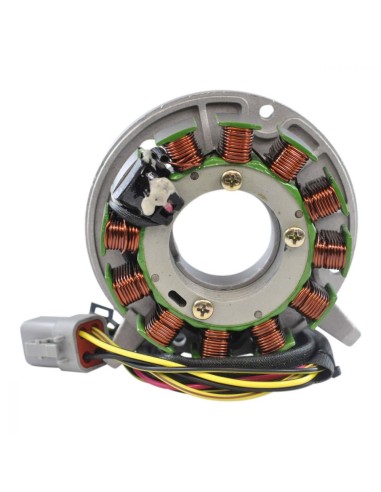

Kit Stator Regulator SkiDoo Skandic 440 LT Carb Lynx Forest 2001-2004 OEM 420886603 M5446342

Stator Resistant to 200 degrees Celsius

2004 Ski-doo Skandic 440 LT Carb F/C

2004 Lynx Forest

2003 Ski-doo Skandic 440 LT Carb F/C

2003 Lynx Forest

2002 Ski-doo Skandic 440 LT Carb F/C

2002 Lynx Forest

2001 Ski-doo Skandic 440 LT Carb F/C

2001 Lynx Forest

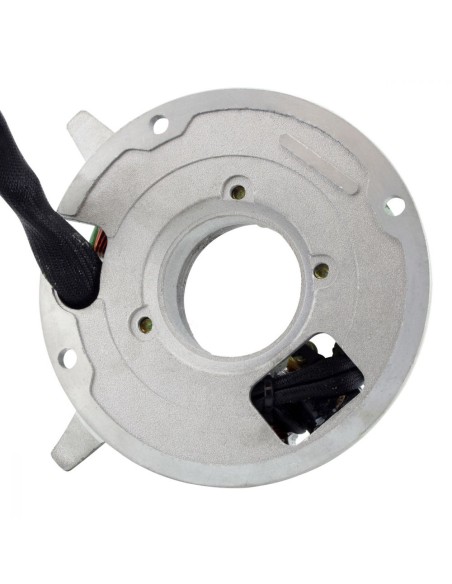

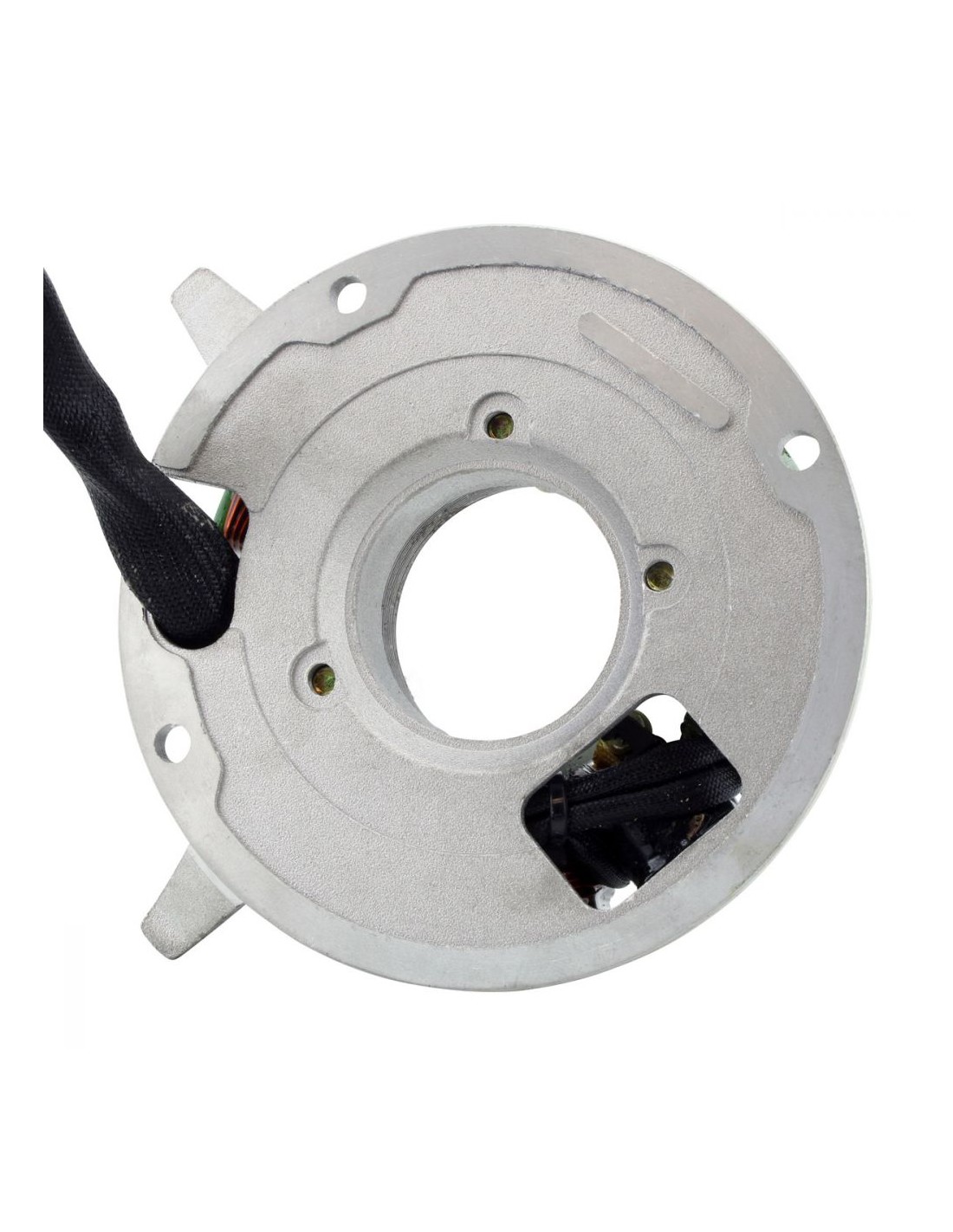

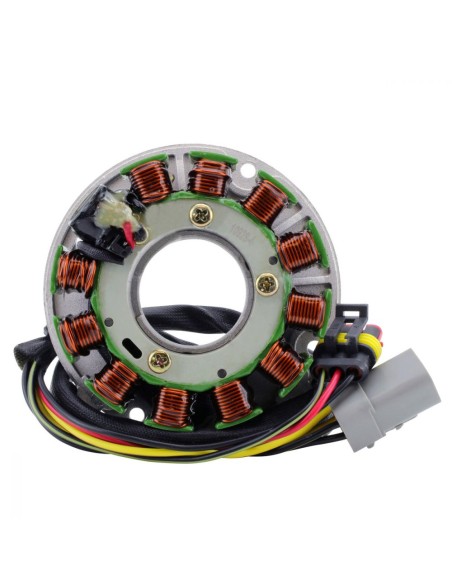

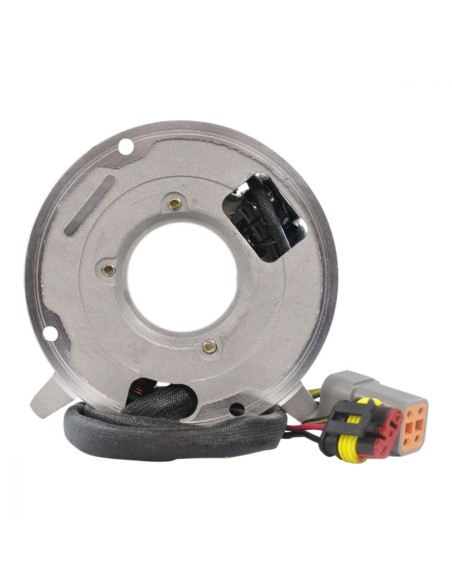

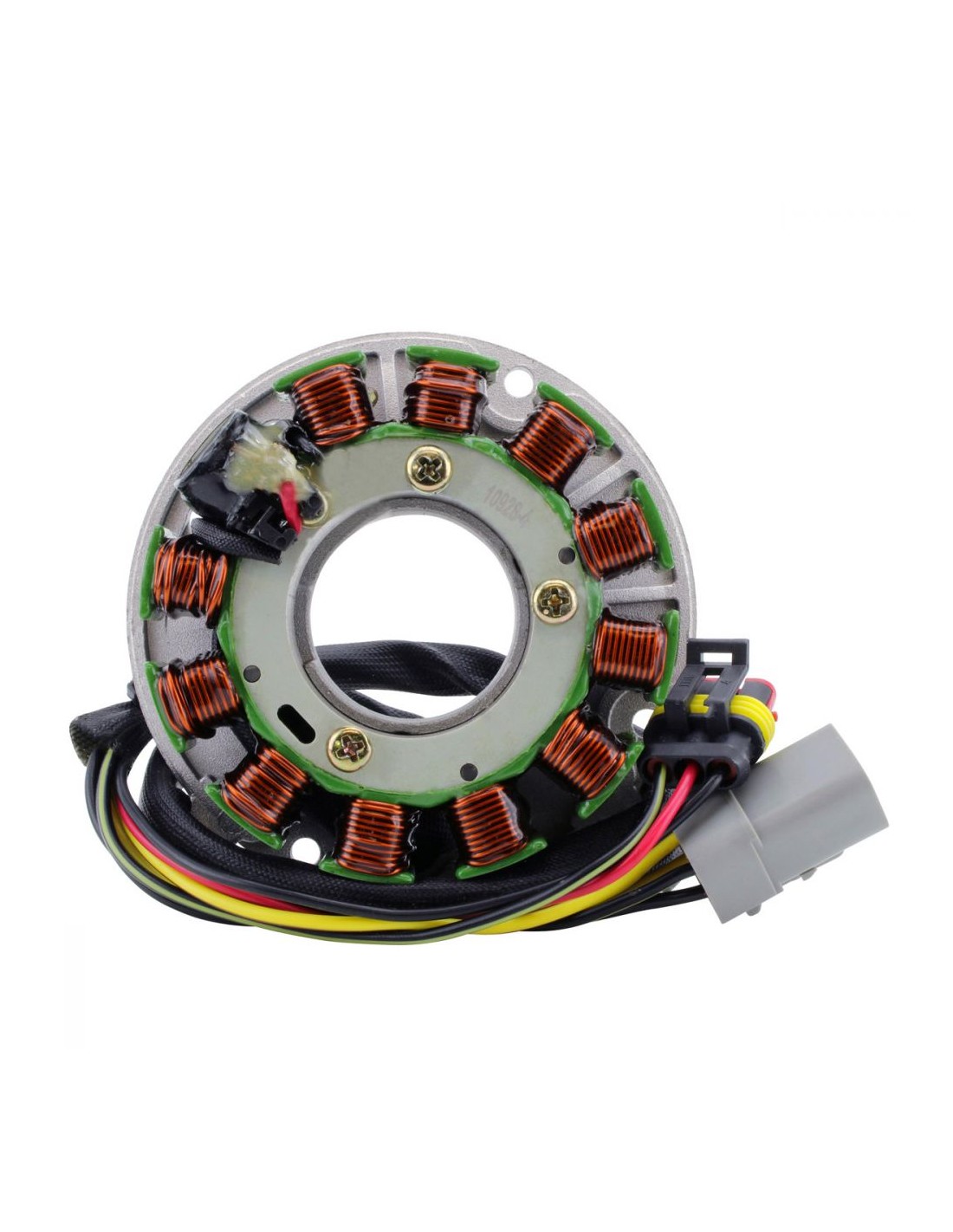

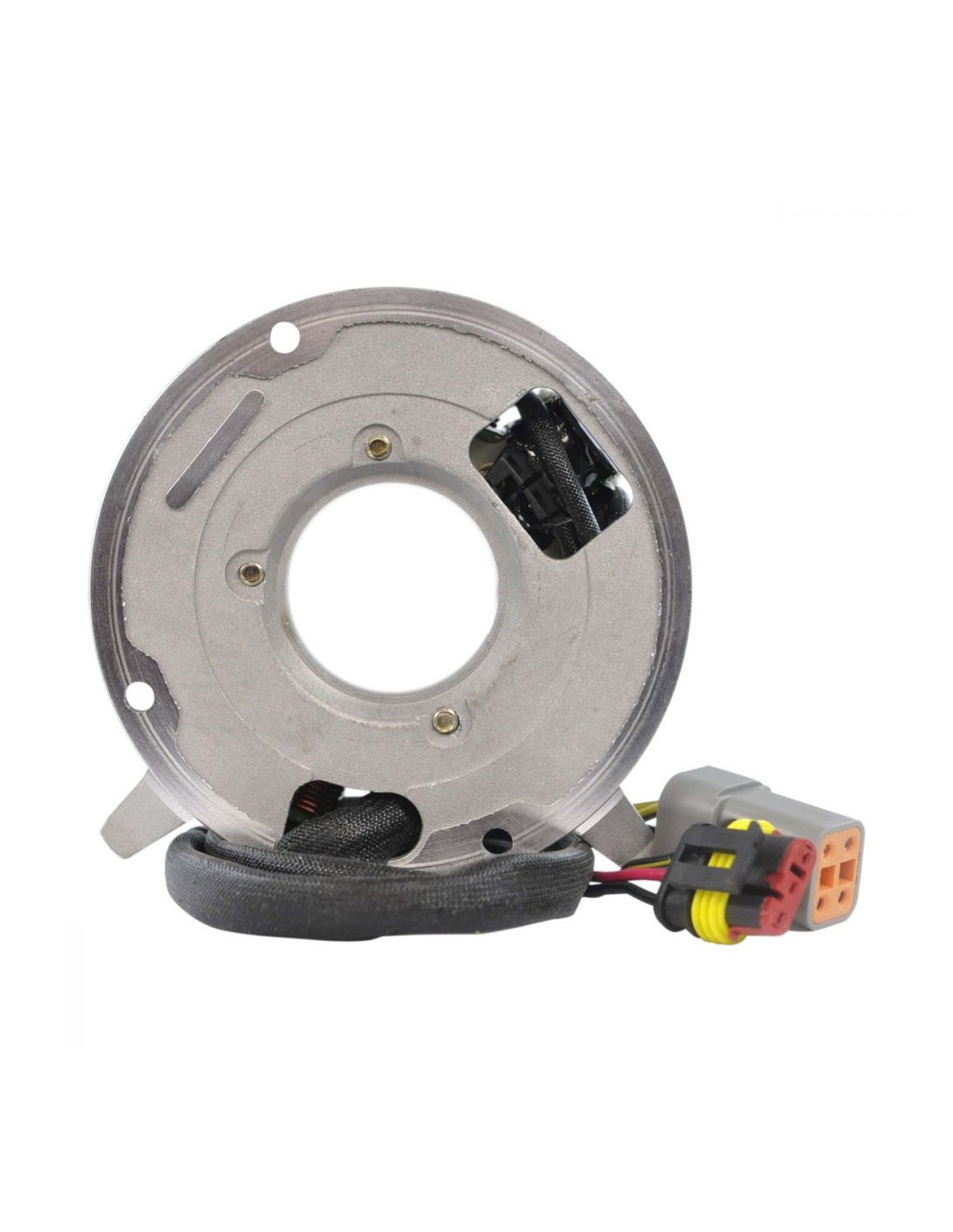

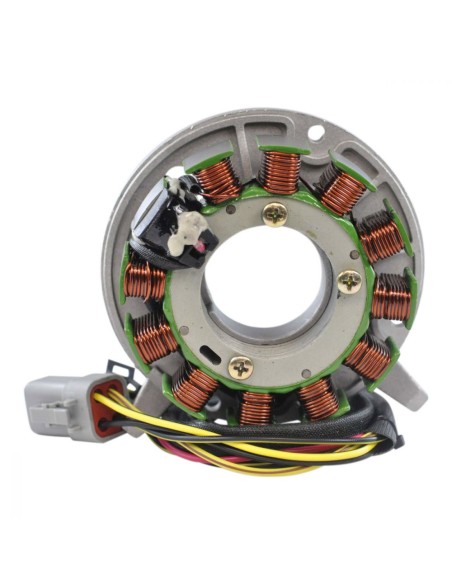

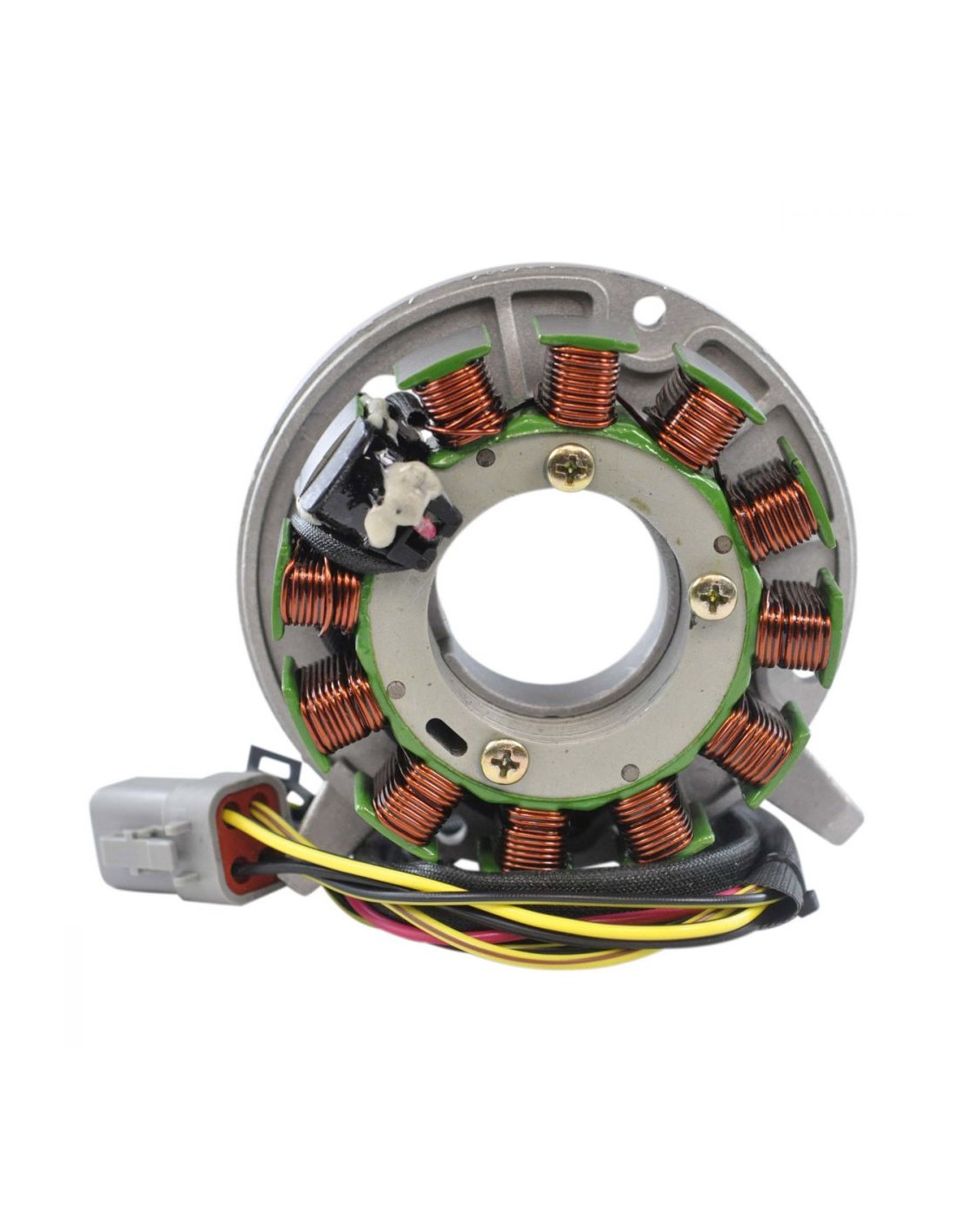

Stator :

Dimensions :

Interior diameter: 43 mm

Exterior diameter: 110 mm

Thickness: 32 mm

Length of wires stator to plug: 570 mm

Other specifications :

Number of wires: 7

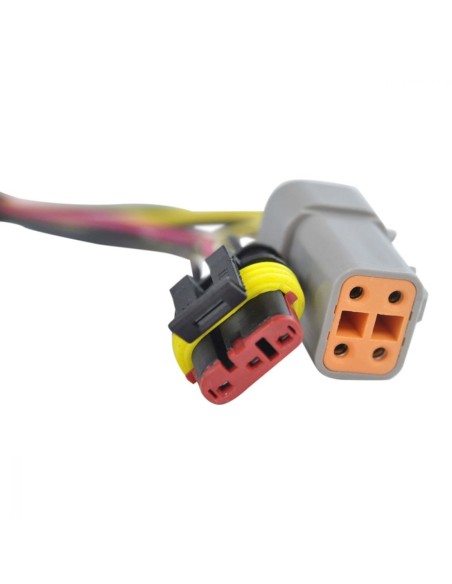

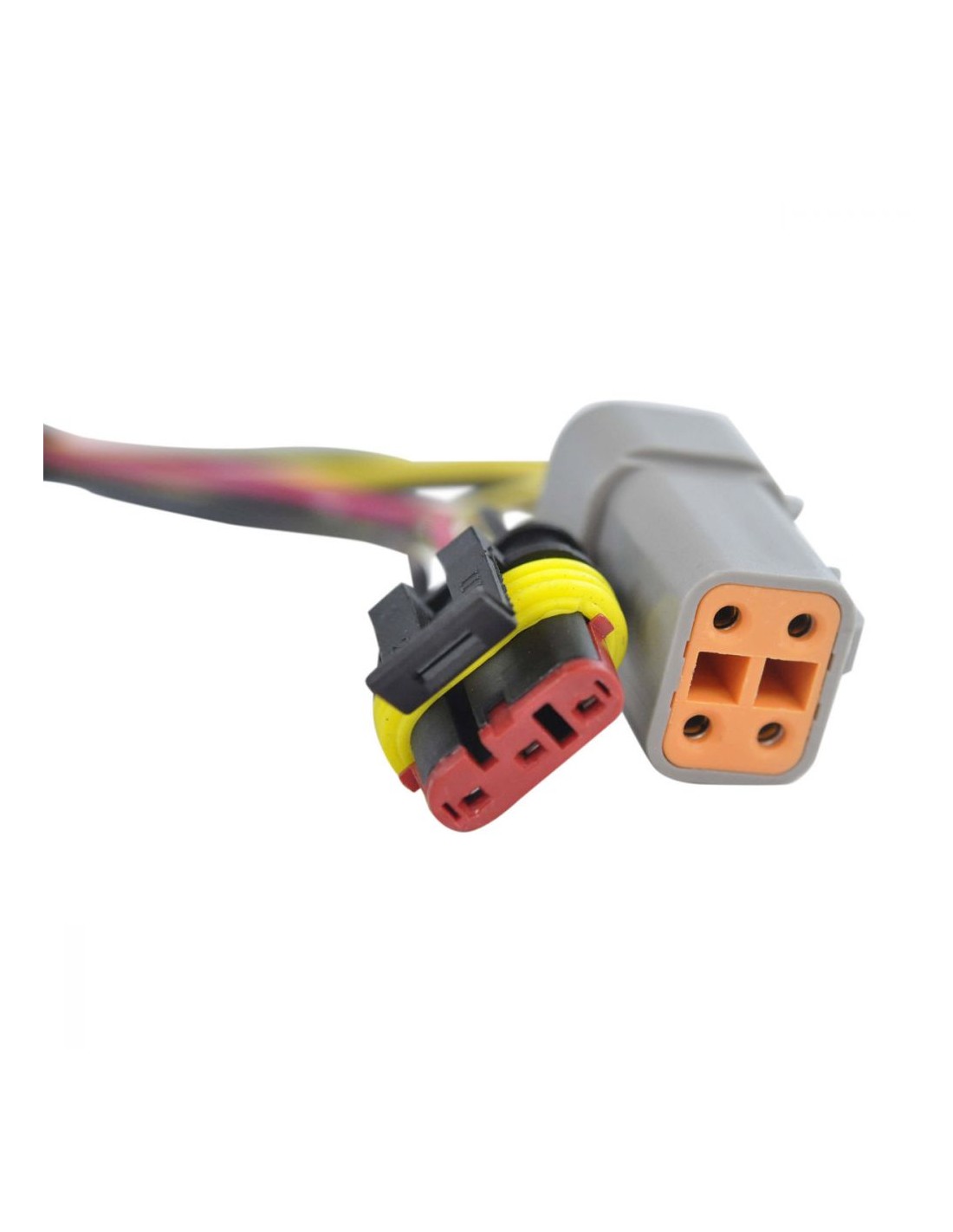

Number of plugs: 2

Number of pins: 7

Wire to wire resistance :

Alternator: Between each Yellow = 0.4 ohms +/-20%

Alternator: Yellow to Ground = 0.L on display

Source: Red to Black = 8 ohms +/-20%

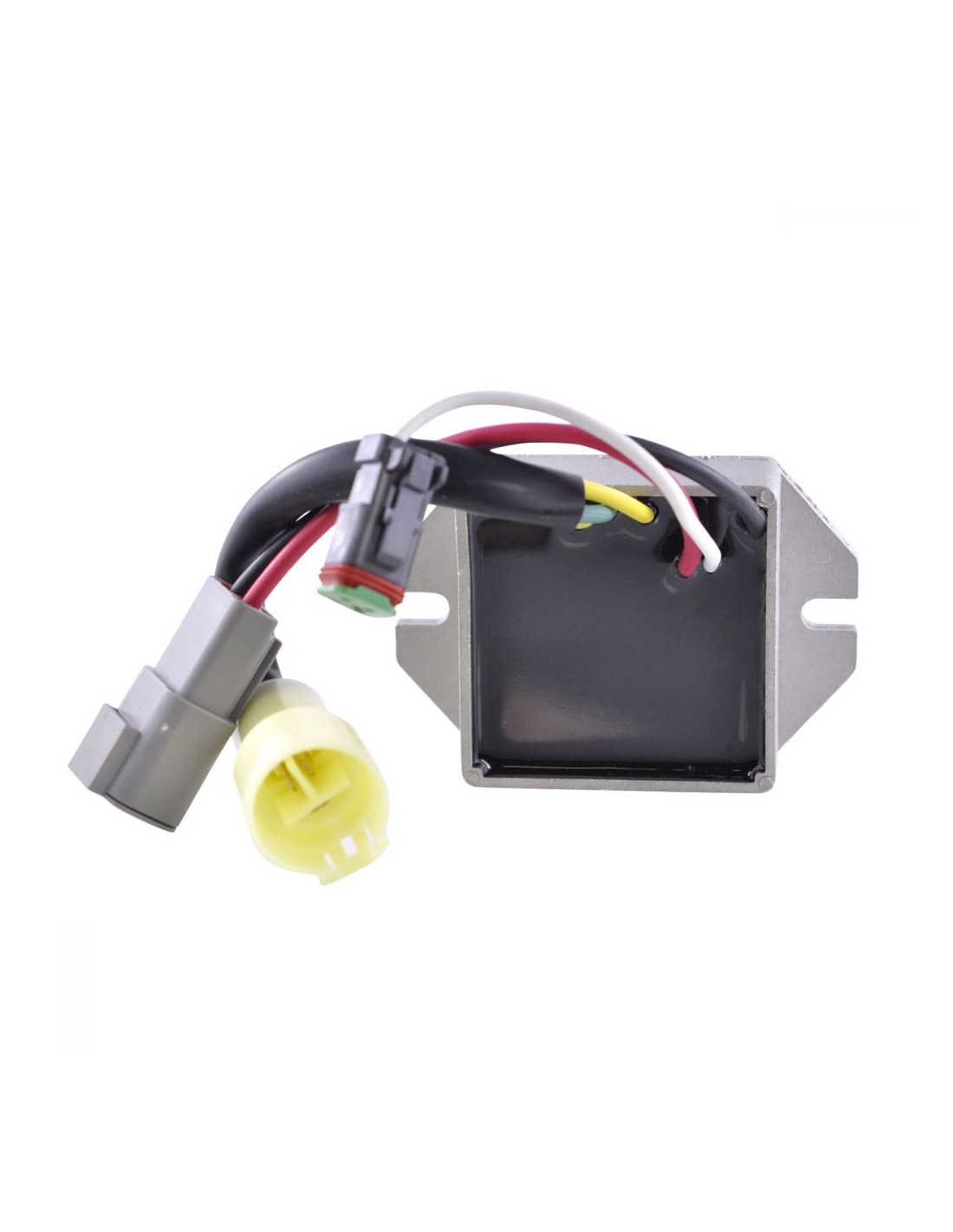

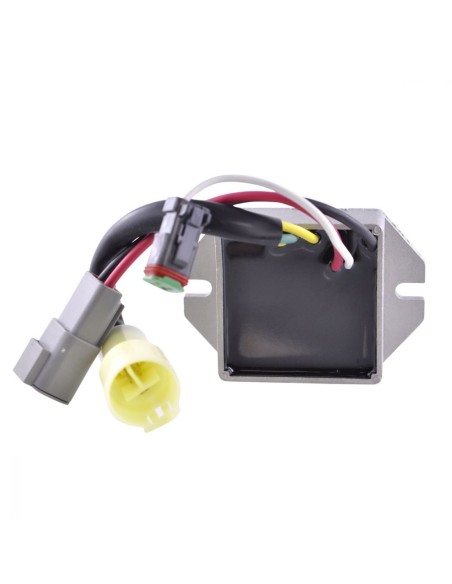

Regulator Rectifier :

Dimensions :

Width: 66 mm

Length: 66 mm

Height: 27 mm

Fixation holes center to center: 84 mm

Wires Length: 130 mm & 110 mm

Other specifications :

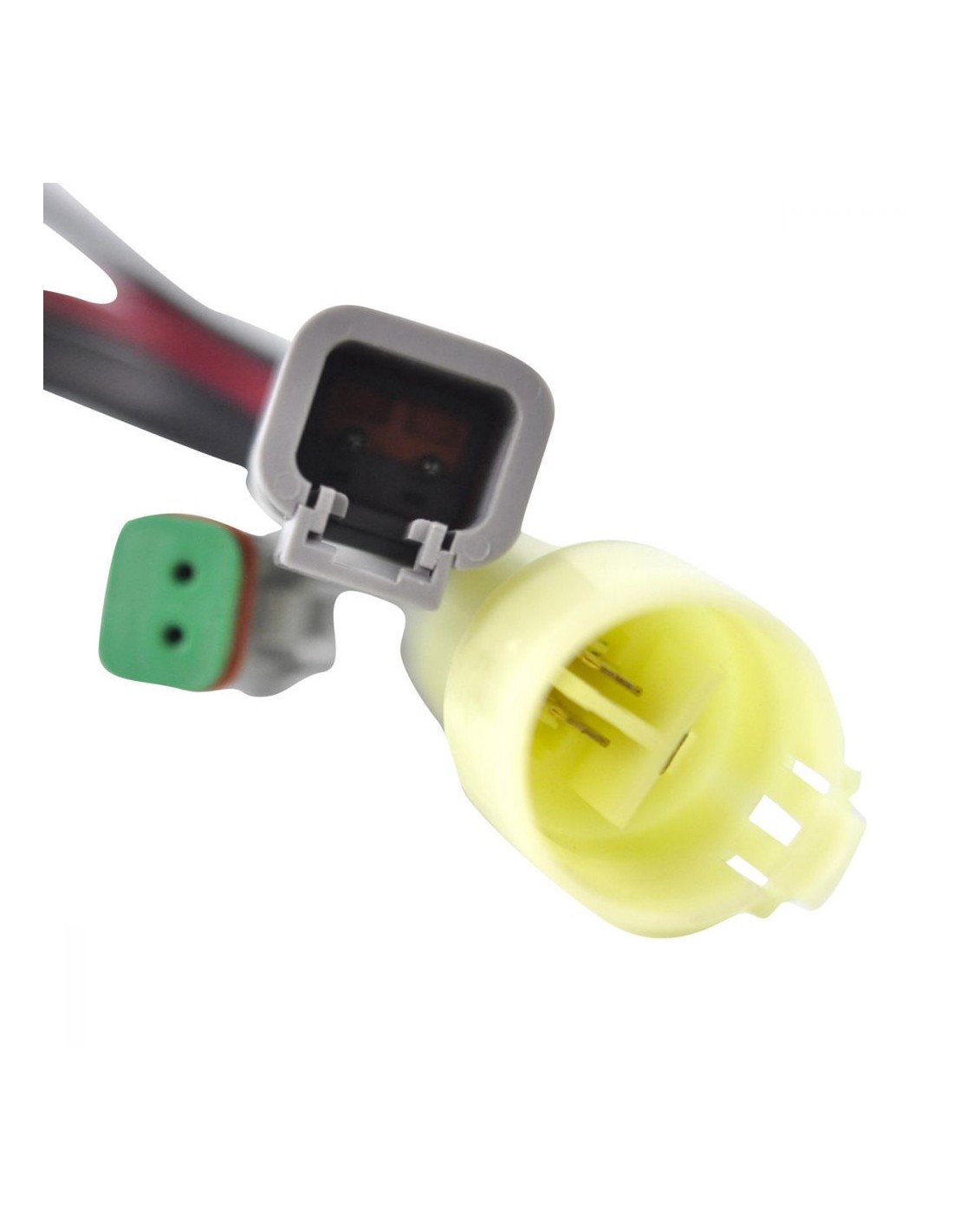

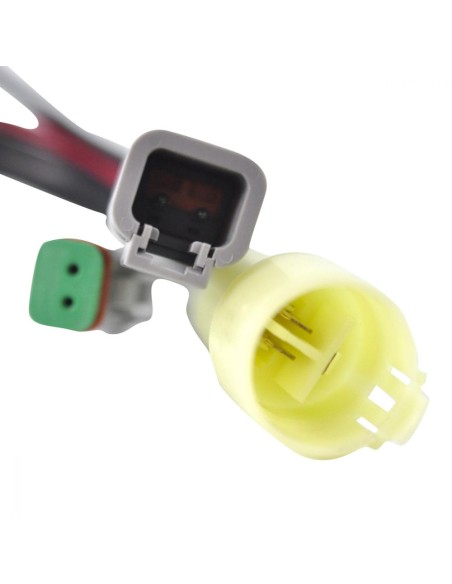

Number of plugs: 3

Number of pins: 6

Number of wires: 6

Minimum Charging Voltage: 14.5V +/- 0.5V

Maximum Charging Current: 50A/500W

Open Circuit Voltage: <15V

Operation Temperature: -20⁰ to 85⁰
