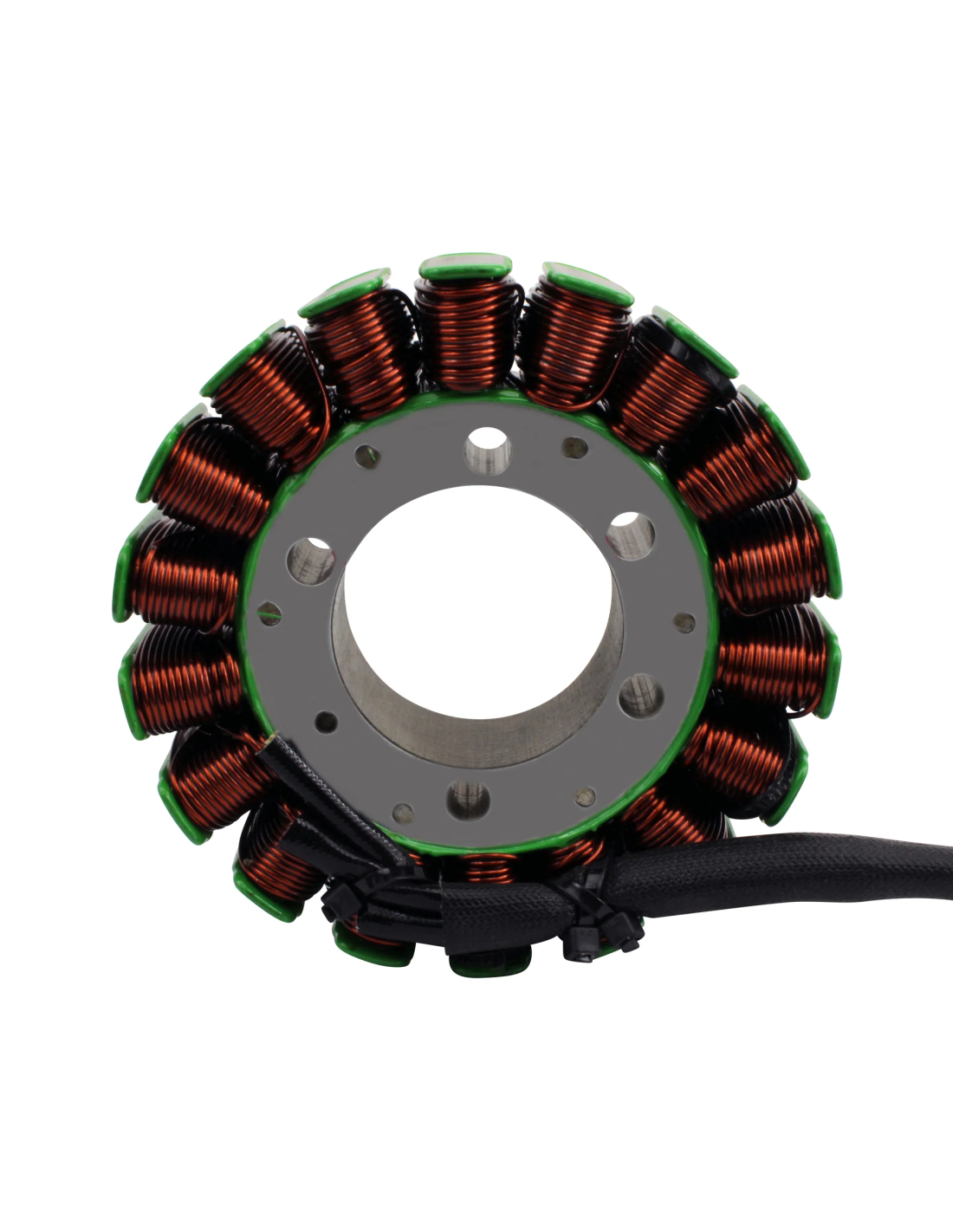

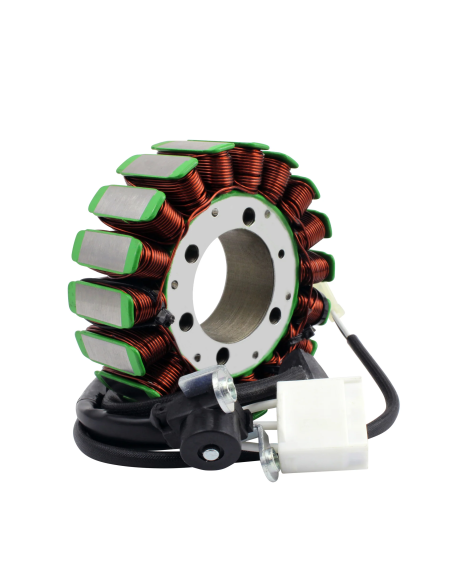

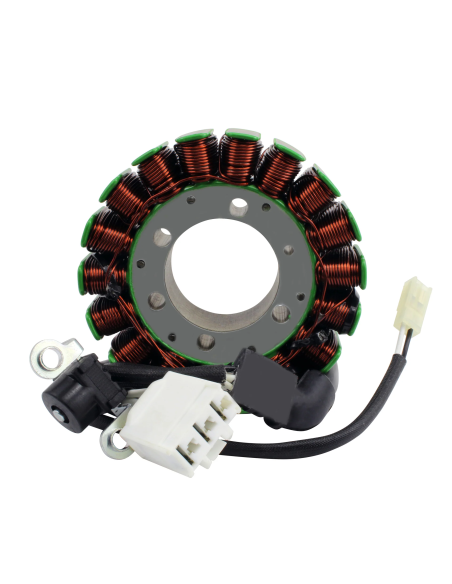

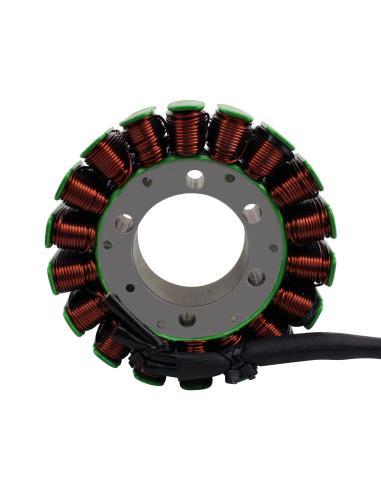

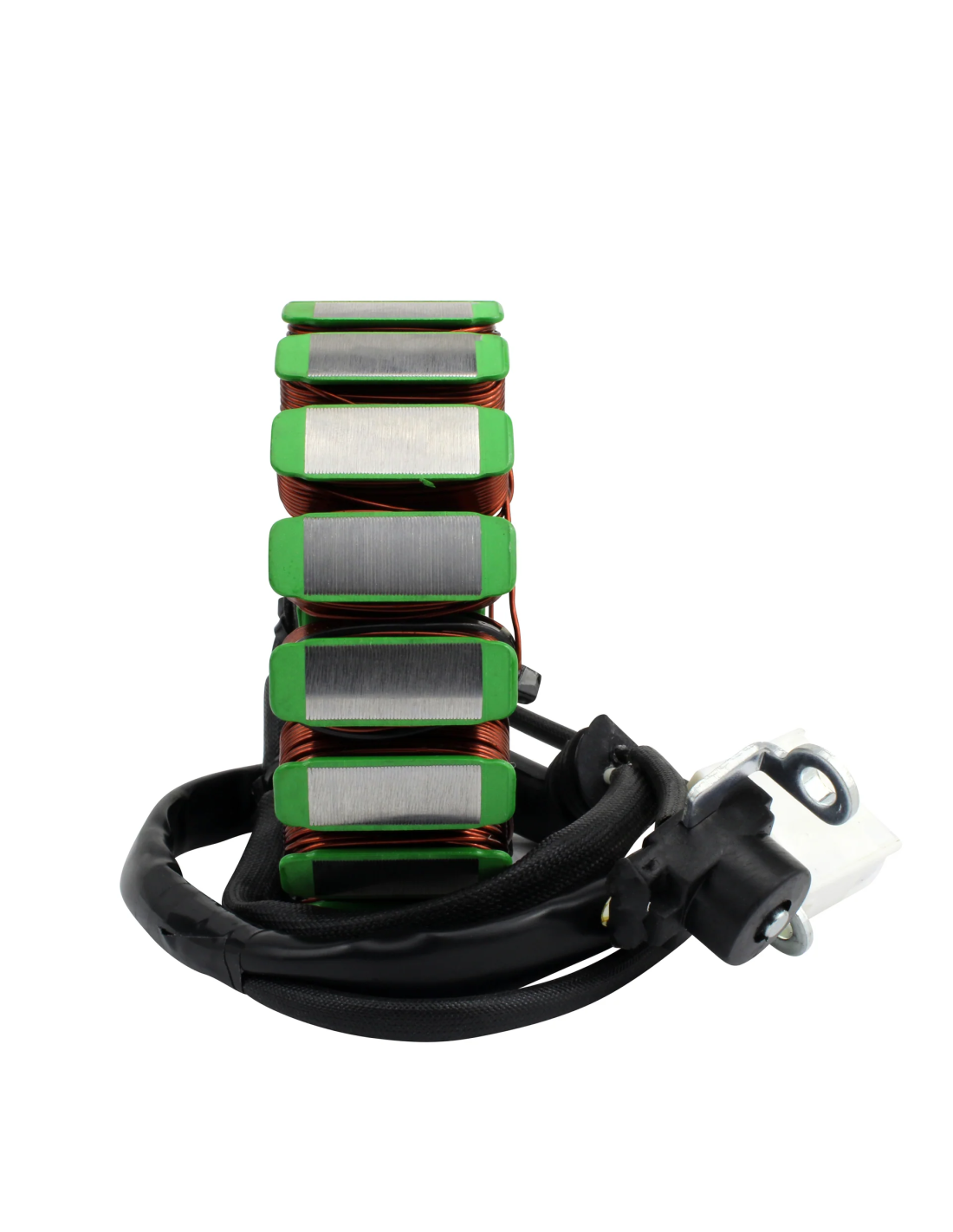

Stator Yamaha MT09 Tracer 900 XSR 900 OEM B7N-81410-00-00 B7N-81410-02-00

2024 Yamaha Tracer 900

2023 Yamaha MT-09

2023 Yamaha XSR 900

2022 Yamaha MT-09

2022 Yamaha Tracer 900

2022 Yamaha XSR 900

2021 Yamaha MT-09

2021 Yamaha Tracer 900

OEM B7N-81410-00-00

B7N-81410-02-00

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 105 mm

Thickness: 27 mm

Length of wires stator to grommet: 160 mm

Length of wires grommet to plug: 220 mm & 350 mm

Length of pickup coil's wire to grommet: 55 mm

Other specifications:

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: White to White = 0.7 ohms +/-20%

Alternator: White to ground = O.L

Pickup: Grey to Black = 280 ohms +/-20%

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Pick up pulsar coil included

Connectors included

Rubber grommet included
