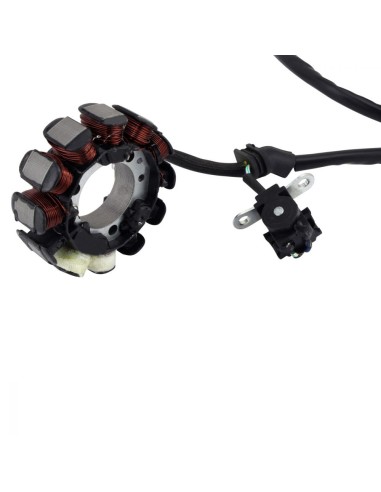

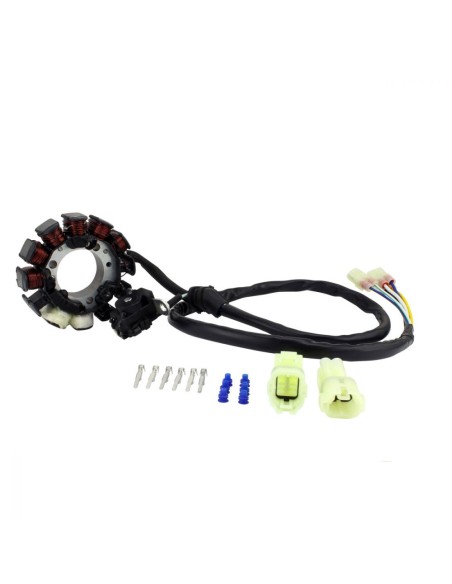

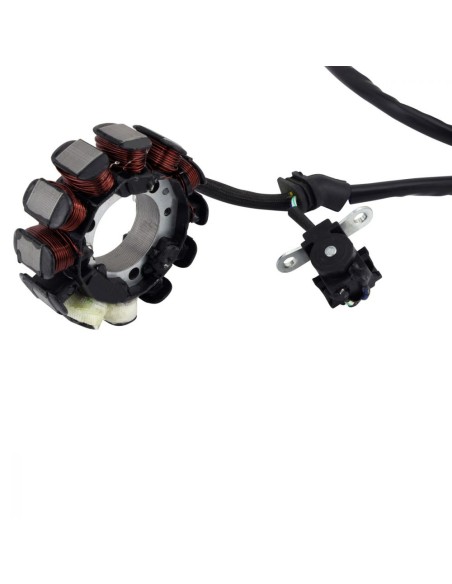

Lightning Stator Honda CRF450X OEM 31120-MEY-672

Stator Resistant to 200°C - Ignition Lightning

2017 Honda CRF 450 X

2016 Honda CRF 450 X

2015 Honda CRF 450 X

2014 Honda CRF 450 X

2013 Honda CRF 450 X

2012 Honda CRF 450 X

2009 Honda CRF 450 X

2008 Honda CRF 450 X

2007 Honda CRF 450 X

2006 Honda CRF 450 X

2005 Honda CRF 450 X

OEM 31120-MEY-672

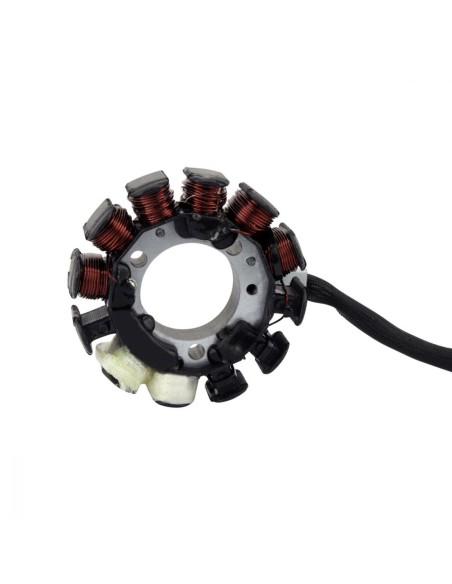

Dimensions:

Interior diameter: 32 mm

Exterior diameter: 77 mm

Thickness: 13 mm

Length of wires stator to grommet: 80 mm

Length of wires grommet to plug: 660 mm

Length of pickup coil's wire to grommet: 60 mm

Other specifications:

Number of wires: 6

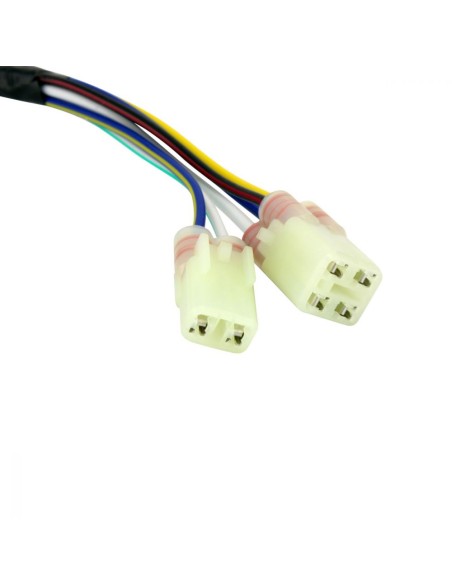

Number of plugs: 2

Number of pins: 6

Number of poles: 12

Wire to wire resistance:

Alternator: Yellow to White = 0.4 ohms +-20%

Center of Yellow and White coil is grounded. Yellow and White are each 2.0ohm to ground.

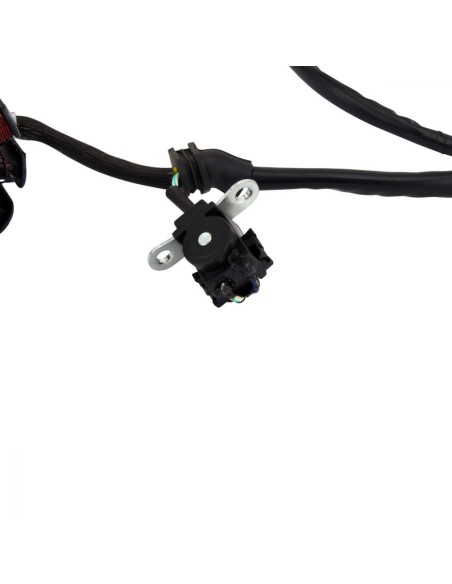

Pickup: Green/White to Blue/Yellow = 241 ohms +-20%

Source: Blue to Black/Red = 20 ohms +-20%
