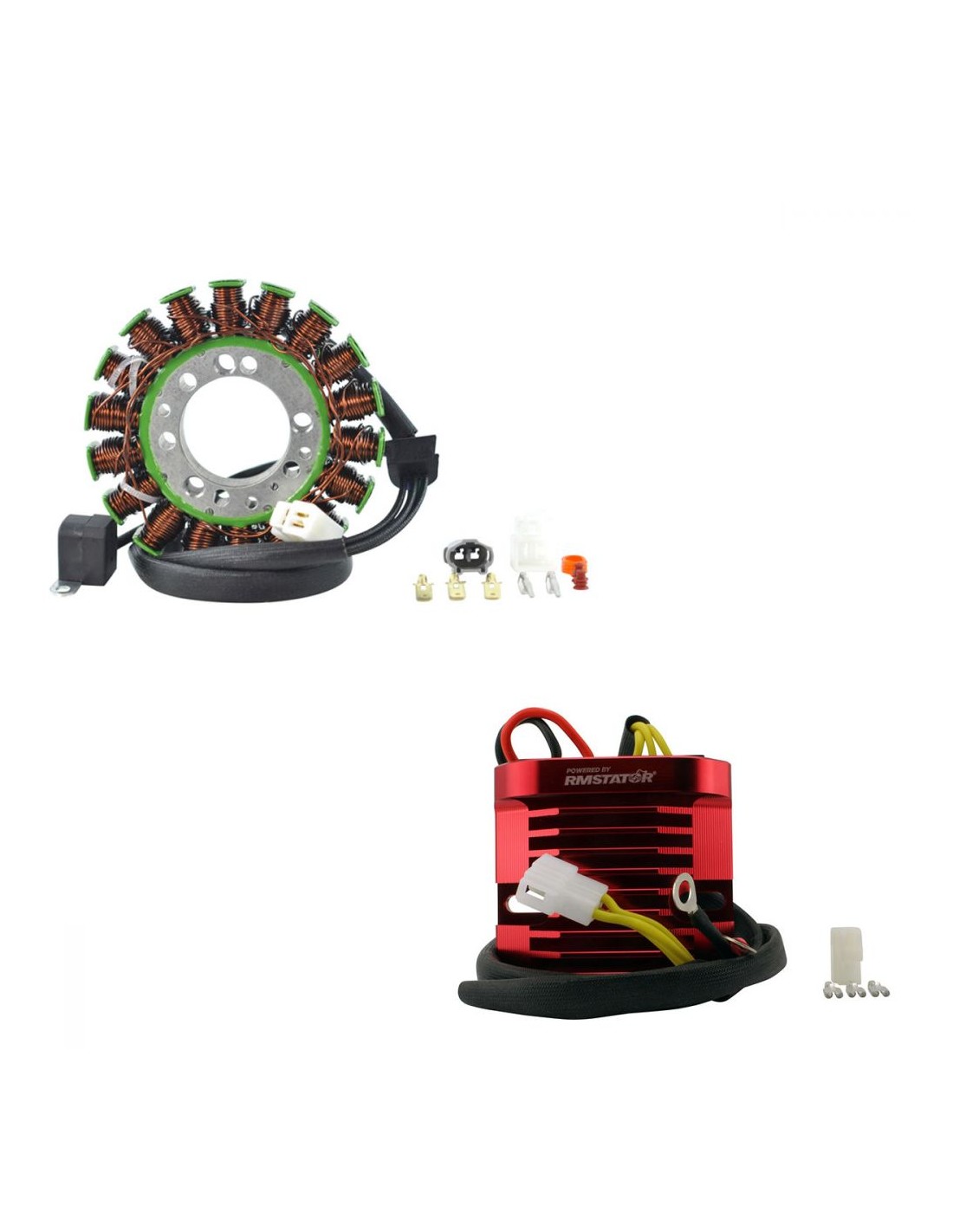

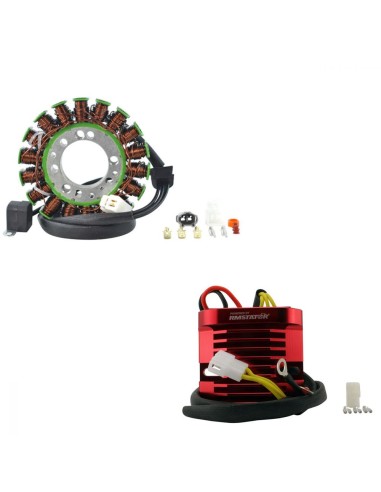

Kit Stator Mosfet Bypass Regulator Rectifier Triumph Daytona 675 Street Triple 675 675R OEM T1300039 T1301234

2020 Triumph Street Triple 675 R

2020 Triumph Daytona 675

2019 Triumph Street Triple 675 R

2019 Triumph Daytona 675

2018 Triumph Daytona 675

2017 Triumph Street Triple 675 R

2017 Triumph Street Triple 675

2017 Triumph Daytona 675

2016 Triumph Street Triple 675 R

2016 Triumph Street Triple 675

2016 Triumph Daytona 675

2015 Triumph Street Triple 675 R

2015 Triumph Street Triple 675

2015 Triumph Daytona 675

2014 Triumph Street Triple 675 R

2014 Triumph Street Triple 675

2014 Triumph Daytona 675

2013 Triumph Street Triple 675 R

2013 Triumph Street Triple 675

2013 Triumph Daytona 675

2012 Triumph Street Triple 675 R

2012 Triumph Street Triple 675

2012 Triumph Daytona 675

2011 Triumph Street Triple 675 R

2011 Triumph Street Triple 675

2011 Triumph Daytona 675

2010 Triumph Street Triple 675 R

2010 Triumph Street Triple 675

2010 Triumph Daytona 675

2009 Triumph Street Triple 675 R

2009 Triumph Street Triple 675

2009 Triumph Daytona 675

2008 Triumph Street Triple 675 R

2008 Triumph Street Triple 675

2008 Triumph Daytona 675

2007 Triumph Daytona 675

2006 Triumph Daytona 675

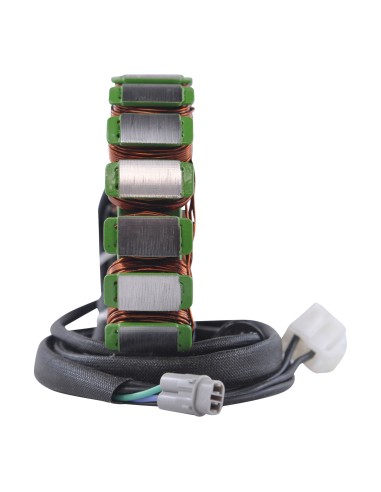

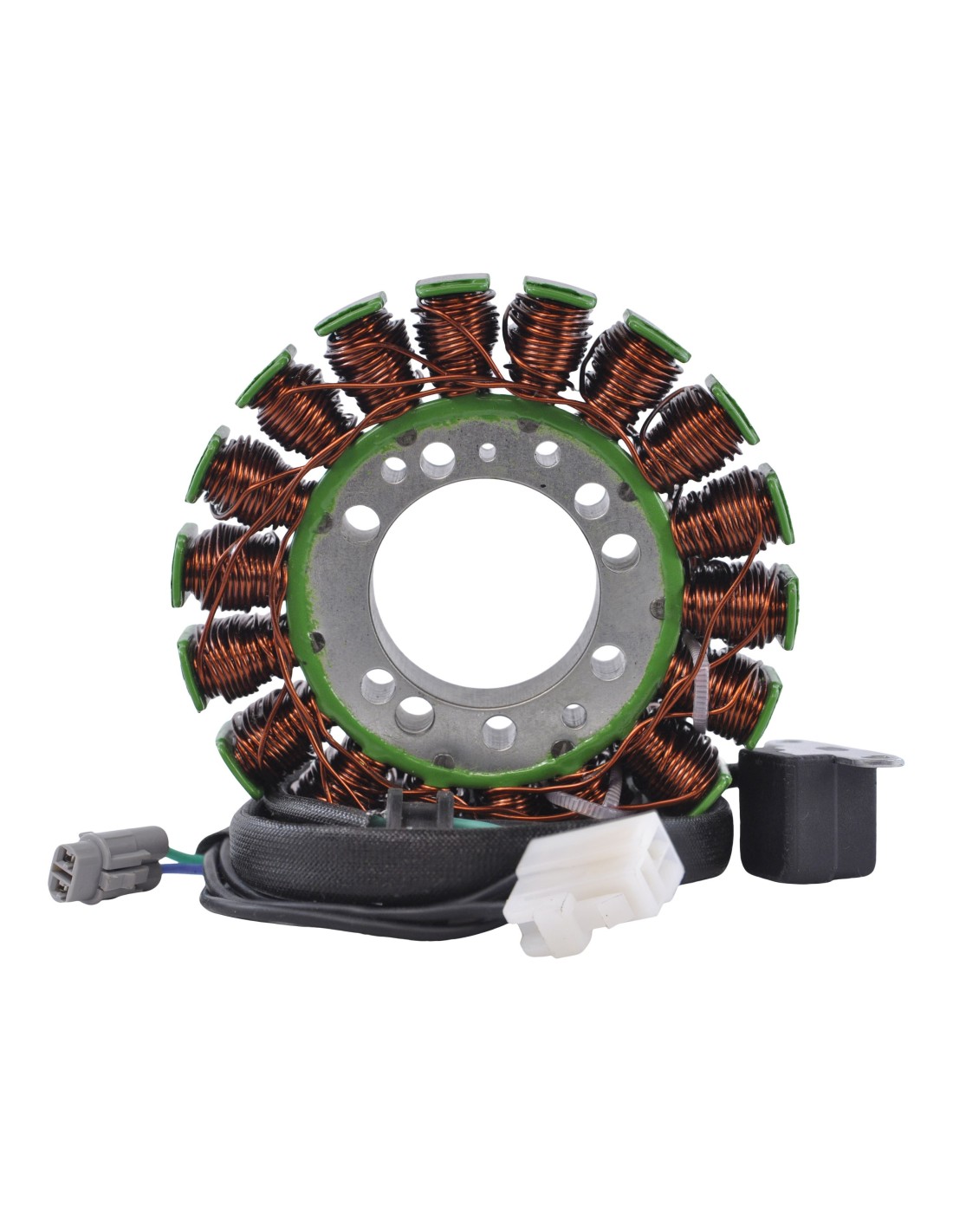

Stator Resistant to 200 degrees Celsius

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 22 mm

Length of wires stator to grommet: 140 mm

Length of wires grommet to plug: 530 mm & 590 mm

Length of pickup coil's wire to grommet: 155 mm

Other specifications:

Number of wires: 5

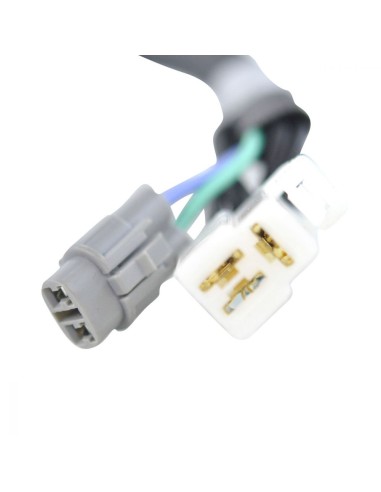

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.5 ohms +-20%

Alternator: to ground = O.L

Pickup: Green to Blue = 200 ohms +-20%

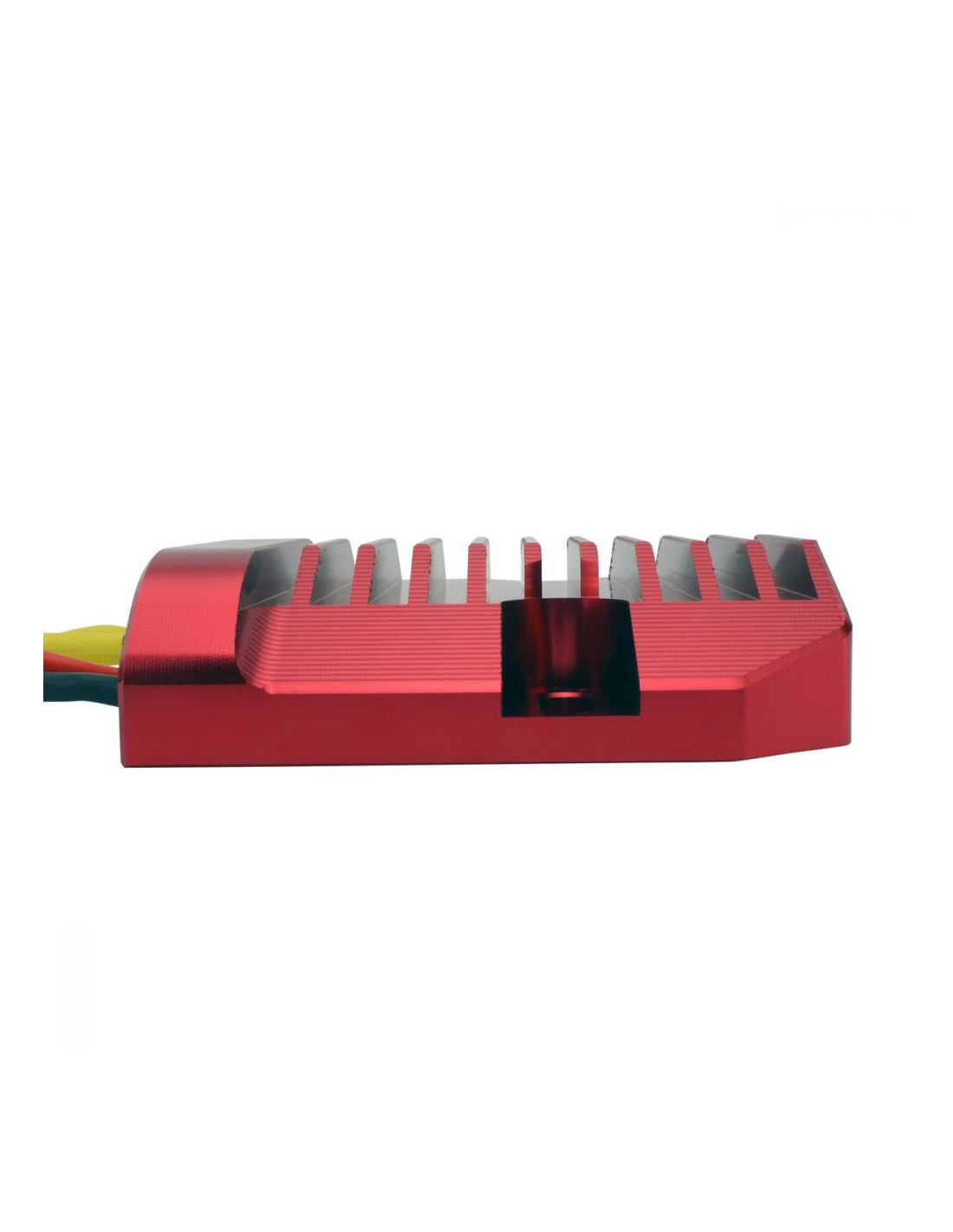

RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier

Dimensions:

Width: 95 mm

Length: 90 mm

Height: 30 mm

Wires length: 811 mm & 350 mm

Fixation holes center to center: 75 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 5

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° to 85°

OEM T1300039 T1301234

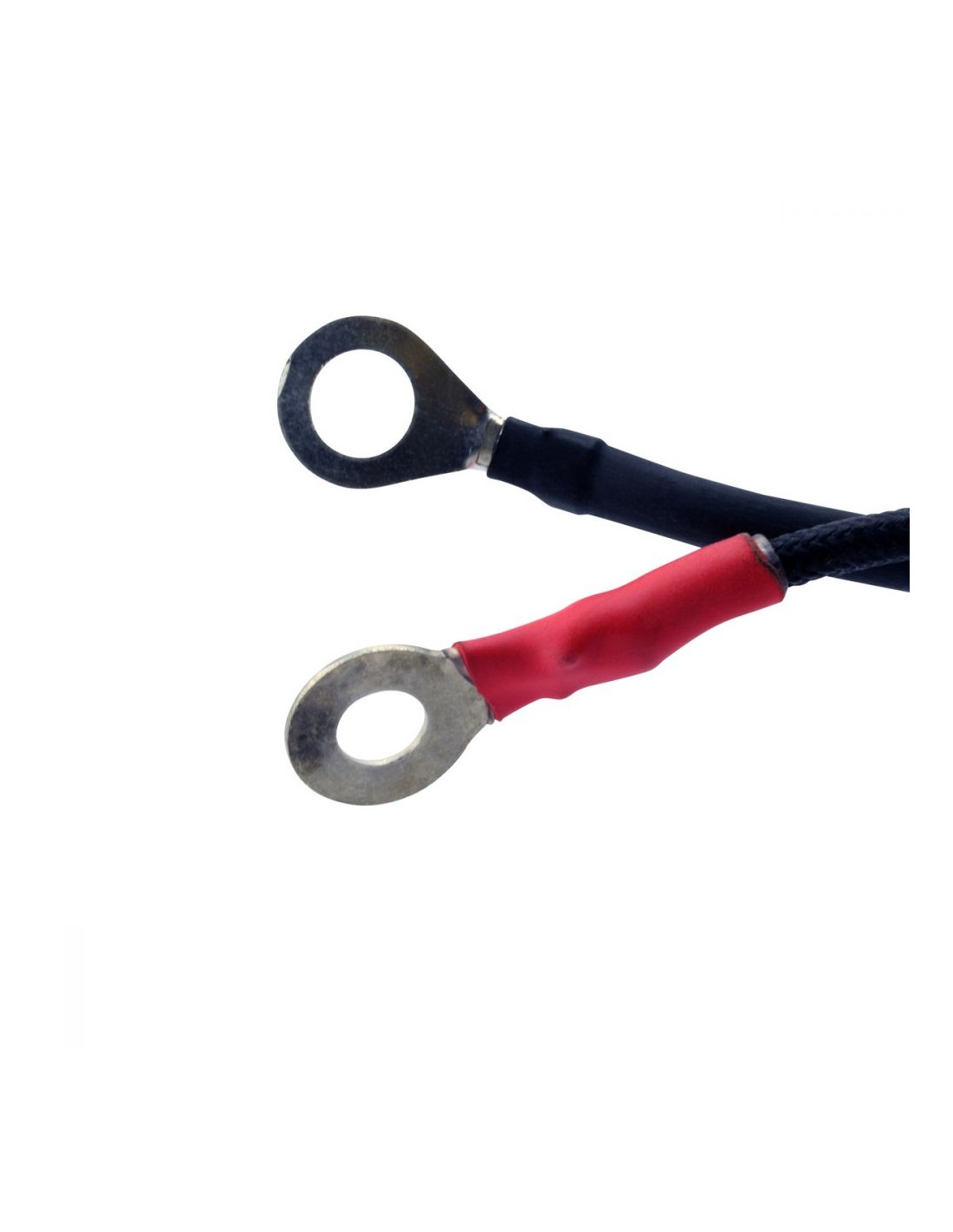

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery, and instead connects directly to the battery with ring terminals for the best possible connection. For Triumph fitments please check your stator to regulator connector as there were 2 versions used and select the correct one. Our possible part numbers are :

CARMS022-106222

CARMS022-107616
