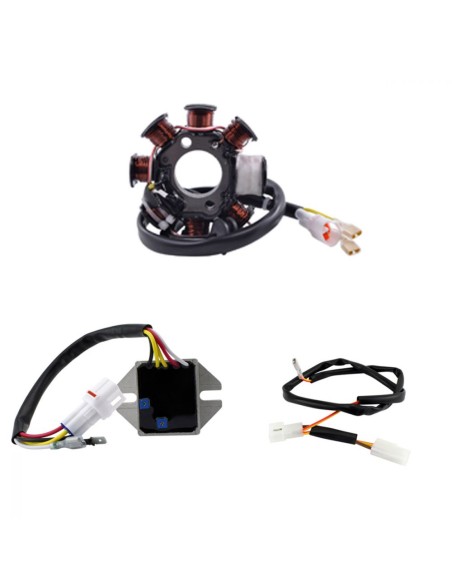

100W AC to DC Conversion Kit Stator Regulator KTM Husqvarna 400 450 530 2008-2011 OEM 80039004000

2011 KTM 530 XC-W

2011 KTM 530 EXC

2011 KTM 450 XC-W

2011 KTM 450 EXC

2010 KTM 530 XC-W

2010 KTM 530 EXC

2010 KTM 450 XC-W

2010 KTM 450 EXC

2010 KTM 400 XC-W

2009 KTM 530 XC-W

2009 KTM 530 EXC

2009 KTM 450 XC-W

2009 KTM 450 EXC-R

2009 KTM 450 EXC

2009 KTM 400 XC-W

2008 KTM 530 XCR-W

2008 KTM 530 EXC-R

2008 KTM 450 XCR-W

2008 KTM 450 EXC-R

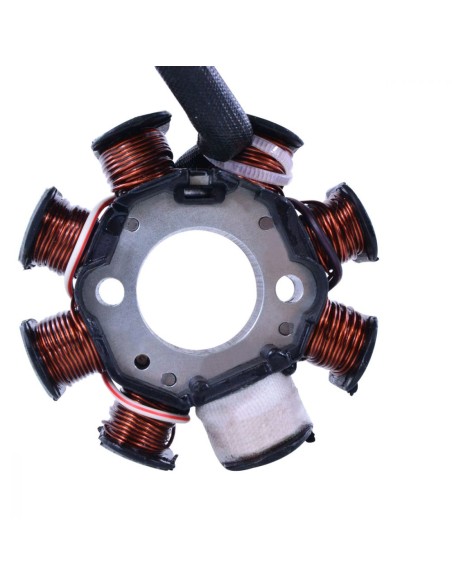

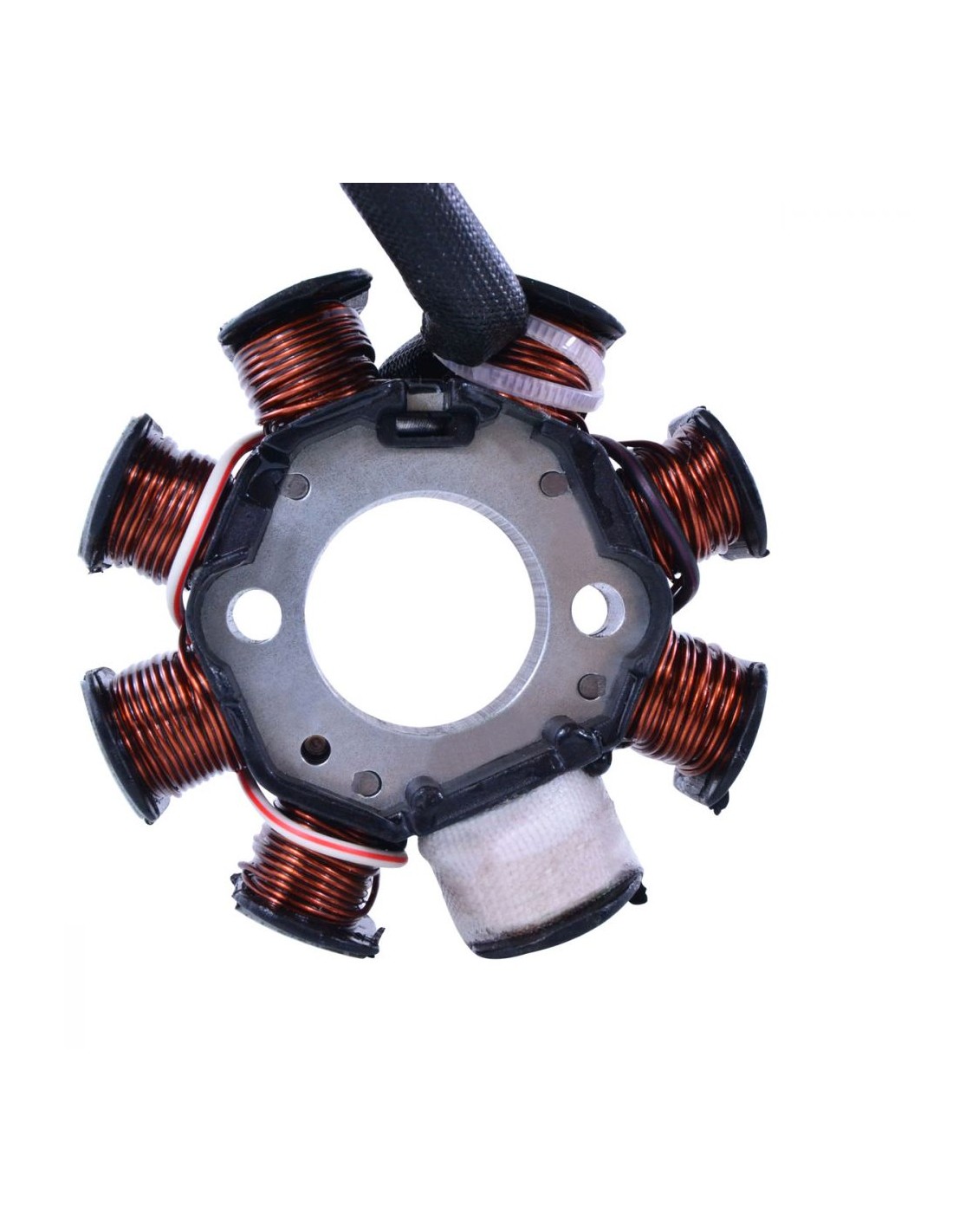

Stator Specifications:

Dimensions:

Interior diameter: 29 mm

Exterior diameter: 83 mm

Thickness: 13 mm

Length of wires stator to grommet: 60 mm

Length of wires grommet to plug: 490 mm

Other specifications:

Number of wires: 4

Number of plugs: 3

Number of pins: 4

Number of poles: 8

Wire to wire resistance:

Alternator: White to Yellow = 0.5 ohms +-20%

Source: Black/Red to Red/White = 30 ohms +-20%

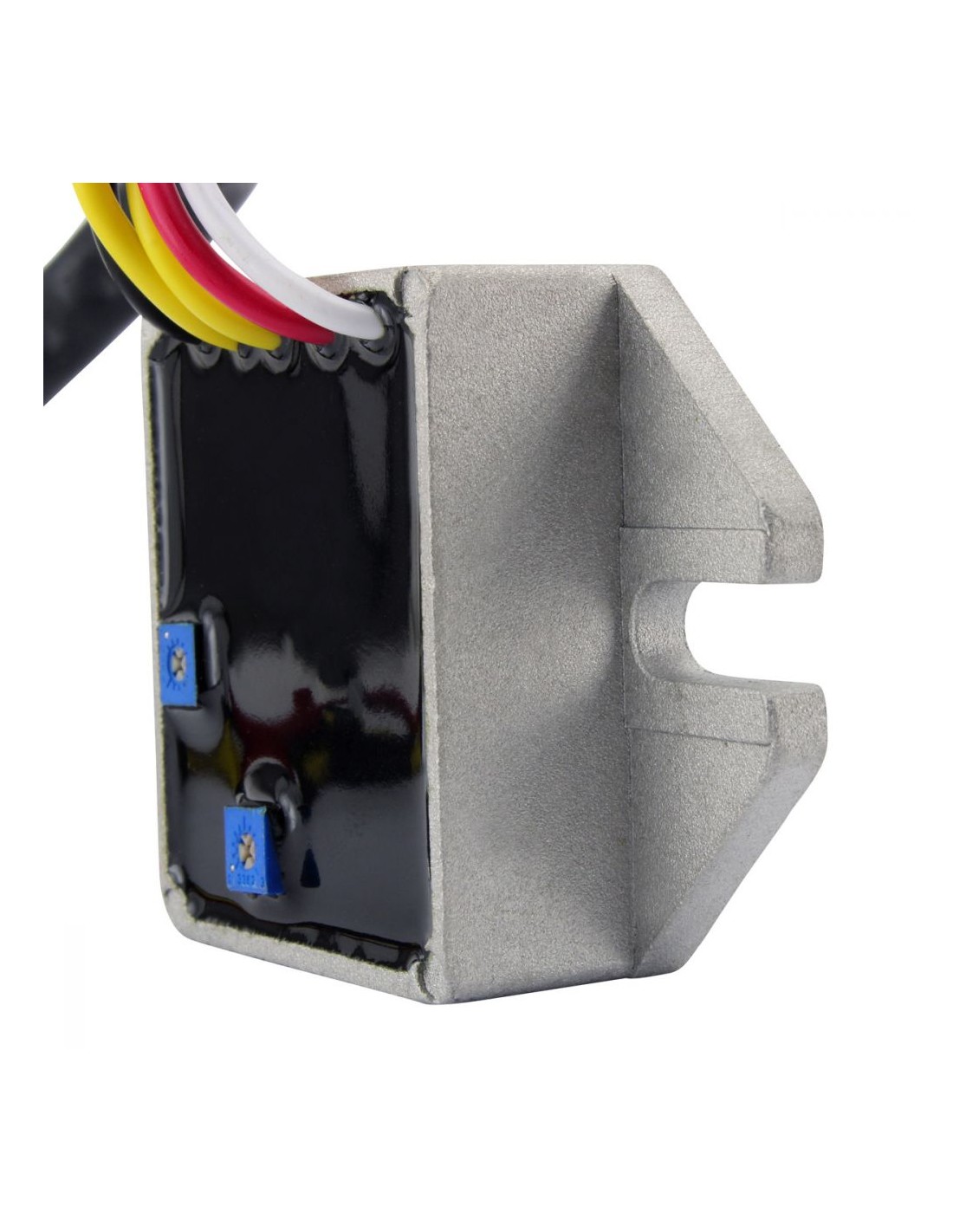

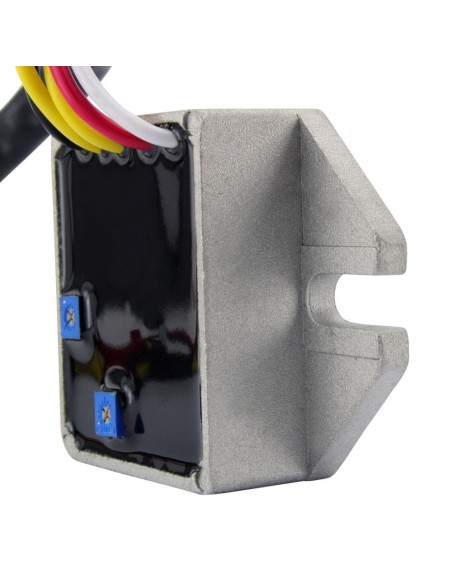

Regulator Rectifier Specifications:

Dimensions:

Width: 54 mm

Length: 80 mm

Height: 22 mm

Wires length: 235 mm

Distance between fixation holes center to center: 65 mm

Other specifications:

Number of plugs: 3

Number of pins: 5

Number of wires: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C

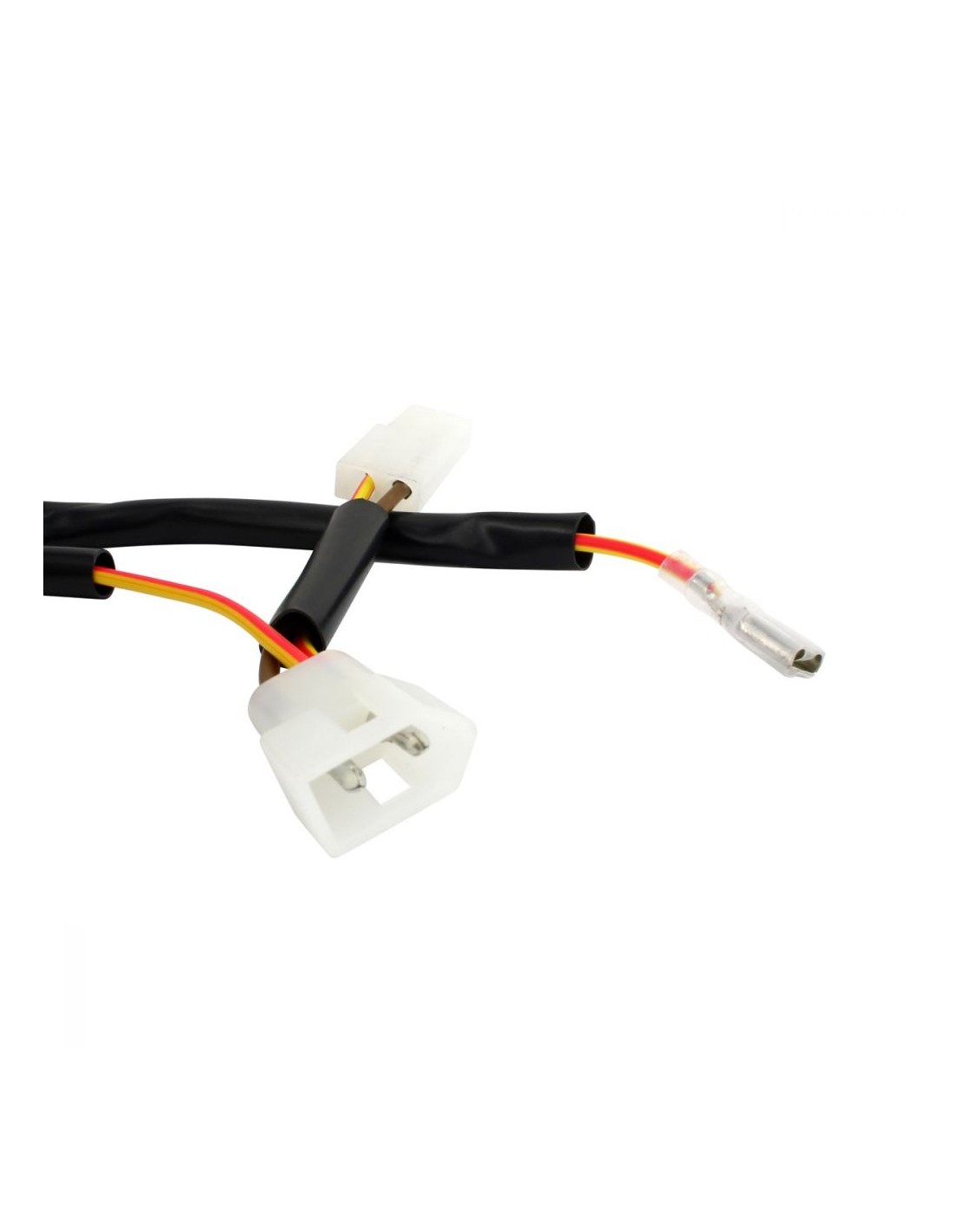

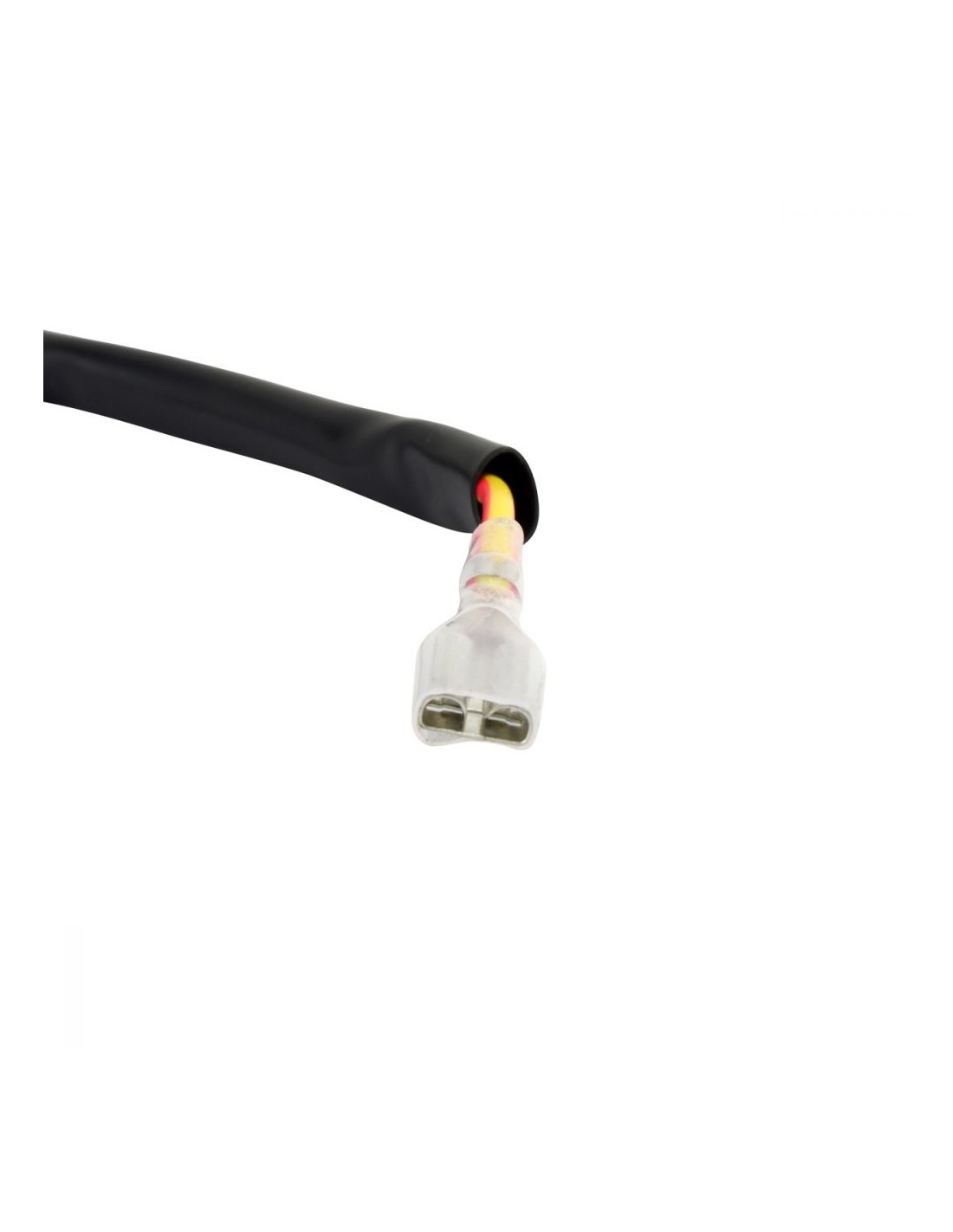

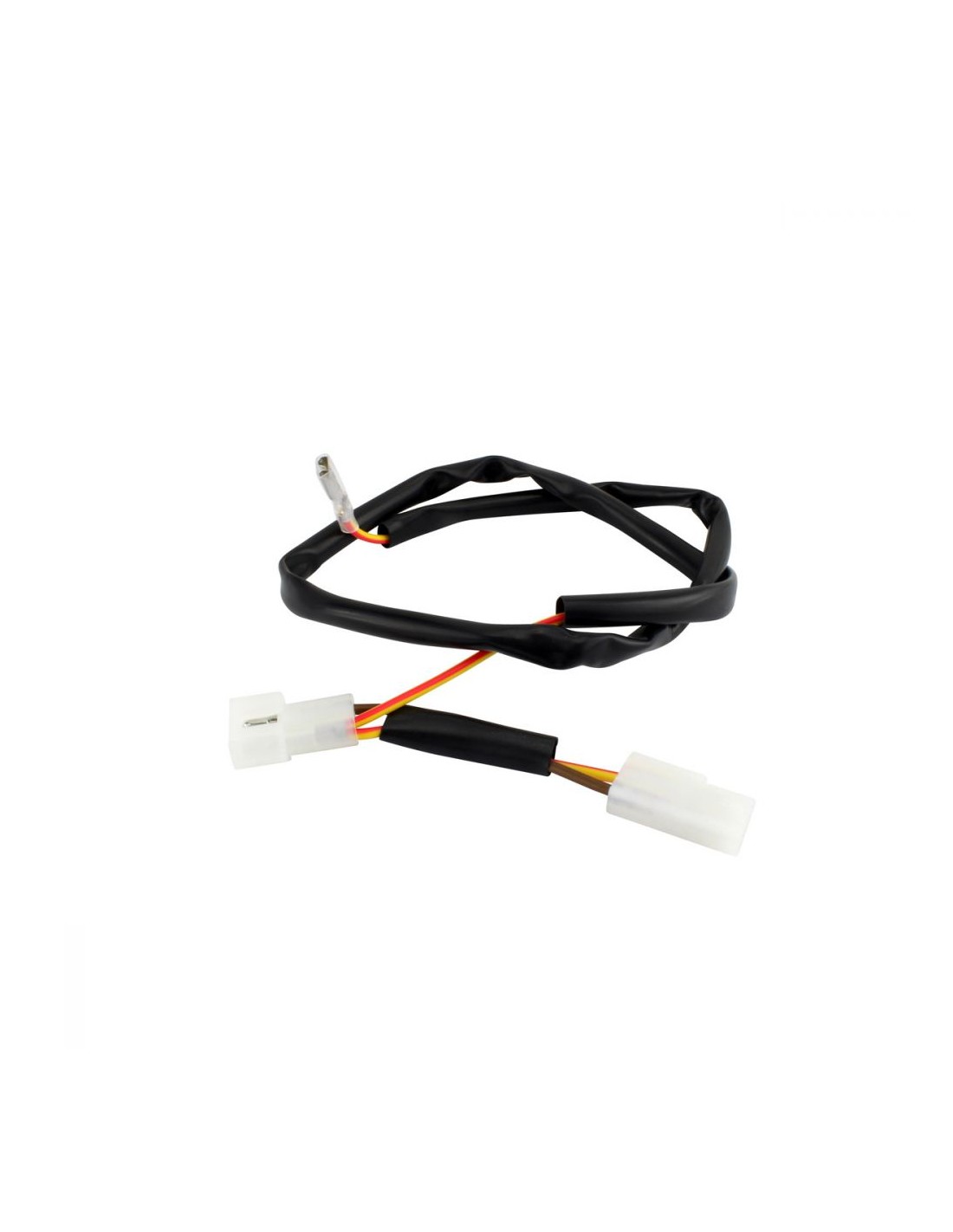

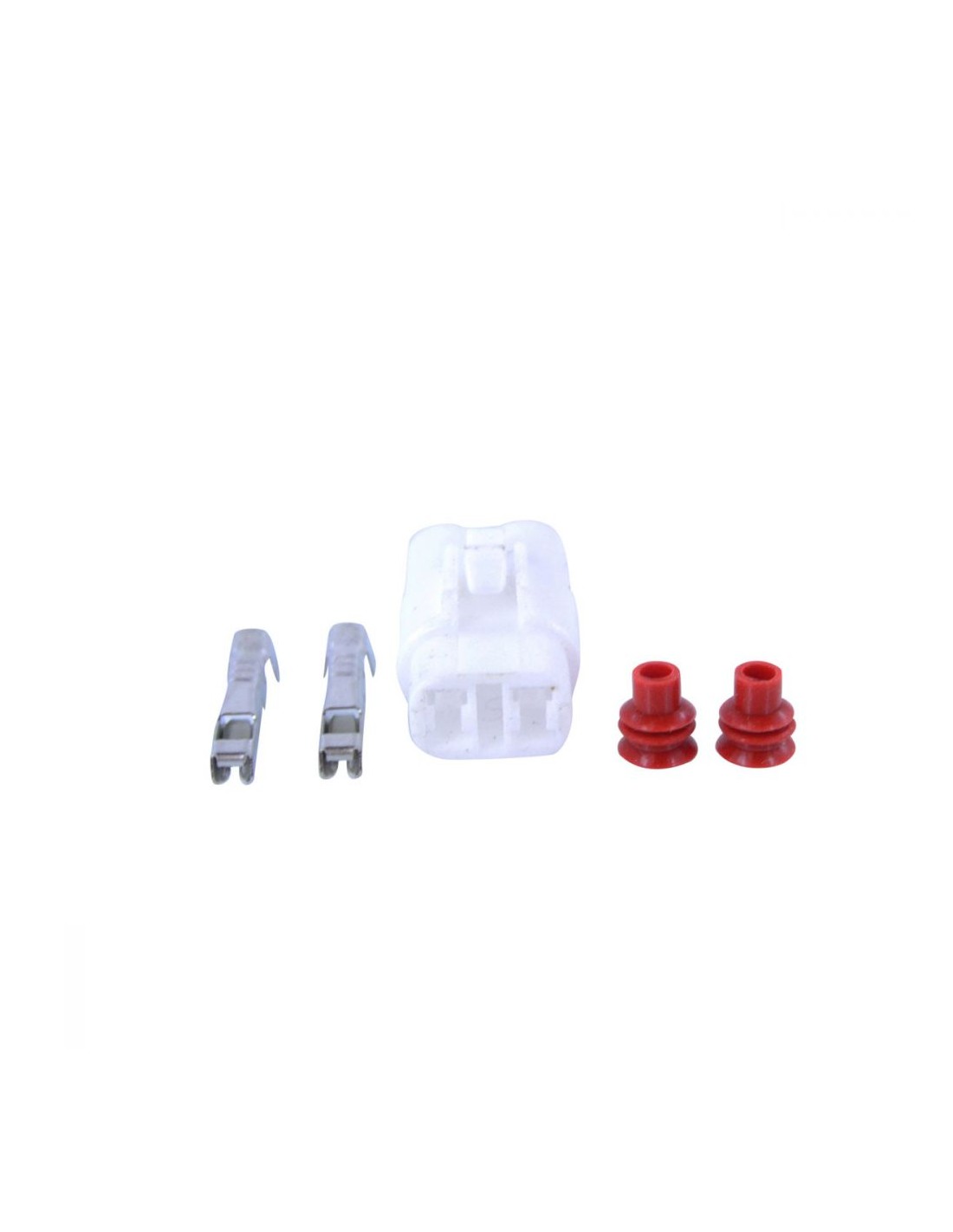

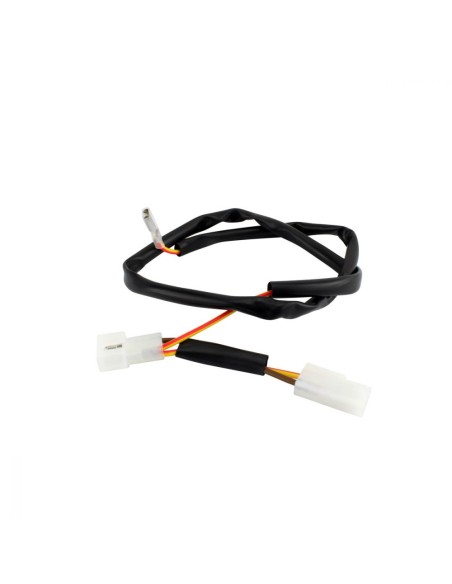

Harness Specifications:

Dimensions:

Wires length: 530 mm and 60 mm

Number of wires: 3

Number of plugs: 3

Number of pins: 5
