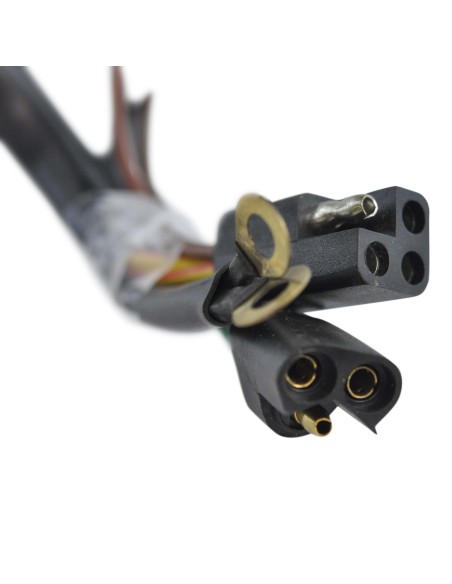

Stator Arctic Cat EXT580 EFI EXT580 Mountain Cat Pantera 440 580 Wildcat 700 ZR580 OEM 3003-907

Stator

Arctic Cat EXT 580 EFI Deluxe L/C 1996
Arctic Cat EXT 580 EFI L/C 1994-1996
Arctic Cat EXT 580 Mountain Cat 1993-1996
Arctic Cat EXT 580 Mountain Cat Wave 1994
Arctic Cat Pantera 440 L/C 1993-1994
Arctic Cat Pantera 580 2-Pass 1995-1996
Arctic Cat Wildcat 700 EFI L/C 1991-1996
Arctic Cat Wildcat 700 Mountain Cat EFI L/C 1991-1996
Arctic Cat Wildcat 700 Touring EFI L/C 1996
Arctic Cat ZR 580 EFI L/C 1995-1996

OEM
3003-907

Dimensions :
Interior diameter : 51mm
Exterior diameter : 114mm
Thickness : 15mm
Length of wires stator to plug : 200mm, 210mm

Other specifications :
Number of wires : 9
Number of plugs : 4
Number of pins : 9

Wire to wire resistance :
Alternator : Yellow/Red to Yellow/Red = 0.4ohms +/-20%
Alternator : Yellow to Brown = 0.4ohms +/-20%
Source : Black to Green = 431ohms +/-20%
Source 2 : Brown to Green = 492ohms +/-20%
