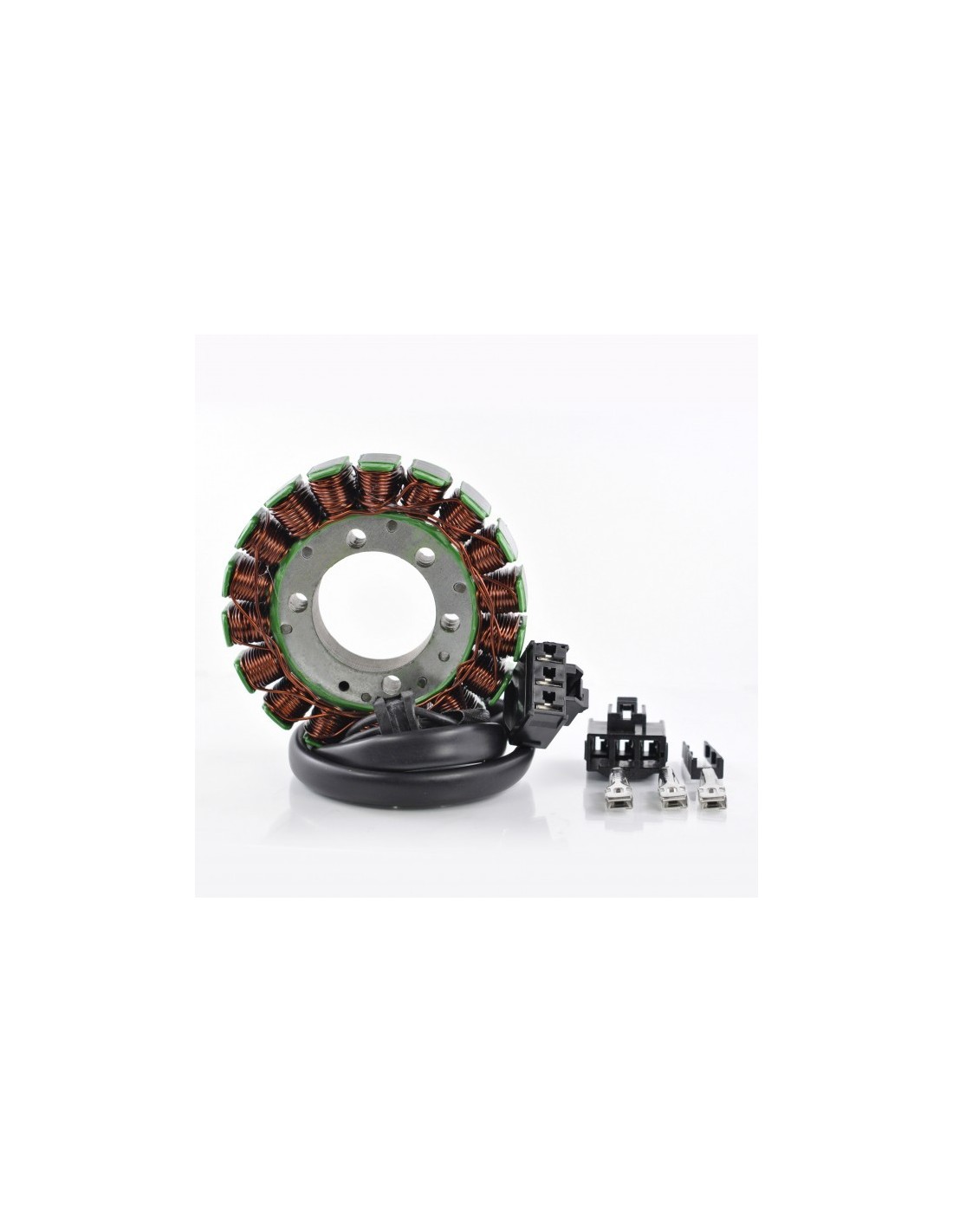

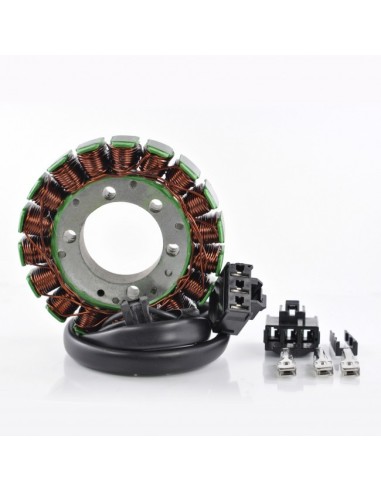

Stator Kawasaki Ninja 1000 Z1000 OEM 21003-0096 21003-0122

2016 Kawasaki Z 800
2016 Kawasaki Z 1000
2016 Kawasaki Ninja 1000
2015 Kawasaki Z 800
2015 Kawasaki Z 1000
2015 Kawasaki Ninja 1000
2014 Kawasaki Z 800
2014 Kawasaki Z 1000
2014 Kawasaki Ninja 1000
2013 Kawasaki Z 800
2013 Kawasaki Z 1000
2013 Kawasaki Ninja 1000
2012 Kawasaki Z 750 R
2012 Kawasaki Z 750
2012 Kawasaki Z 1000
2012 Kawasaki Ninja 1000
2011 Kawasaki Z 750 R
2011 Kawasaki Z 750
2011 Kawasaki Z 1000
2011 Kawasaki Ninja 1000
2010 Kawasaki Z 750
2010 Kawasaki Z 1000
2009 Kawasaki Z 750
2009 Kawasaki Z 1000
2008 Kawasaki Z 750
2008 Kawasaki Z 1000
2007 Kawasaki Z 750
2007 Kawasaki Z 1000

OEM 21003-0096
21003-0122

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm

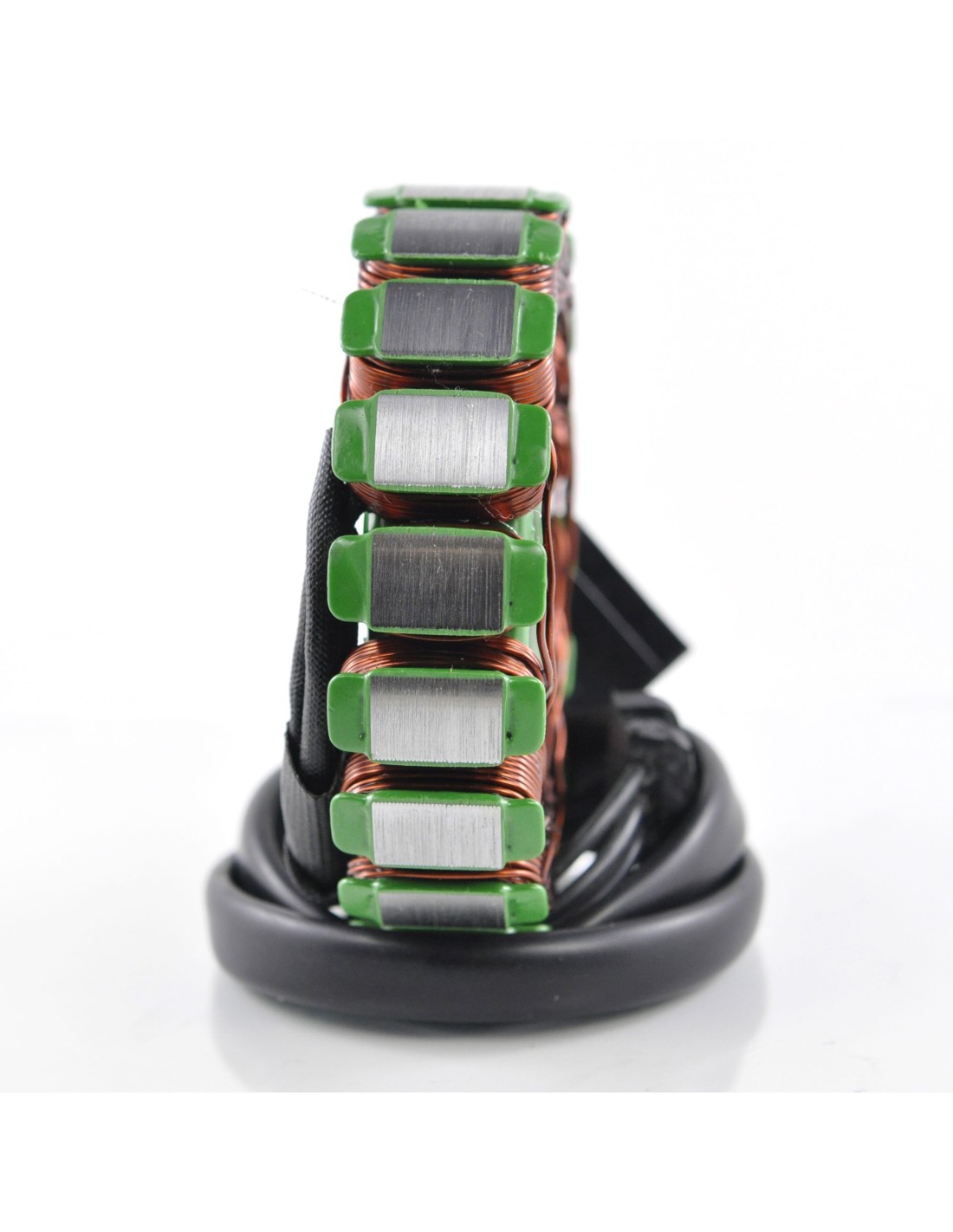

Thickness : 19 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 540 mm

Other specifications :
Number of wires : 3

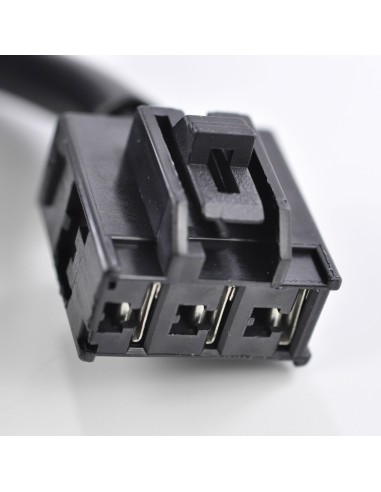

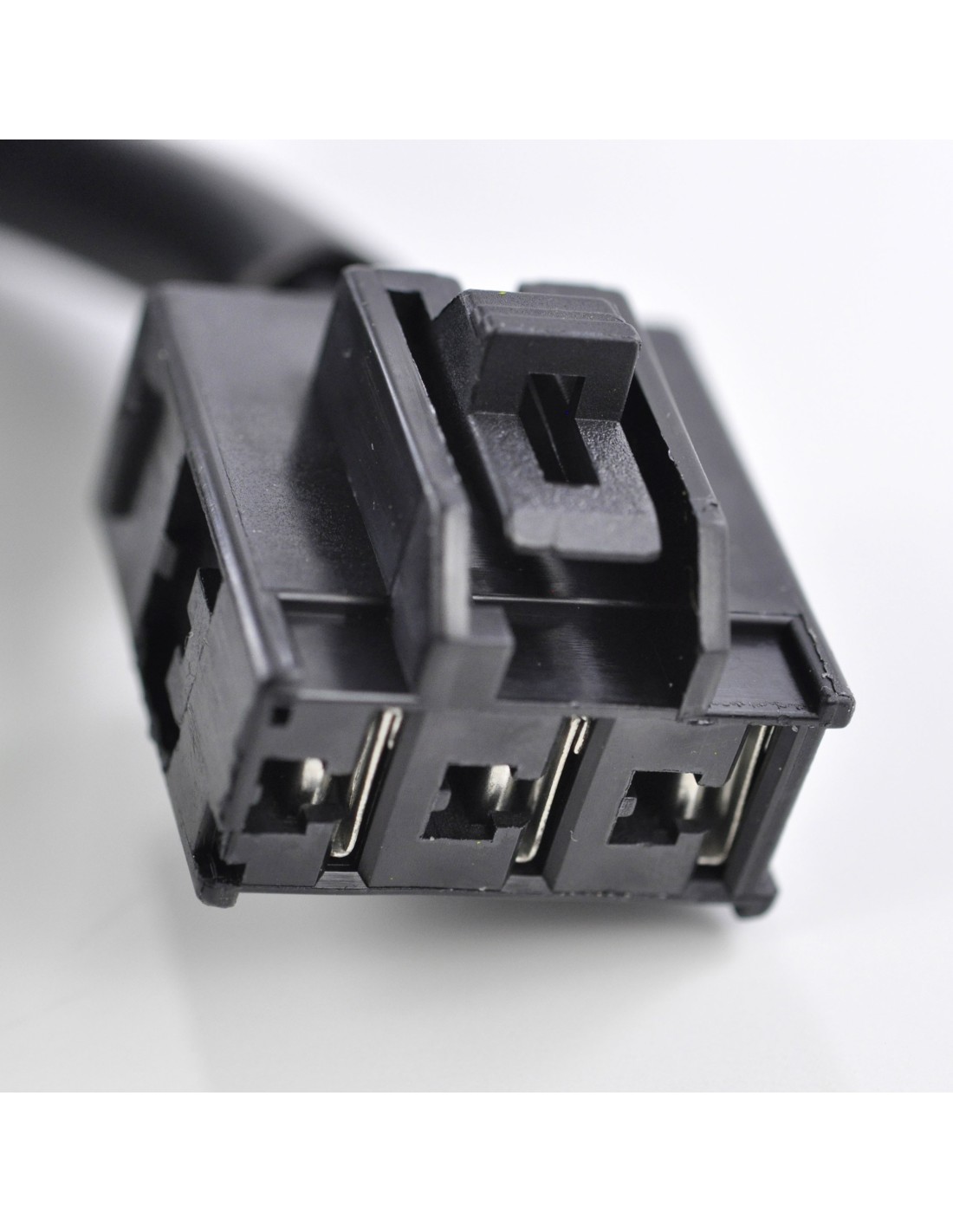

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.6 ohms +-20%
