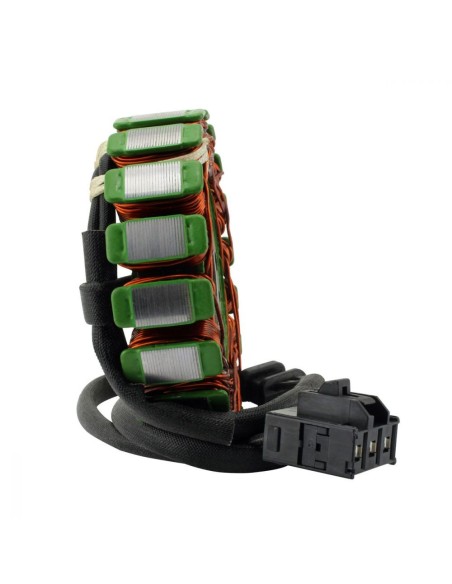

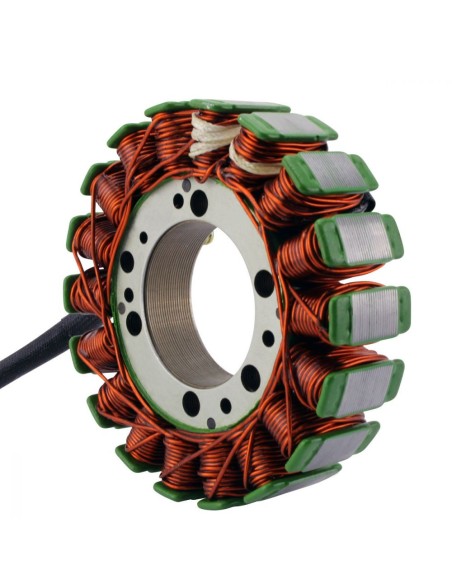

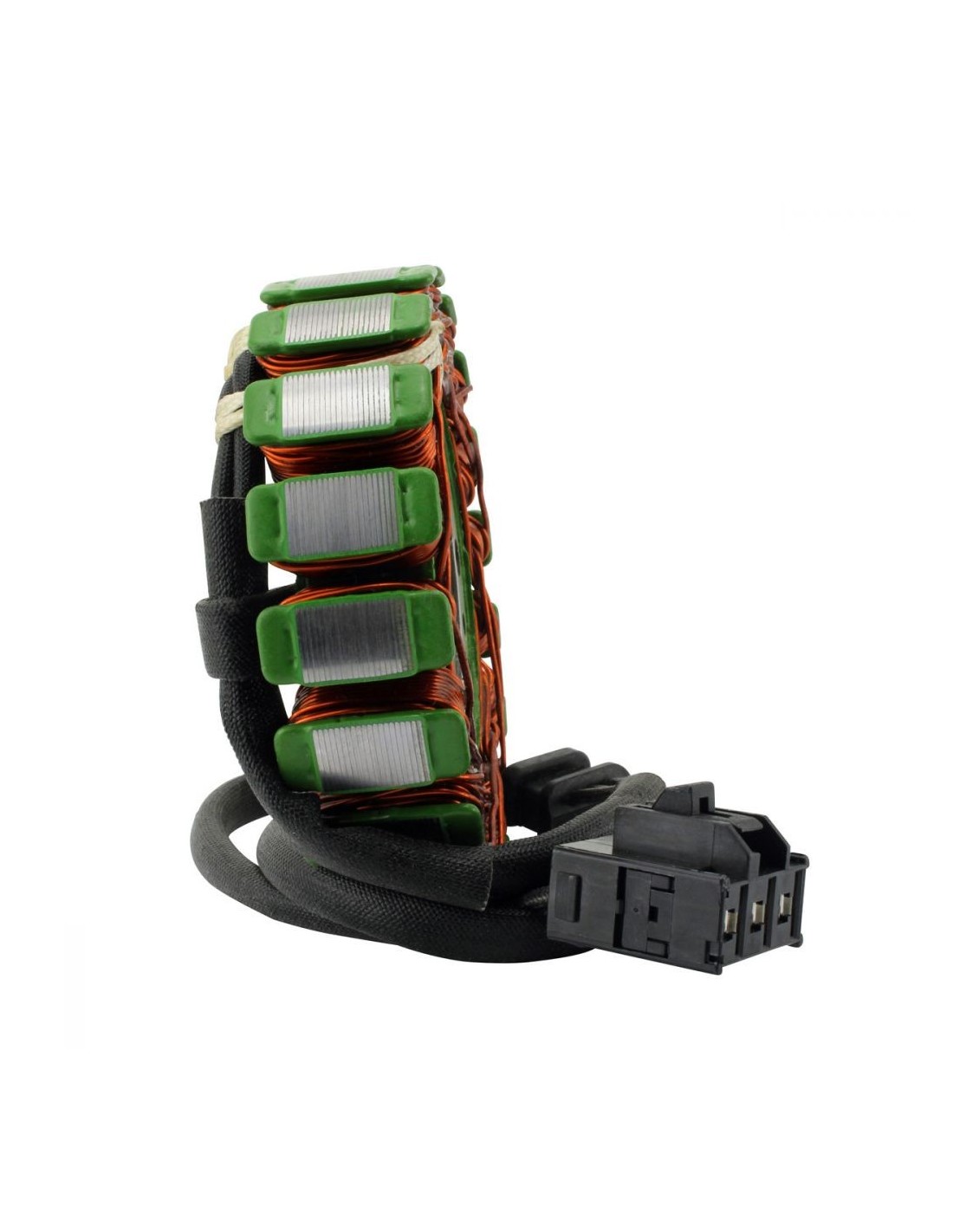

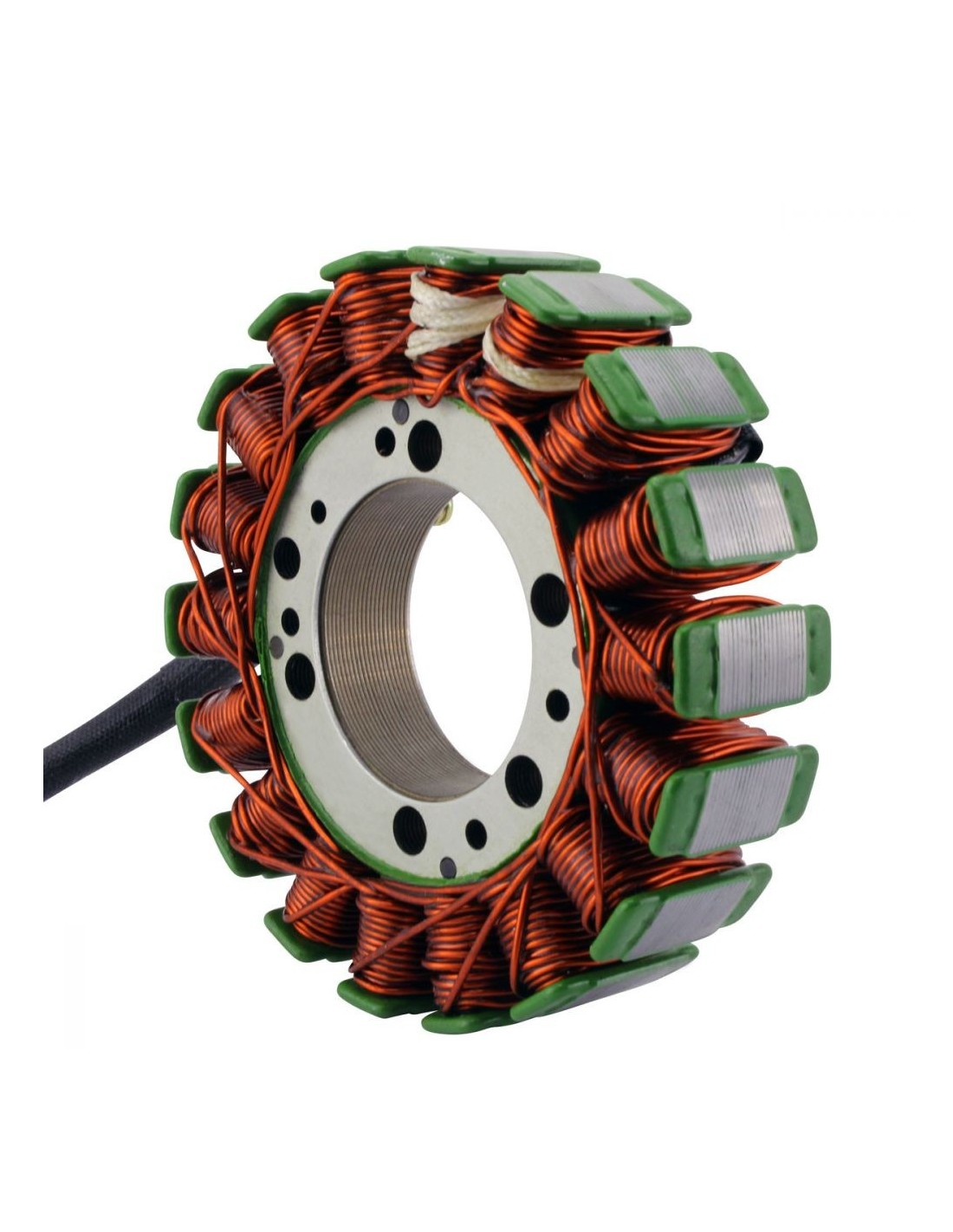

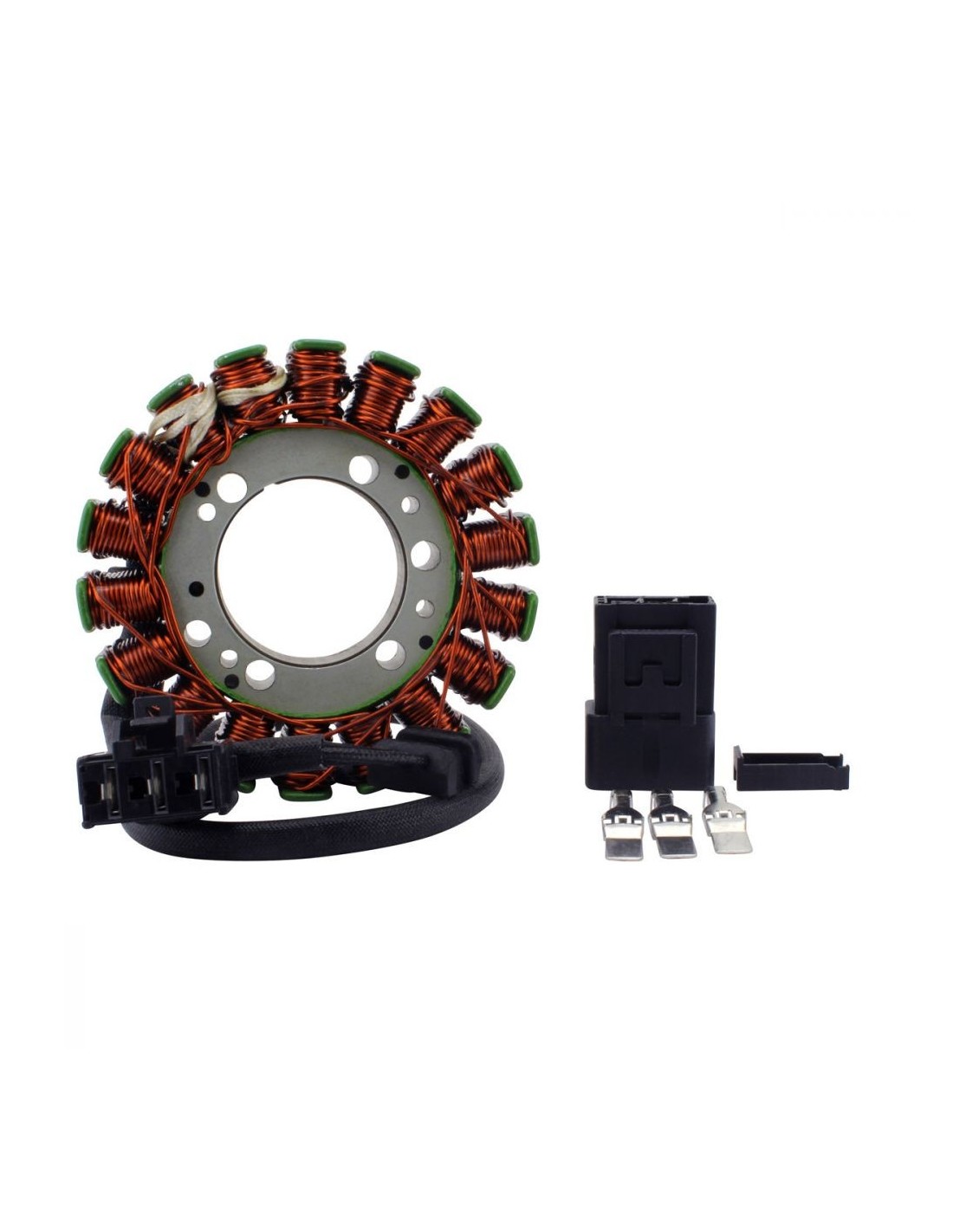

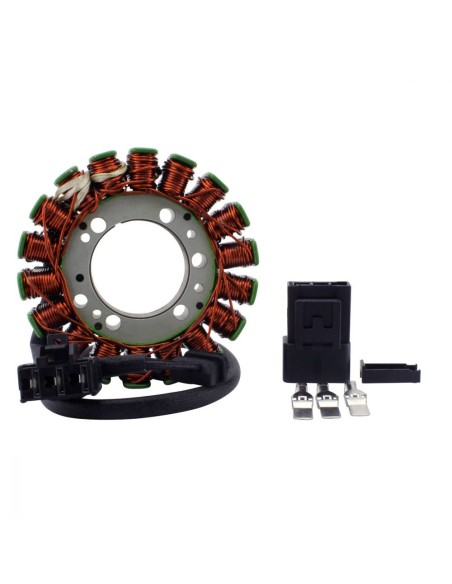

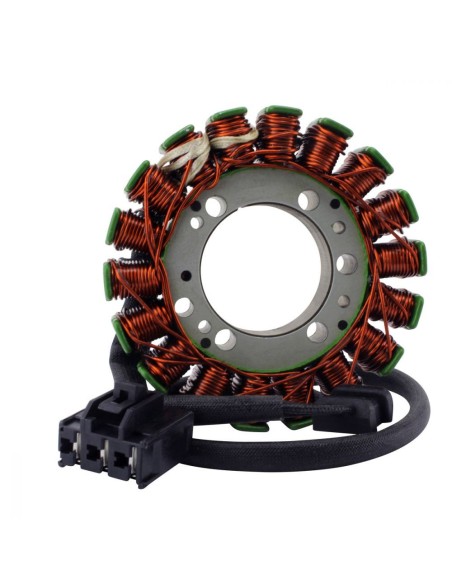

Stator Kawasaki Z800 Z750R Z750 Z1000 OEM 21003-0133 21003-0046

Stator Kawasaki

2016 Kawasaki Z 800
2015 Kawasaki Z 800
2014 Kawasaki Z 800
2013 Kawasaki Z 800
2012 Kawasaki Z 750 R
2012 Kawasaki Z 750
2011 Kawasaki Z 750 R
2011 Kawasaki Z 750
2010 Kawasaki Z 750
2009 Kawasaki Z 750
2009 Kawasaki Z 1000
2008 Kawasaki Z 750
2008 Kawasaki Z 1000
2007 Kawasaki Z 750
2007 Kawasaki Z 1000

OEM 21003-0133
21003-0046

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 18 mm
Length of wires stator to grommet: 12 5mm
Length of wires grommet to plug: 420 mm
Other specifications:
Number of wires: 3

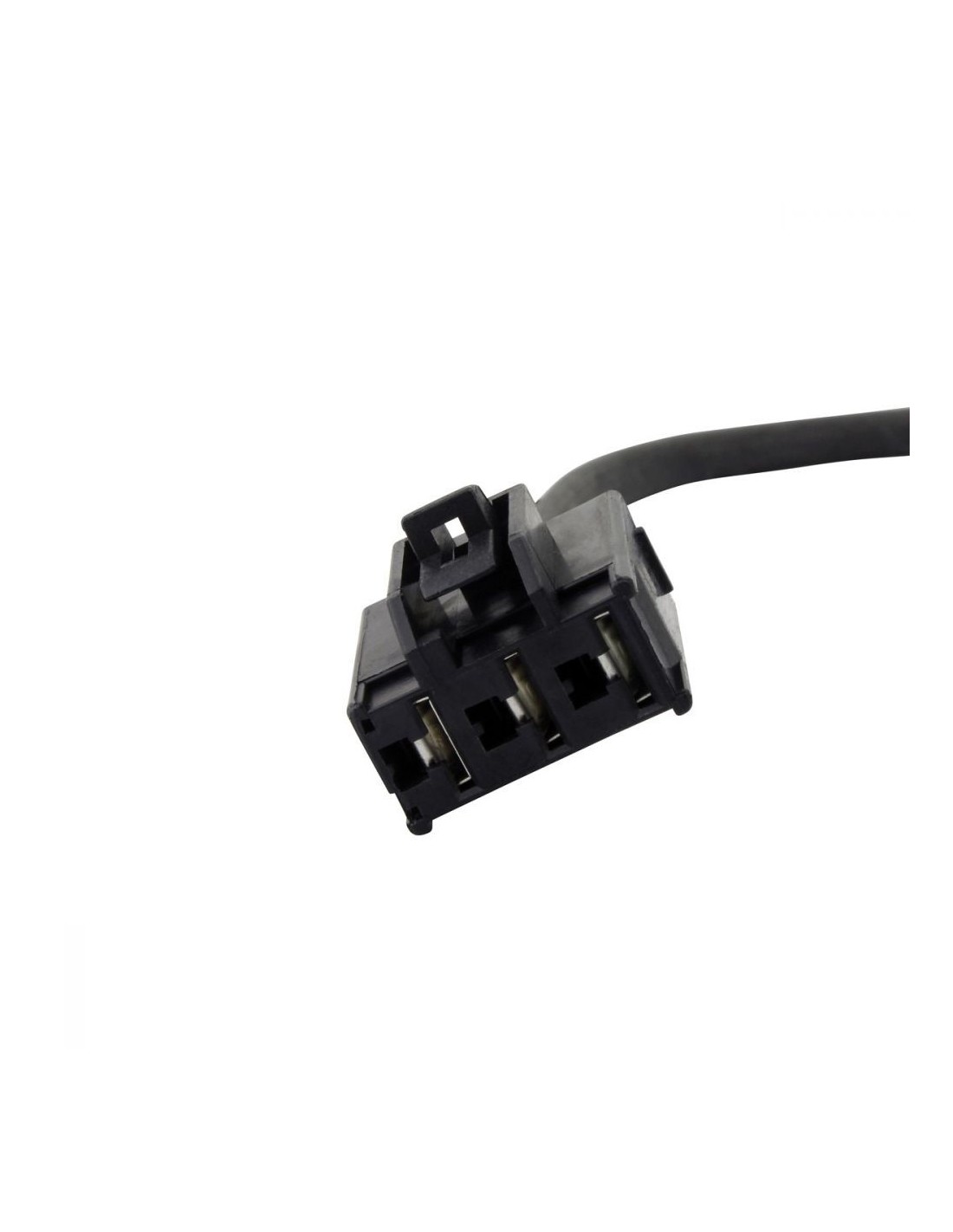

Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: = 0.4ohms +-20%
Alternator: to ground = O.L
