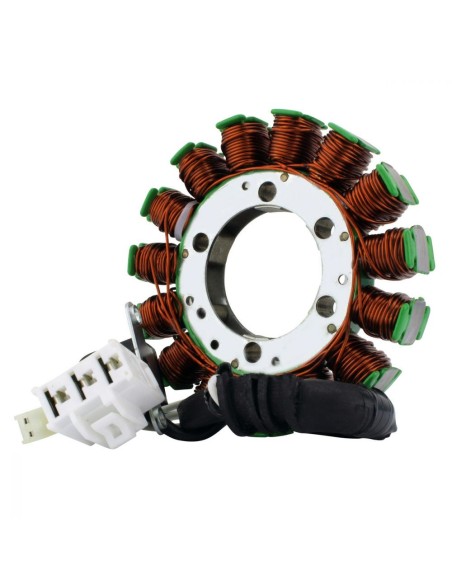

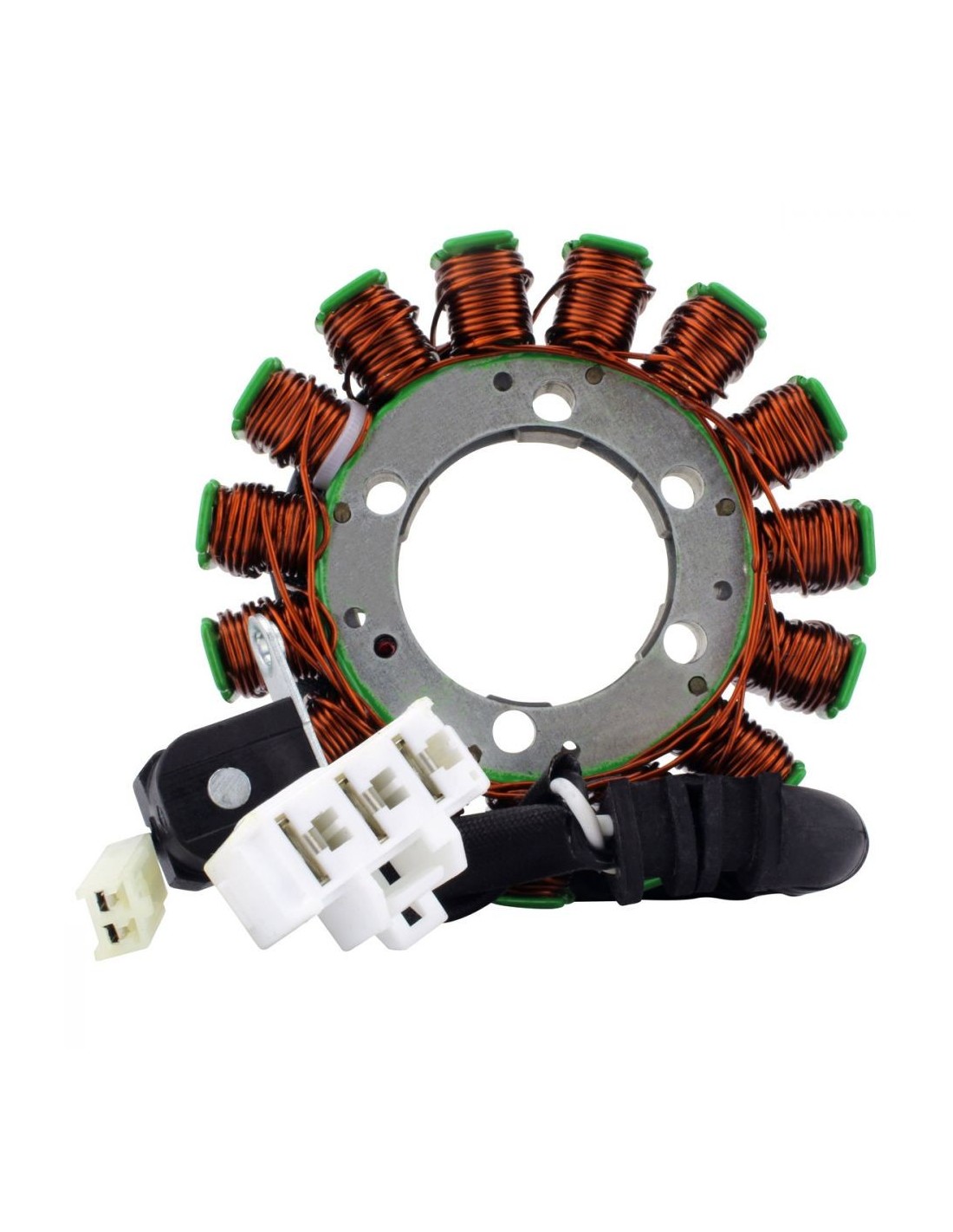

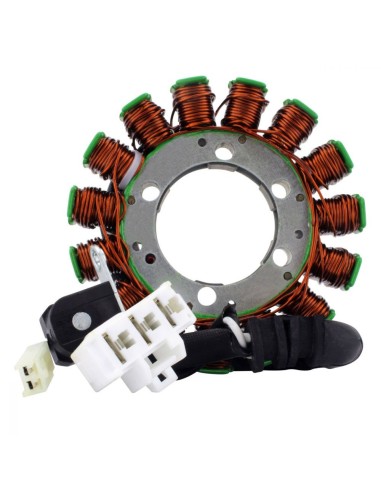

Stator Yamaha MT10 FZ10 YZFR1 OEM 2CR-81410-00-00 B67-81410-00-00

2024 Yamaha YZF R1 1000

2023 Yamaha YZF R1 1000

2022 Yamaha YZF R1 1000

2021 Yamaha YZF R1 1000

2021 Yamaha MT-10

2020 Yamaha YZF R1 1000

2020 Yamaha MT-10

2019 Yamaha YZF R1 1000

2019 Yamaha MT-10

2018 Yamaha YZF R1 1000

2018 Yamaha MT-10

2017 Yamaha YZF R1 1000

2017 Yamaha FZ10

2016 Yamaha YZF R1 1000

2015 Yamaha YZF R1 1000

OEM 2CR-81410-00-00
B67-81410-00-00

Interior diameter: 43 mm
Exterior diameter: 105 mm

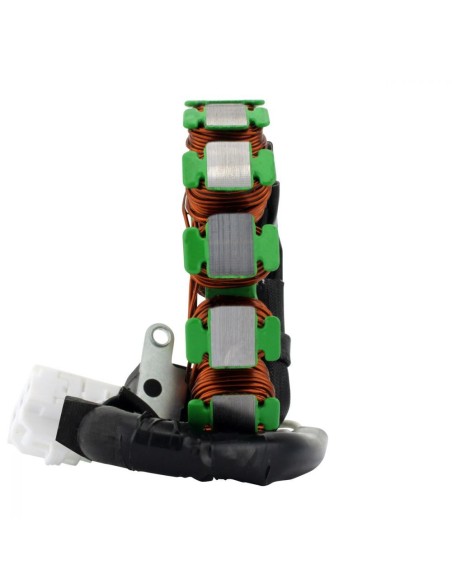

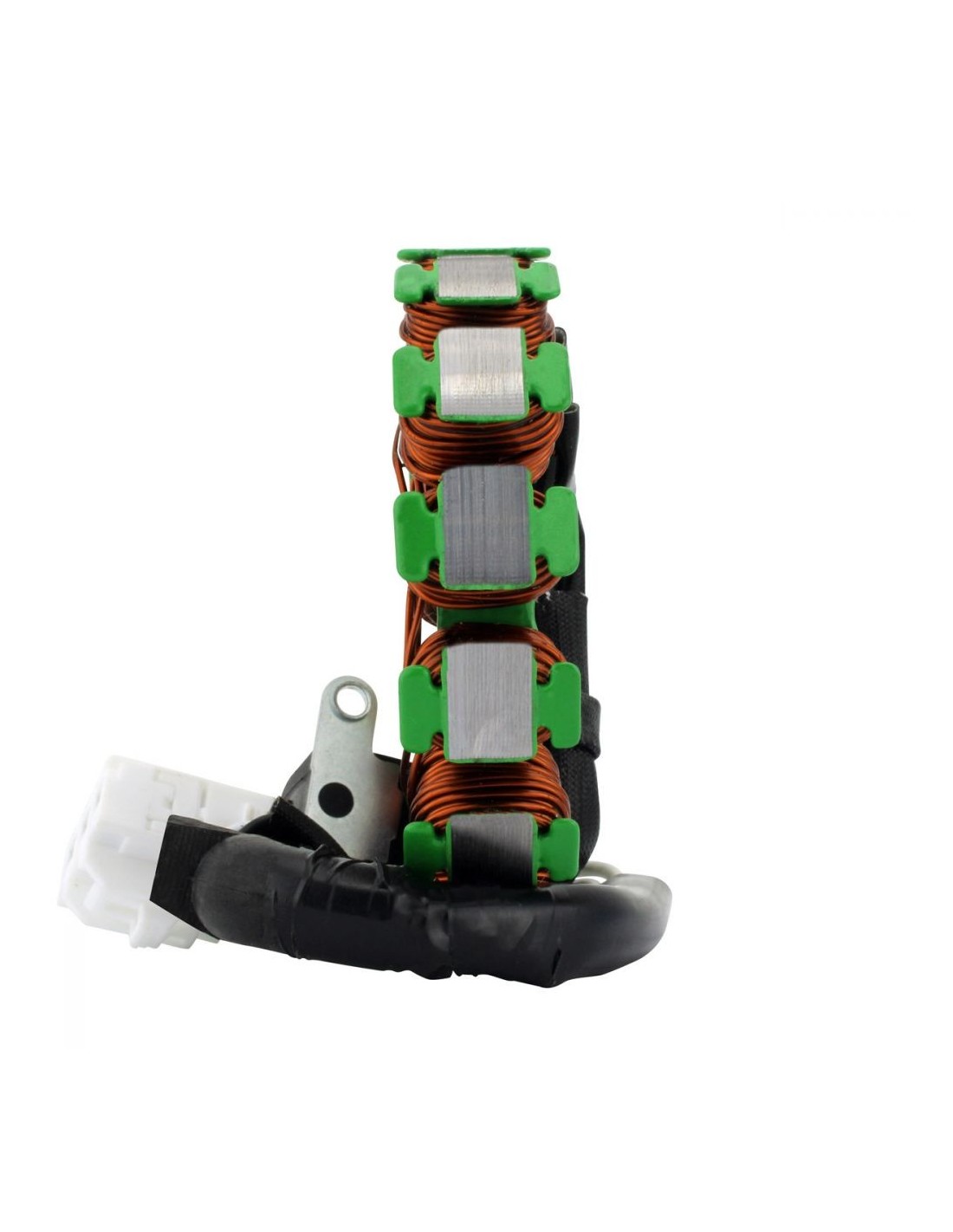

Thickness: 13 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug #1: 135 mm
Length of wires grommet to plug #2: 170 mm

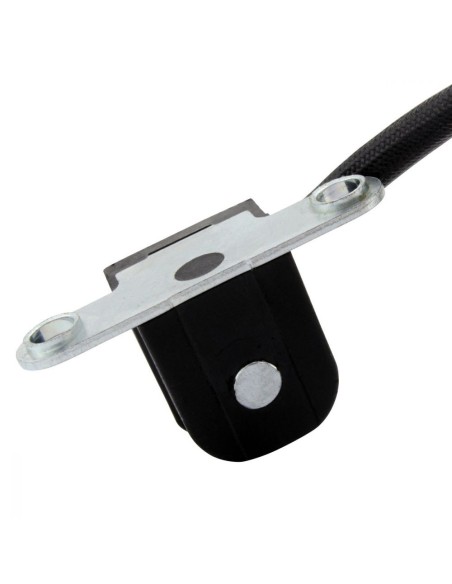

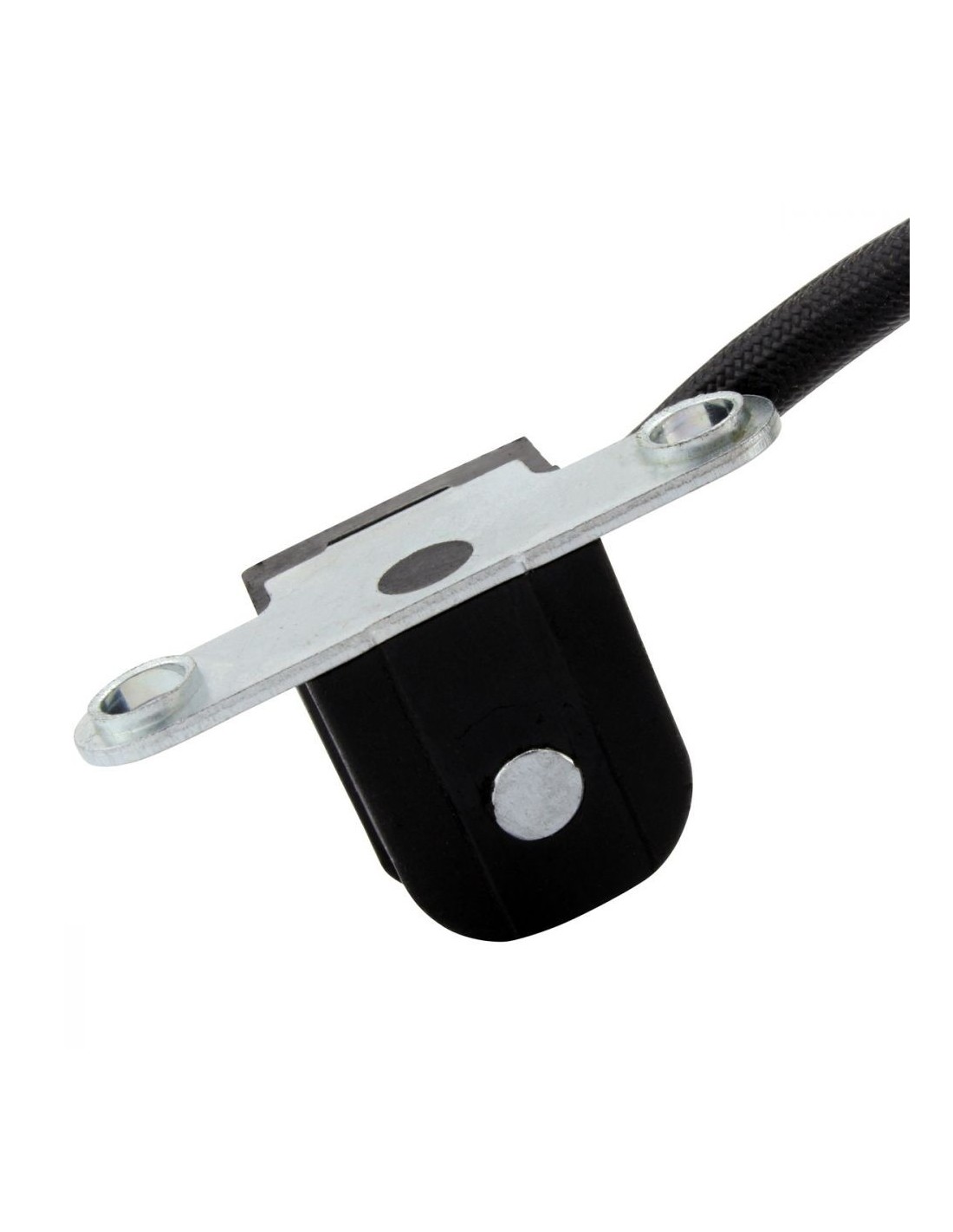

Length of pickup coil's wire to grommet: 60 mm

Other specifications:
Number of wires: 5

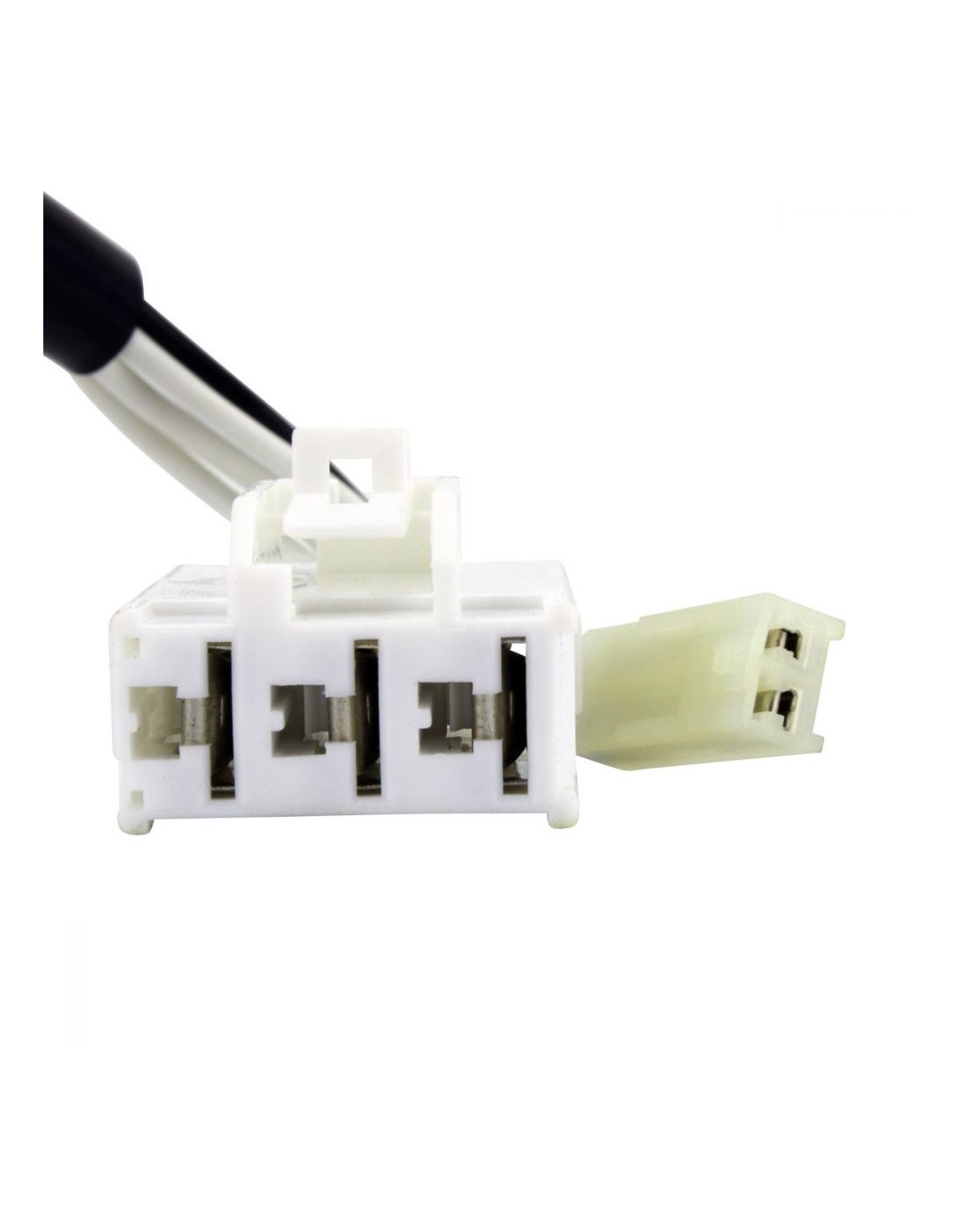

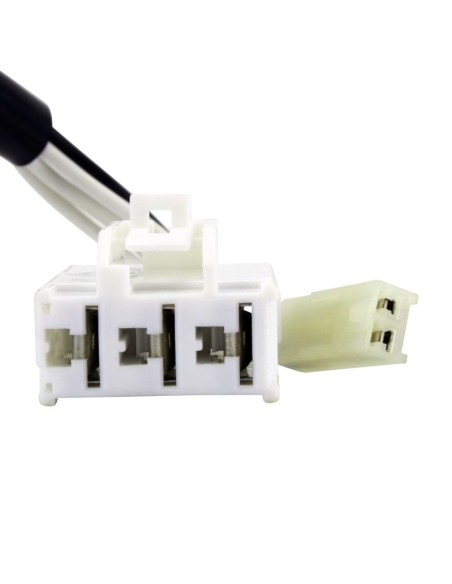

Number of plugs: 2
Number of pins: 5
Number of poles: 15
Wire to wire resistance:
Alternator: White to White = 0.4 ohms +-20%
Source: Grey to Black = 208 ohms +-20%
