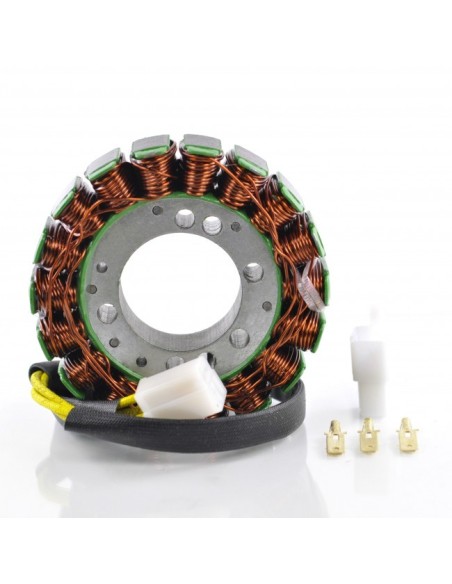

Stator Yamaha YZFR1 OEM 4XV-81410-00-00 4XV-81410-01-00

Stator

    2001
        Yamaha
            YZF
                Motorcycle 2001 Yamaha YZF R1
    2000
        Yamaha
            YZF
                Motorcycle 2000 Yamaha YZF R1
    1999
        Yamaha
            YZF
                Motorcycle 1999 Yamaha YZF R1
    1998
        Yamaha
            YZF
                Motorcycle 1998 Yamaha YZF R1

OEM 4XV-81410-00-00 4XV-81410-01-00

Resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 22 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 280 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
