Regulator Rectifier Mosfet Yamaha YZF R7 OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
CARM30506H
4-5 Days
€129.00
Tax included
OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
-

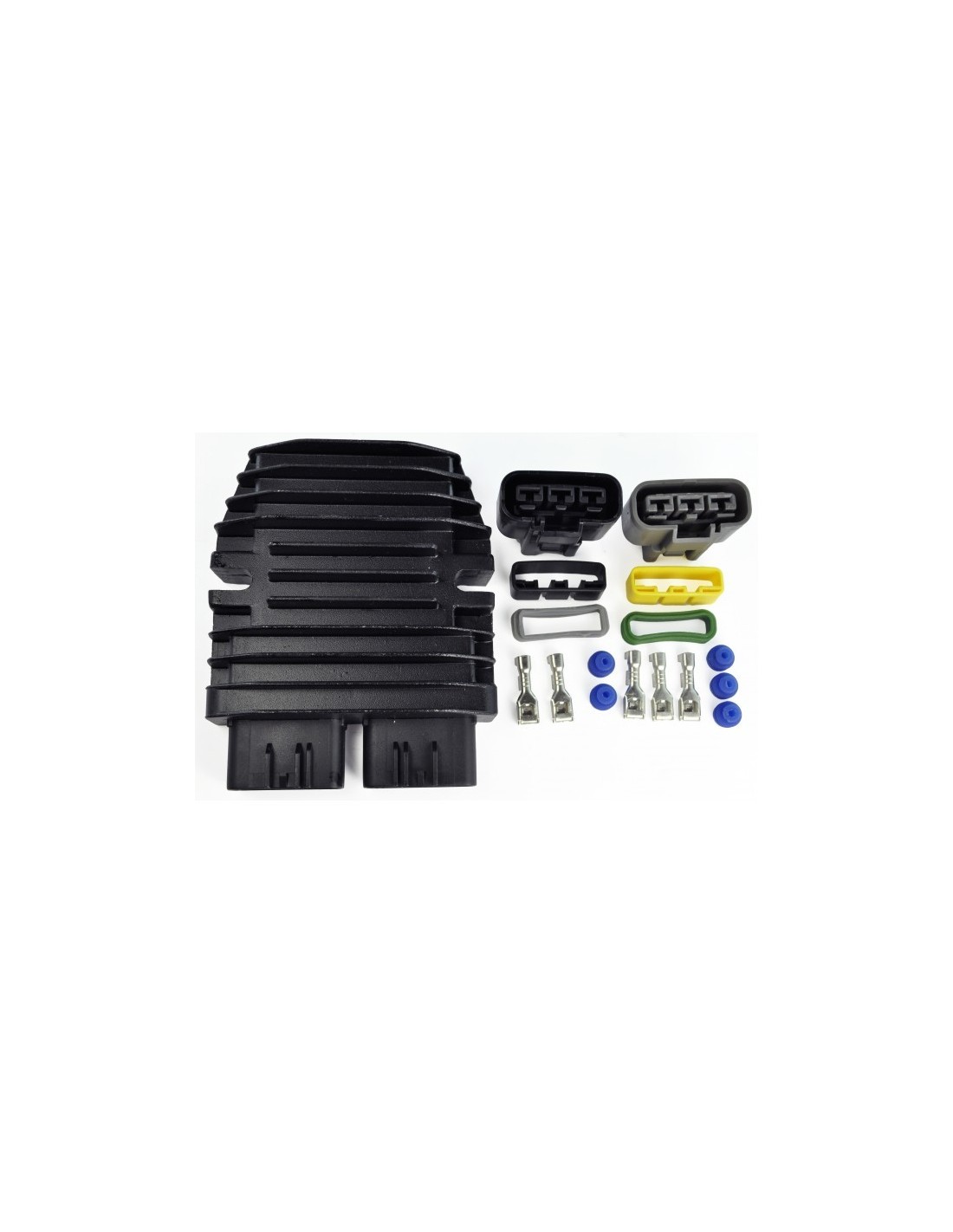

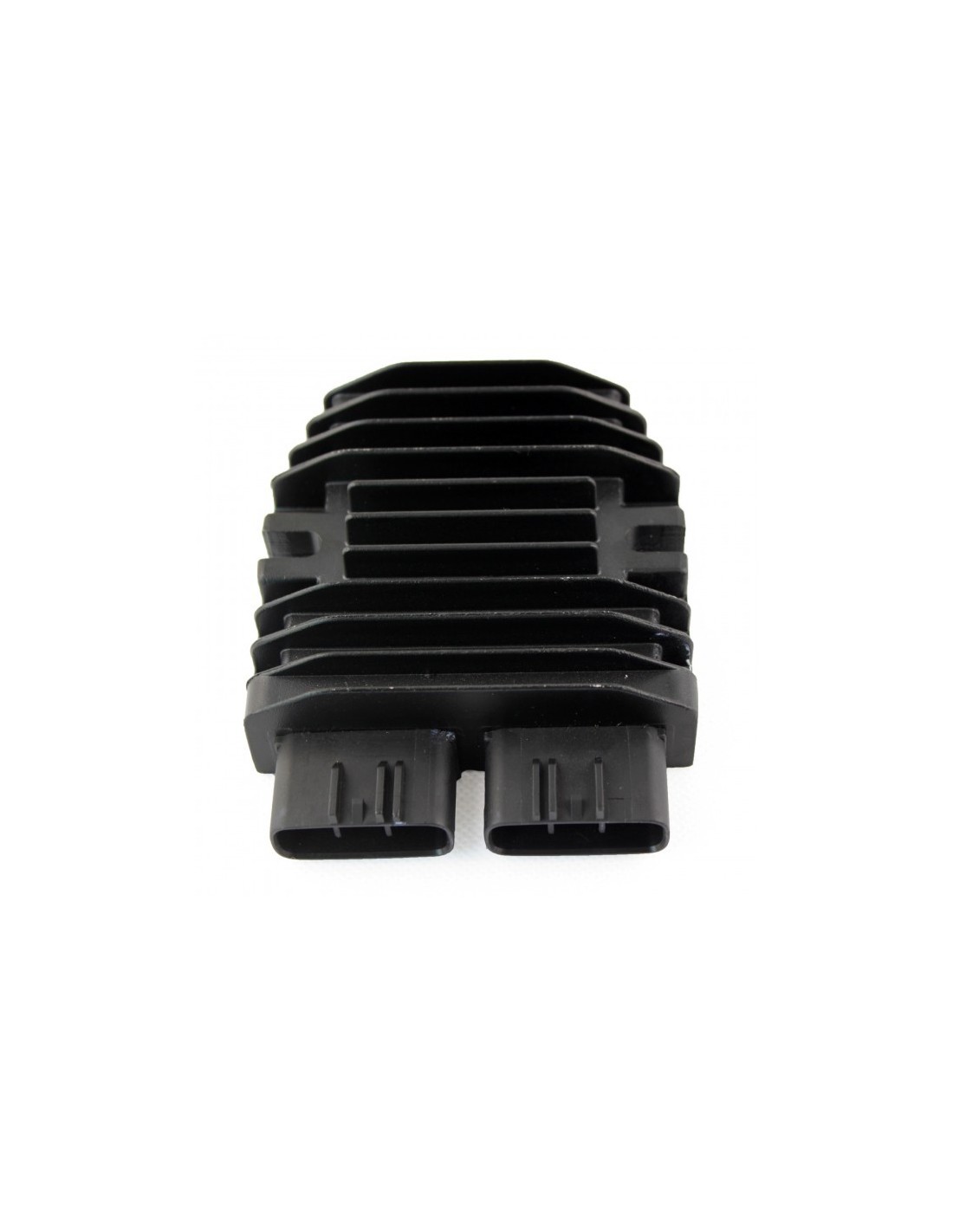

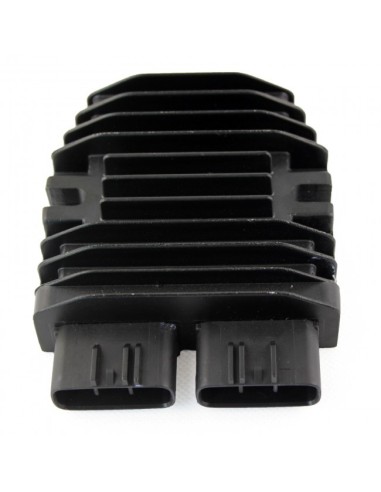

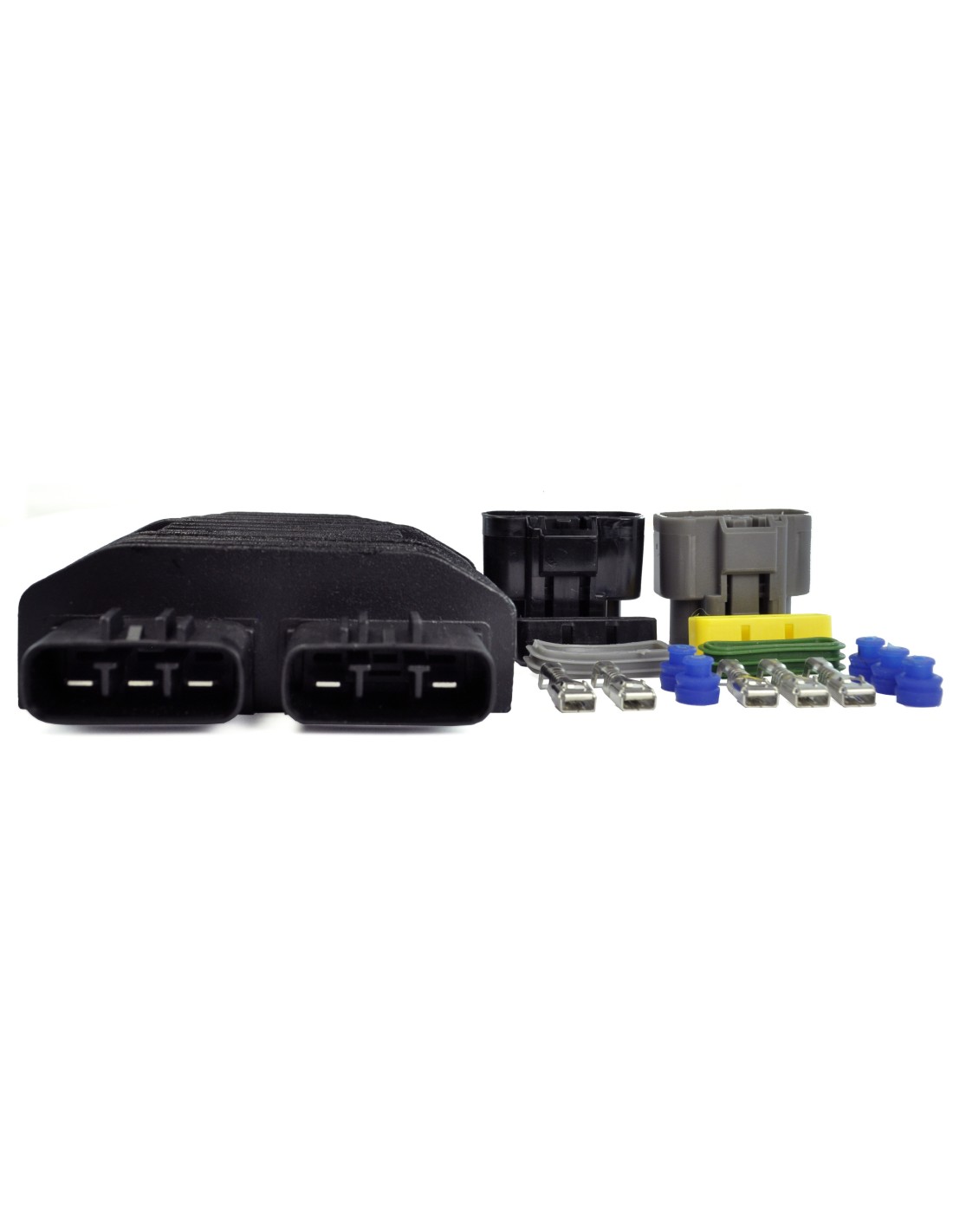

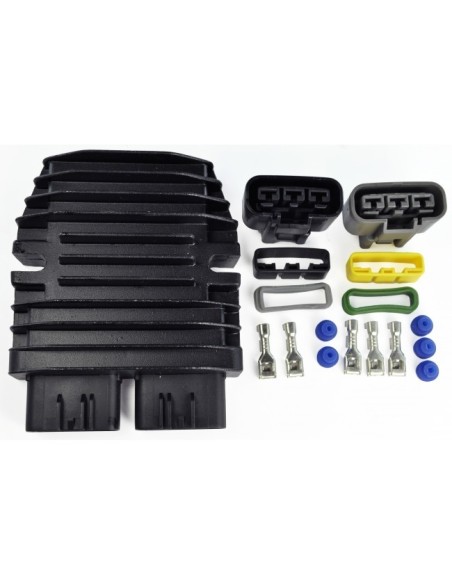

Regulator Rectifier Mosfet
-
Yamaha YZF R7 2022-2024
- OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
-
Dimensions :
Width : 95 mm
Length : 110 mm
Height: 30 mm
Fixation holes center to center : 78 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 12 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Improved heat sink and charging capabilities
Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
