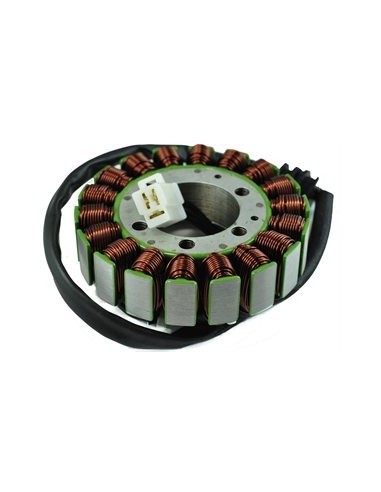

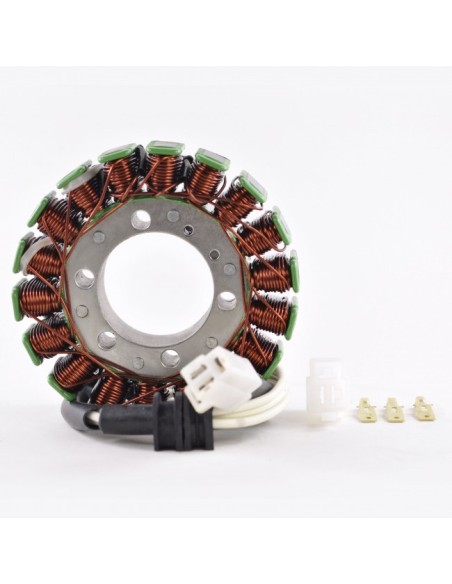

Stator Yamaha YZFR6 OEM 5EB-81410-00-00

Stator

    2002
        Yamaha
            YZF
                Motorcycle 2002 Yamaha YZF R6
    2001
        Yamaha
            YZF
                Motorcycle 2001 Yamaha YZF R6
                Motorcycle 2001 Yamaha YZF R6 Champion Limited Edition
    2000
        Yamaha
            YZF
                Motorcycle 2000 Yamaha YZF R6
    1999
        Yamaha
            YZF
                Motorcycle 1999 Yamaha YZF R6

OEM
5EB-81410-00-00

Resistant to 200 degrees Celsius

Dimensions:

Inner diameter: 42 mm

Outer diameter: 104 mm

Thickness: 30 mm

Wire length from stator to grommet: 130 mm

Wire length from grommet to connector: 335 mm

Other specifications:

Number of wires: 3

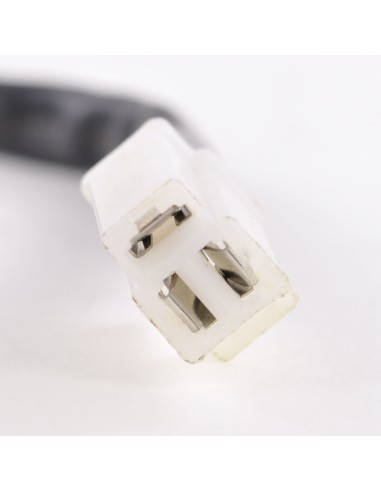

Number of connectors: 1

Number of pins: 3

Wire-to-wire resistance:

Alternator: Black between each Black = 0.4 ohms +/-20%
