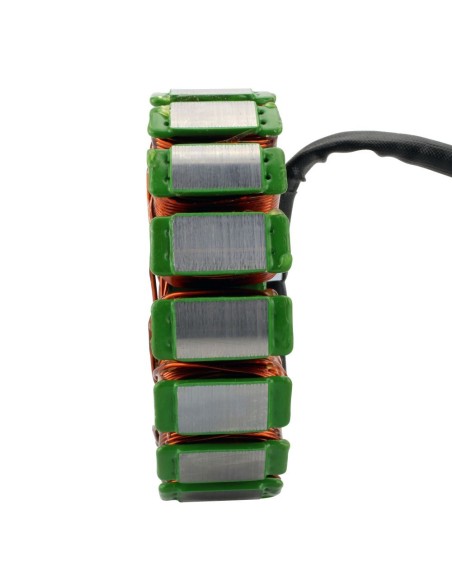

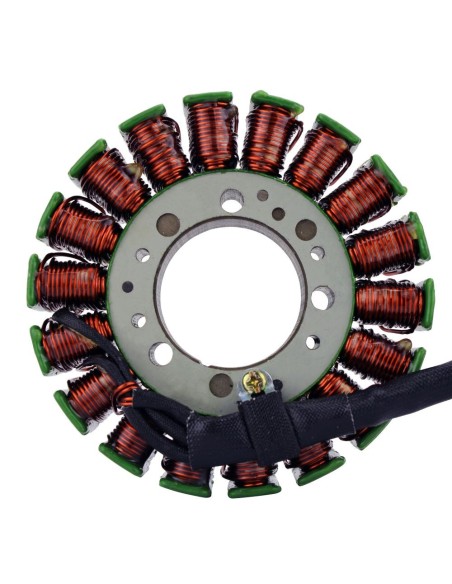

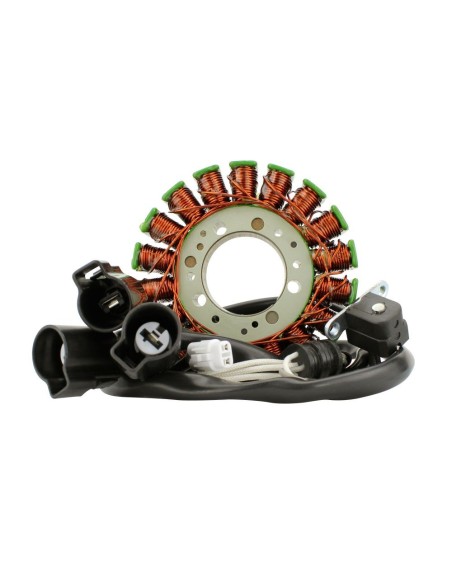

Stator Yamaha YXZ 1000 R EPS SS OEM B5H-81410-00-00
CARMS010-107076
5-7 Days
€213.60
Tax included
OEM B5H-81410-00-00
Stator
2024 Yamaha YXZ 1000 R EPS SS
2024 Yamaha YXZ 1000 R EPS
2023 Yamaha YXZ 1000 R EPS SS
2023 Yamaha YXZ 1000 R EPS
2022 Yamaha YXZ 1000 R EPS SS
2022 Yamaha YXZ 1000 R EPS
2021 Yamaha YXZ 1000 R EPS SS
2021 Yamaha YXZ 1000 R EPS
2020 Yamaha YXZ 1000 R EPS SS
2020 Yamaha YXZ 1000 R EPS
2019 Yamaha YXZ 1000 R EPS SS
2019 Yamaha YXZ 1000 R EPS
OEM B5H-81410-00-00
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 23 mm
Length of wires stator to grommet : 182 mm
Length of wires grommet to plug : 763 mm
Length of pickup coil's wire to grommet : 105 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles : 18
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 23 mm
Length of wires stator to grommet : 182 mm
Length of wires grommet to plug : 763 mm
Length of pickup coil's wire to grommet : 105 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.5 ohms +-20%

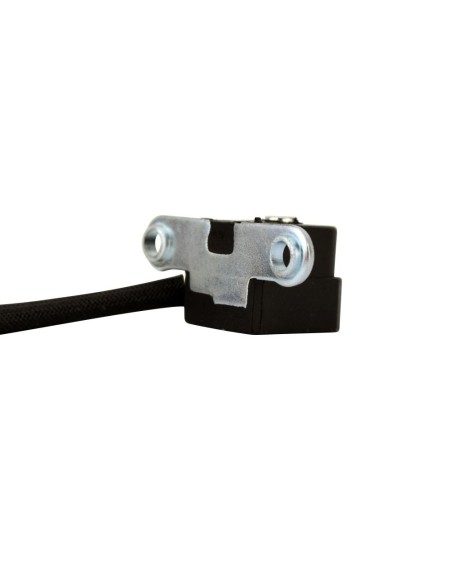

Pickup : Light Grey to Dark Grey = 512 ohms +-20%
Alternator : Between each White = 0.5 ohms +-20%
Pickup : Light Grey to Dark Grey = 512 ohms +-20%
- Highest grade copper windings, resistant to 200 degrees Celsius
