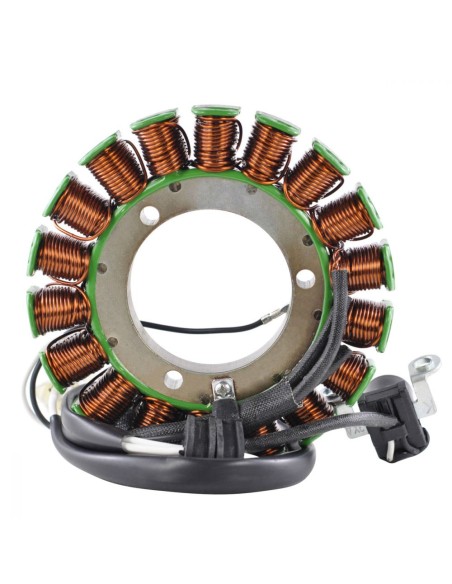

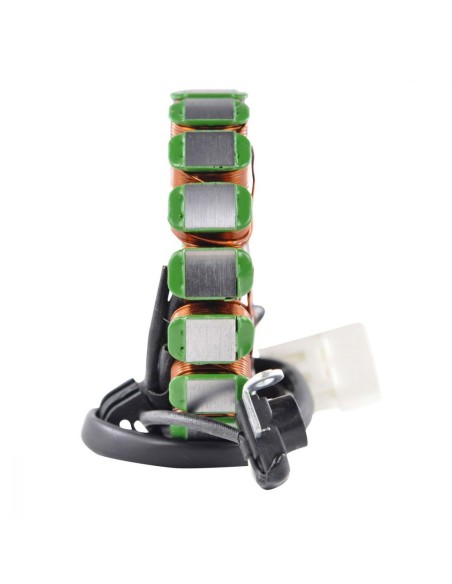

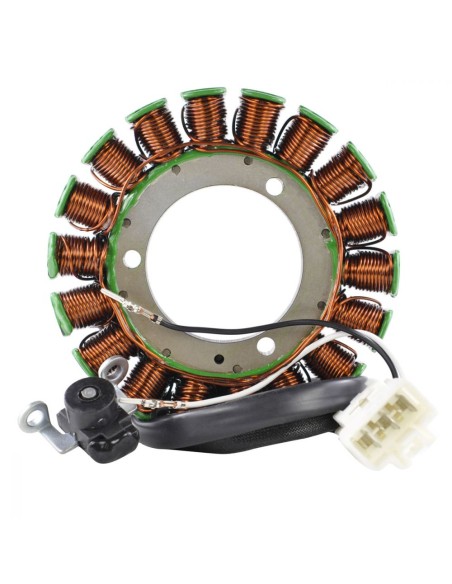

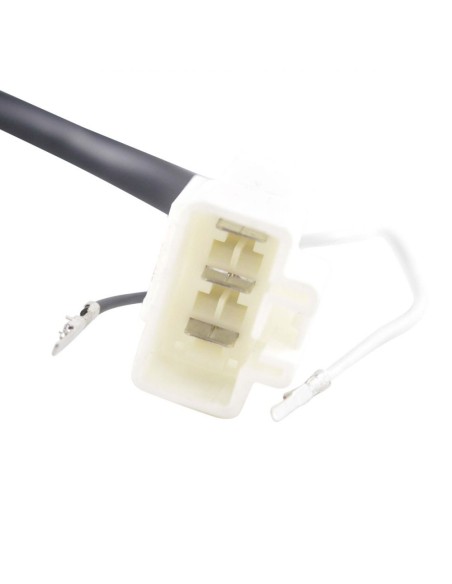

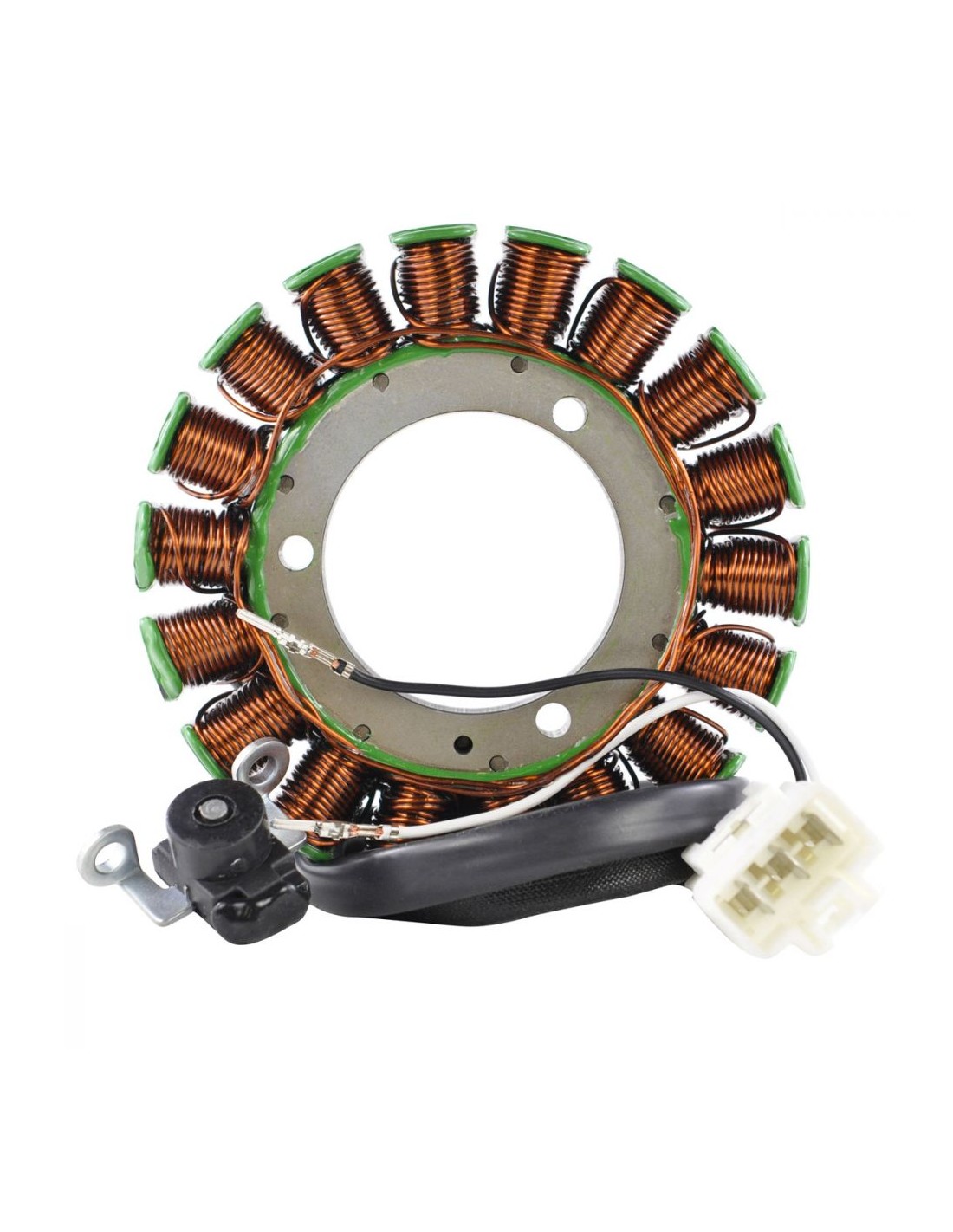

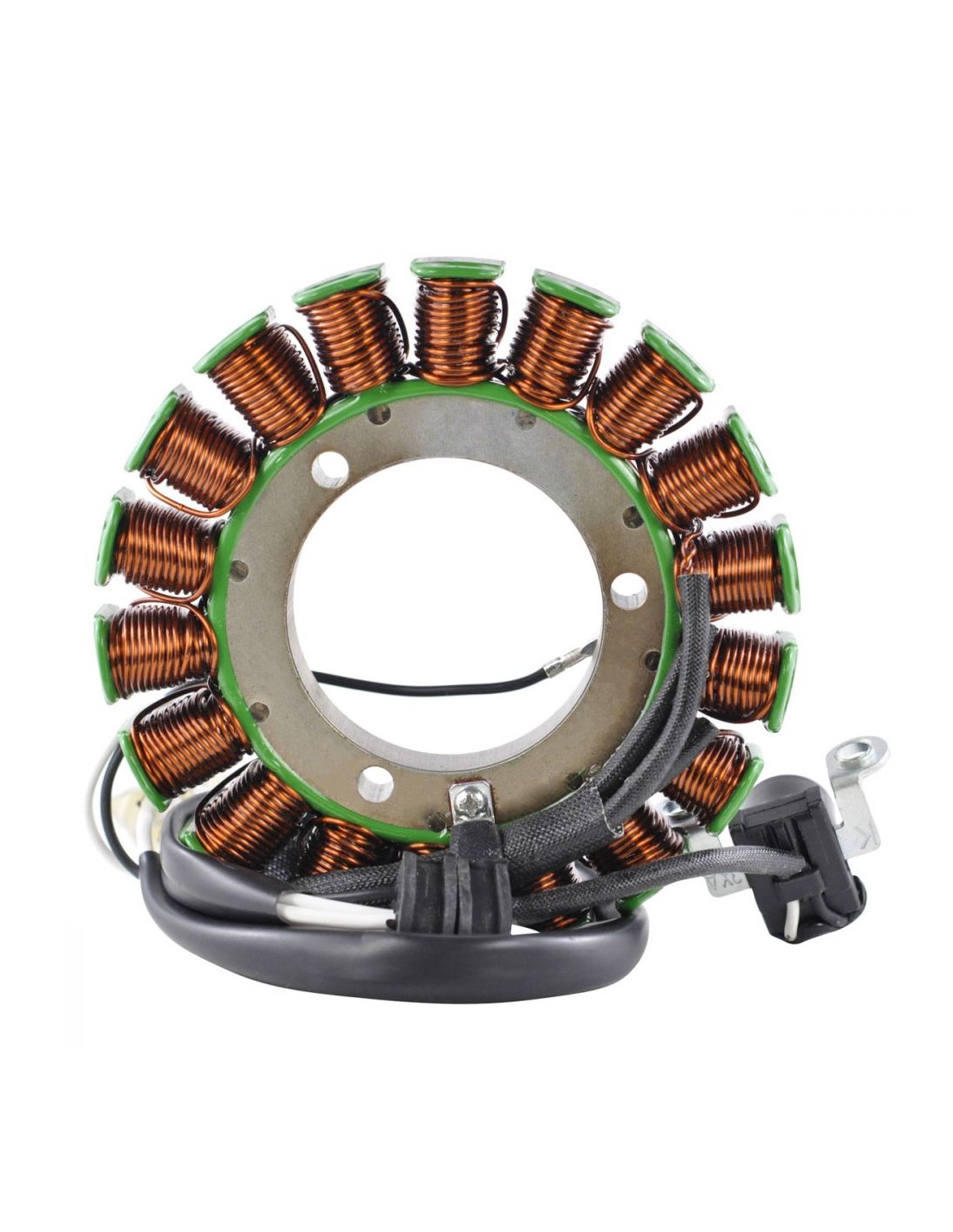

Stator Yamaha VStar 1300 Tourer VStar 1300 OEM 3D8-81410-00-00

Stator

2009 Yamaha V Star 1300 Tourer

2009 Yamaha V Star 1300

2008 Yamaha V Star 1300 Tourer

2008 Yamaha V Star 1300

2007 Yamaha V Star 1300 Tourer

2007 Yamaha V Star 1300

OEM 3D8-81410-00-00

Dimensions :

Interior diameter : 58 mm

Exterior diameter : 130 mm

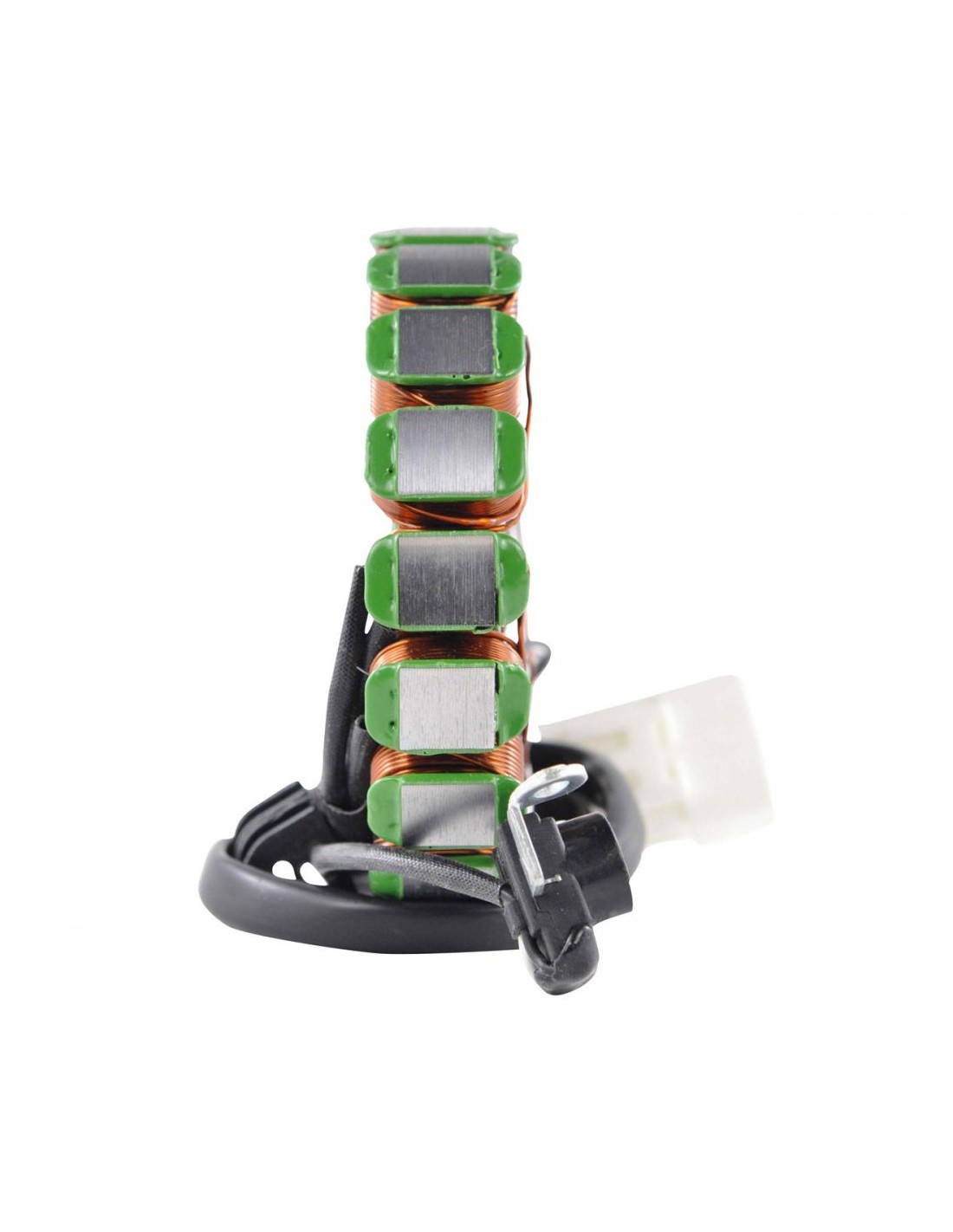

Thickness : 18 mm

Length of wires stator to first grommet : 155 mm

Length of wires between grommets : 4 mm

Length of wires second grommet to alternator plug : 320 mm

Length of wires second grommet to pick-up coil plug : 370 mm

Length of pickup coil's wire to grommet : 80 mm

Other specifications :

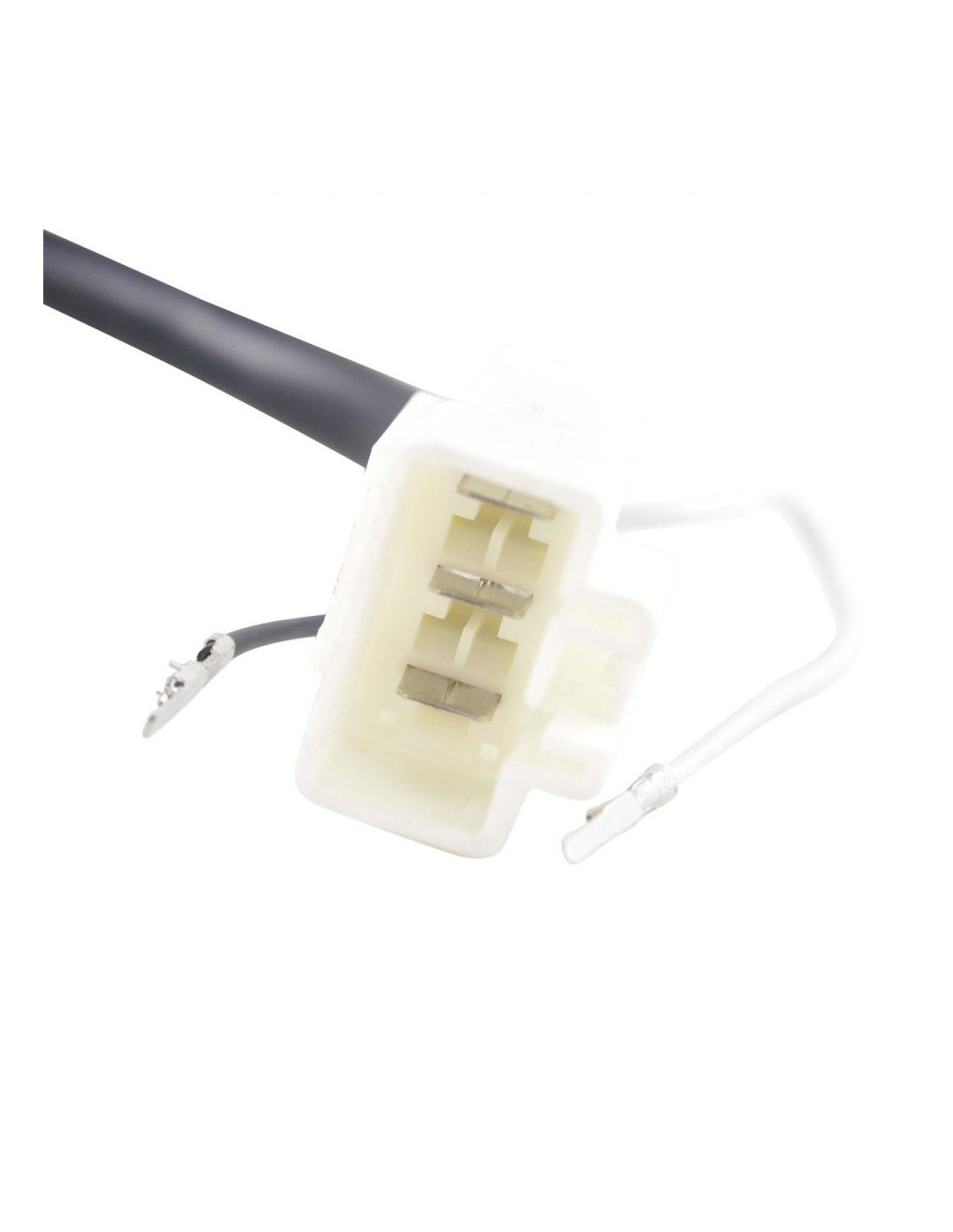

Number of wires : 5

Number of plugs : 2

Number of pins : 5

Wire to wire resistance :

Alternator : White To White = 0.4 ohms +/-20%

Pickup : Dark Grey To Light Grey = 287 ohms +/-20%

Resistant to 200 degrees Celsius
