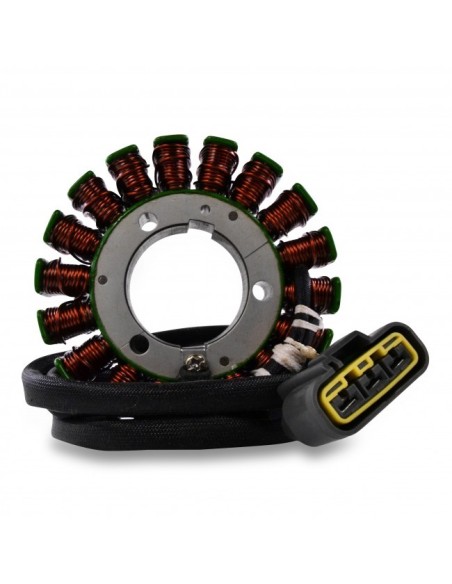

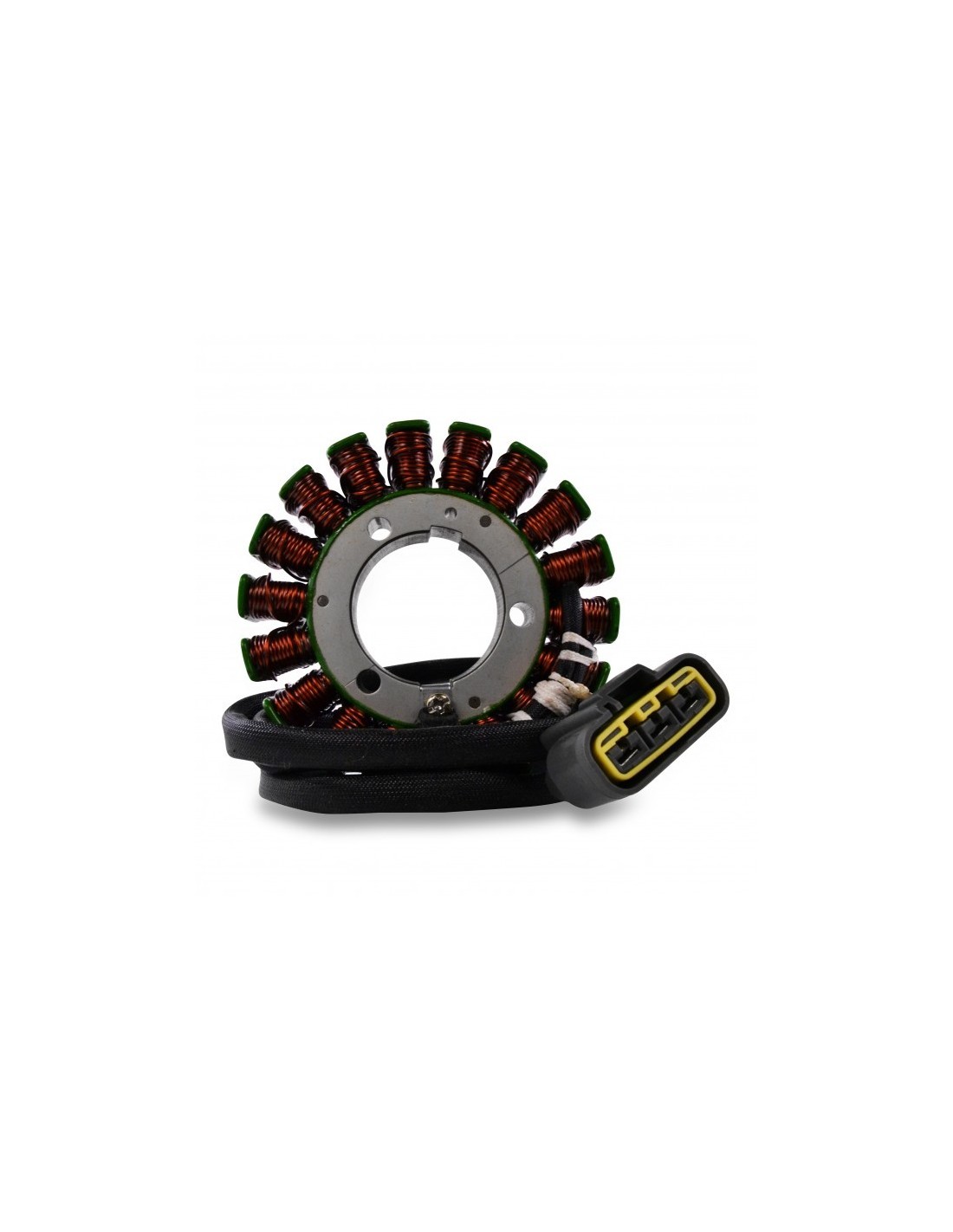

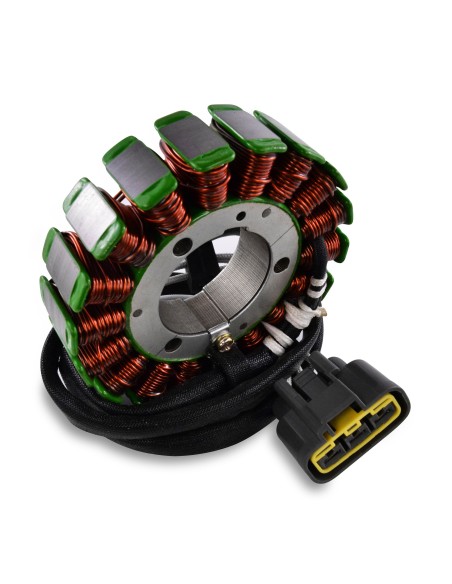

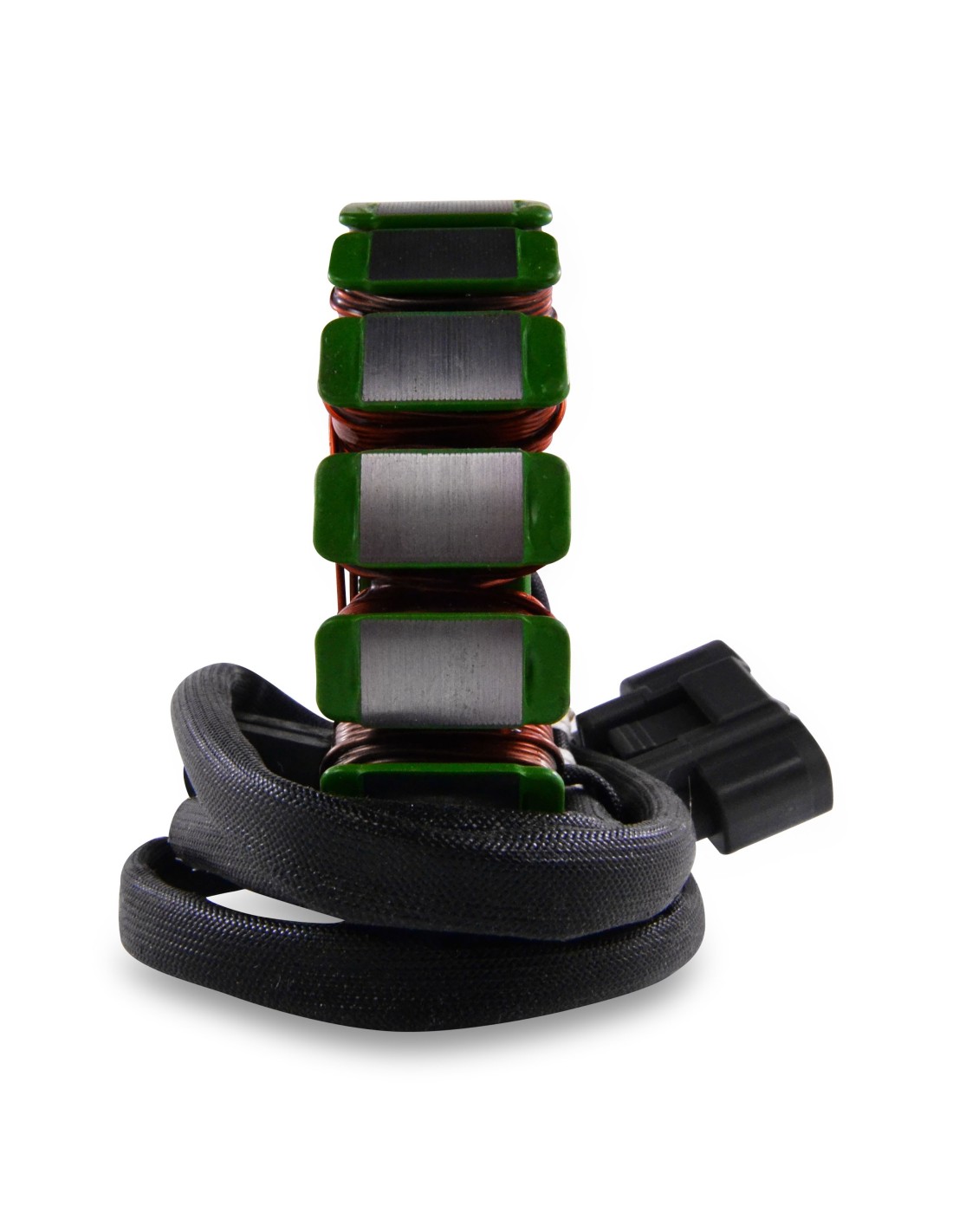

Stator Yamaha Road Star 1700 Road Star Silverado S 1700 OEM 5VN-81410-20-00

  Stator-Resistant to 200 degrees Celsius

2014 Yamaha Road Star S 1700
2014 Yamaha Road Star Silverado S 1700
2013 Yamaha Road Star S 1700
2013 Yamaha Road Star Silverado S 1700
2012 Yamaha Road Star S 1700
2012 Yamaha Road Star Silverado S 1700
2011 Yamaha Road Star S 1700
2011 Yamaha Road Star Silverado S 1700
2010 Yamaha Road Star S 1700
2010 Yamaha Road Star Silverado 1700
2010 Yamaha Road Star Silverado S 1700
2009 Yamaha Road Star 1700
2009 Yamaha Road Star S 1700
2009 Yamaha Road Star Silverado 1700
2009 Yamaha Road Star Silverado S 1700
2008 Yamaha Road Star 1700
2008 Yamaha Road Star S 1700
2008 Yamaha Road Star Silverado 1700
2008 Yamaha Road Star Silverado S 1700

OEM 5VN-81410-20-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 115 mm
Length of wires between grommets : 5 mm
Length of pickup coil's wire to grommet : 600 mm

Other specifications :
Number of wires : 3

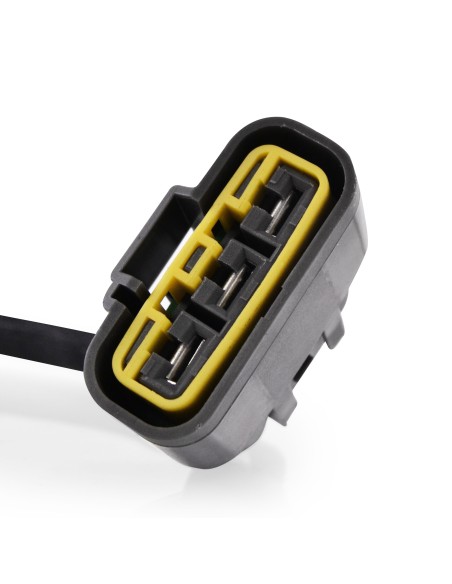

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White Between White = 0.4 ohms +-20%
