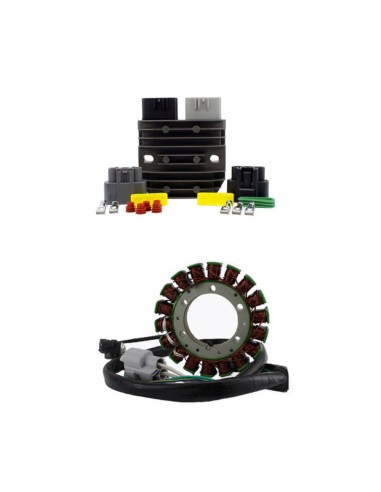

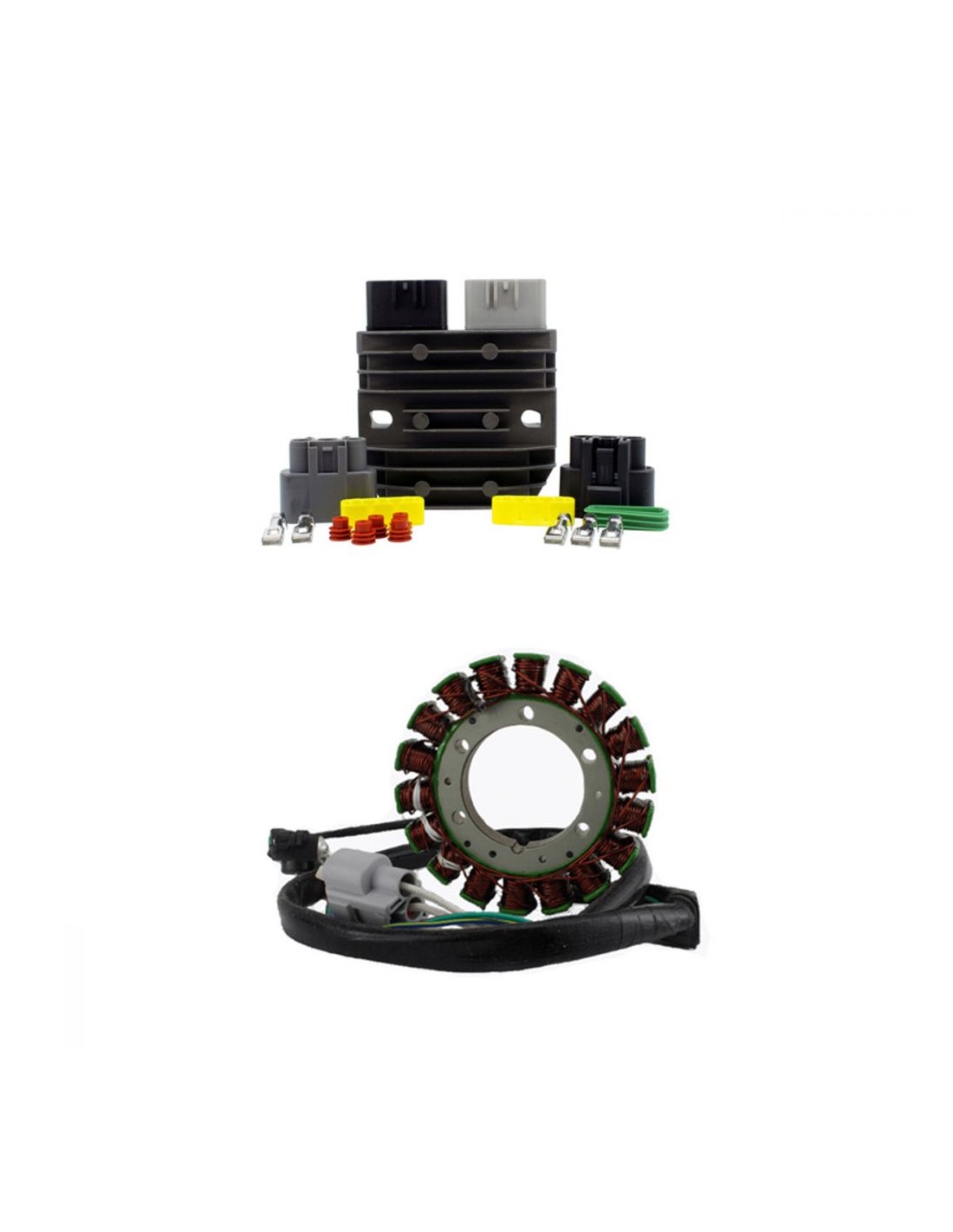

AC to DC Conversion Kit for 250W Battery Charging Honda XR650R OEM 31120-MBN-671

2007 Honda XR 650 R

2006 Honda XR 650 R

2005 Honda XR 650 R

2004 Honda XR 650 R

2003 Honda XR 650 R

2002 Honda XR 650 R

2001 Honda XR 650 R

2000 Honda XR 650 R

Dimensions (Stator):

Interior diameter: 54 mm

Exterior diameter: 115 mm

Thickness: 13 mm

Length of wires stator to grommet: 120 mm

Length of wires grommet to plug: 695 mm

Length of pickup coil's wire to grommet: 220 mm

Other specifications:

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Number of poles: 18

Wire to wire resistance:

Alternator: White to White = 0.6 ohms +-20%

Pickup: Blue/Yellow to Green/Red = 250 ohms +-20%

Dimensions (Regulator):

Width: 84 mm

Length: 90 mm

Height: 32 mm

Fixation holes center to center: 69 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° to 85°
