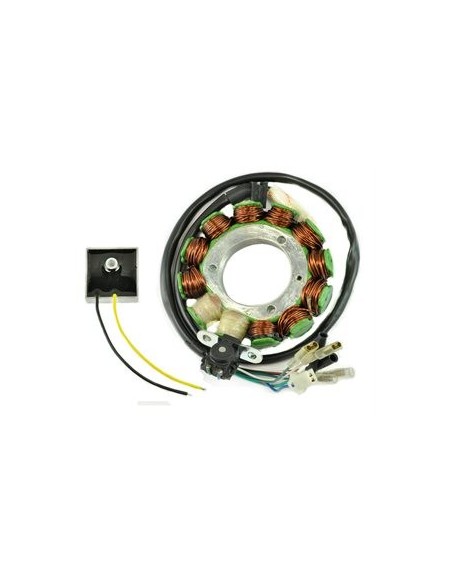

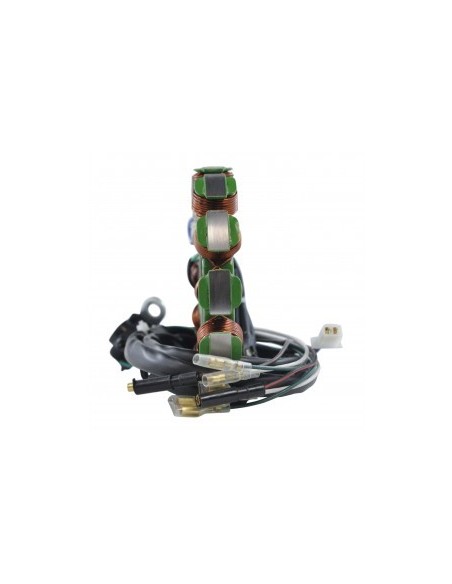

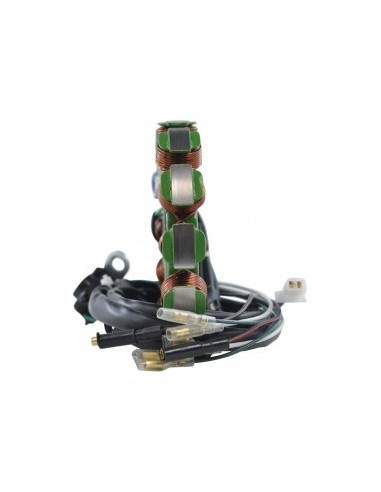

Stator Honda XR400R XR650R OEM 31120-KCY-671 31120-MBN-671
CARM01023
5-7 Days
€198.00
Tax included
Stator Honda XR400R XR650R OEM 31120-KCY-671 31120-MBN-671
Stator 200 W
1996 Honda XR 400 R
1997 Honda XR 400 R
1998 Honda XR 400 R
1999 Honda XR 400 R
2000 Honda XR 400 R
2001 Honda XR 400 R
2002 Honda XR 400 R
2003 Honda XR 400 R
2004 Honda XR 400 R
2000 Honda XR 650 R
2001 Honda XR 650 R
2002 Honda XR 650 R
2003 Honda XR 650 R
2004 Honda XR 650 R
2005 Honda XR 650 R
2006 Honda XR 650 R
2007 Honda XR 650 R
OEM 31120-kcy-671
31120-mbn-671
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:

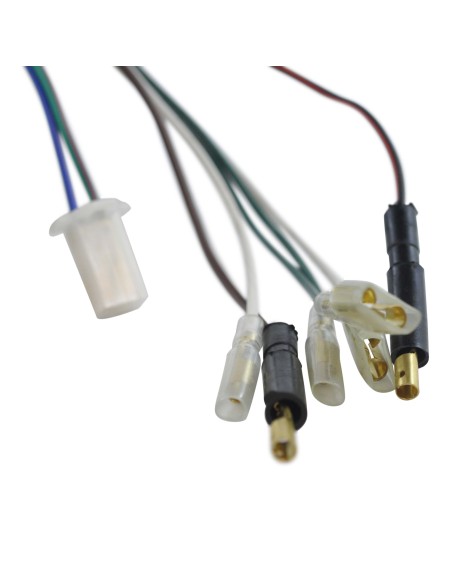

Number of wires : 8
Number of plugs : 7
Number of pins: 8

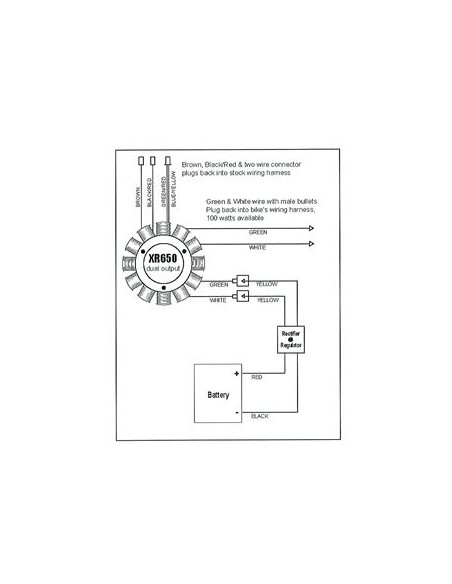

Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
