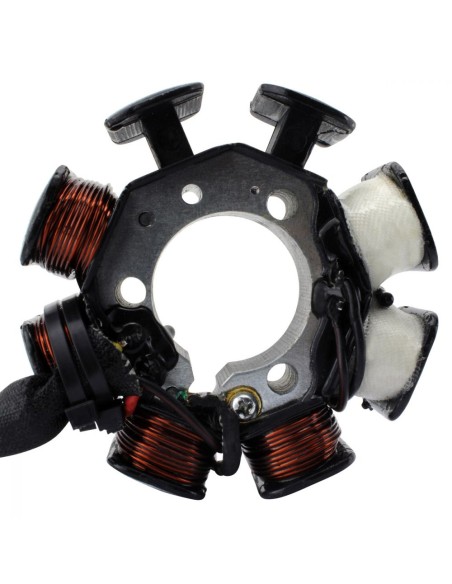

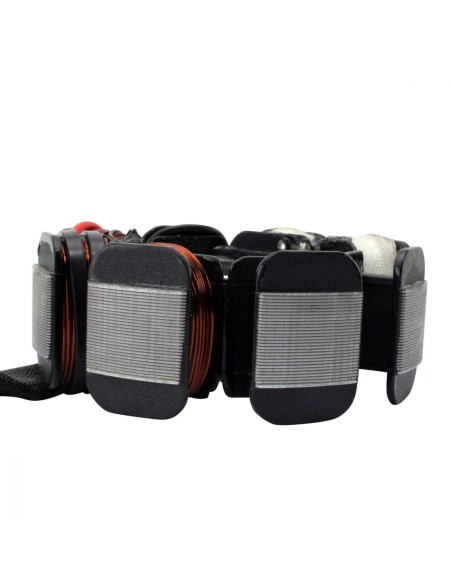

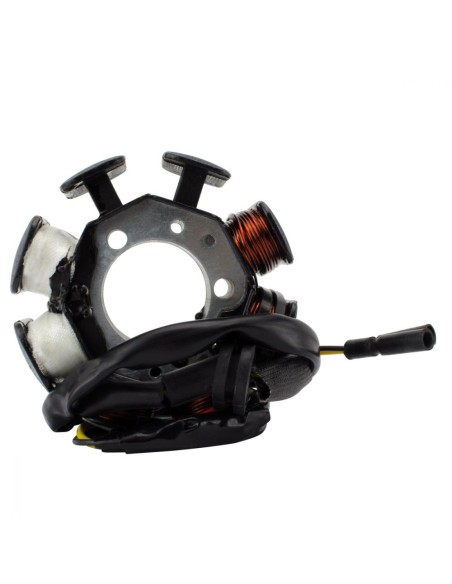

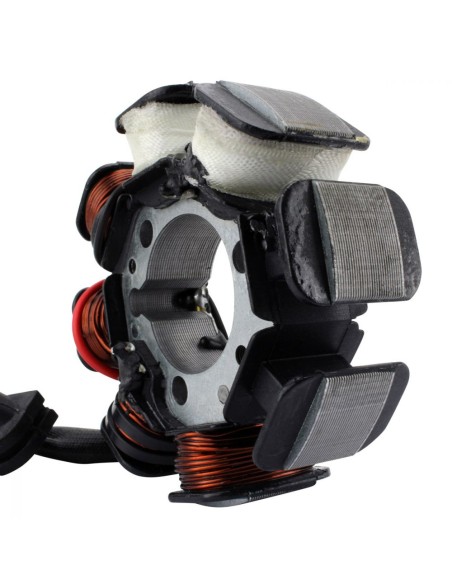

Stator Honda XR250R XR200R OEM 31120-KK0-004 31120-KK0-771
CARMS010-107738
5-7 Days
€138.00
Tax included
OEM 31120-KK0-004 31120-KK0-771
1985 Honda XR 250 R
1985 Honda XR 200 R
1984 Honda XR 250 R
1984 Honda XR 200 R
OEM 31120-KK0-004
31120-KK0-771
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 525 mm
Other specifications:
Number of wires: 2

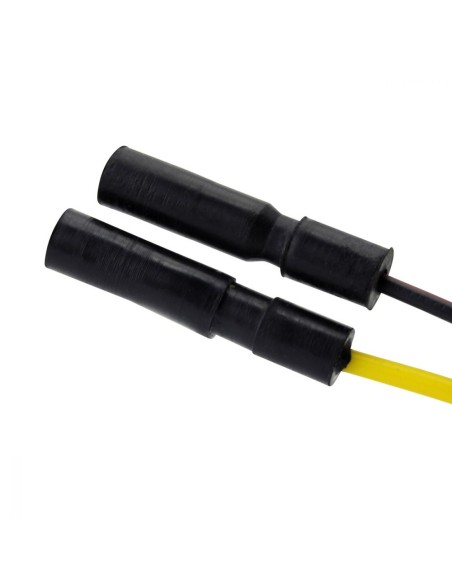

Number of plugs: 2
Number of pins: 2
Number of poles: 8
Wire to wire resistance:
Alternator: Blue to Ground = 0.7 ohms +-20%
Source: Black to Ground = 130 ohms +-20%
Check the dimensions carefully
