Stator Yamaha WR250F OEM 5UM-81410-10-00
CARMS010-100184
7-8 Days
€139.00
Tax included
Resistant to 200 degrees Celsius

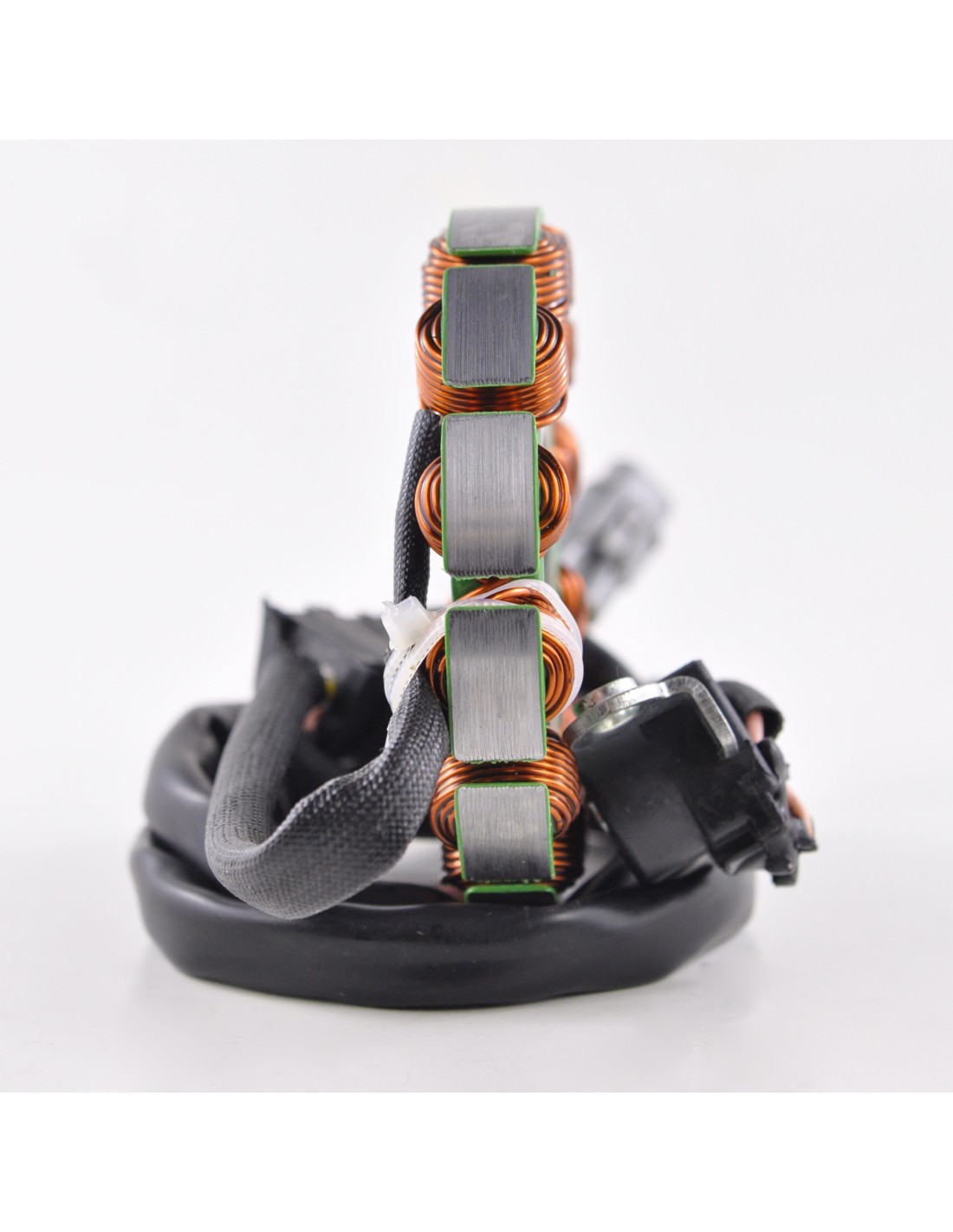

Stator Yamaha WR250F OEM 5UM-81410-10-00
Stator
WR 250 F 2005-2013
OEM 5UM-81410-10-00
5UM-81410-20-00
5UM-81410-30-00
5UM-81410-31-00
Dimensions :
Interior diameter : 30 mm
Exterior diameter : 84 mm
Thickness : 9 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 545 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 4

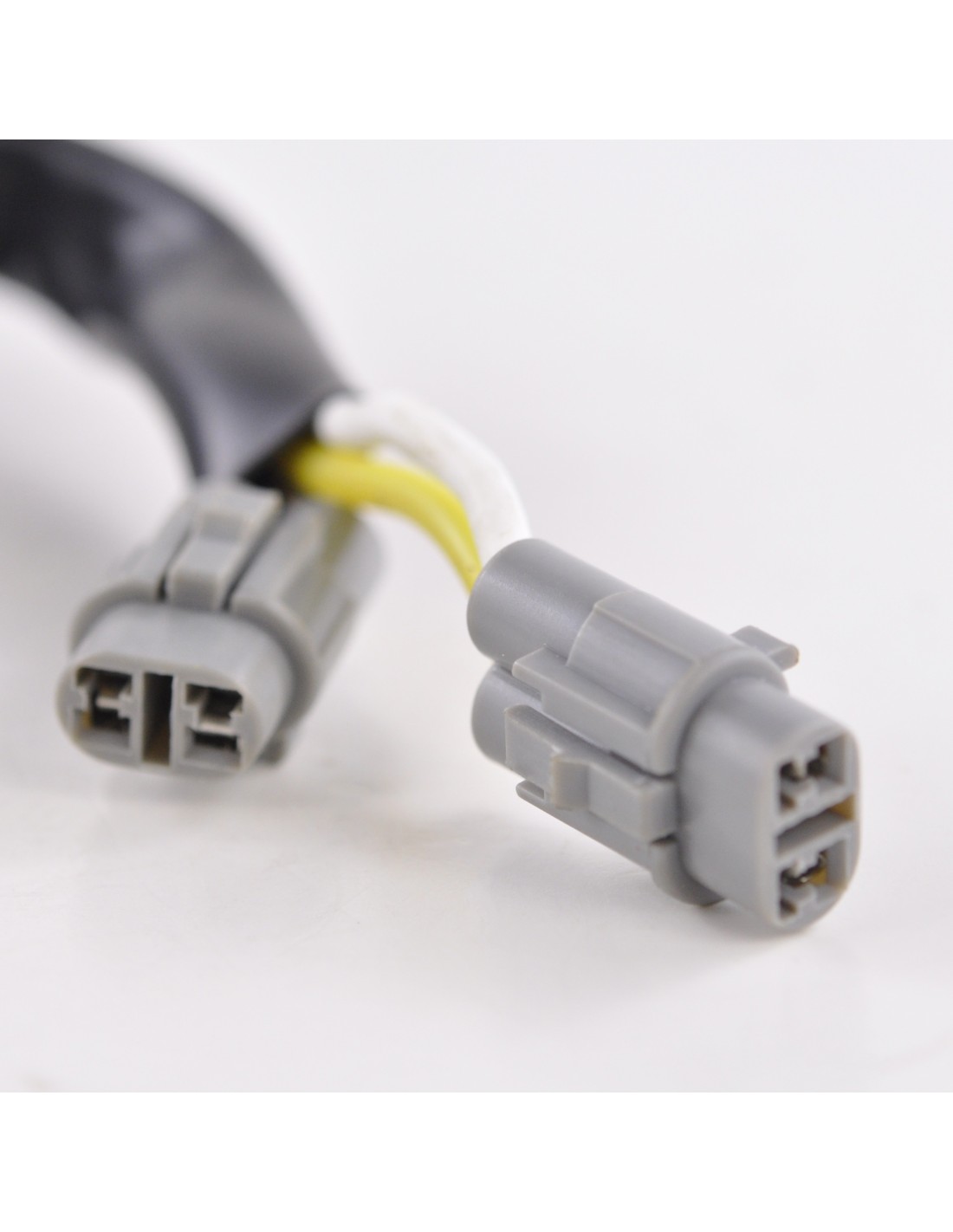

Number of plugs : 2
Wire to wire resistance :
Alternator : Yellow To White = 0.4 ohms +/-20%
Pickup : Pink To White = 280 ohms +/-20%
Resistant to 200 degrees Celsius
