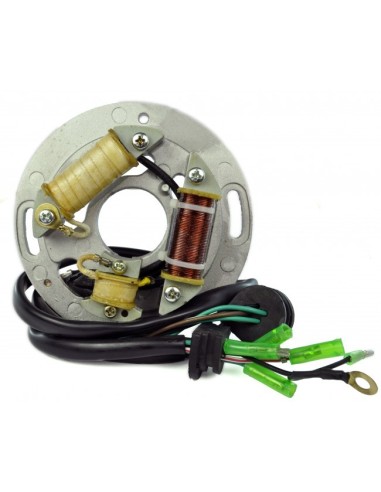

Stator Yamaha Wave Runner 650 700 FX1 Wave Runner LX Super Jet 650 700 VXR 650 VXR Pro 700 Wave Blaster 700

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

Yamaha Wave Runner 3 650 1990
Yamaha Wave Runner 3 650 1991
Yamaha Wave Runner 3 650 1992
Yamaha Wave Runner 3 650 1993
Yamaha Wave Runner 3 650 1995

Yamaha Wave Runner 3 700 1994
Yamaha Wave Runner 3 700 1995

Yamaha FX1 1994
Yamaha FX1 1995

Yamaha Wave Runner LX 1991
Yamaha Wave Runner LX 1992
Yamaha Wave Runner LX 1993

Yamaha Super Jet 650 1990
Yamaha Super Jet 650 1991
Yamaha Super Jet 650 1992
Yamaha Super Jet 650 1993

Yamaha Super Jet 700 1995

Yamaha VXR 650 1991
Yamaha VXR 650 (806931) 1991
Yamaha VXR 650 (827000) 1992
Yamaha VXR 650 (816999) 1992
Yamaha VXR 650 1993
Yamaha VXR 650 1993
Yamaha VXR 650 1995

Yamaha VXR Pro 700 1993
Yamaha VXR Pro 700 1994

Yamaha Wave Blaster 700 1993
Yamaha Wave Blaster 700 1994
Yamaha Wave Blaster 700 1995

OEM 6M6-85560-00-00
6R8-85560-00-00
6R7-85560-00-00

Dimensions :
Interior diameter : 36 mm
Exterior diameter : 127 mm
Thickness : 5 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 125 mm

Other specifications :

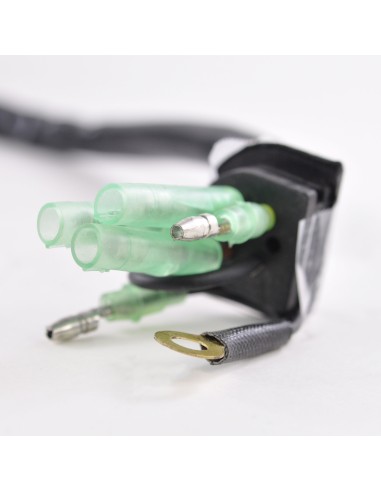

Number of wires : 5
Number of plugs : 5
Number of terminals : 6

Wire to wire resistance :
Alternator : Green to Green = 0.4 ohms +/-20%
Pickup : Red to White = 20 ohms +/-20%
Source : Brown to Black = 394 ohms +/-20%
