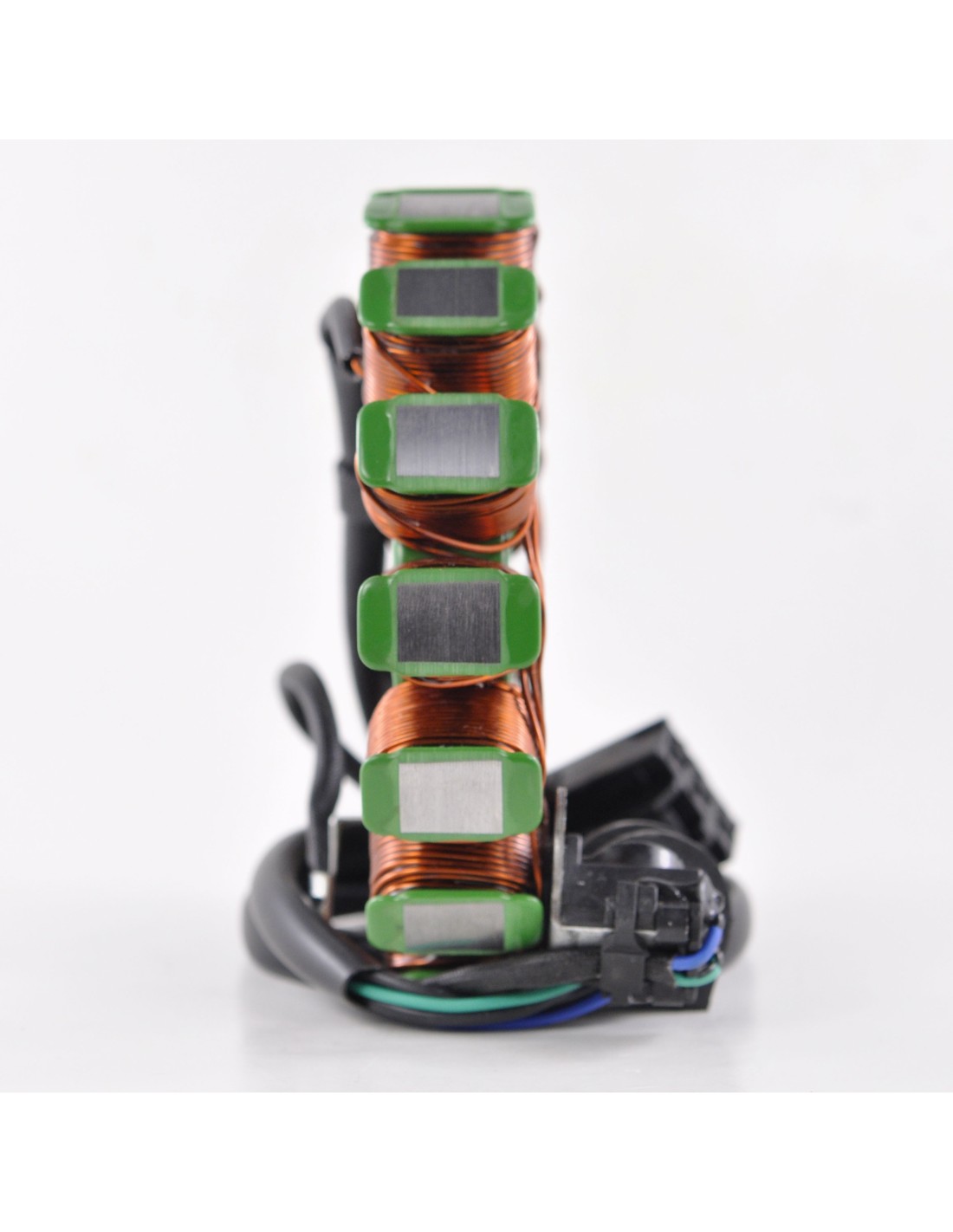

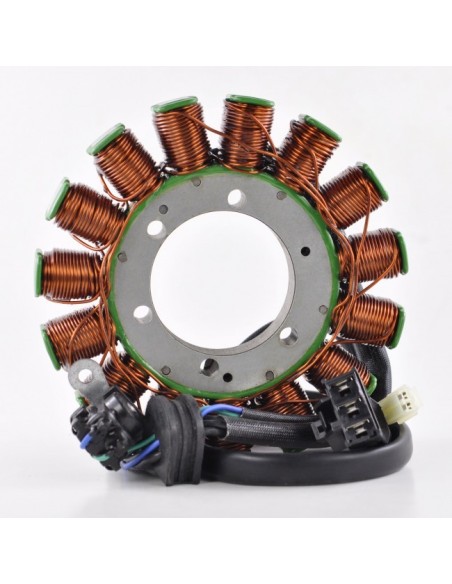

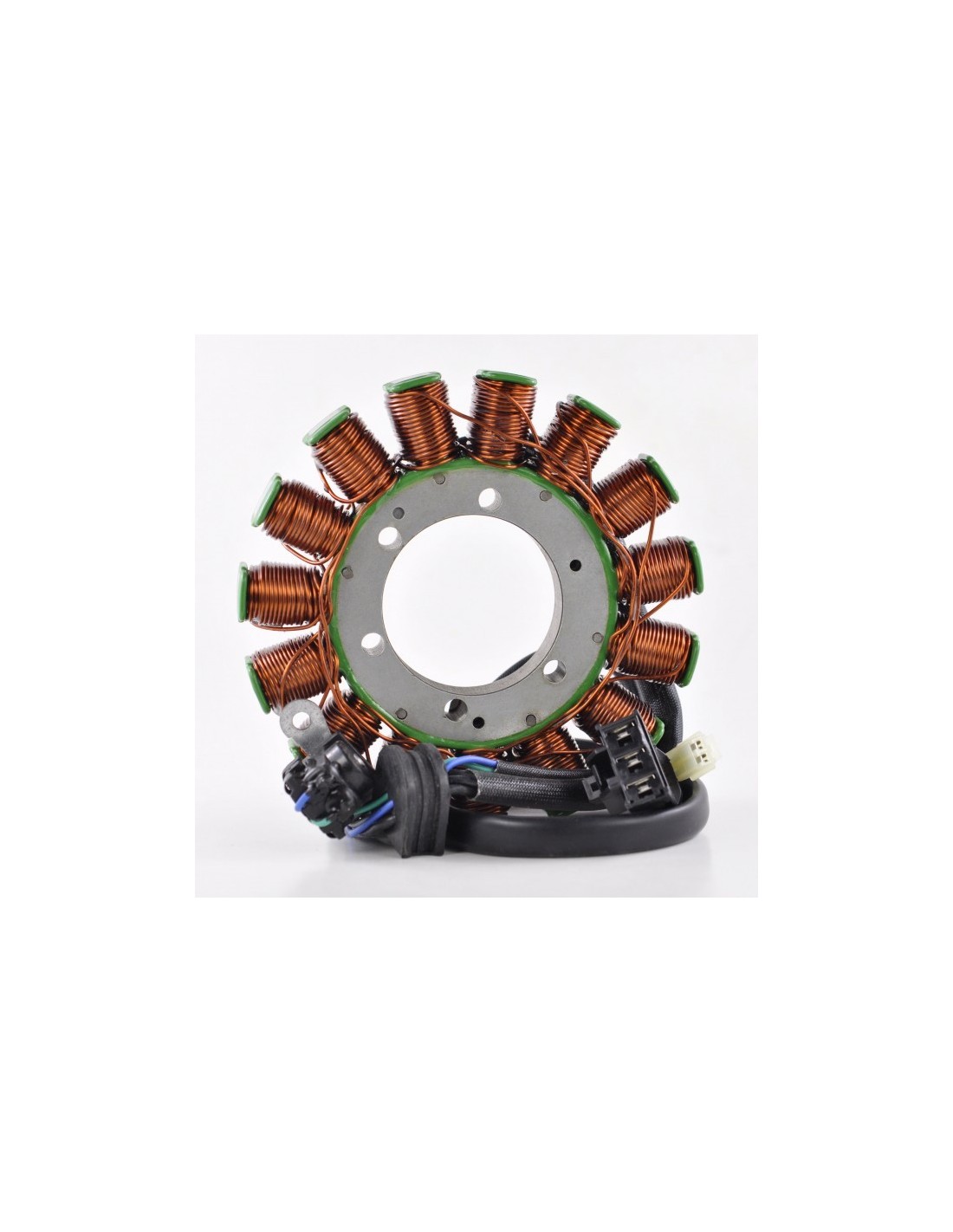

Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20
CARM01596
5-7 Days
€204.00
Tax included
OEM 32101-48G20
Stator
Resistant to 200 degrees Celsius
- 2006-2024 Suzuki Boulevard M109R VZR1800
OEM 32101-48G20
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 140 mm
Thickness : 18 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 420 mm
Length of pickup coil's wire to grommet : 240 mm
Other specifications :
Number of wires :5

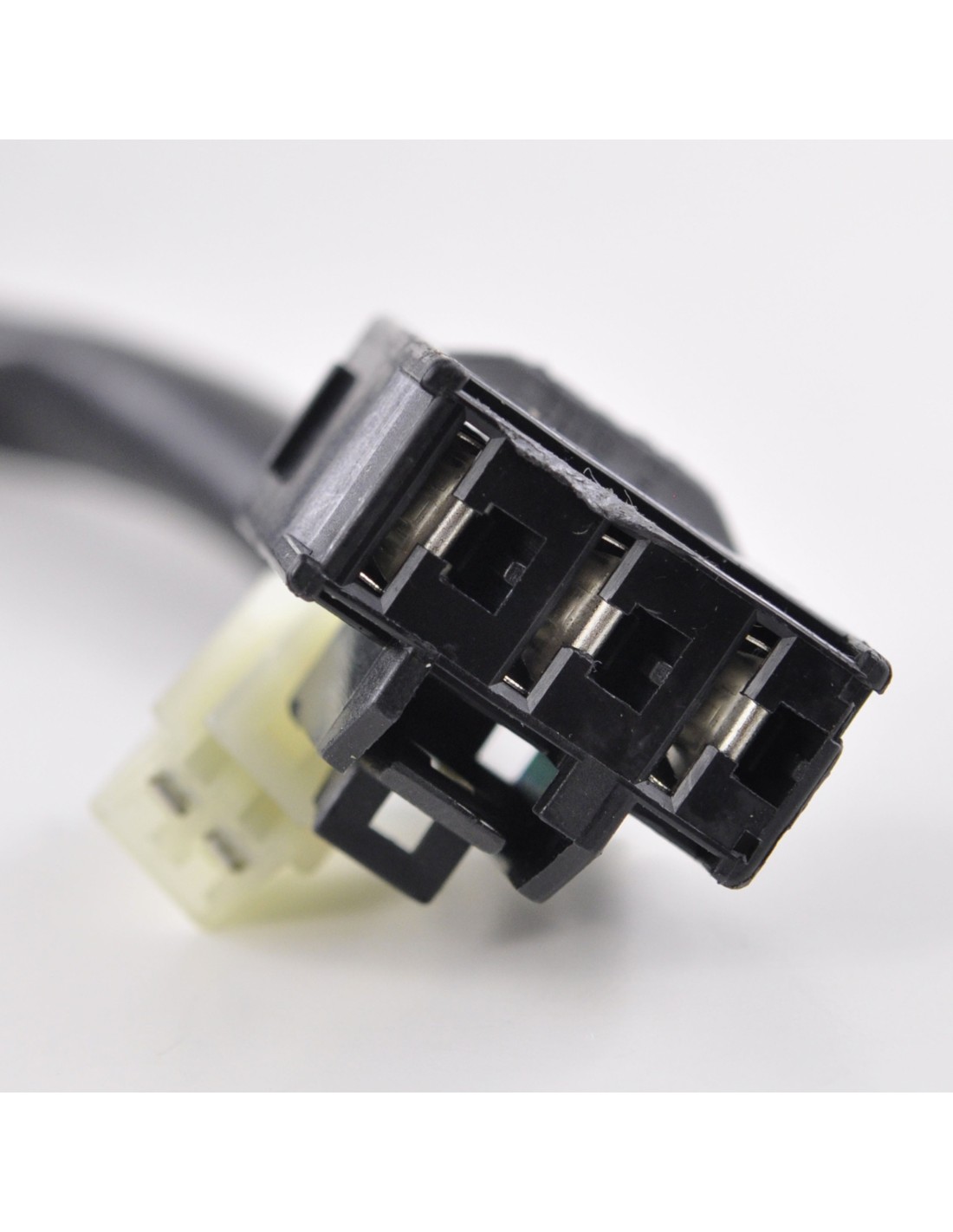

Number of plugs : 2
Number of pins :5
Wire to wire resistance :
Alternator : Black to Black = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%
