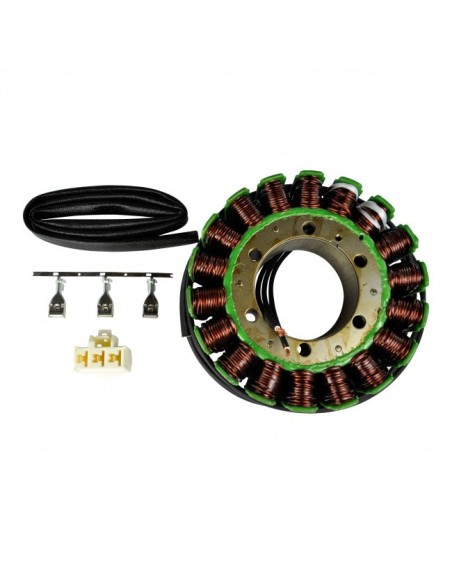

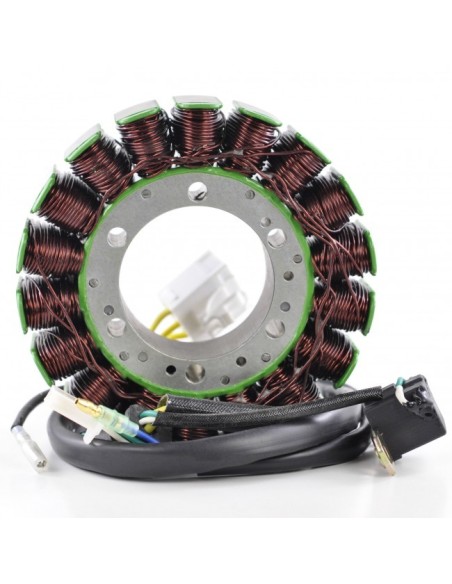

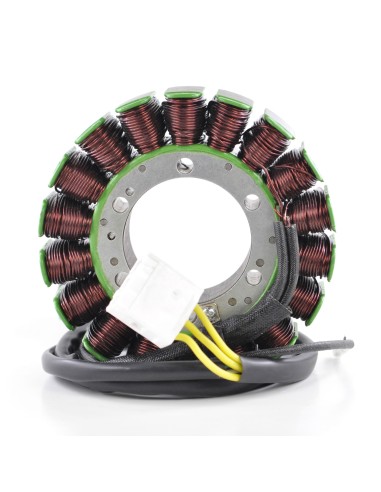

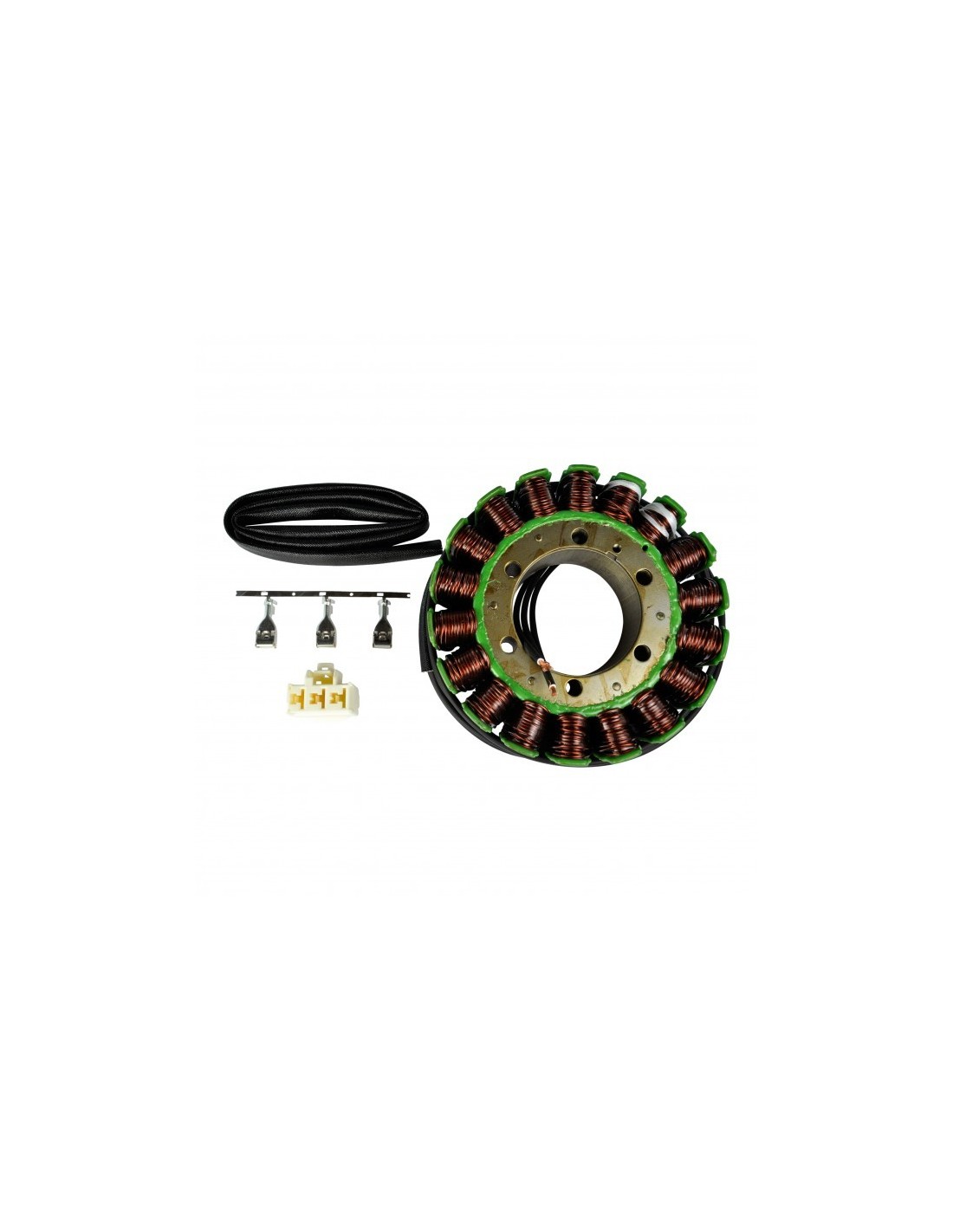

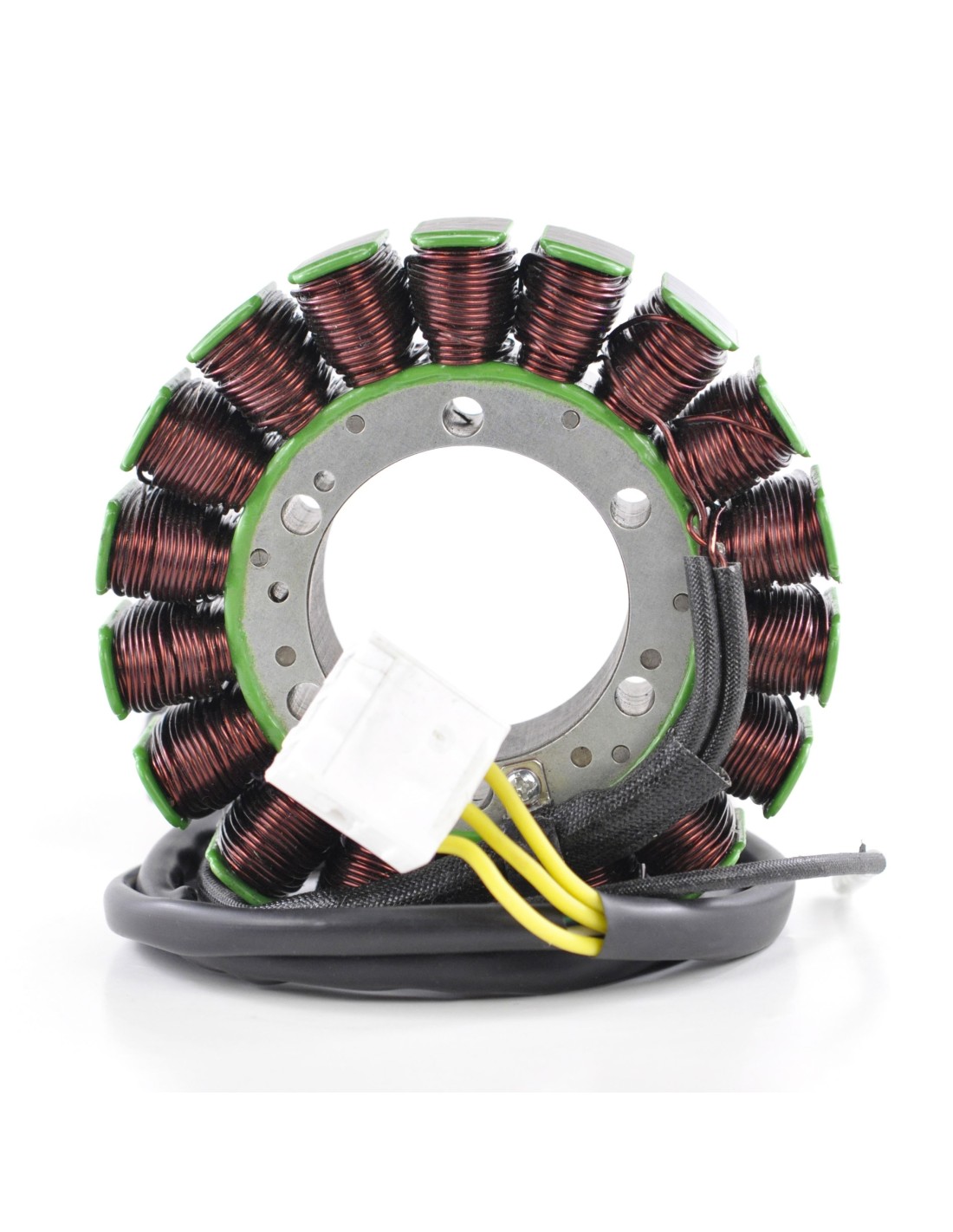

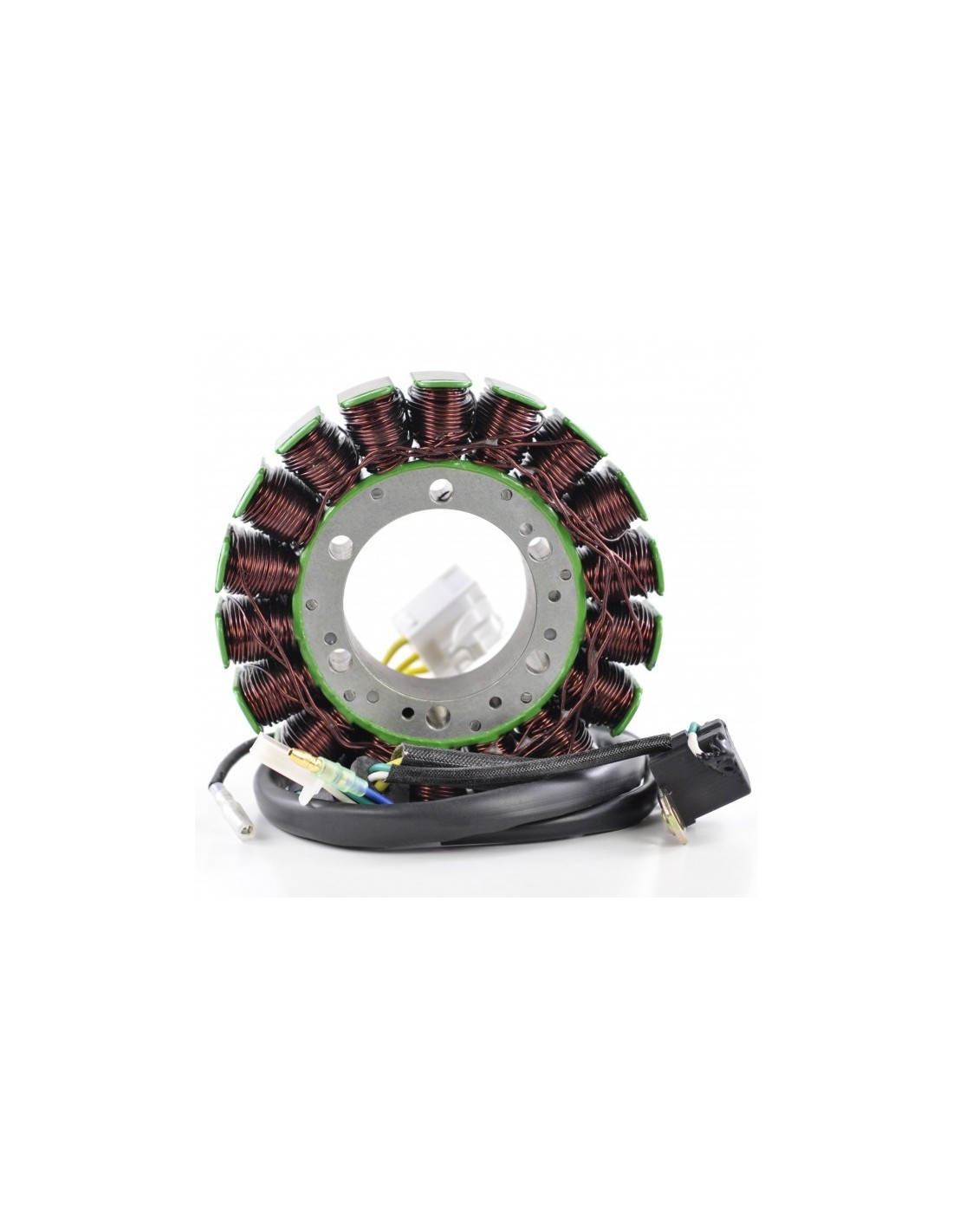

Stator
2004 Honda VTX 1300 C
2004 Honda VTX 1300 S
2003 Honda VTX 1300 S
OEM 31120-MEA-671
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 33 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to alternator : 410 mm
Length of wires grommet to pick up coil : 615 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires :2

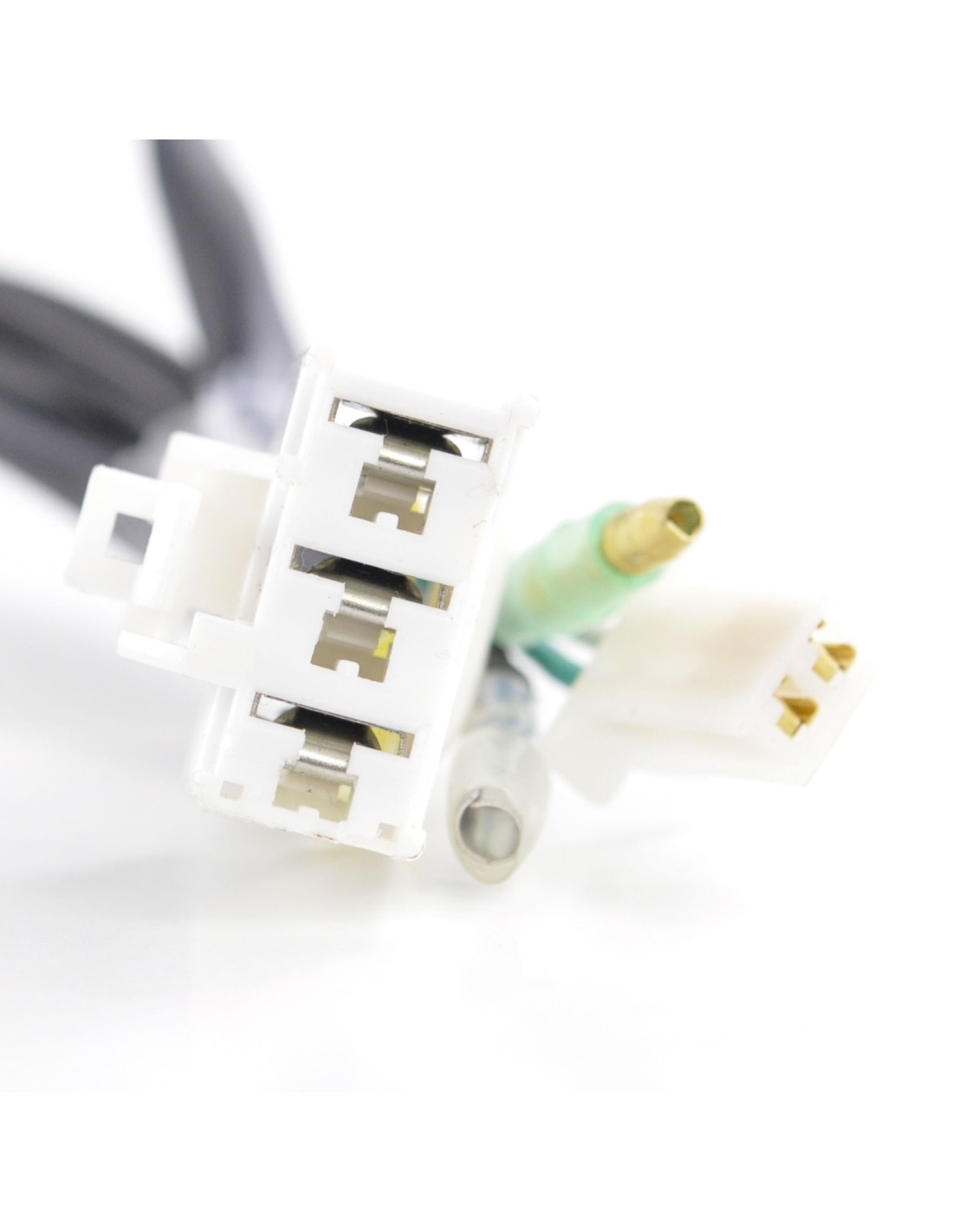

Number of plugs :4
Number of pins :7
Wire to wire resistance :
Alternator :Between yellow wires = 0.6 ohms +-20%

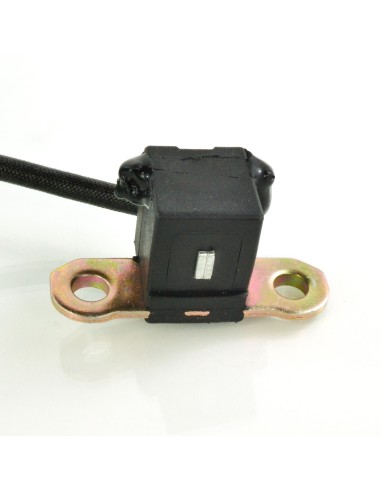

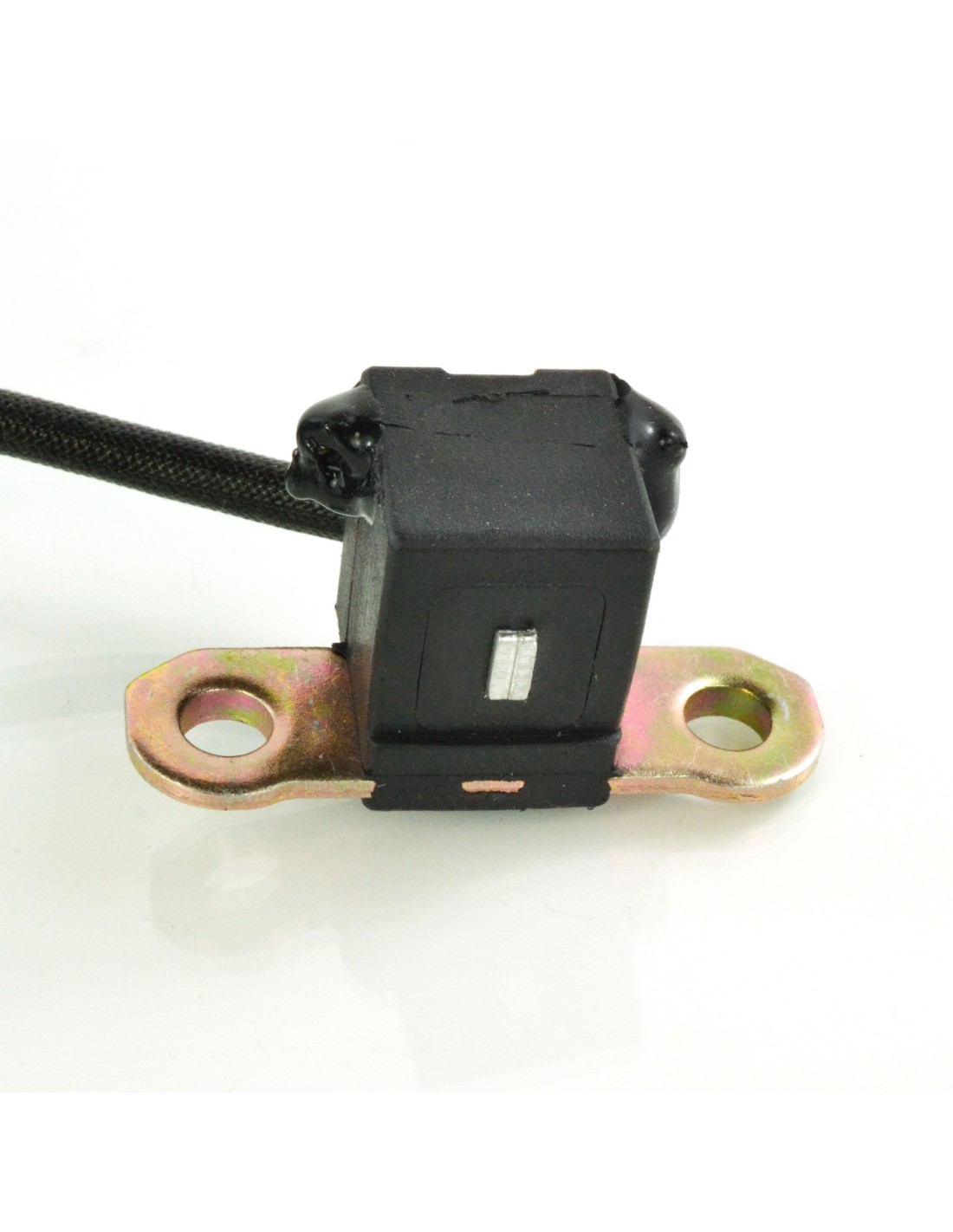

Pickup :Green to White = 196 ohms +-20%
