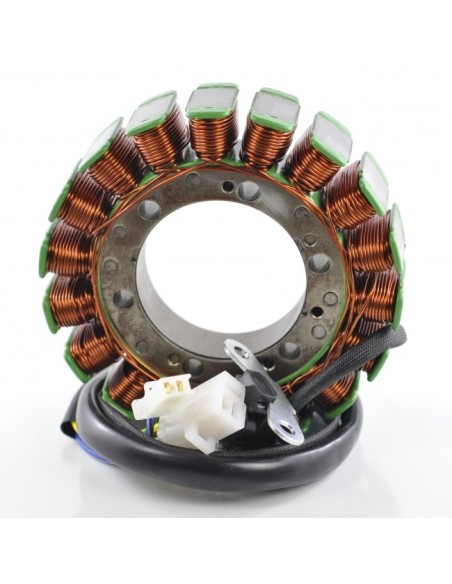

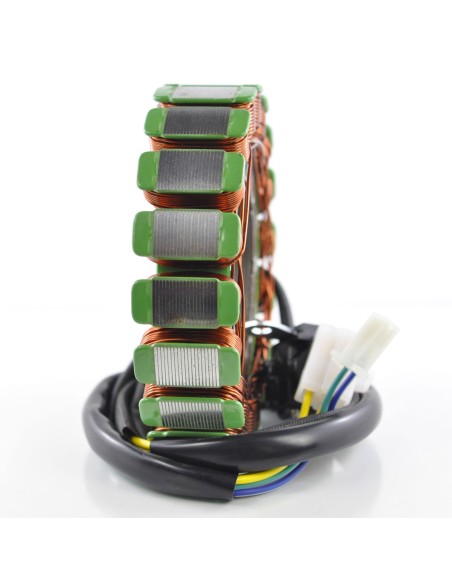

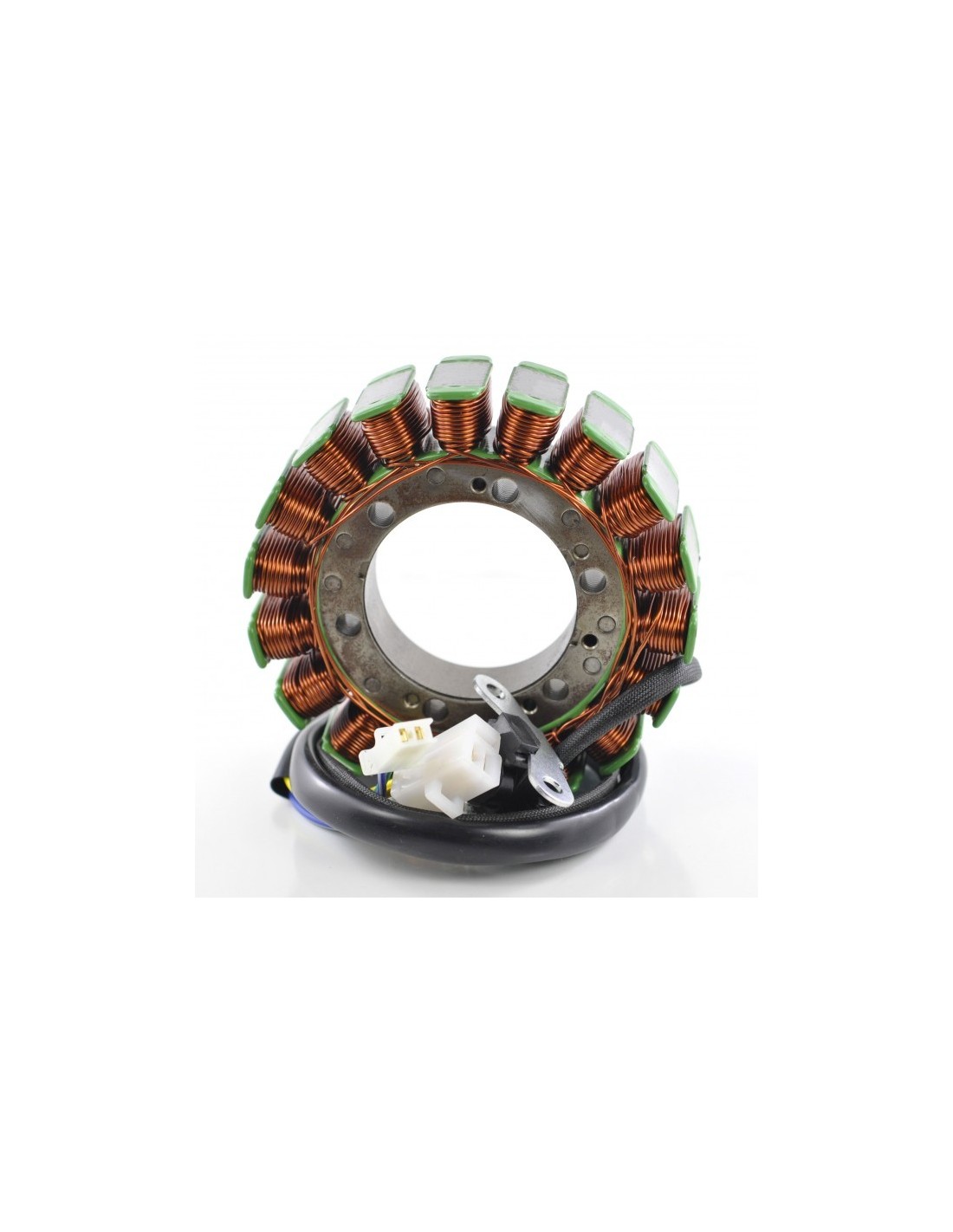

Stator Suzuki Boulevard C50 VL800 Volusia OEM 32101-41F00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

2005 Suzuki Boulevard C50 VL800
2004 Suzuki VL800 Volusia
2003 Suzuki VL800 Volusia
2002 Suzuki VL800 Volusia
2001 Suzuki VL800 Volusia

OEM 32101-41F00

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 330 mm
Length of wires grommet to plug : 355 mm
Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5

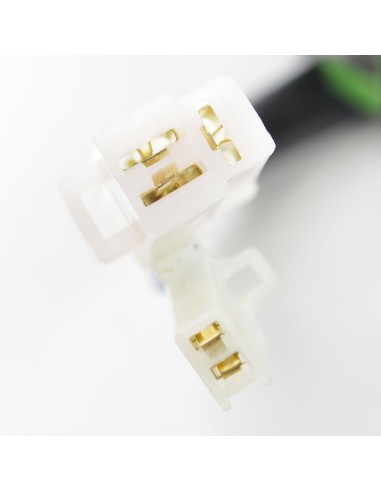

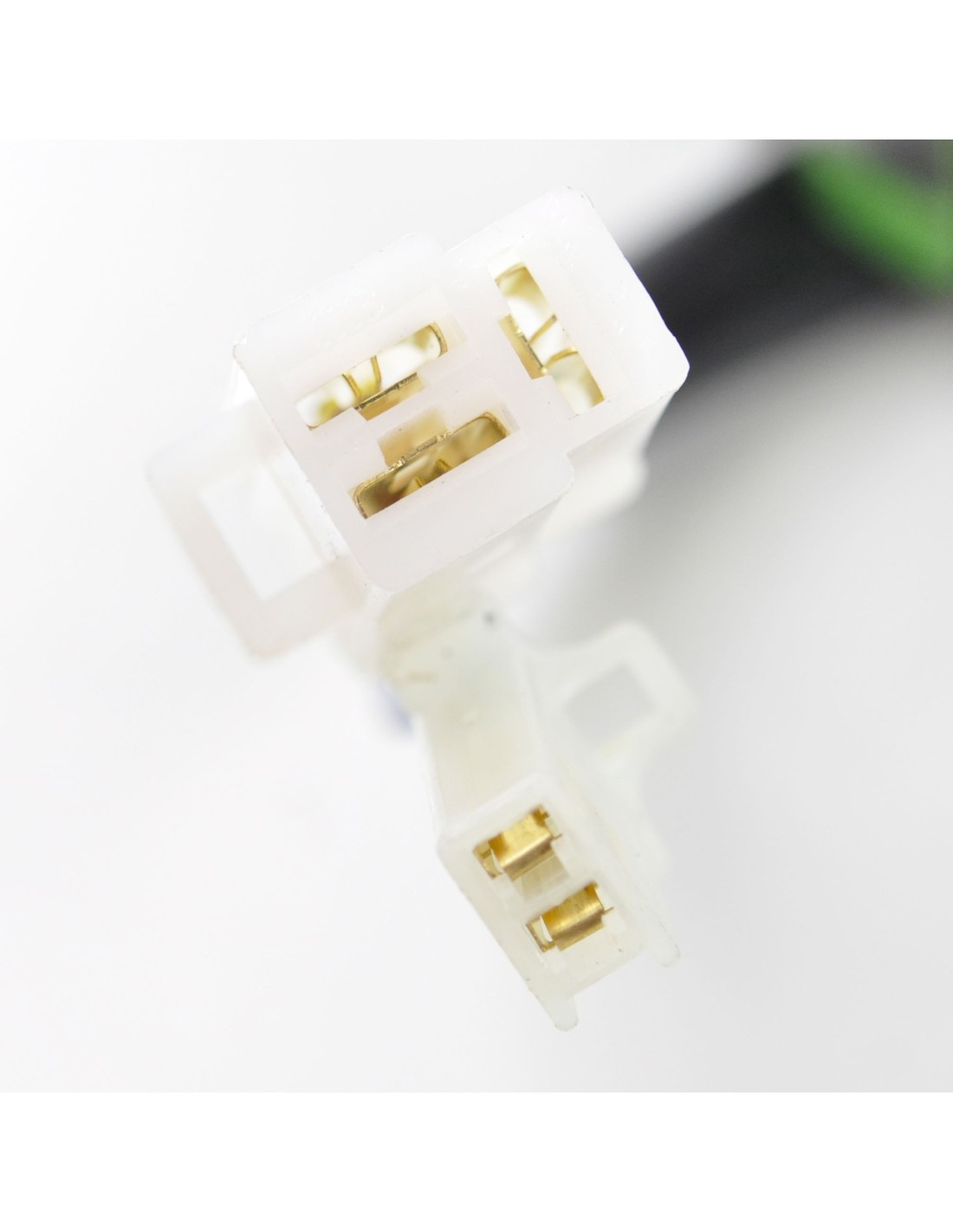

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Green To Blue = 251 ohms +-20%

Resistant to 200 degrees Celsius
