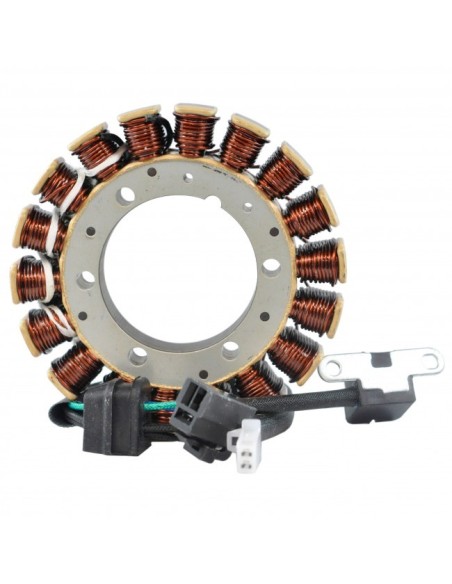

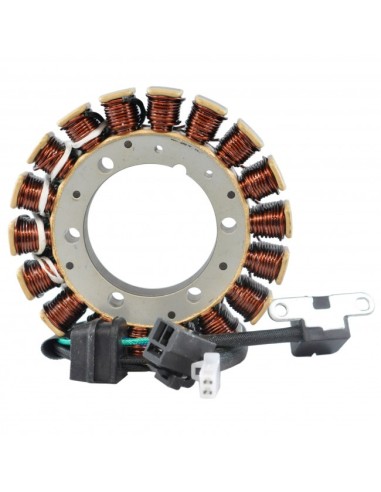

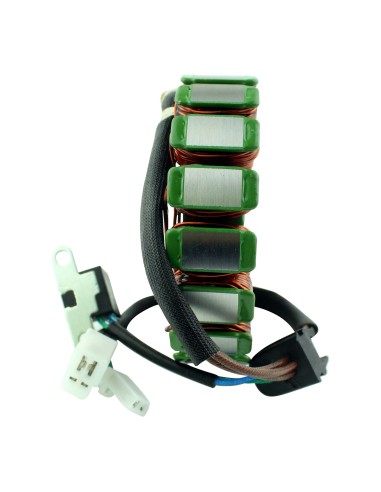

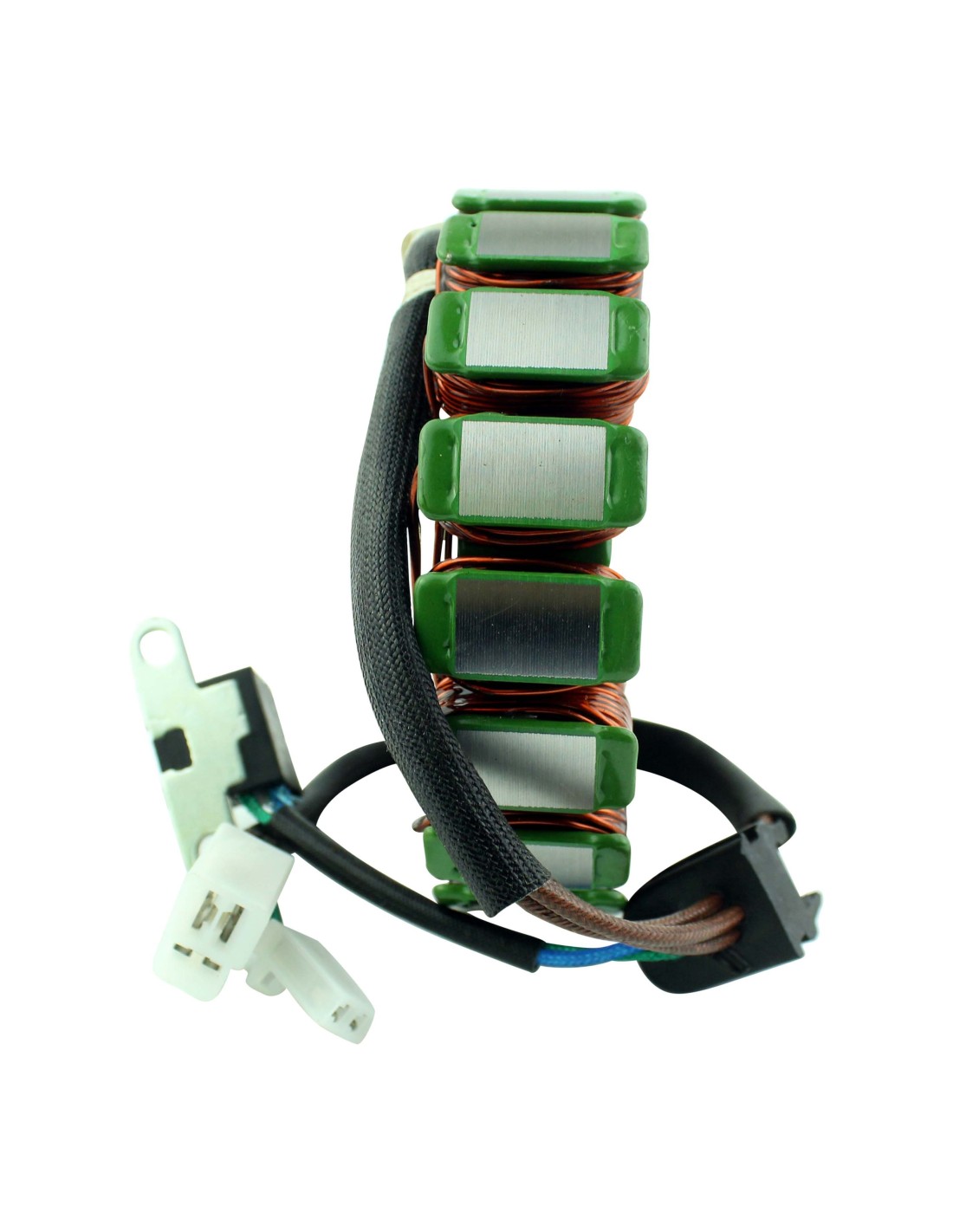

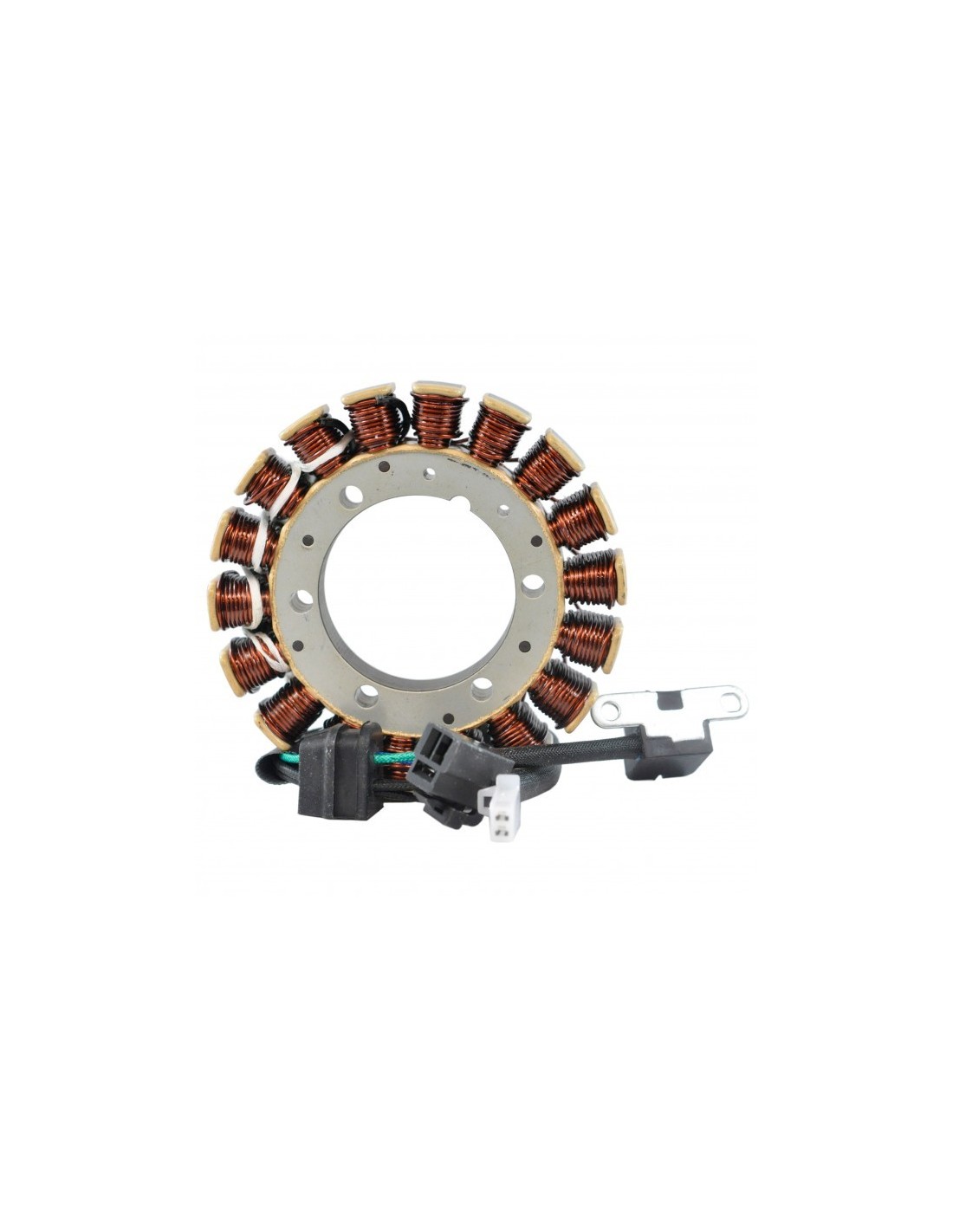

Stator Suzuki VL1500 Intruder OEM 32101-10F01

Stator

Resistant to 200 degrees Celsius



    2004
        Suzuki
            Intruder
                Motorcycle 2004 Suzuki Intruder VL1500
    2003
        Suzuki
            Intruder
                Motorcycle 2003 Suzuki Intruder VL1500
            VL 1500 Intruder LC
                Motorcycle 2003 Suzuki VL 1500 Intruder LC
    2002
        Suzuki
            Intruder
                Motorcycle 2002 Suzuki Intruder VL1500
            VL 1500 Intruder LC
                Motorcycle 2002 Suzuki VL 1500 Intruder LC
    2001
        Suzuki
            Intruder
                Motorcycle 2001 Suzuki Intruder VL1500
            VL 1500 Intruder LC
                Motorcycle 2001 Suzuki VL 1500 Intruder LC
    2000
        Suzuki
            Intruder
                Motorcycle 2000 Suzuki Intruder VL1500
            VL 1500 Intruder LC
                Motorcycle 2000 Suzuki VL 1500 Intruder LC
    1999
        Suzuki
            Intruder
                Motorcycle 1999 Suzuki Intruder VL1500
    1998
        Suzuki
            Intruder
                Motorcycle 1998 Suzuki Intruder VL1500


OEM 32101-10F01

Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 20mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 130mm
Length of pickup coil's wire to grommet : 45mm

Other specifications :
Number of wires : 5

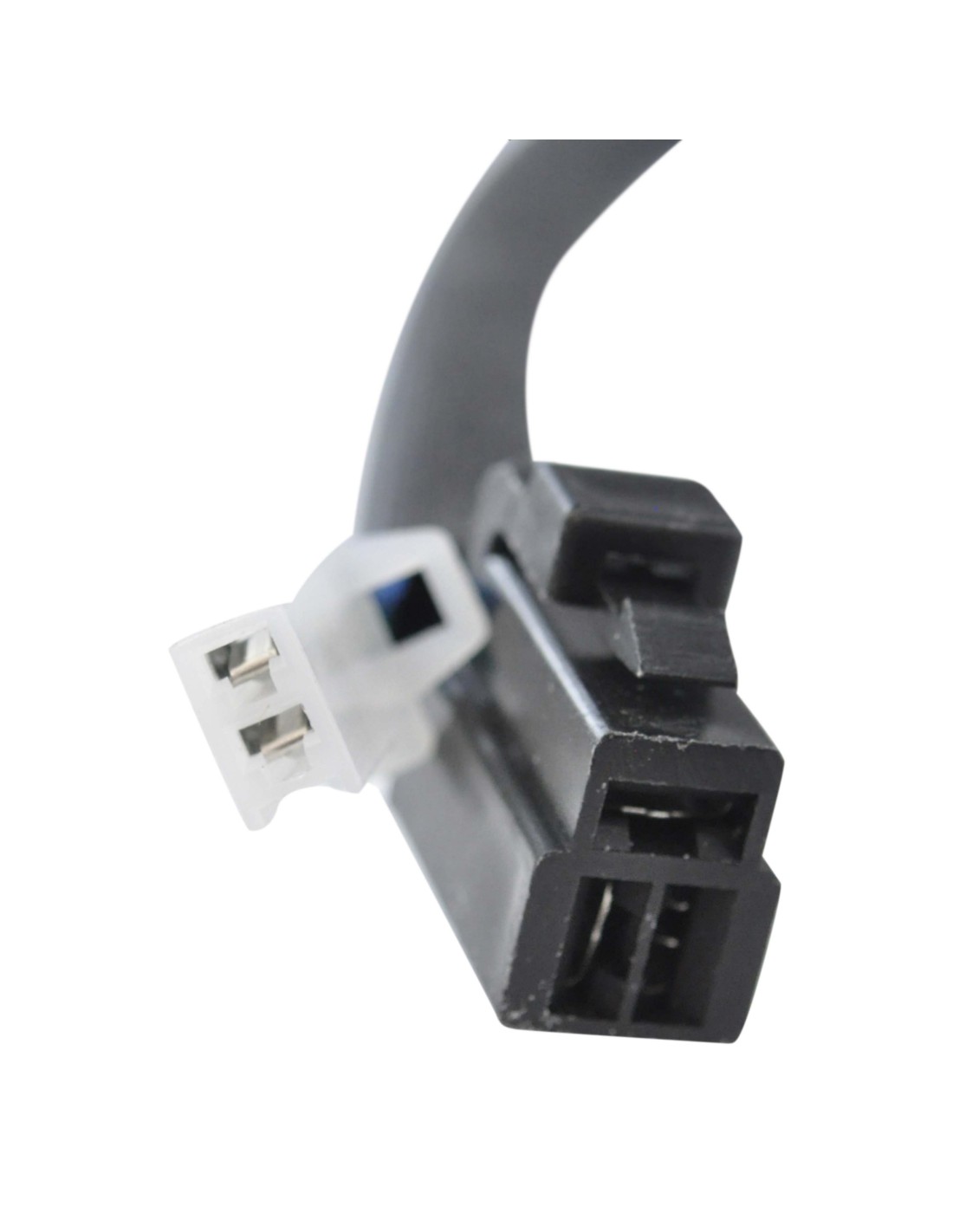

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
Pickup : Blue to Green = 220ohms +/-20%
