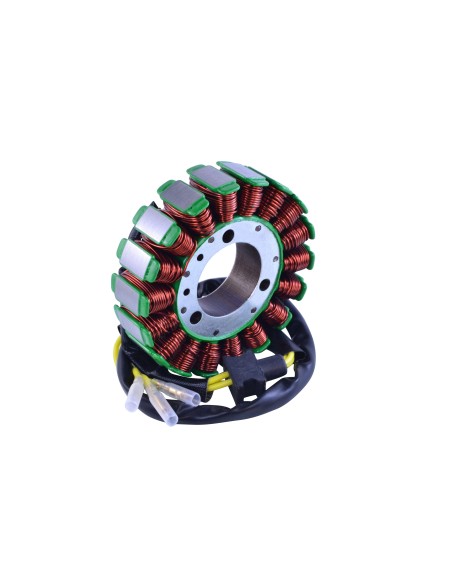

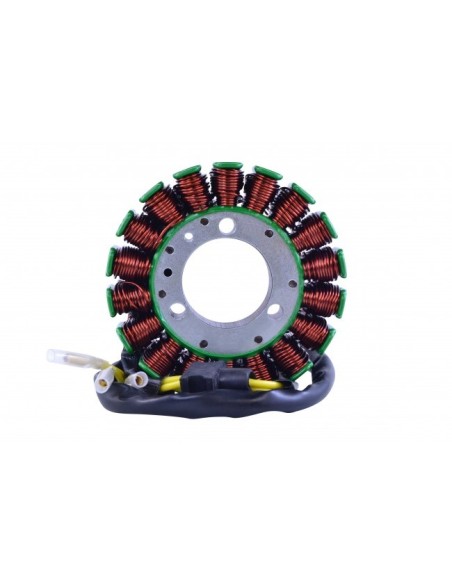

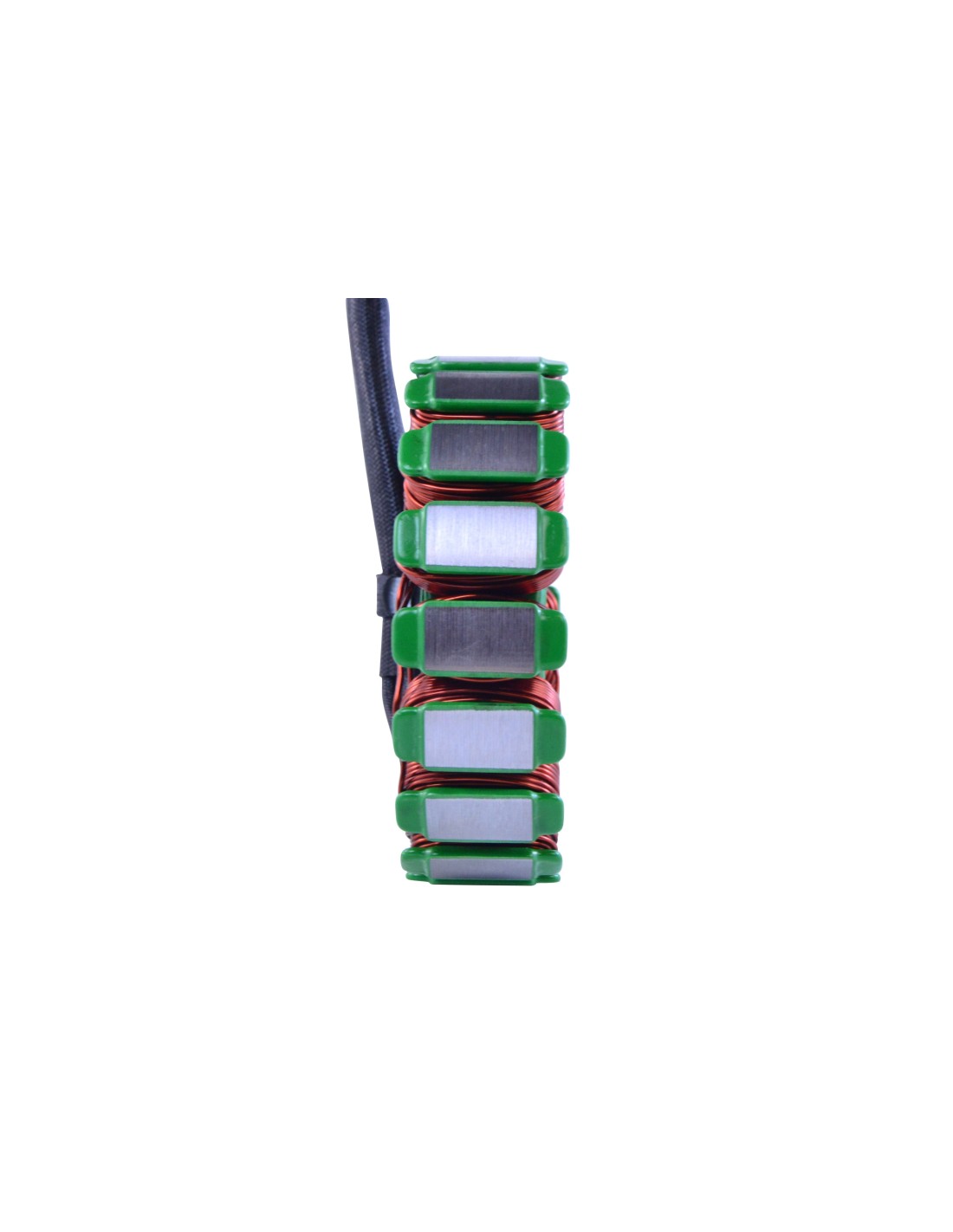

Stator Kawasaki VN700 Vulcan VN750 Vulcan OEM 21003-1118
CARMS010-104835
5-7 Days
€152.00
Tax included
OEM 21003-1118
Stator
Kawasaki VN 700 Vulcan -1985
Kawasaki VN 750 Vulcan - 1986-2006
Kawasaki VN 750 Vulcan - 1986-2006
OEM 21003-1118
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 19.5 mm

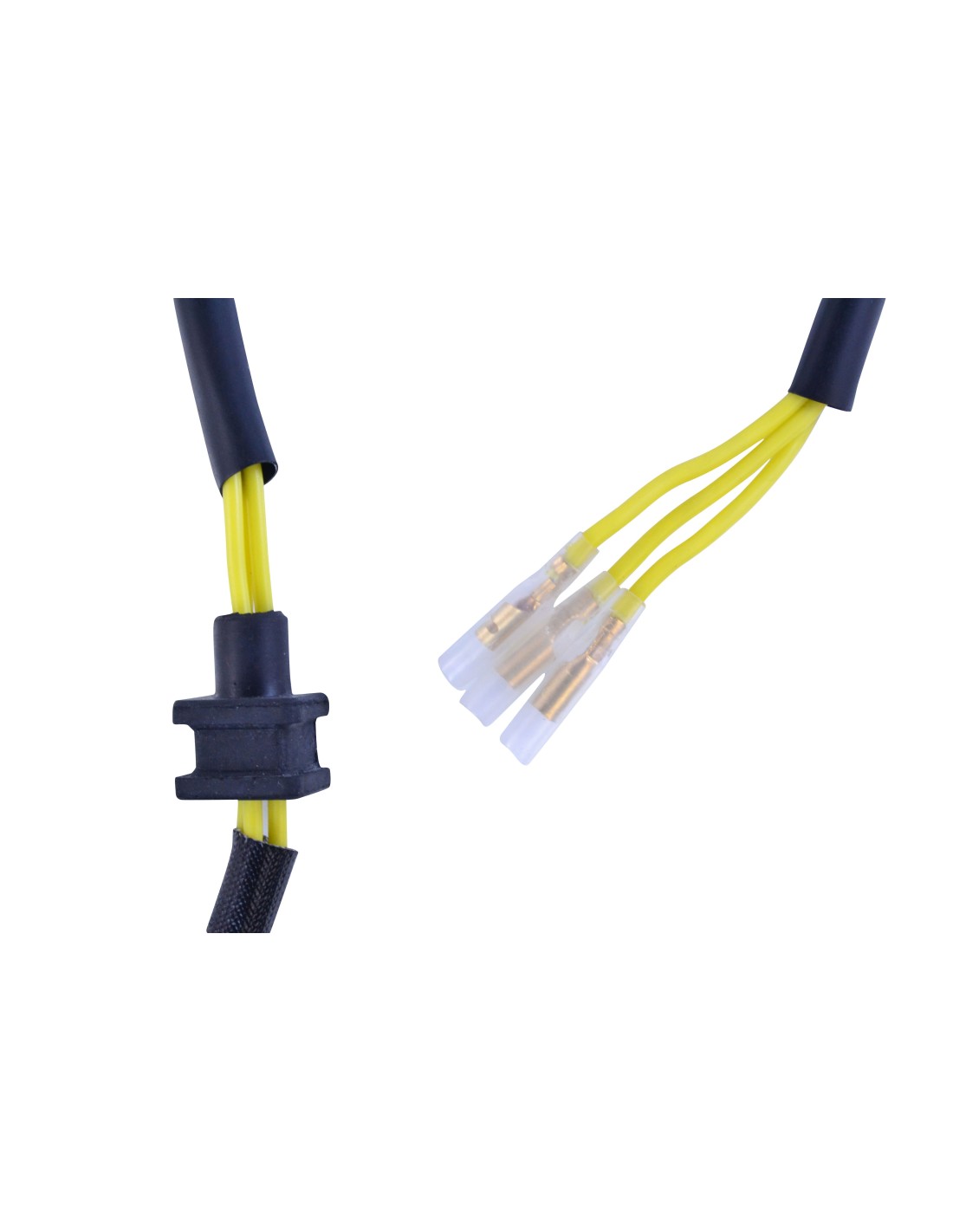

Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Number of poles : 18
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 19.5 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : = 0.4 ohms +-20%
Alternator to ground = O.L
Alternator : = 0.4 ohms +-20%
Alternator to ground = O.L
Resistant to 200 degrees Celsius
