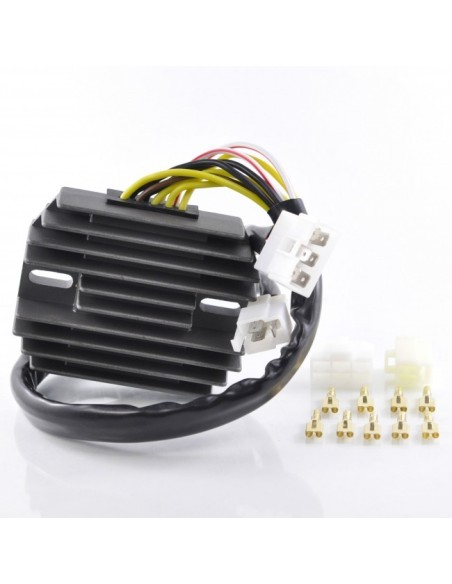

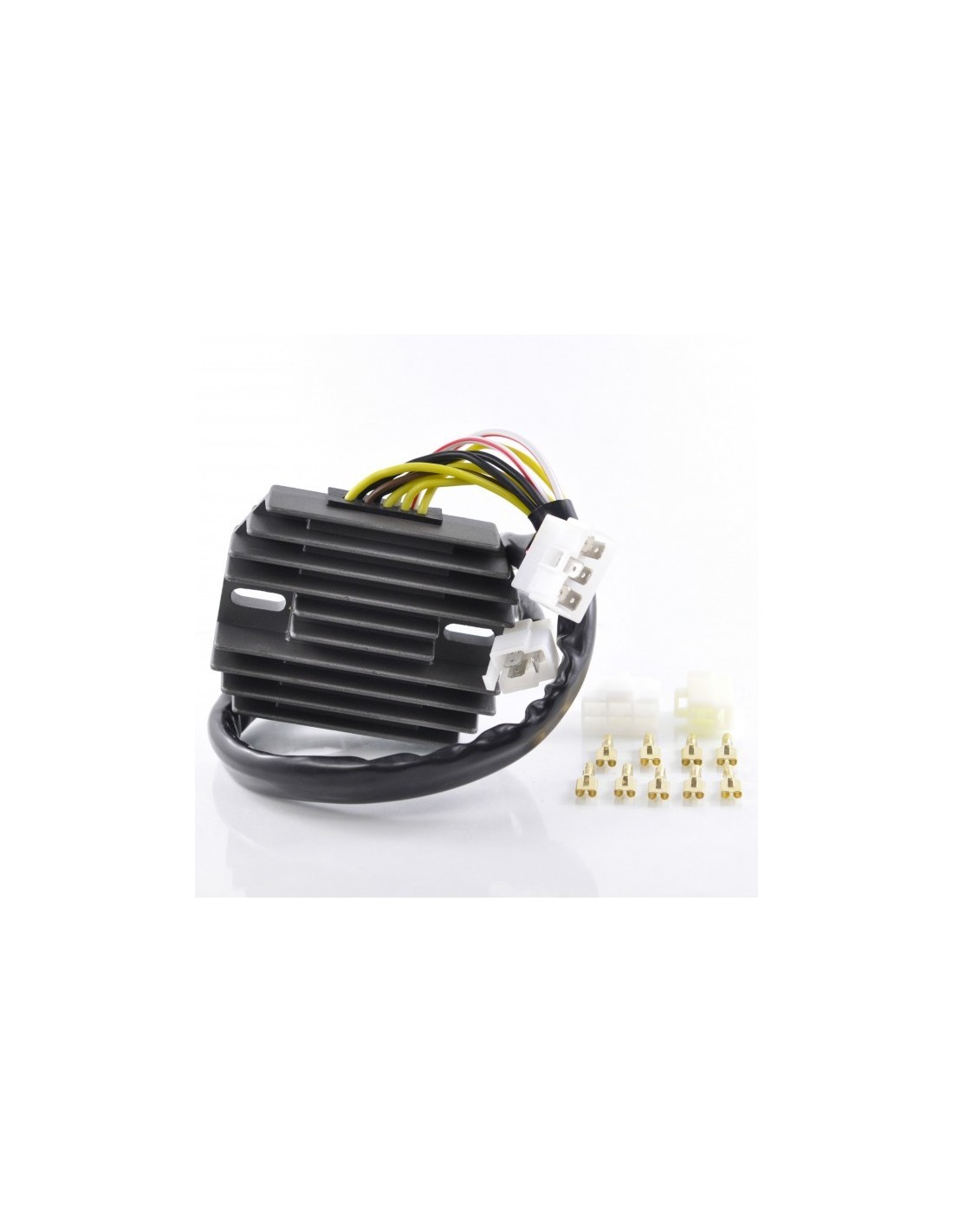

Regulator Rectifier Kawasaki Vulcan VN1500 Vulcan VN1600 OEM 21066-1126

Regulator Rectifier

2008 Kawasaki VN 1600 Vulcan Mean Streak
2007 Kawasaki VN 1600 Vulcan Mean Streak
2006 Kawasaki VN 1600 Vulcan Mean Streak
2005 Kawasaki VN 1500 Vulcan Drifter
2005 Kawasaki VN 1600 Vulcan Mean Streak
2004 Kawasaki VN 1500 Vulcan Drifter
2004 Kawasaki VN 1600 Vulcan Mean Streak
2003 Kawasaki VN 1500 Vulcan Drifter
2003 Kawasaki VN 1500 Vulcan Mean Streak
2002 Kawasaki VN 1500 Vulcan Drifter
2002 Kawasaki VN 1500 Vulcan Mean Streak
2001 Kawasaki VN 1500 Vulcan Drifter

OEM 21066-1126

Dimensions:
Width: 80 mm
Length: 100 mm
Height: 32 mm
Wires length: 533 mm
Fixation holes center to center: 80 mm

Other specifications:

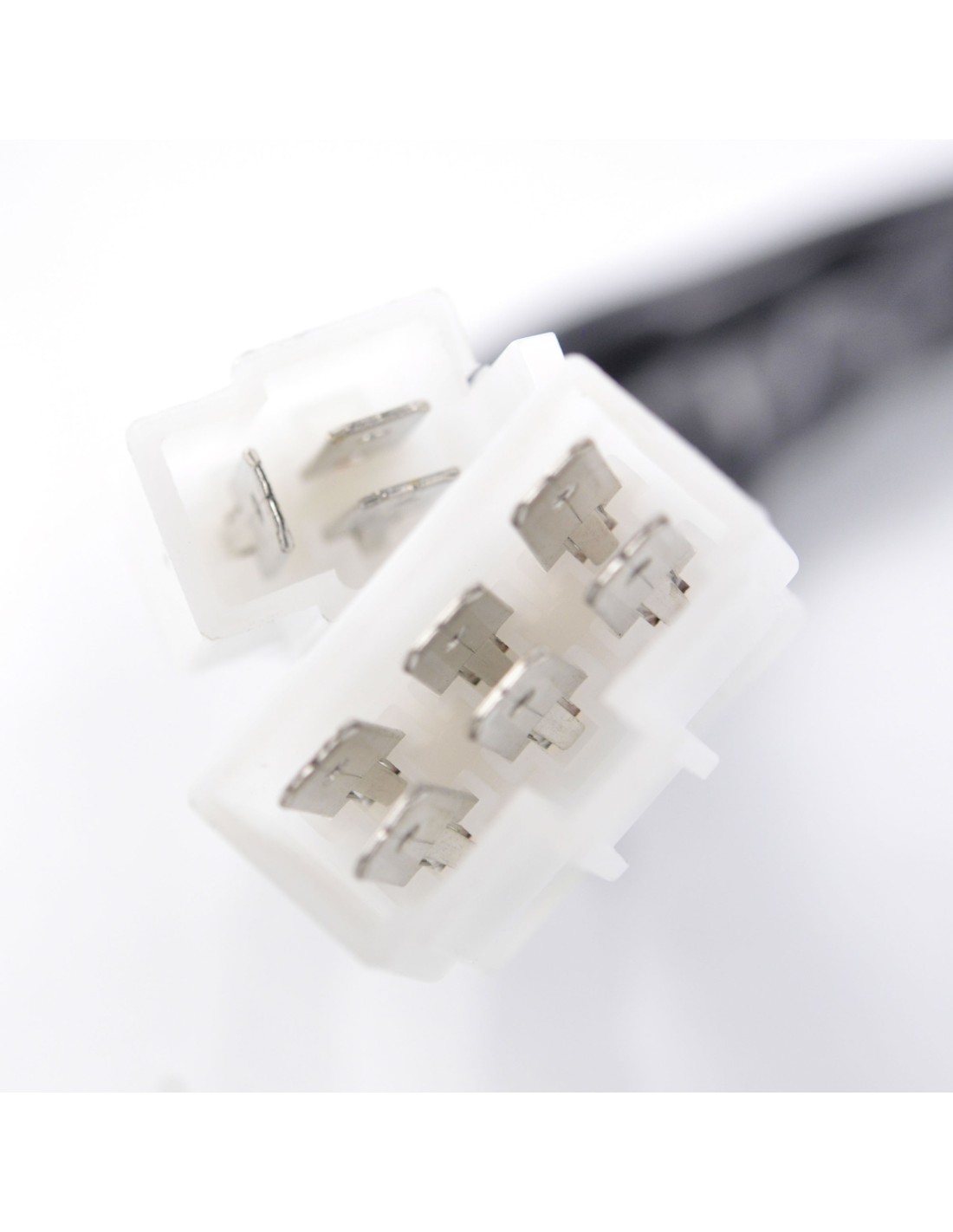

Number of plugs: 2
Number of pins: 9
Number of wires: 9
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20⁰ to 85⁰

Improved heat sink and charging capabilities
