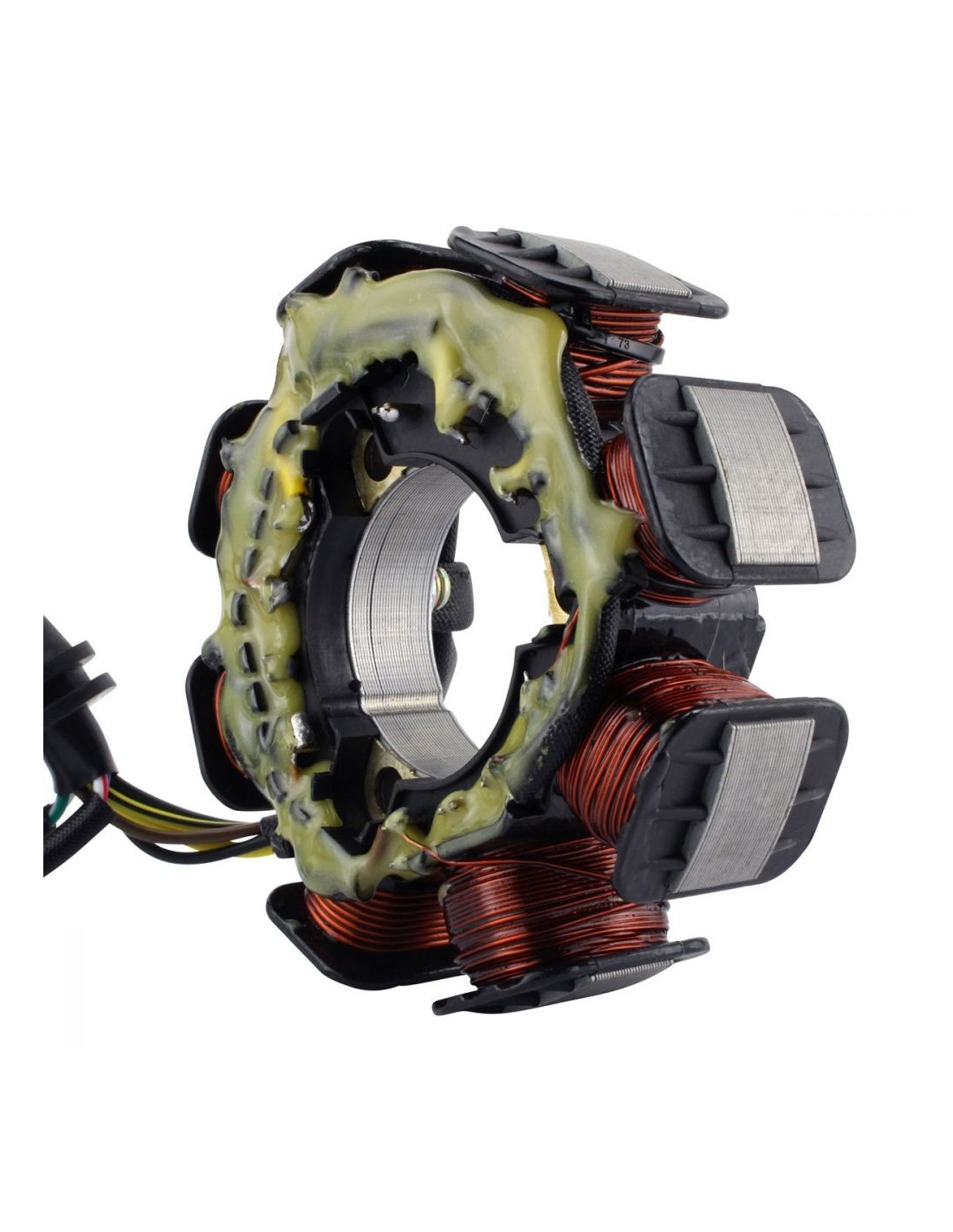

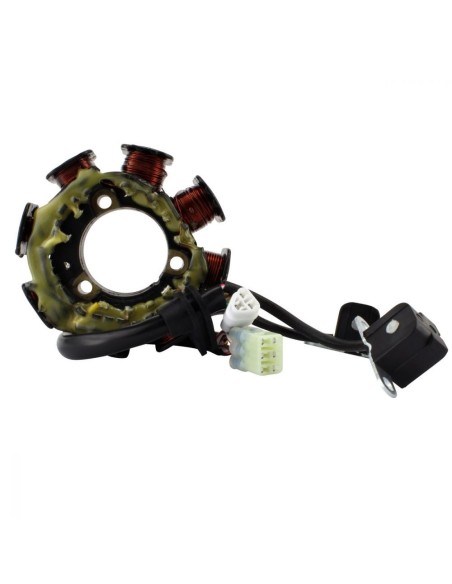

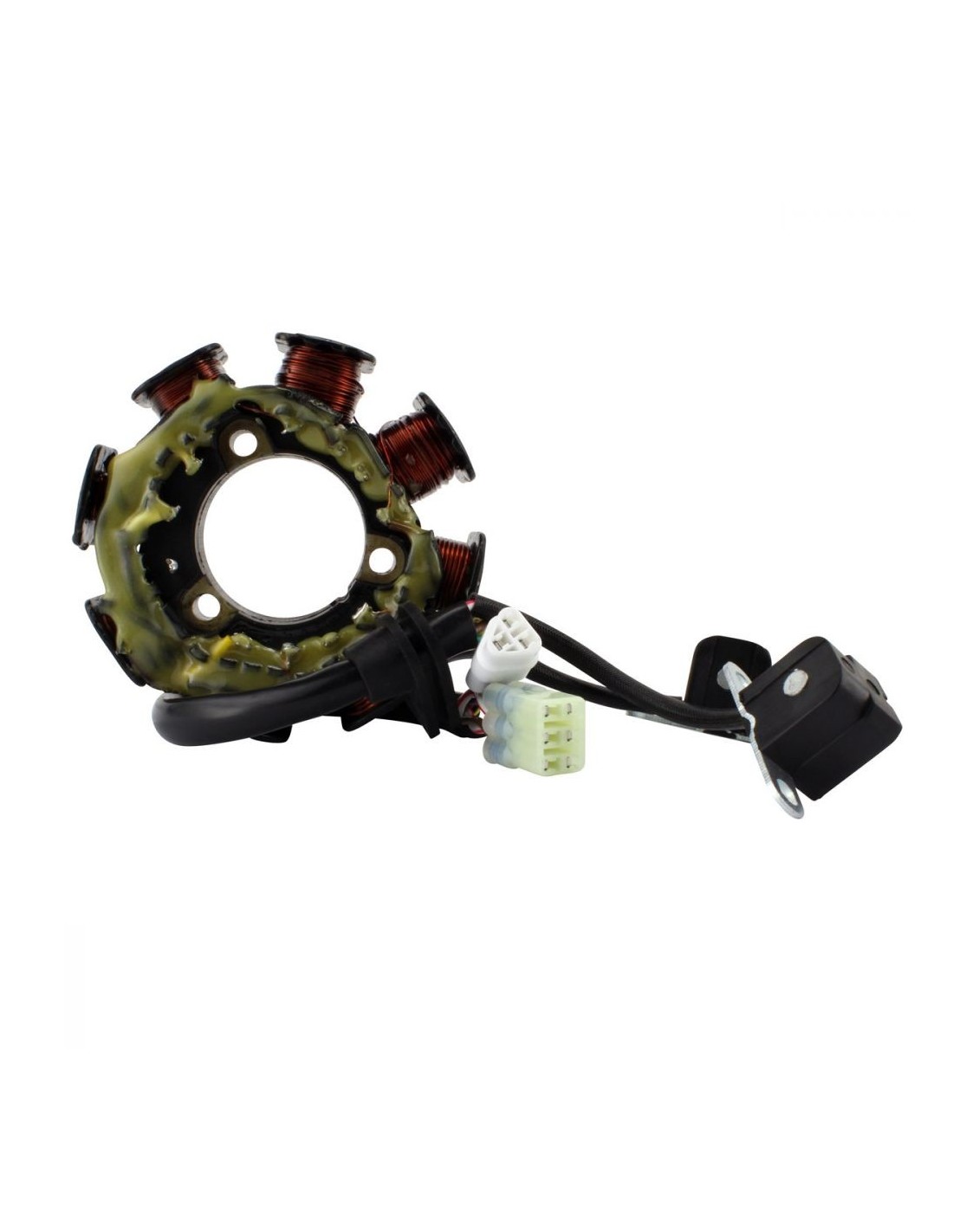

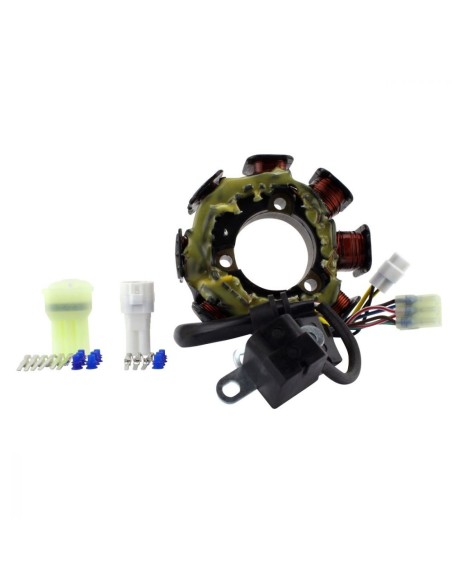

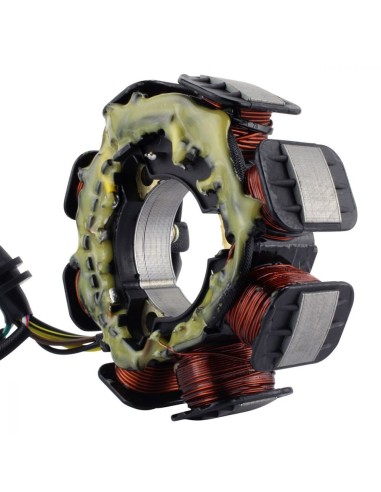

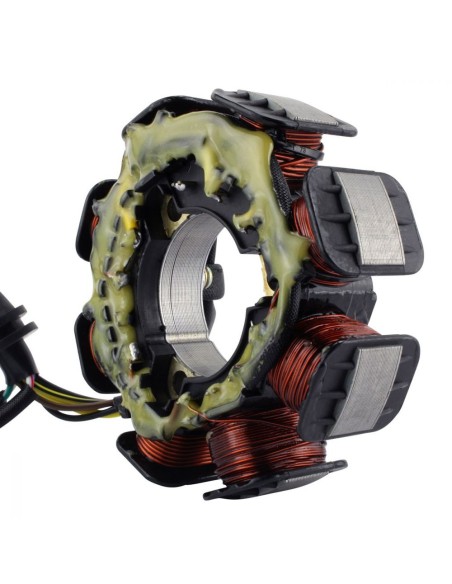

Stator Yamaha Mountain Max 800 VMax 800 OEM 8BU-85510-00-00

1997 Yamaha V-Max 800
1997 Yamaha Mountain Max 800
1996 Yamaha V-Max 800
1996 Yamaha Mountain Max 800
1995 Yamaha V-Max 800

OEM 8BU-85510-00-00

Dimensions:
Interior diameter: 41.5 mm
Exterior diameter: 103 mm
Thickness: 15 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 245 mm

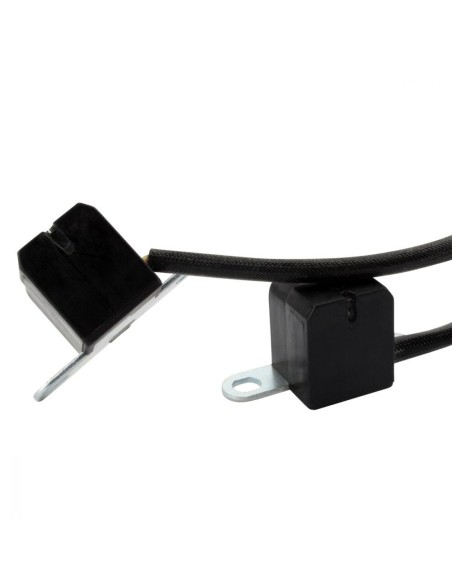

Length of pickup coil's wire to grommet: 120 mm

Other specifications:

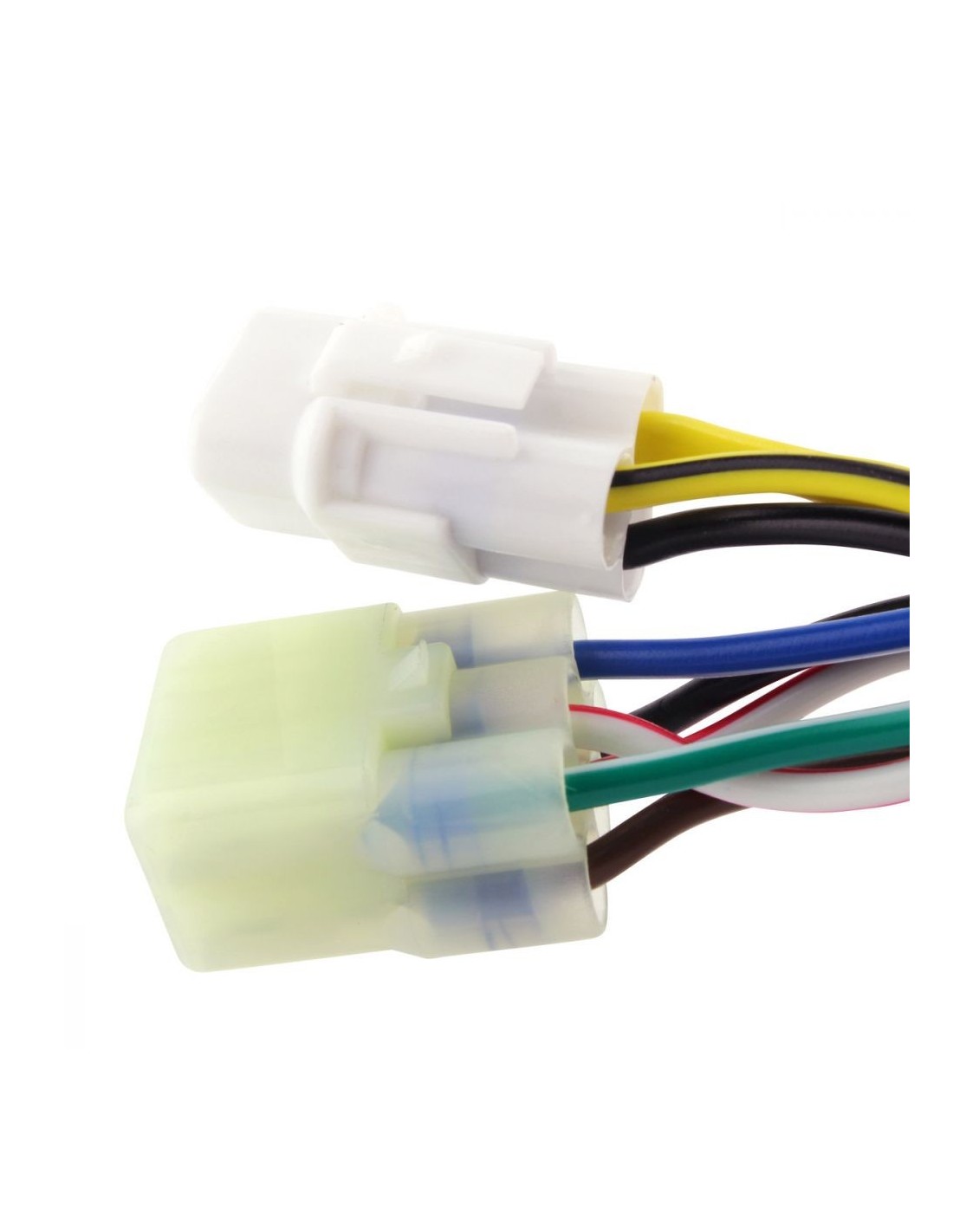

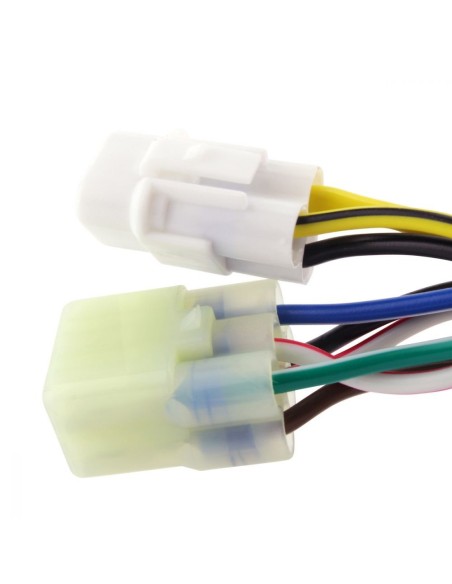

Number of wires: 9

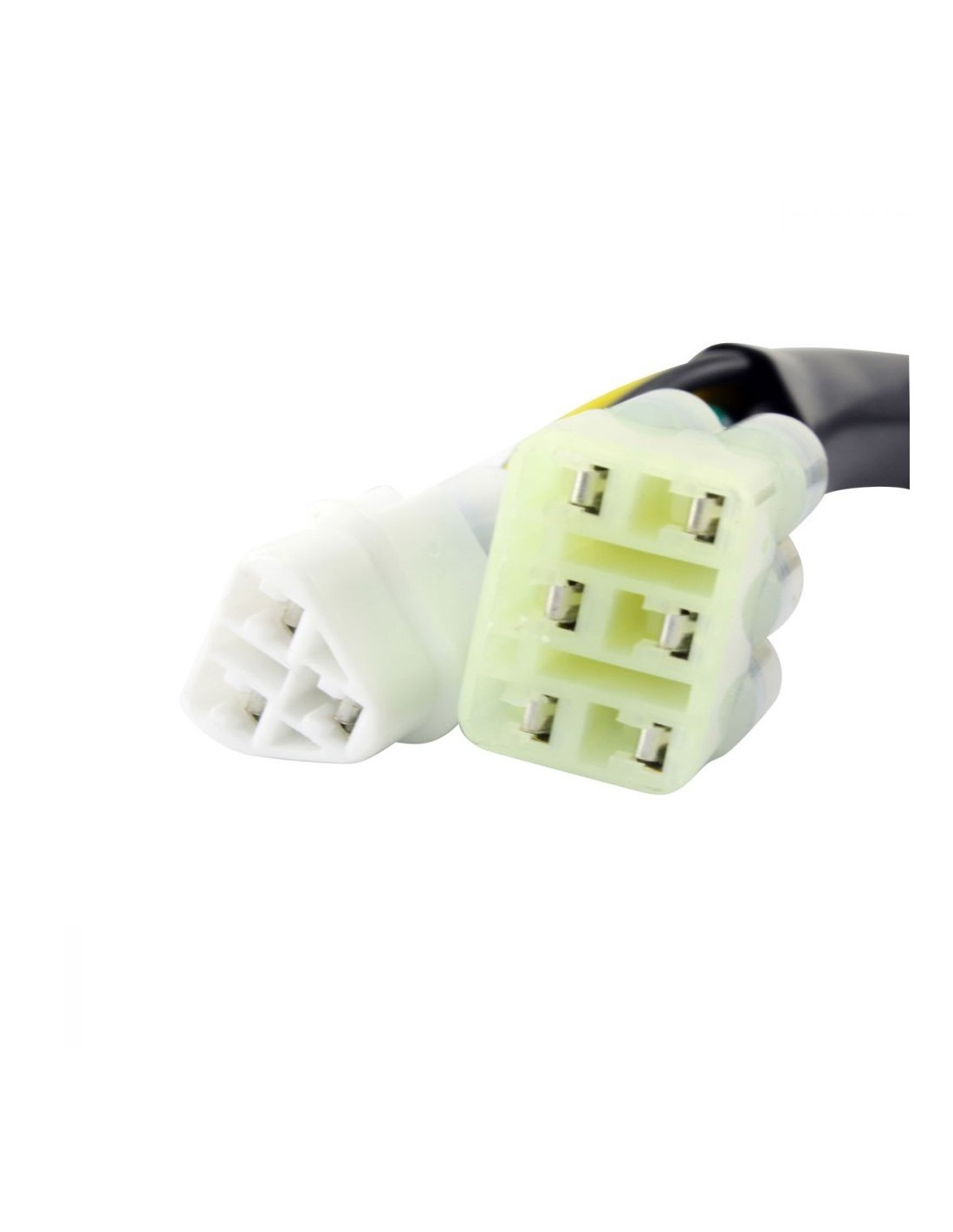

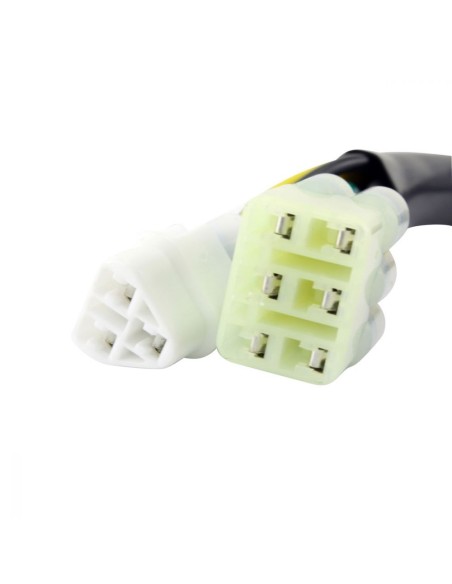

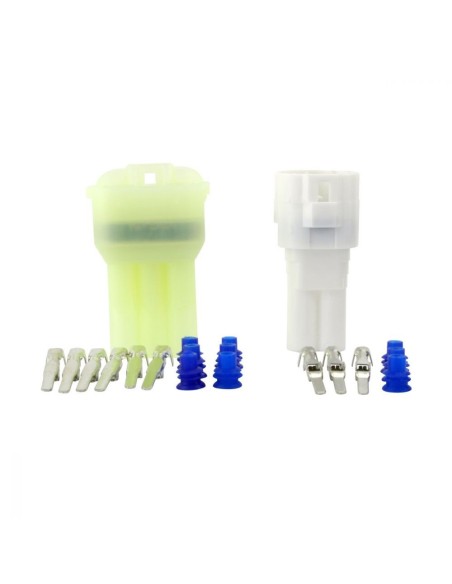

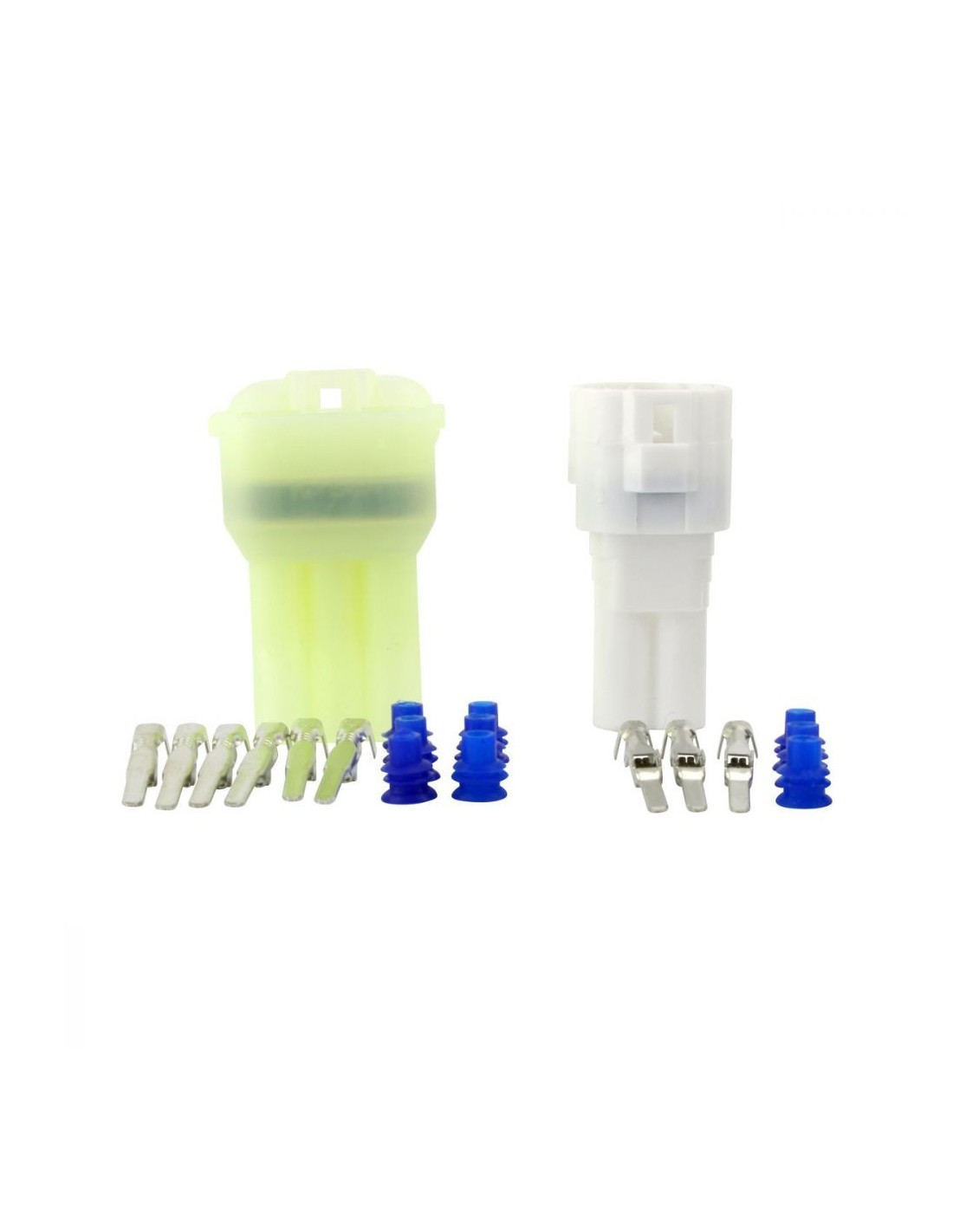

Number of plugs: 2
Number of pins: 9
Number of poles: 8
Wire to wire resistance:
Alternator: Yellow to Yellow/Black = 2 ohms +-20%
Black Wire is Grounded to Core

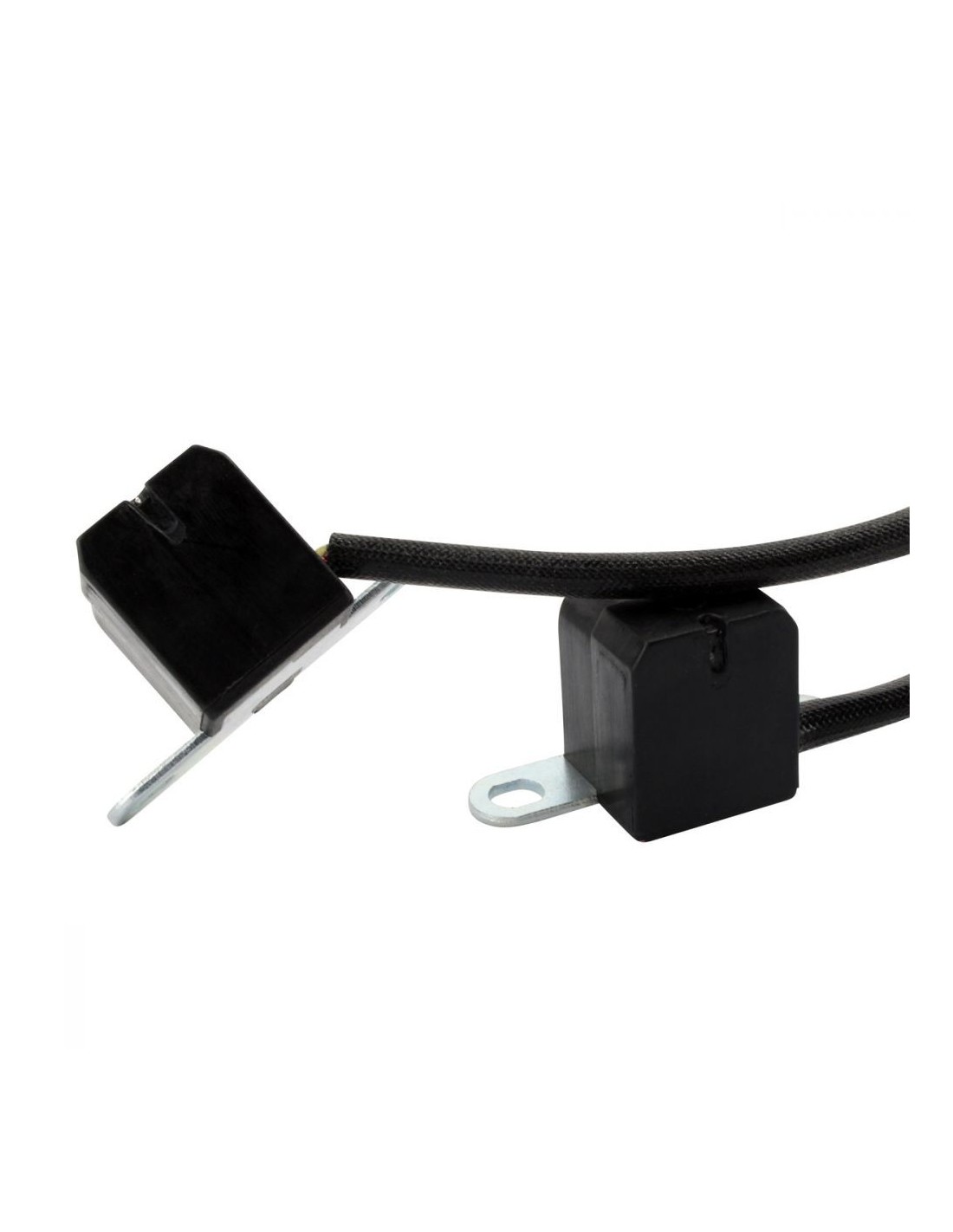

Pickup 1: White/Red to White/Green = 500 ohms +-20%
Pickup 2: White/Red to White/Blue = 500 ohms +-20%
Source: Red to Black/Red = 2.8 ohms +-20%
