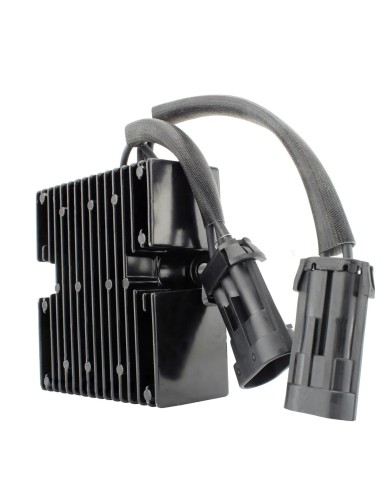

Regulator Mosfet Victory Boardwalk Hammer Judge Kingpin Vegas OEM 4011962 4011559 4011961 4012240 4012241 4012718 4013395
CARMS020-107335
5-7 Days
€108.00
Tax included
OEM 4011962 4011559 4011961 4012240 4012241 4012718 4013395
- Mosfet Regulator Rectifier
2017 Victory Vegas
2017 Victory Hammer
2017 Victory High-Ball
2017 Victory Judge
2017 Victory Gunner
2016 Victory Vegas
2016 Victory Hammer
2016 Victory High-Ball
2016 Victory Judge
2016 Victory Gunner
2016 Victory Jackpot
2016 Victory Vegas 8 Ball
2015 Victory Hammer
2015 Victory High-Ball
2015 Victory Judge
2015 Victory Boardwalk
2015 Victory Gunner
2015 Victory Jackpot
2015 Victory Vegas 8 Ball
2014 Victory Hammer
2014 Victory High-Ball
2014 Victory Judge
2014 Victory Boardwalk
2014 Victory Jackpot
2014 Victory Vegas 8 Ball
2013 Victory Hammer
2013 Victory High-Ball
2013 Victory Judge
2013 Victory Boardwalk
2013 Victory Jackpot
2013 Victory Vegas 8 Ball
2012 Victory Vegas
2012 Victory Hammer
2012 Victory Kingpin
2012 Victory High-Ball
2012 Victory Jackpot
2012 Victory Vegas 8 Ball
2011 Victory Hammer
2011 Victory Kingpin
2011 Victory Jackpot
2011 Victory Vegas 8 Ball
2010 Victory Vegas
2010 Victory Hammer
2010 Victory Kingpin
2010 Victory Jackpot
2010 Victory Vegas 8 Ball
2009 Victory Vegas
2009 Victory Hammer
2009 Victory Kingpin
2009 Victory Jackpot
2009 Victory Vegas 8 Ball
2008 Victory Vegas
2008 Victory Hammer
2008 Victory Kingpin
2008 Victory Jackpot
2008 Victory Vegas 8 Ball
OEM 4011962
4011559
4011961
4012240
4012241
4012718
4013395
Dimensions:
Width: 98mm
Length: 112mm
Height: 46mm
Wires length: 130mm
Distance between fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components.
All shipped products are tested
Dimensions :
Width : 108mm
Length : 112mm
Height: 51mm
Fixation holes center to center : 82mm
Other specifications :
Number of plugs : 5
Number of pins : 5
