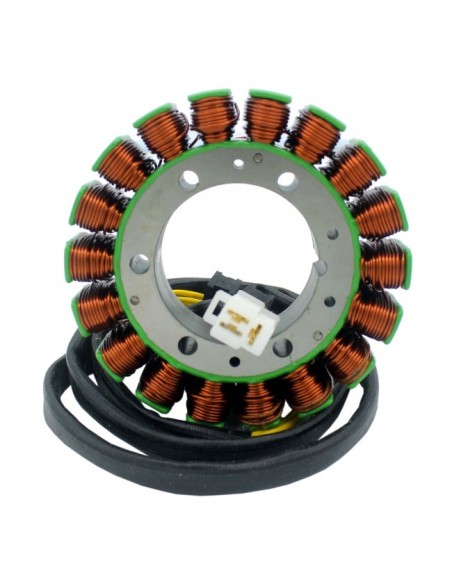

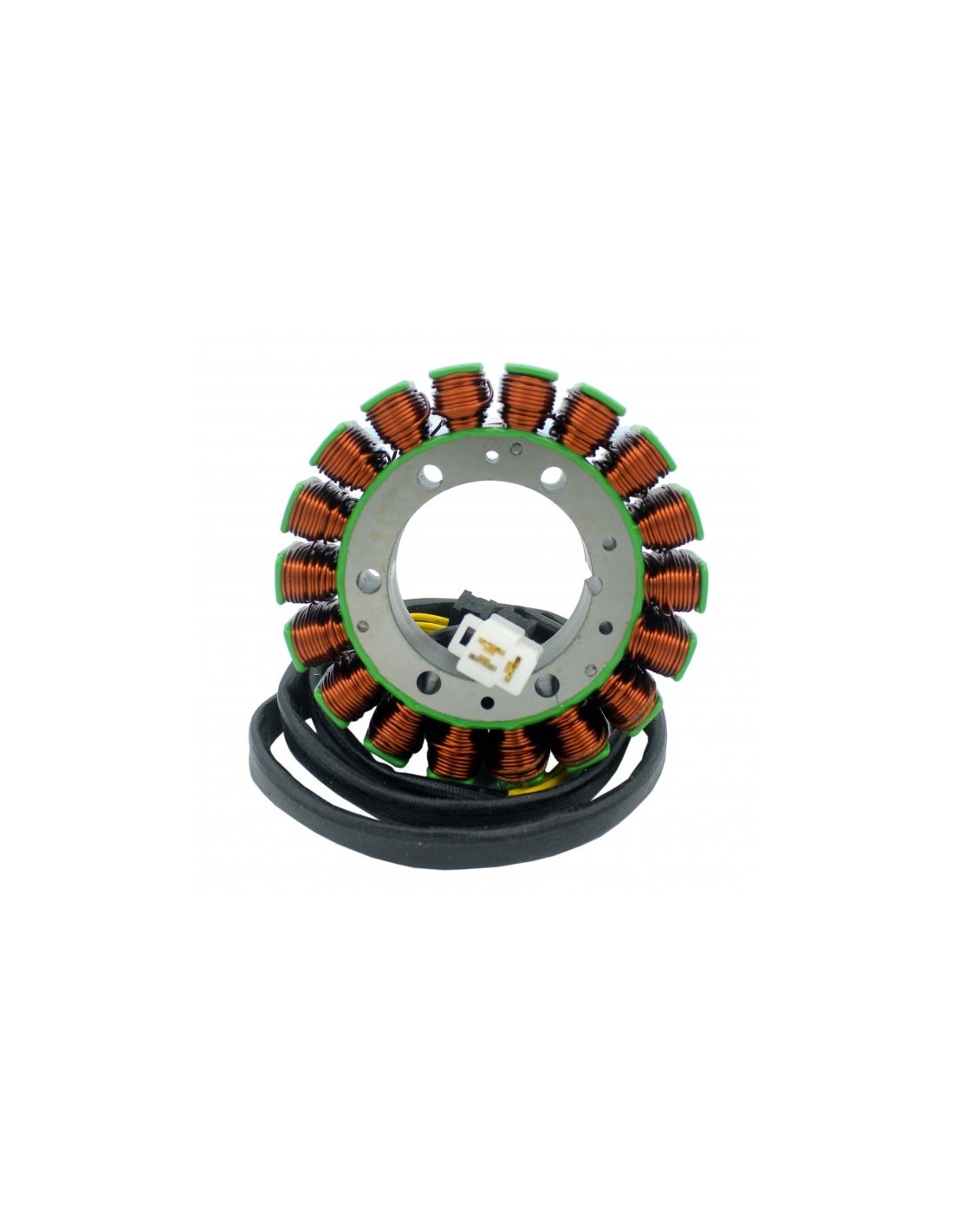

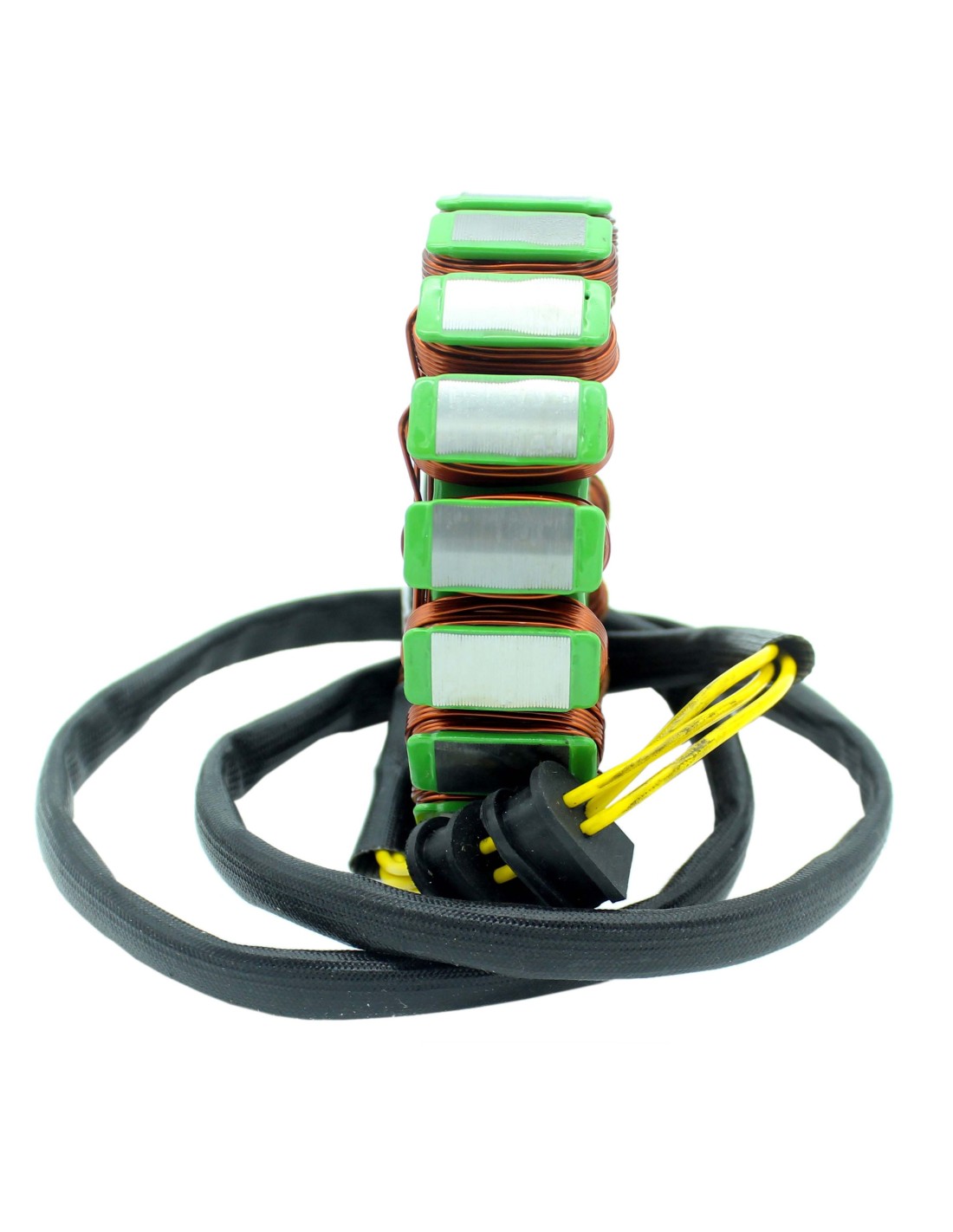

Stator Honda VF700 Magna VF700C VF750 Magna V45 VF750C OEM 31120-MB1-004 31120-MB1-014 31120-MB1-024



Stator Resistant to 200°C

1984 Honda VF 700 Magna VF700C
1983 Honda VF 750 Magna V45 VF750C
1982 Honda VF 750 Magna V45 VF750C

OEM

31120-MB1-004
31120-MB1-014
31120-MB1-024

Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 22mm
Length of wires stator to grommet : 40mm
Length of wires grommet to plug : 850mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 2

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
