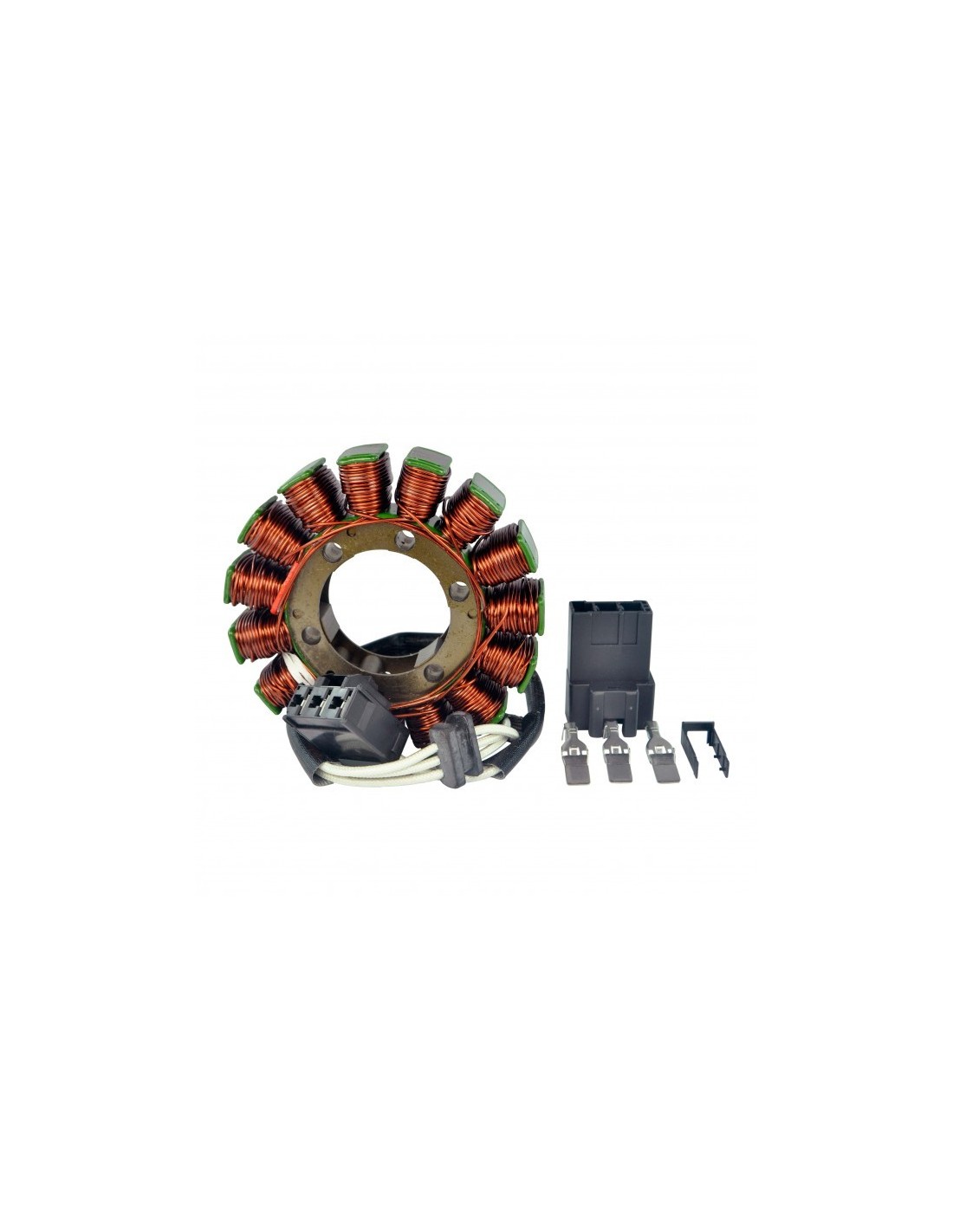

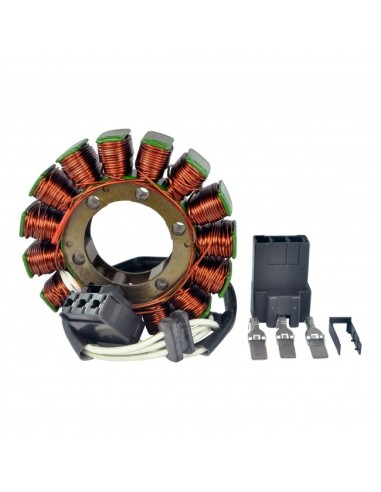

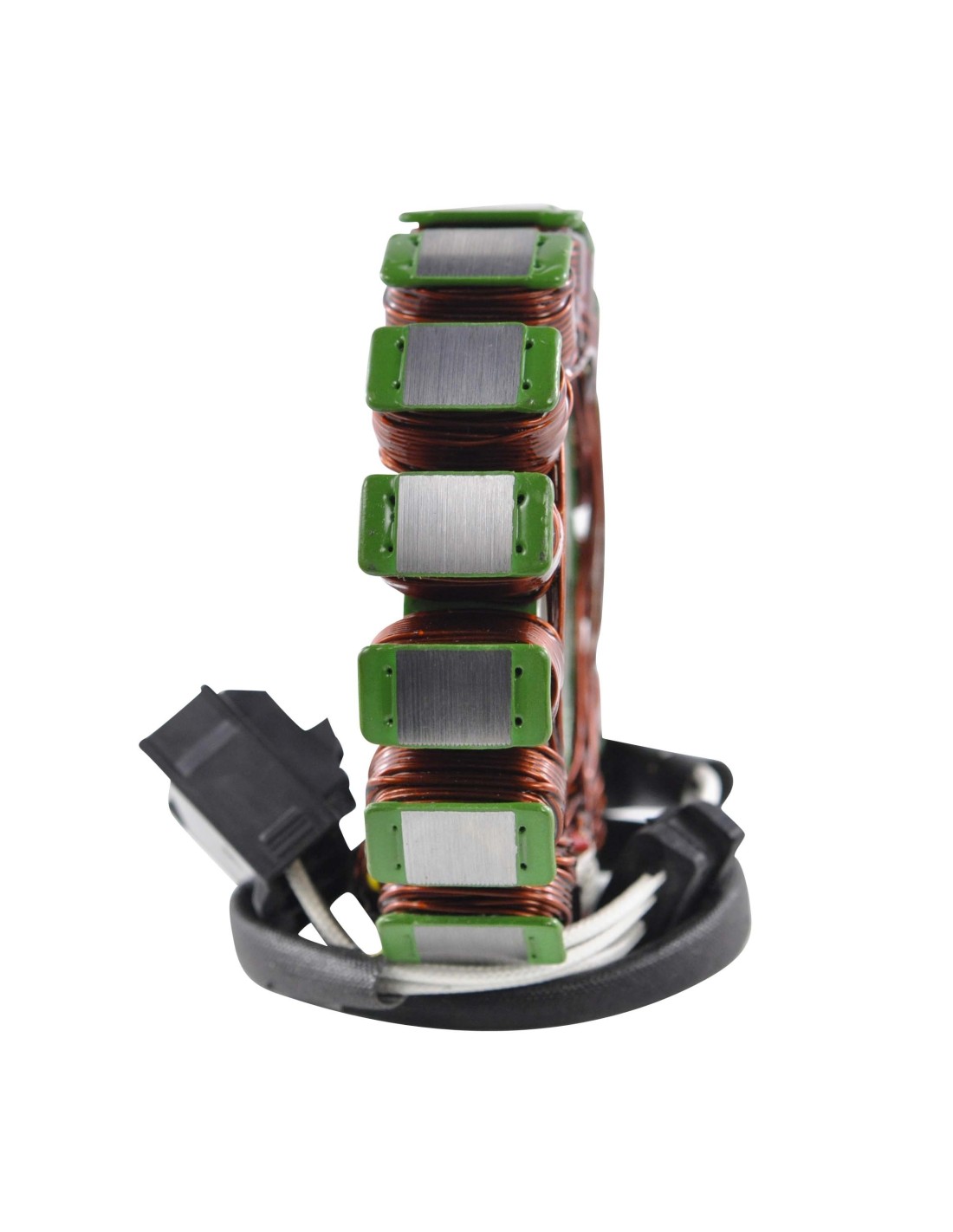

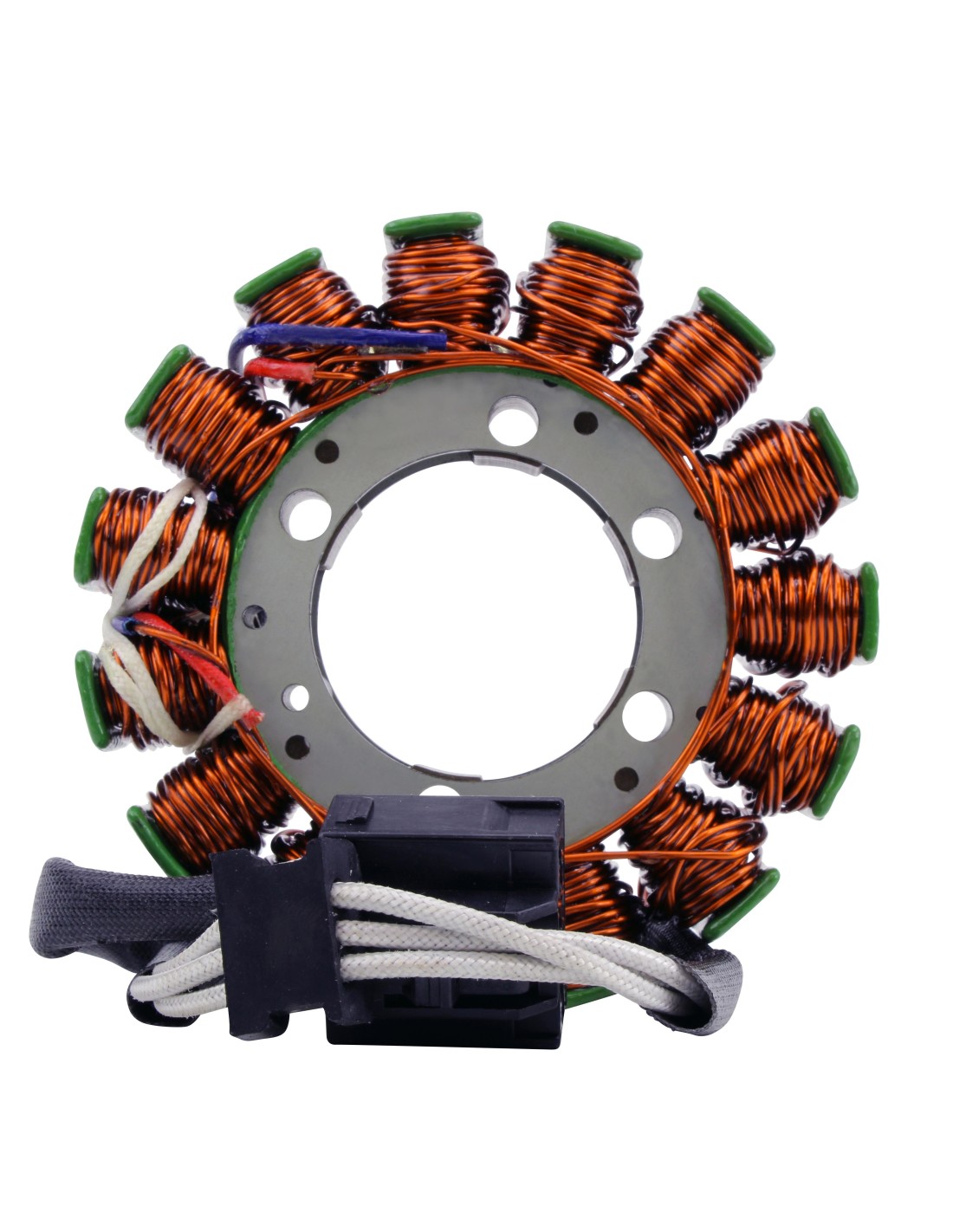

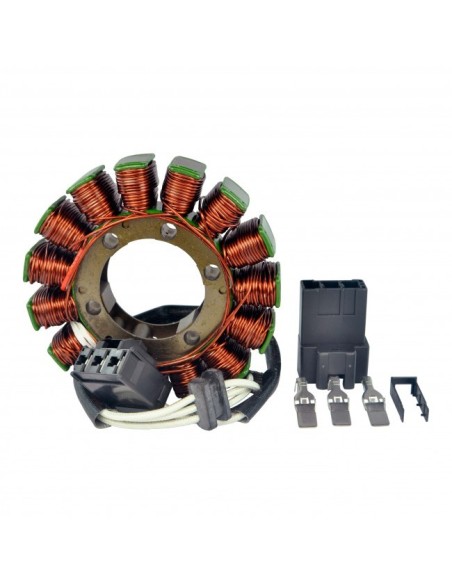

Stator Aprilia RSV4 1000 Factory Tuono V4 1000 RSV4 R 1000 RSV1000R OEM 857201
CARM01350
5-7 Days
€178.80
Tax included
OEM 857201
Stator Aprilia RSV4 1000 Factory Tuono V4 1000 RSV4 R 1000 RSV1000R
OEM 857201
2012 Aprilia RSV4 1000 Factory
2012 Aprilia RSV4 R 1000
2012 Aprilia Tuono V4 1000
2011 Aprilia RSV4 1000 Factory
2011 Aprilia RSV4 R 1000
2011 Aprilia Tuono V4 1000
2010 Aprilia RSV4 R 1000
2009 Aprilia RSV 1000 R
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 17 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 300 mm
Other specifications :
Number of wires : 3

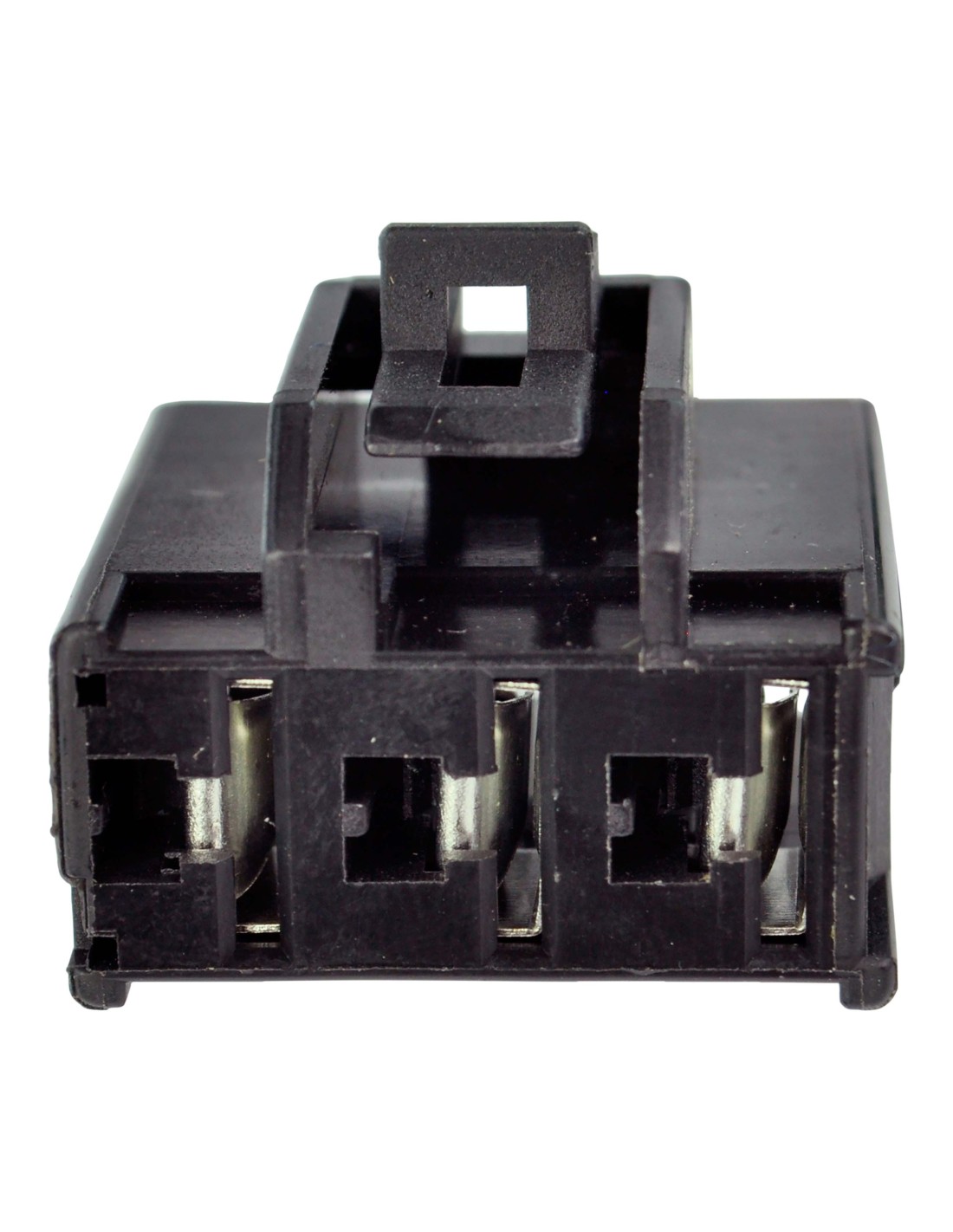

Number of plugs : 1
Number of pins : 3
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 17 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 300 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Alternator : Between each White = 0.4 ohms +/-20%
Resistant to 200 degrees Celsius.
