CARMS010-107581
5-7 Days
€262.80
Tax included

OEM 31120-HN8-650 31120-HN8-003

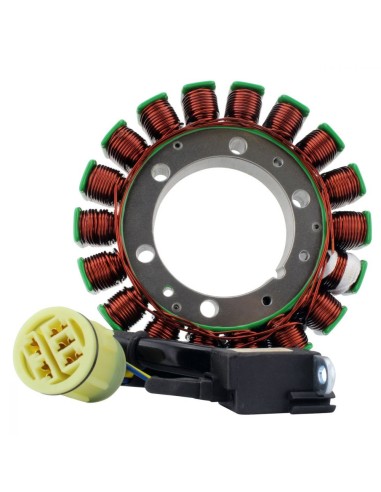

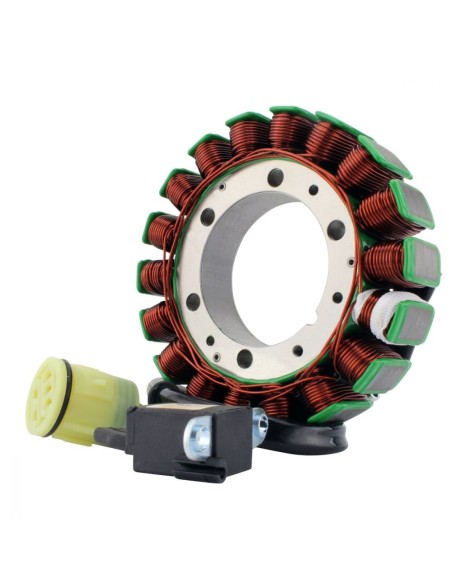

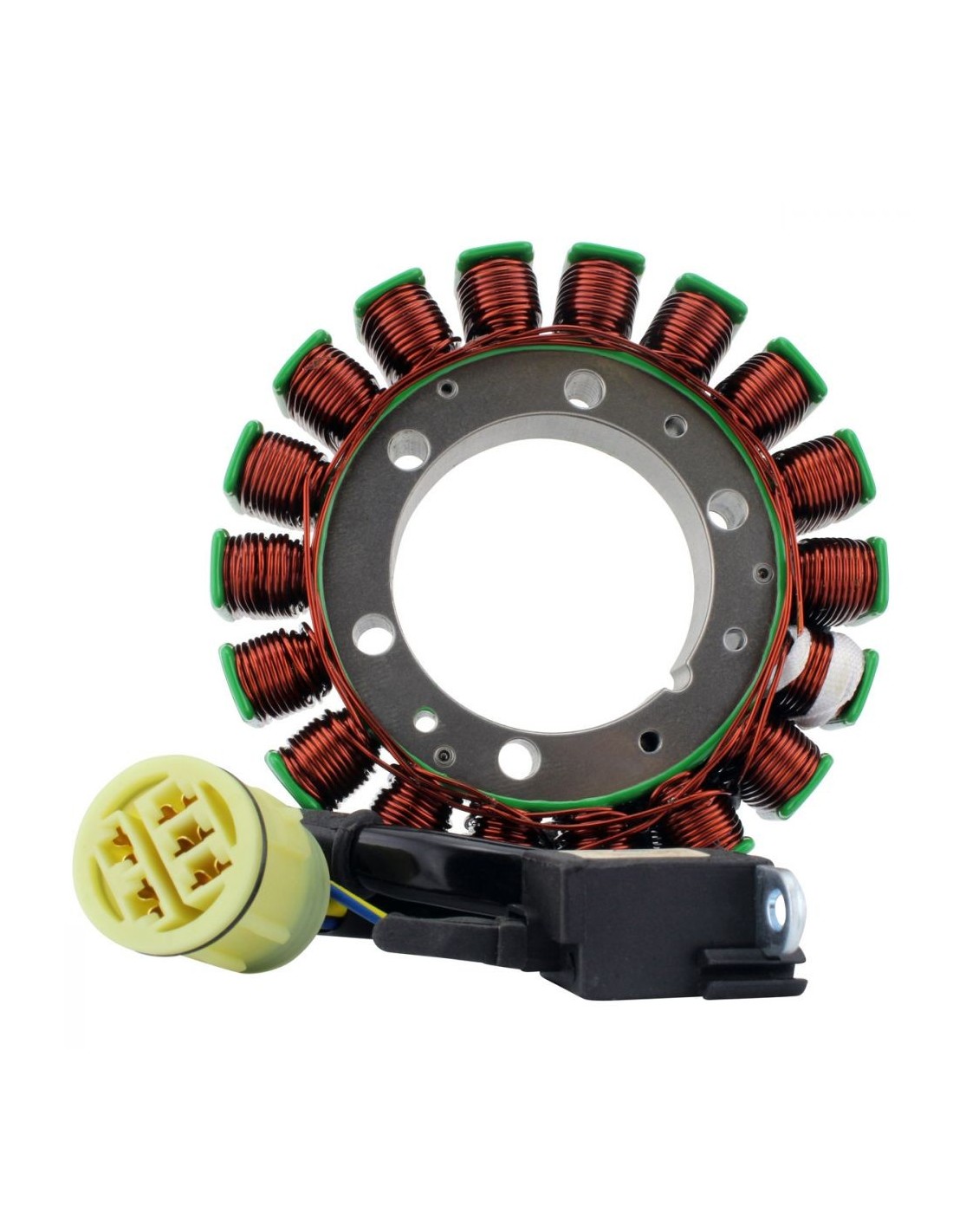

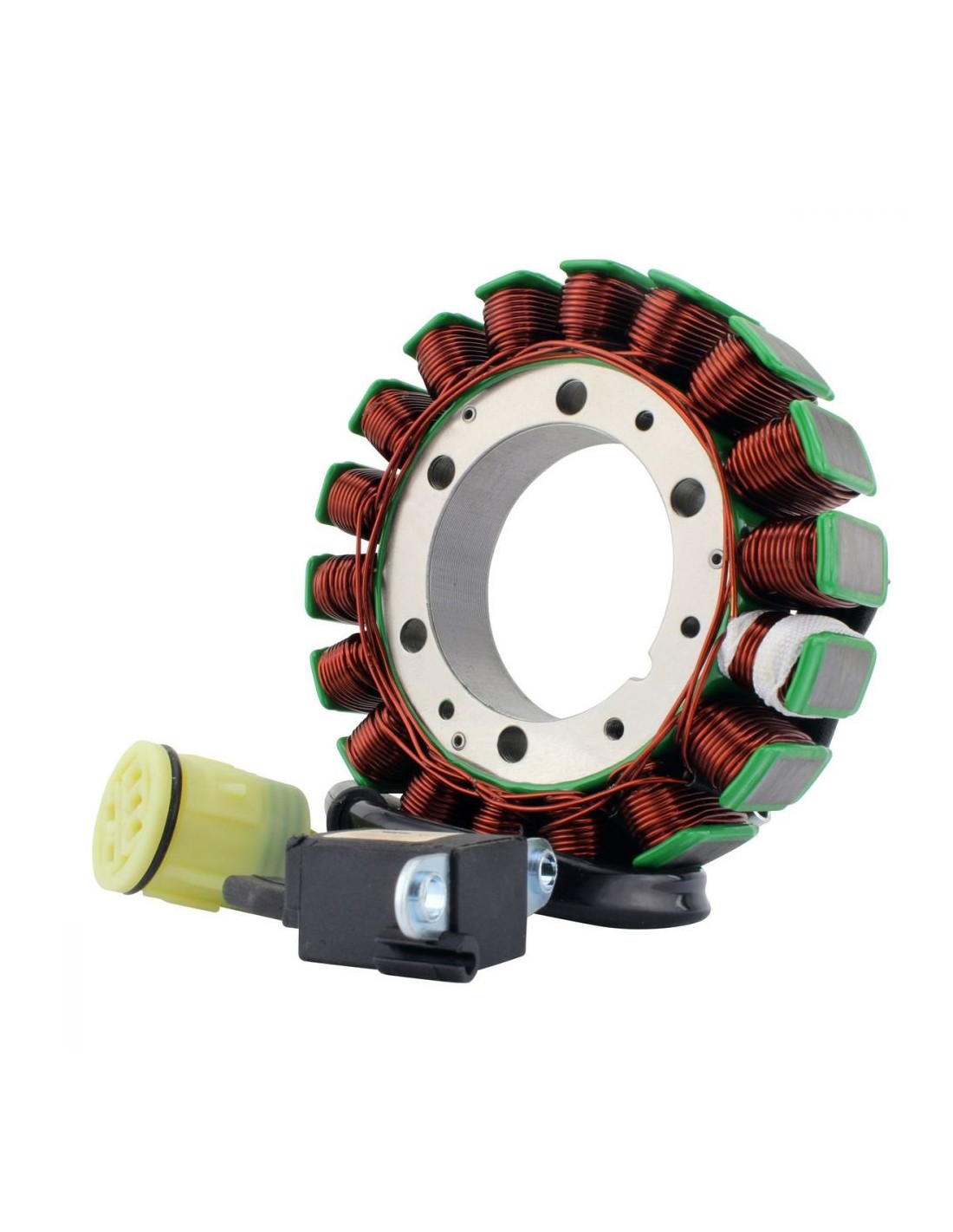

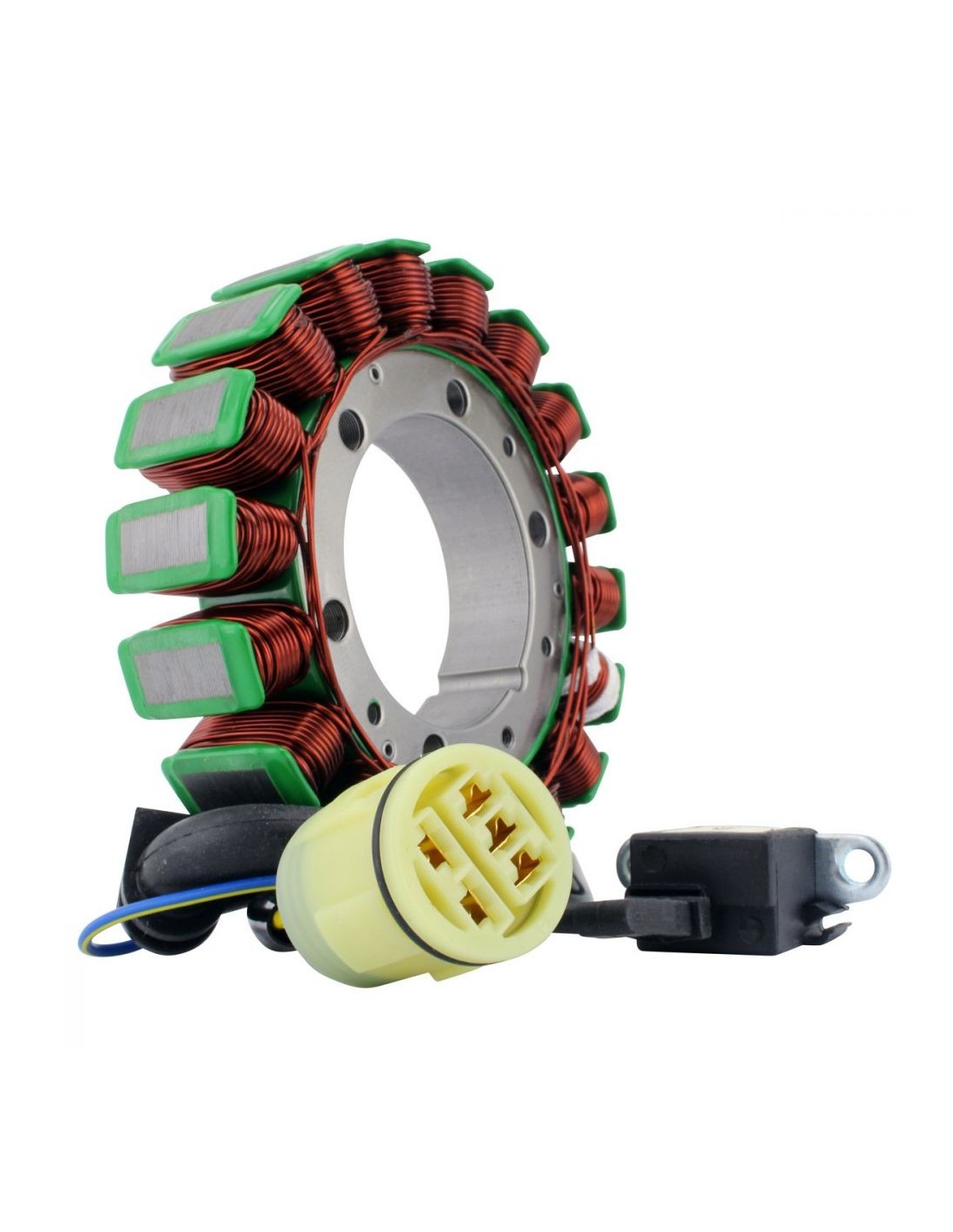

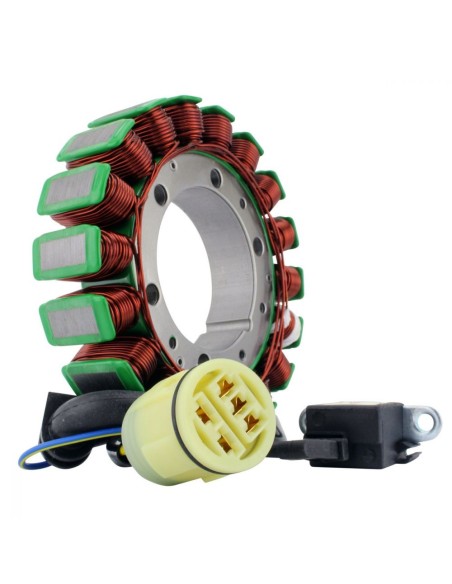

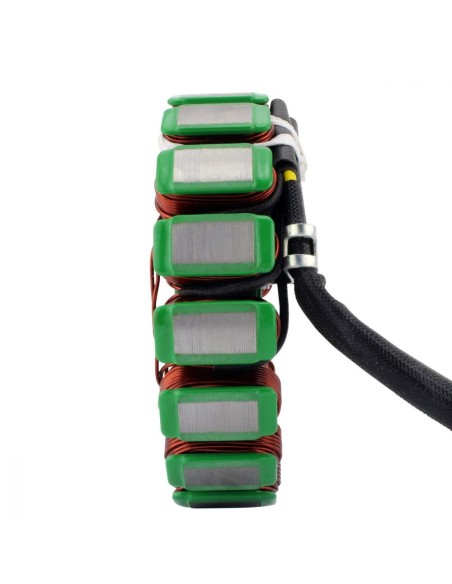

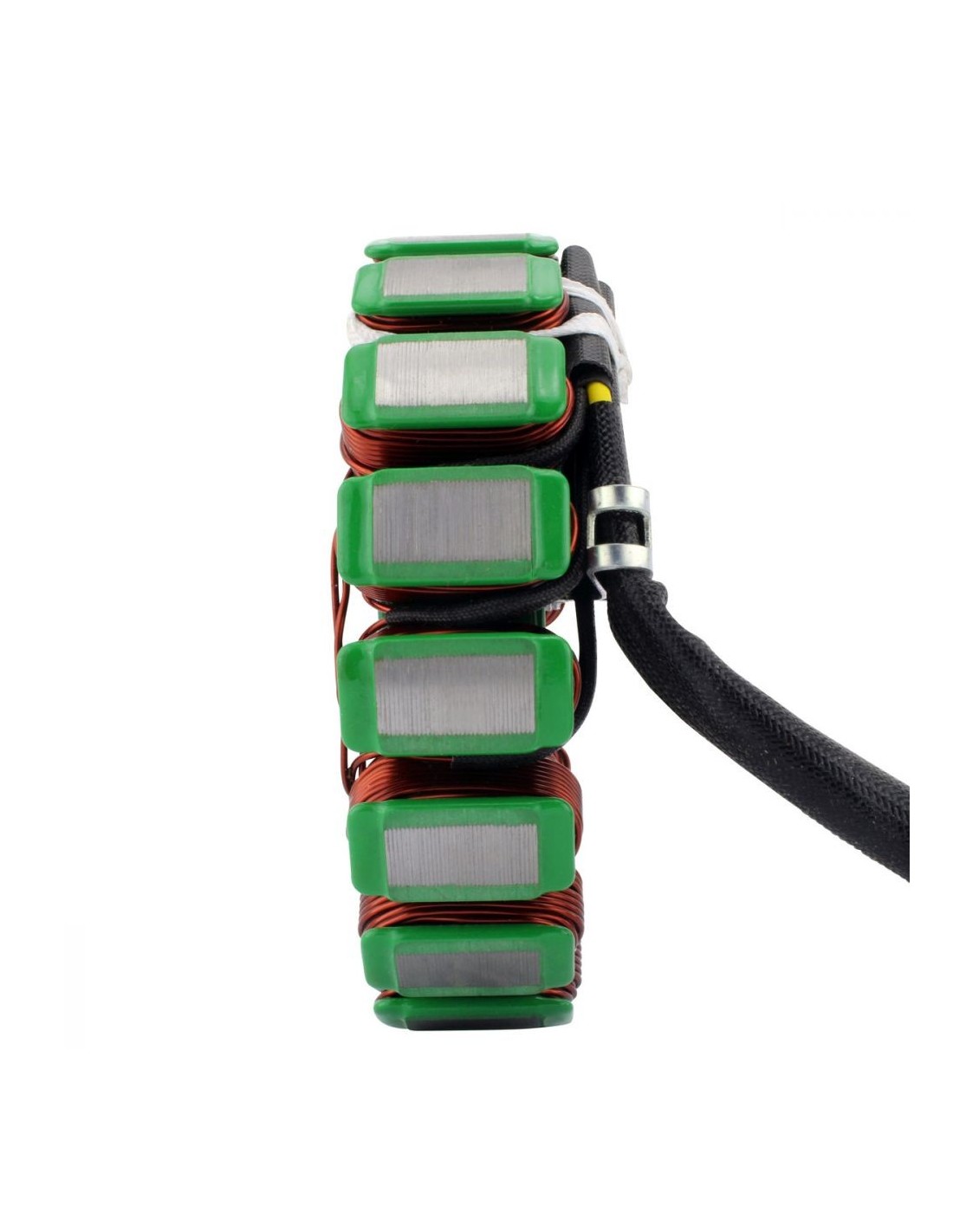

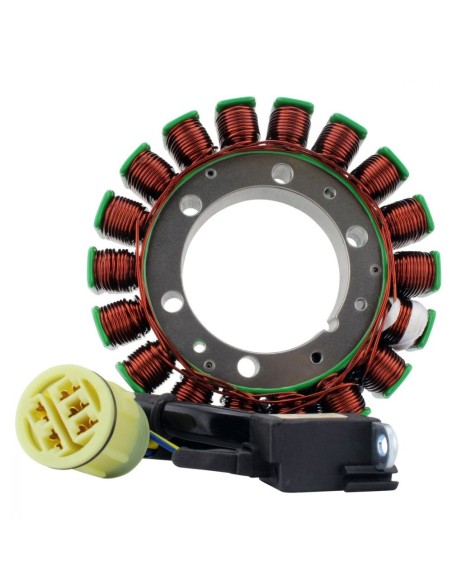

  • Stator

     Highest grade copper windings, resistant to 200 degrees Celsius

  • 2005 Honda TRX 650 Fourtrax Rincon
    2004 Honda TRX 650 Fourtrax Rincon
    2003 Honda TRX 650 Fourtrax Rincon

    OEM 31120-HN8-650
    31120-HN8-003

  • Dimensions:
    Interior diameter : 54 mm
    Exterior diameter : 115 mm
    Thickness : 20 mm
    Length of wires stator to grommet: : 75 mm
    Length of wires grommet to plug : 180 mm


    Other specifications:
    Number of wires : 5

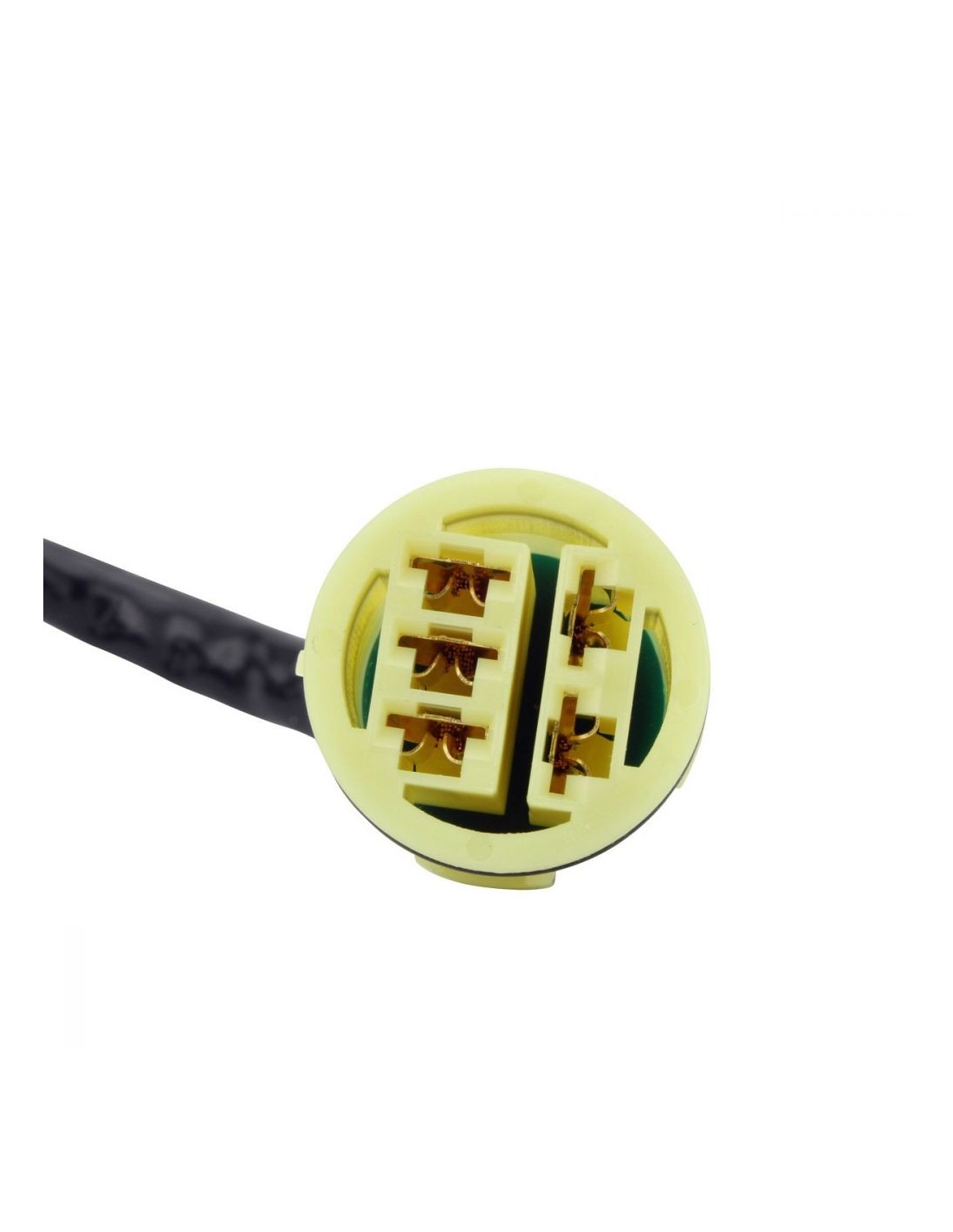

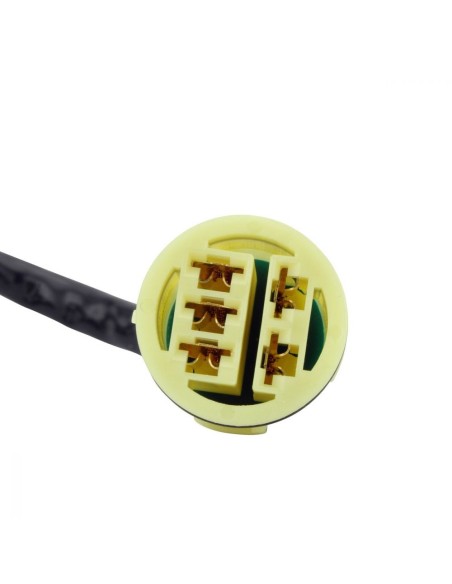

    Number of plugs : 1
    Number of pins : 5

    Wire to wire resistance:
    Alternator : Yellow between each Yellow = 0.6 ohms +/-20%

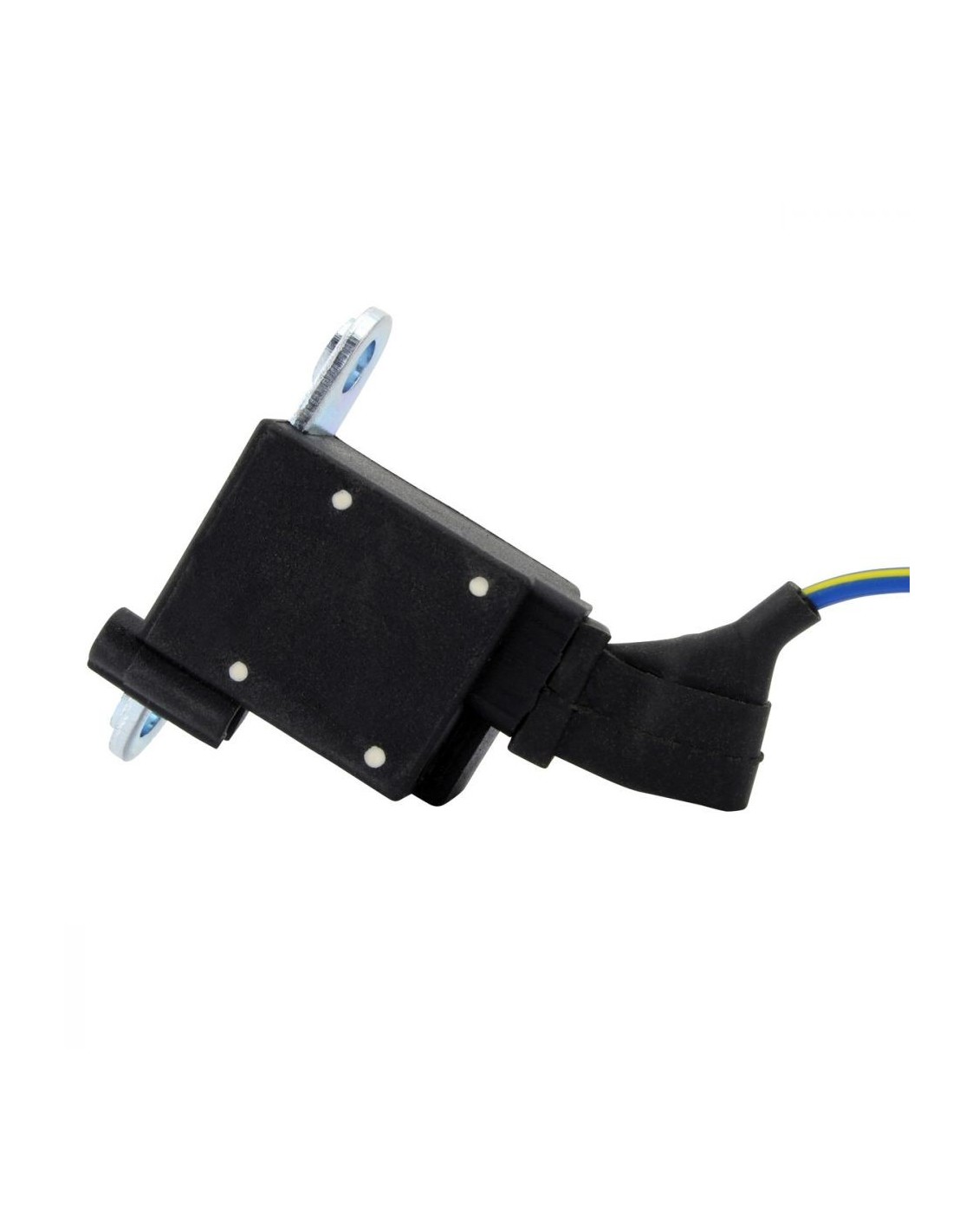

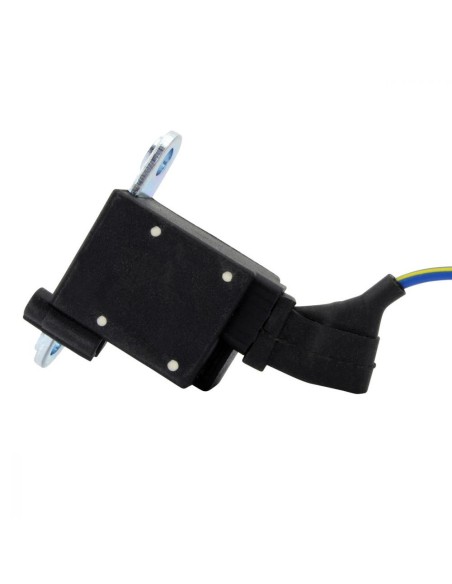

    Pickup : Blue/Yellow to White/Green = 340 ohms +/-20%
