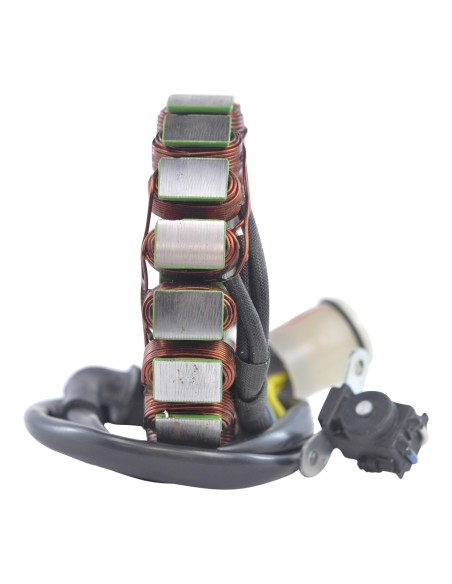

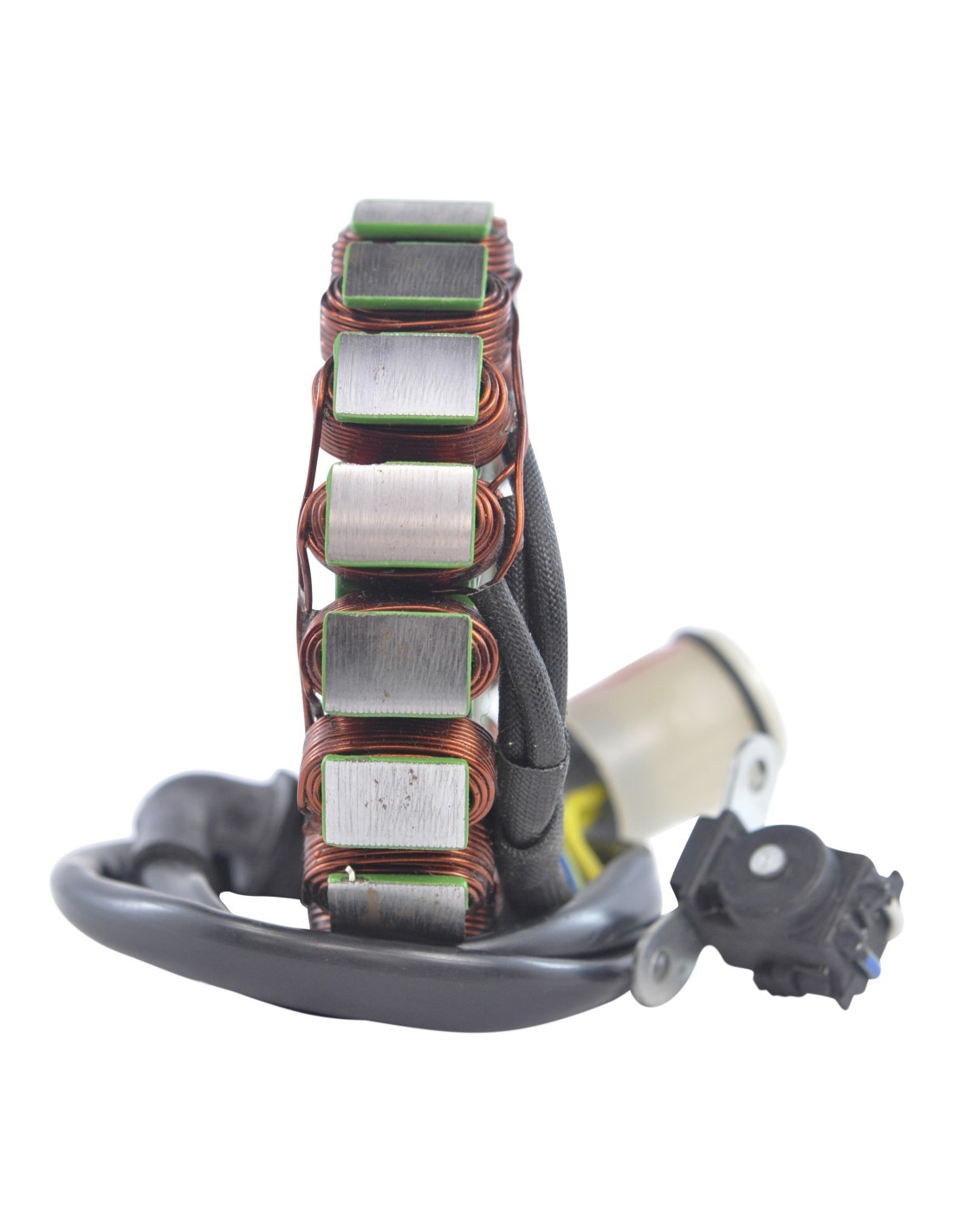

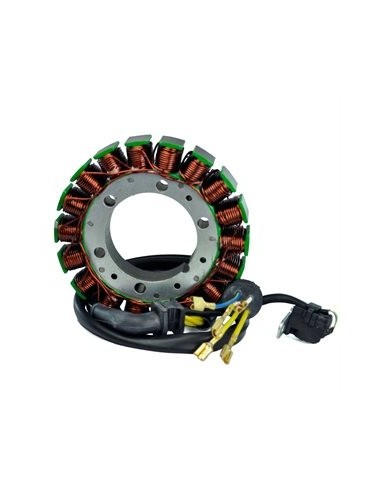

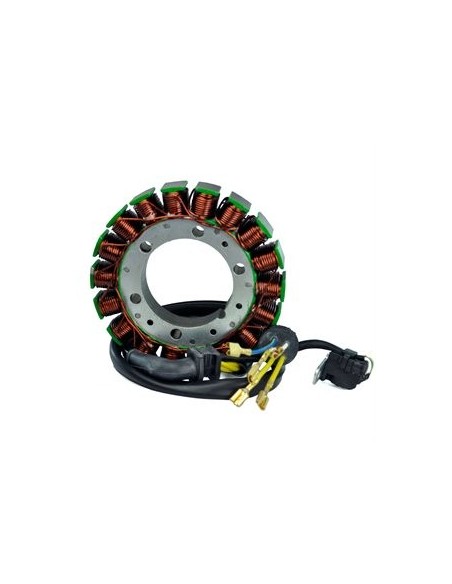

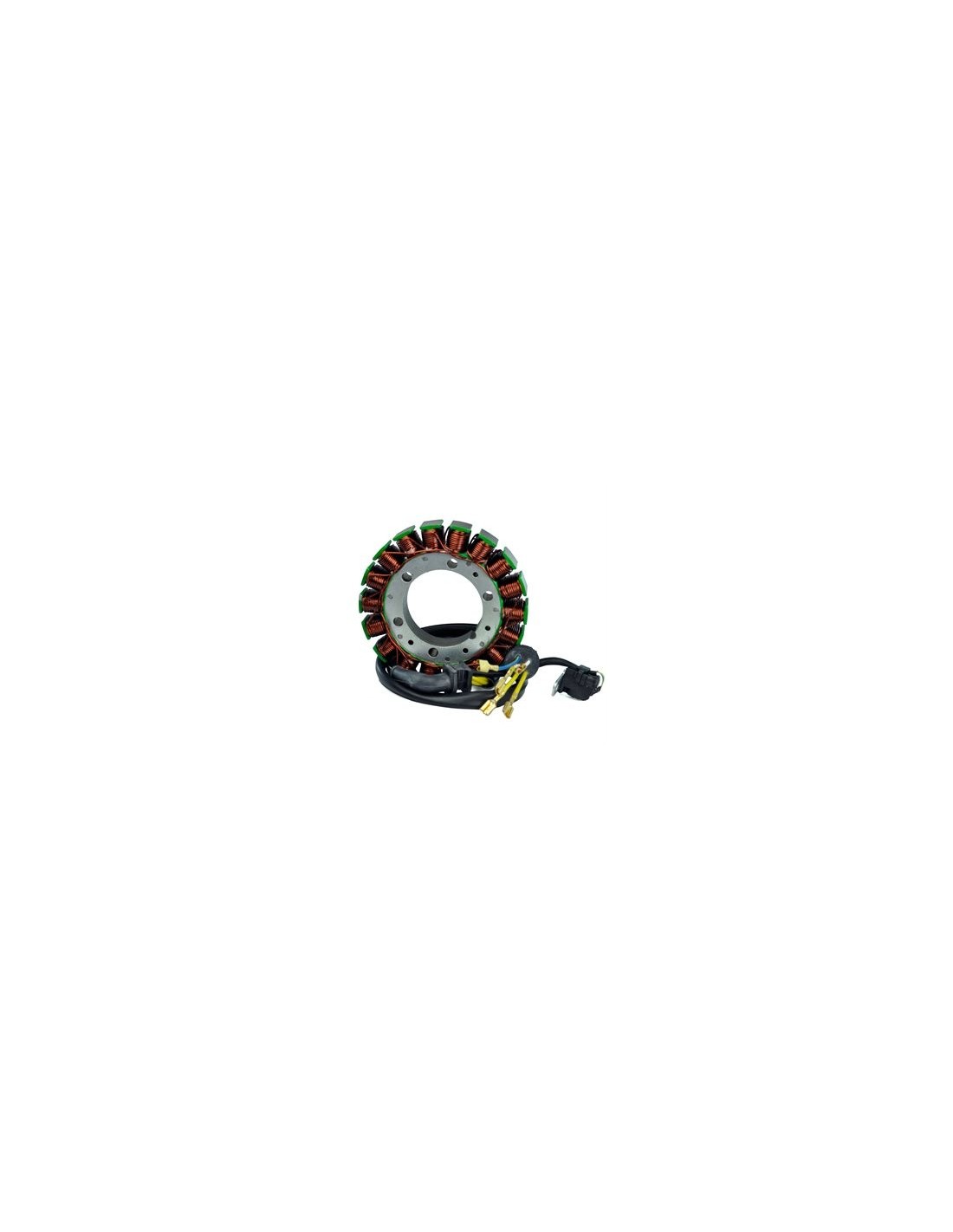

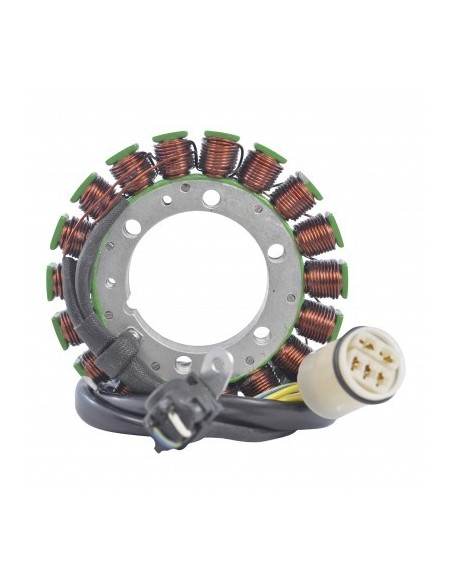

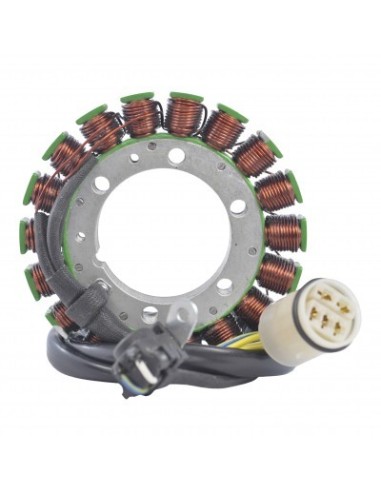

Stator Honda TRX500 Foreman TRX500 Fourtrax OEM 31120-HP0-A01

Stator

Resistant to 200 degrees Celsius

2005 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual
2006 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual
2007 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual
2008 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual
2009 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual
2011 Honda TRX 500 Fourtrax Foreman FM - 4x4 Manual

2005 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES
2006 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES
2007 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES
2008 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES
2009 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES
2011 Honda TRX 500 Fourtrax Foreman FE - 4x4 ES

2005 Honda TRX 500 Fourtrax Foreman TM- 2x4 Manual
2006 Honda TRX 500 Fourtrax Foreman TM- 2x4 Manual

2007 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES EPS
2008 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES EPS
2009 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES EPS
2011 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES EPS

2008 Honda TRX 500 Fourtrax Foreman FPM - 4x4 Manual EPS
2011 Honda TRX 500 Fourtrax Foreman FPM - 4x4 Manual EPS

2009 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES Power Steering
2011 Honda TRX 500 Fourtrax Foreman FPE - 4x4 ES Power Steering

2009 Honda TRX 500 Fourtrax Foreman FPM - 4x4 Manual Power Steering

OEM 31120-HP0-A01

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 18 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 450 mm
Length of pickup coil's wire to grommet : 65 mm

Other specifications :

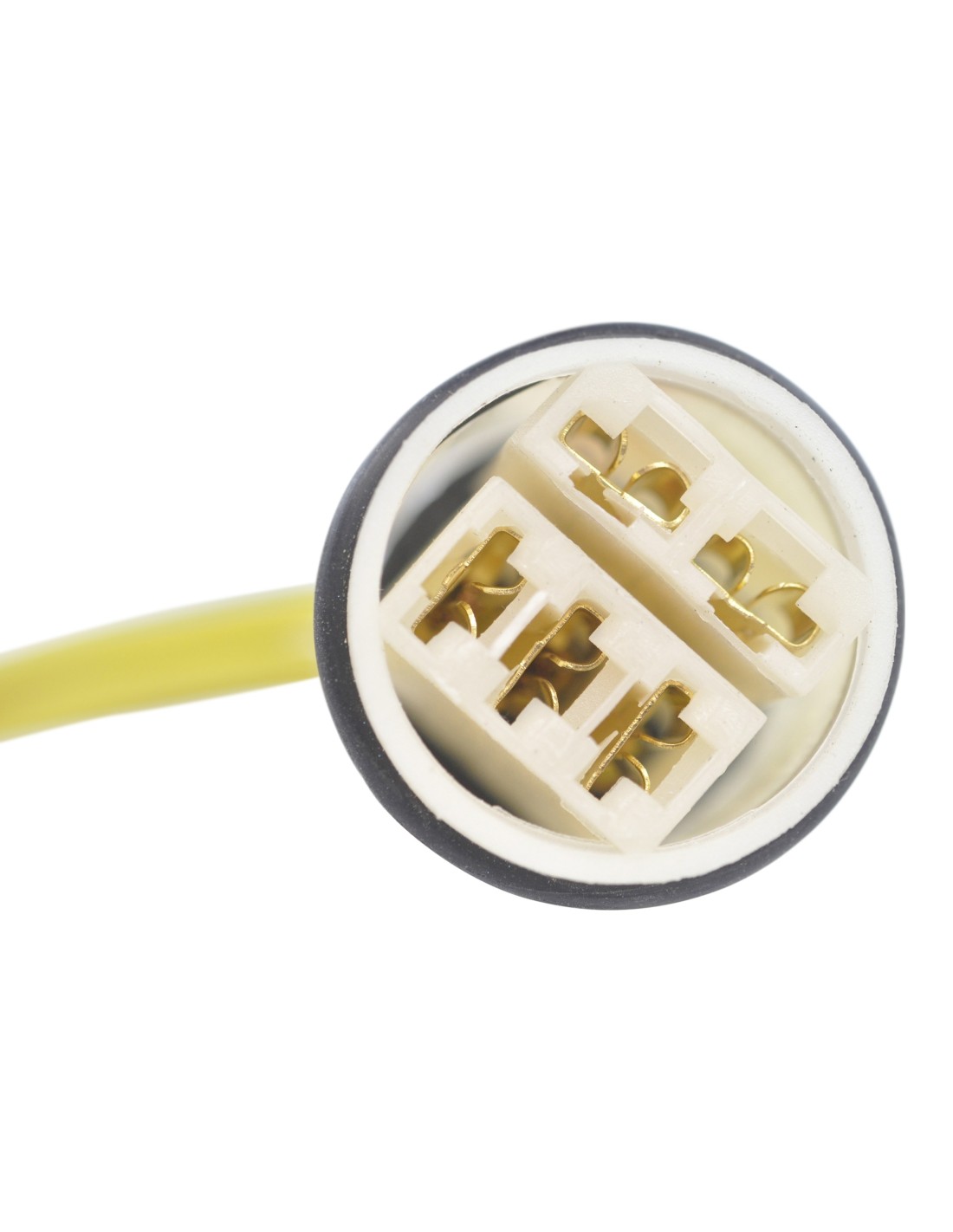

Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each yellow = 0.4 ohms +-20%
Pickup : White to Blue/Yellow = 250 ohms +-20%
