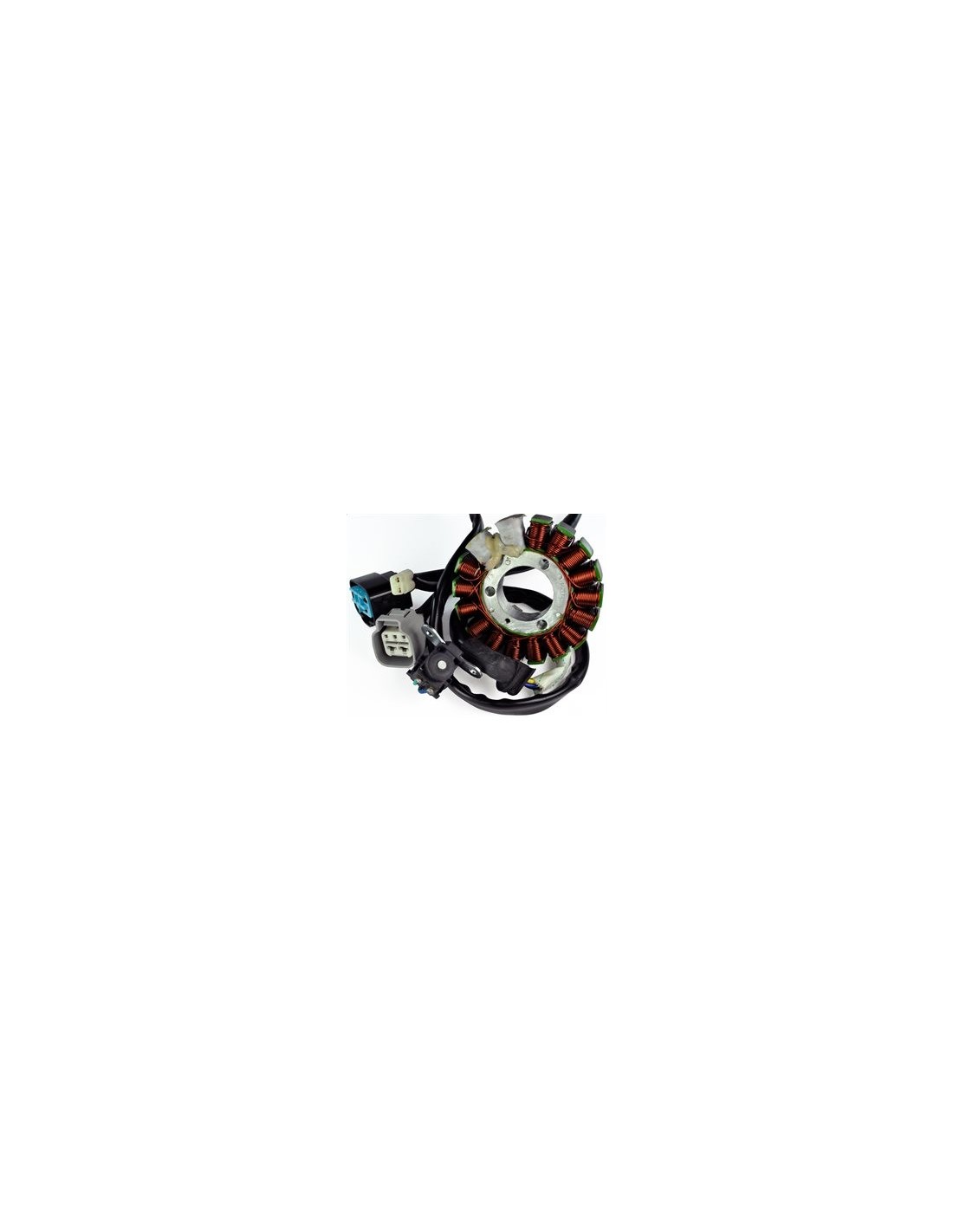

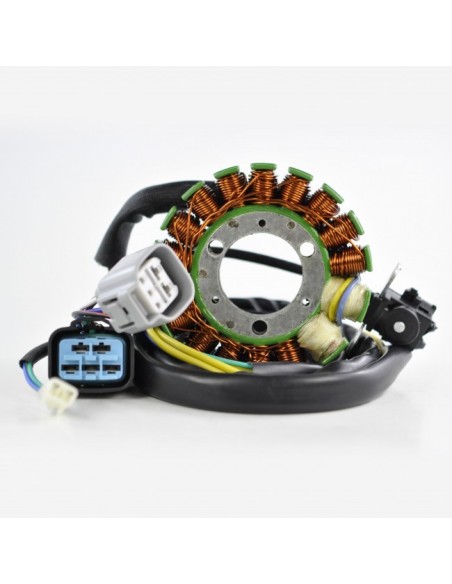

Stator Honda TRX450R TRX450ER OEM 31120-HP1-601

Stator

Resistant to 200 degrees Celsius

2006 Honda TRX 450 ER
2007 Honda TRX 450 ER
2008 Honda TRX 450 ER
2009 Honda TRX 450 ER
2012 Honda TRX 450 ER
2013 Honda TRX 450 ER
2014 Honda TRX 450 ER

2006 Honda TRX 450 R
2007 Honda TRX 450 R
2008 Honda TRX 450 R
2009 Honda TRX 450 R

OEM 31120-HP1-601

Dimensions :
Interior diameter : 34mm
Exterior diameter : 95mm
Thickness : 15mm
Length of wires stator to grommet : 40mm
Length of wires grommet to plug : 920mm
Length of pickup coil's wire to grommet : 75mm

Other specifications :
Number of wires : 12

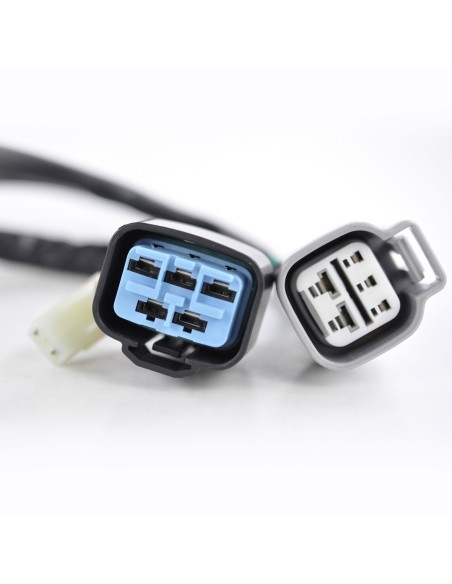

Number of plugs : 3
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Green to Blue = 250ohms +/-20%
Source 1 : Black/Red to Yellow = 36ohms +/-20%
Source 2 : Blue to White = 7ohms +/-20%
