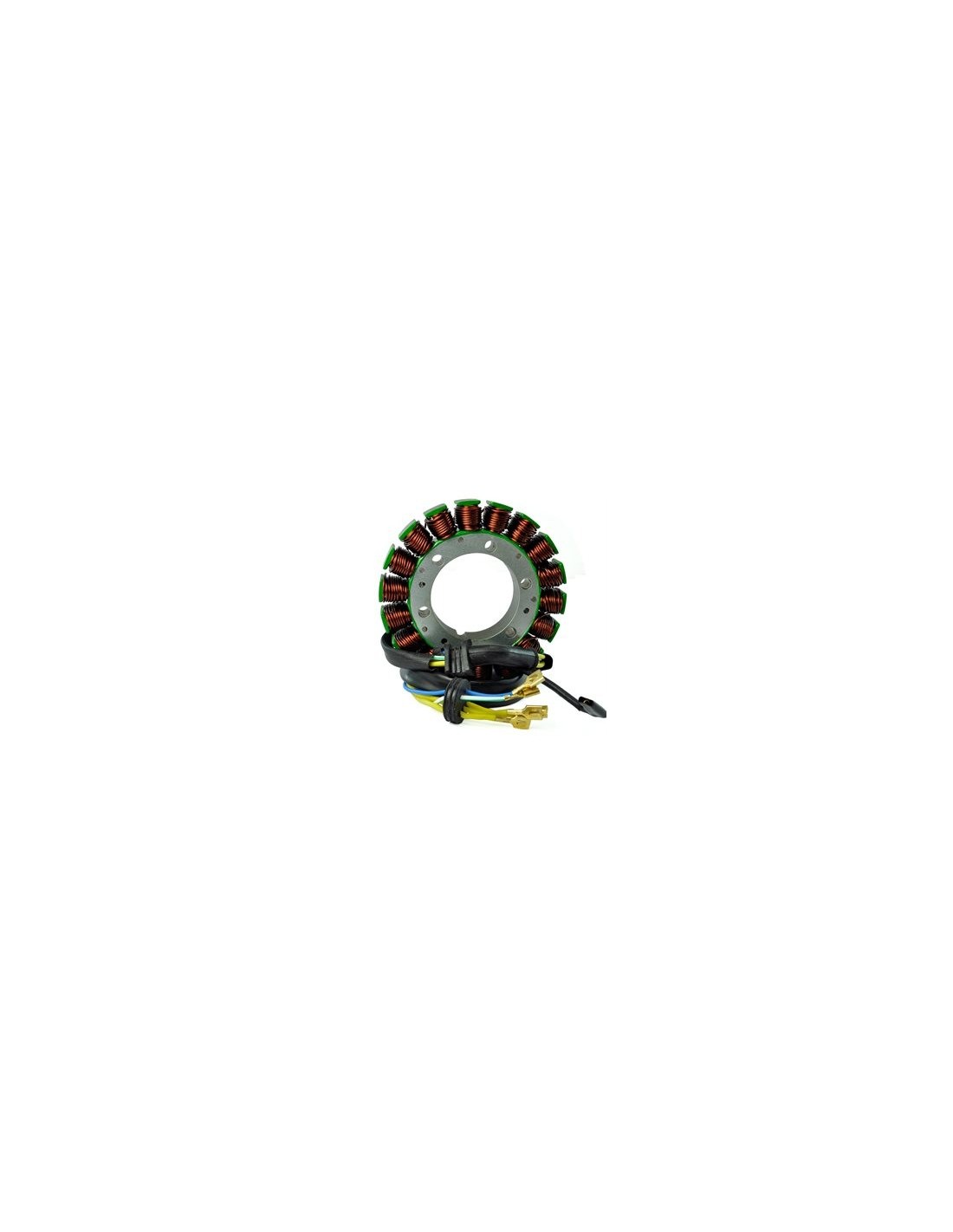

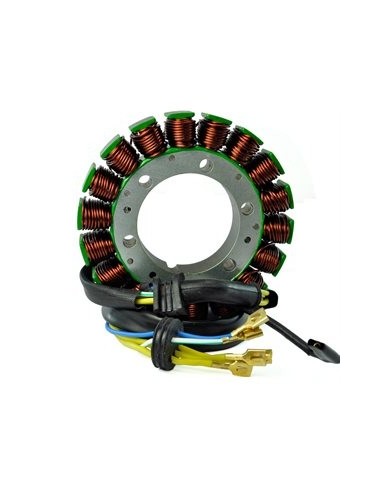

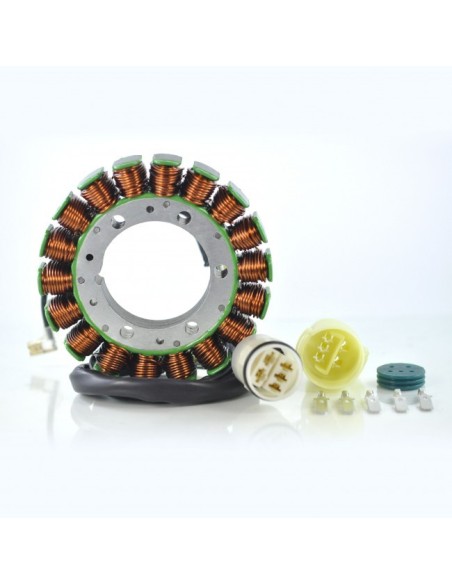

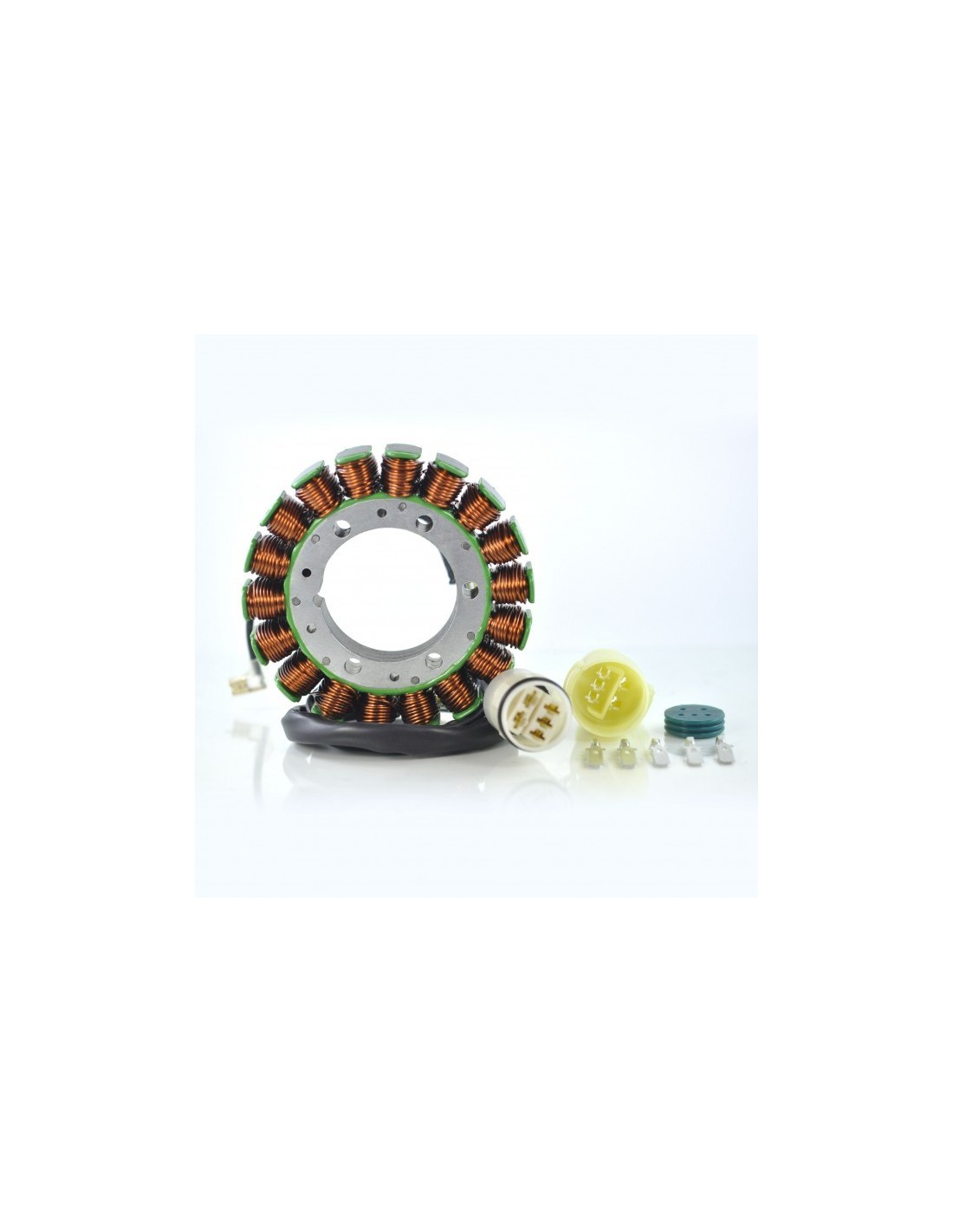

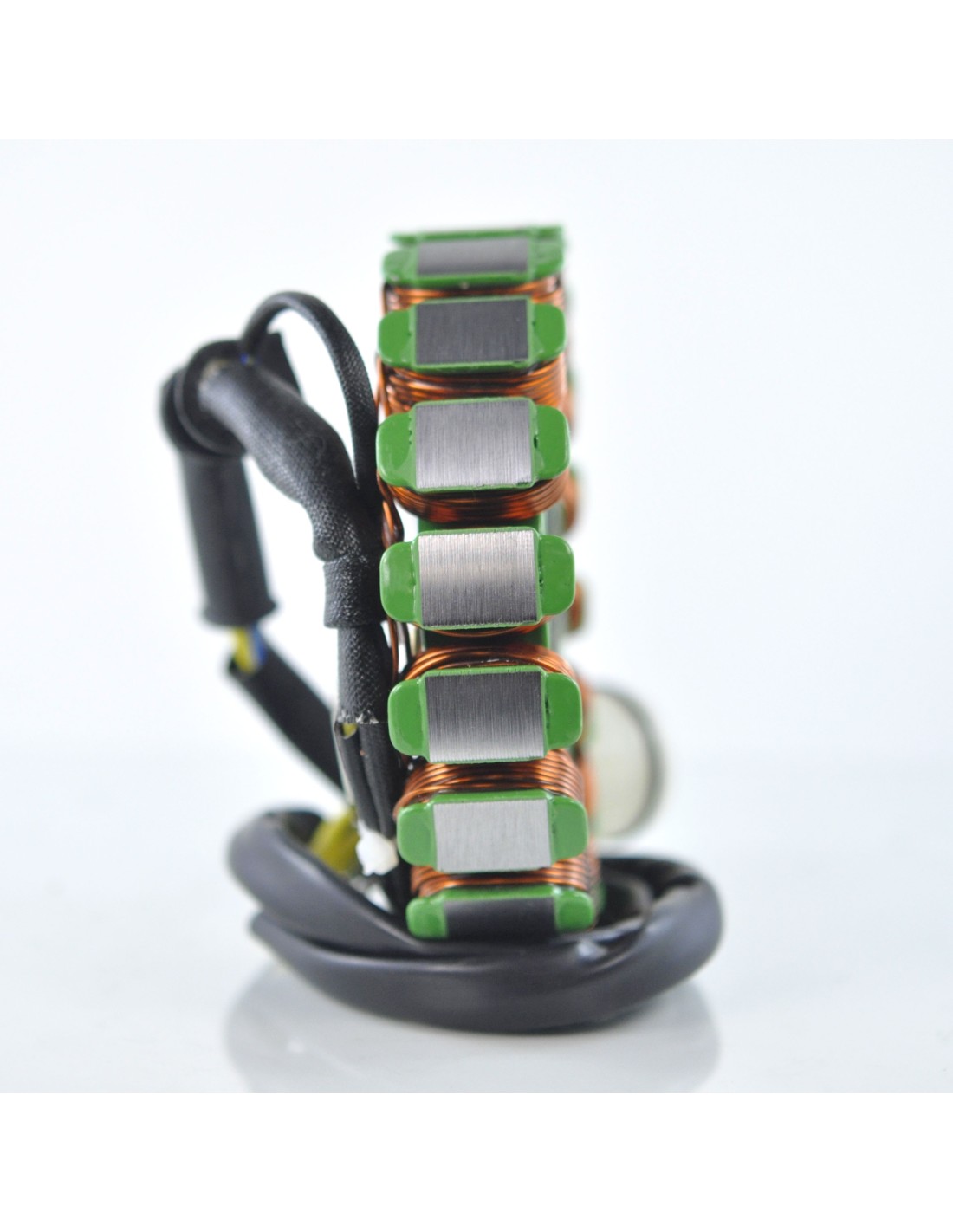

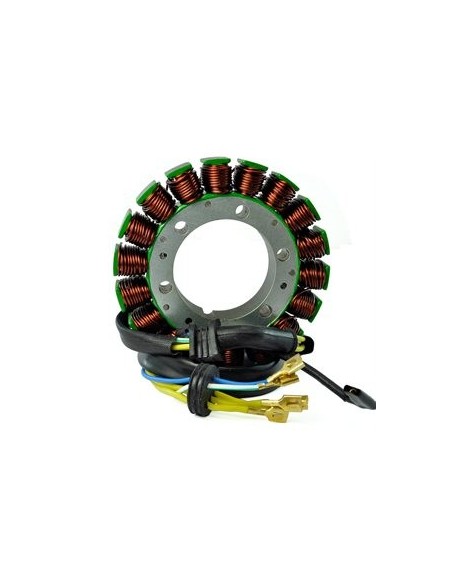

Stator Honda TRX450 Fourtrax Foreman TRX400 Fourtrax Foreman OEM 31120-HM7-004 31120-HM7-014 31120-HM7-700

Stator

Resistant to 200 degrees Celsius

2004 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
2004 Honda TRX 450 Fourtrax Foreman FM - 4x4 Manual
2004 Honda TRX 450 Fourtrax Foreman S - Manual
2003 Honda TRX 400 Fourtrax Foreman FW
2003 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
2003 Honda TRX 450 Fourtrax Foreman FM - 4x4 Manual
2003 Honda TRX 450 Fourtrax Foreman S - Manual
2002 Honda TRX 400 Fourtrax Foreman FW
2002 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
2002 Honda TRX 450 Fourtrax Foreman FM - 4x4 Manual
2002 Honda TRX 450 Fourtrax Foreman S - Manual
2001 Honda TRX 400 Fourtrax Foreman FW
2001 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
2001 Honda TRX 450 Fourtrax Foreman S - Manual
2000 Honda TRX 400 Fourtrax Foreman FW
2000 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
2000 Honda TRX 450 Fourtrax Foreman S - Manual
1999 Honda TRX 400 Fourtrax Foreman FW
1999 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
1999 Honda TRX 450 Fourtrax Foreman S - Manual
1998 Honda TRX 400 Fourtrax Foreman FW
1998 Honda TRX 450 Fourtrax Foreman FE - 4x4 ES
1998 Honda TRX 450 Fourtrax Foreman S - Manual
1997 Honda TRX 400 Fourtrax Foreman FW
1996TRX 400 Fourtrax Foreman
1995 TRX 400 Fourtrax Foreman

OEM
31120-HM7-014
31120-HM7-004
31120-HM7-700
31120-HN0-671

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 55 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 6

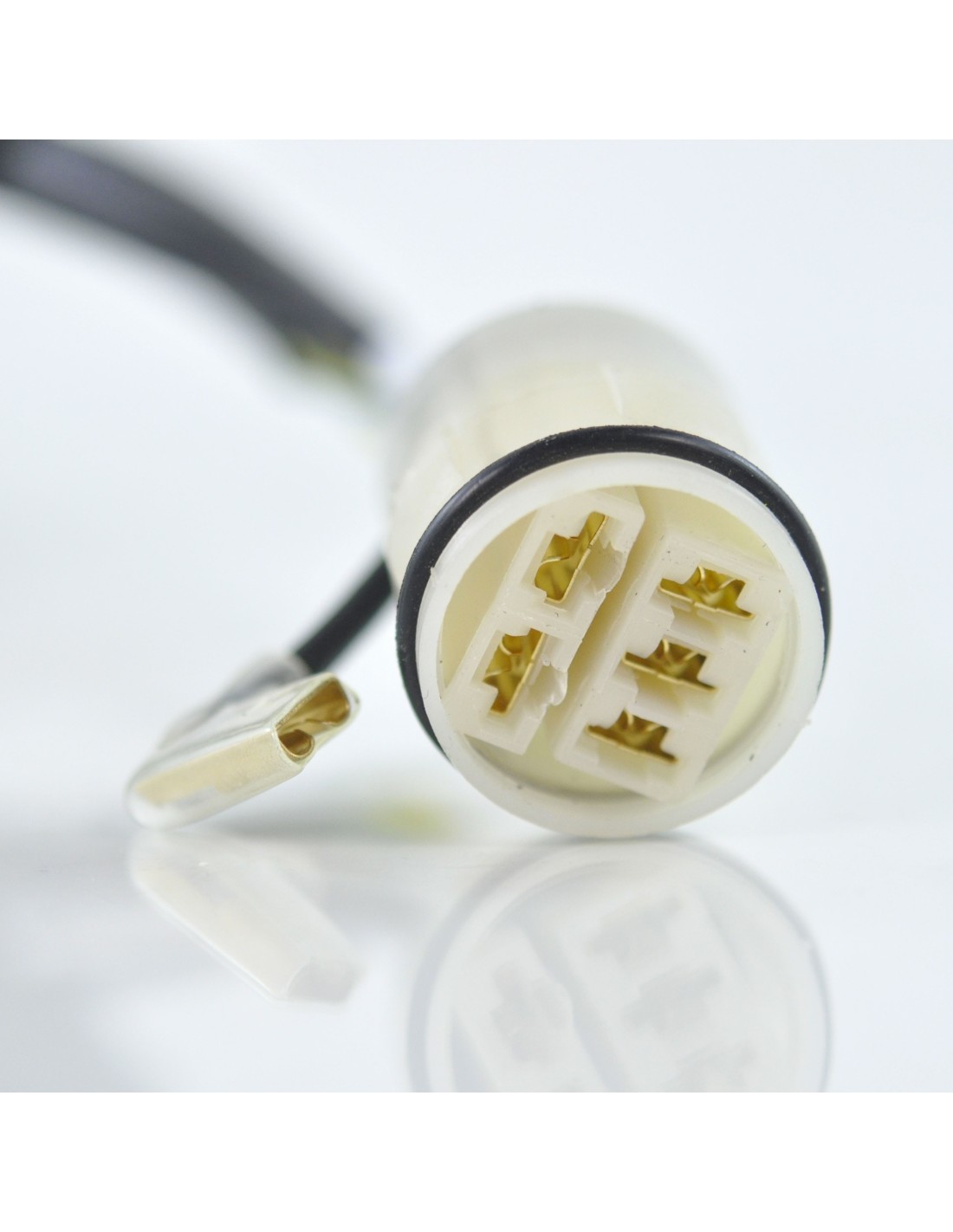

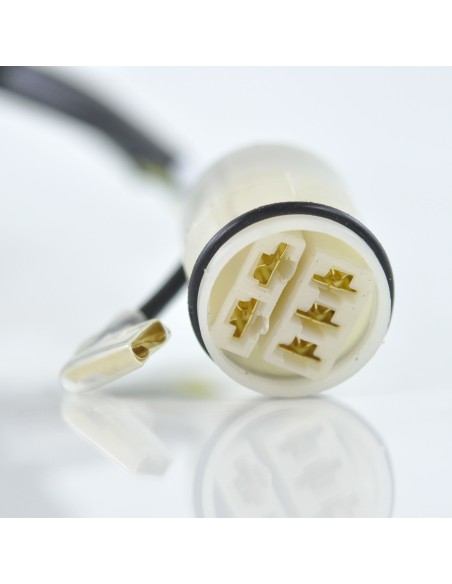

Number of plugs : 1
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Ground = 360 ohms +/-20%
Please Note: The pickup pulsar coil is sold separately: please see CARM00108
