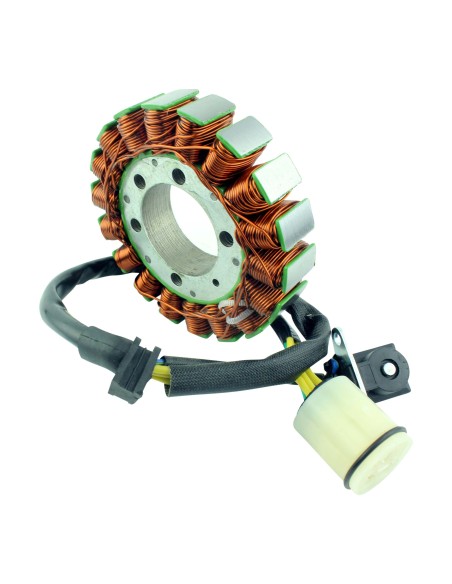

Stator Honda TRX420 Rancher Auto OEM 31120-HP7-A00 31120-HP7-A01

Stator

    2014
        Honda
            TRX 420 Rancher
                ATV & SxS 2014 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2014 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering
    2013
        Honda
            TRX 420 Rancher
                ATV & SxS 2013 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2013 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering
    2012
        Honda
            TRX 420 Rancher
                ATV & SxS 2012 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2012 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering
    2011
        Honda
            TRX 420 Rancher
                ATV & SxS 2011 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2011 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering
    2010
        Honda
            TRX 420 Rancher
                ATV & SxS 2010 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2010 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering
    2009
        Honda
            TRX 420 Rancher
                ATV & SxS 2009 Honda TRX 420 Rancher FA - 4x4 Automatic
                ATV & SxS 2009 Honda TRX 420 Rancher FPA - 4x4 Automatic Power Steering


OEM 31120-HP7-A01

Dimensions :
Interior diameter : 42mm
Exterior diameter : 106mm
Thickness : 20mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 250mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 5

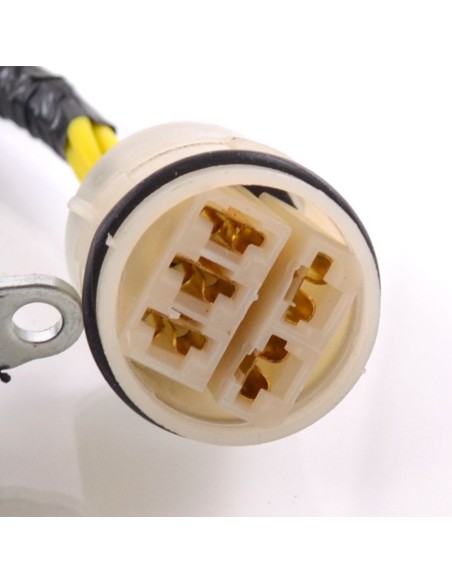

Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue to Green = 115ohms +/-20%

Resistant to 200 degrees Celsius
