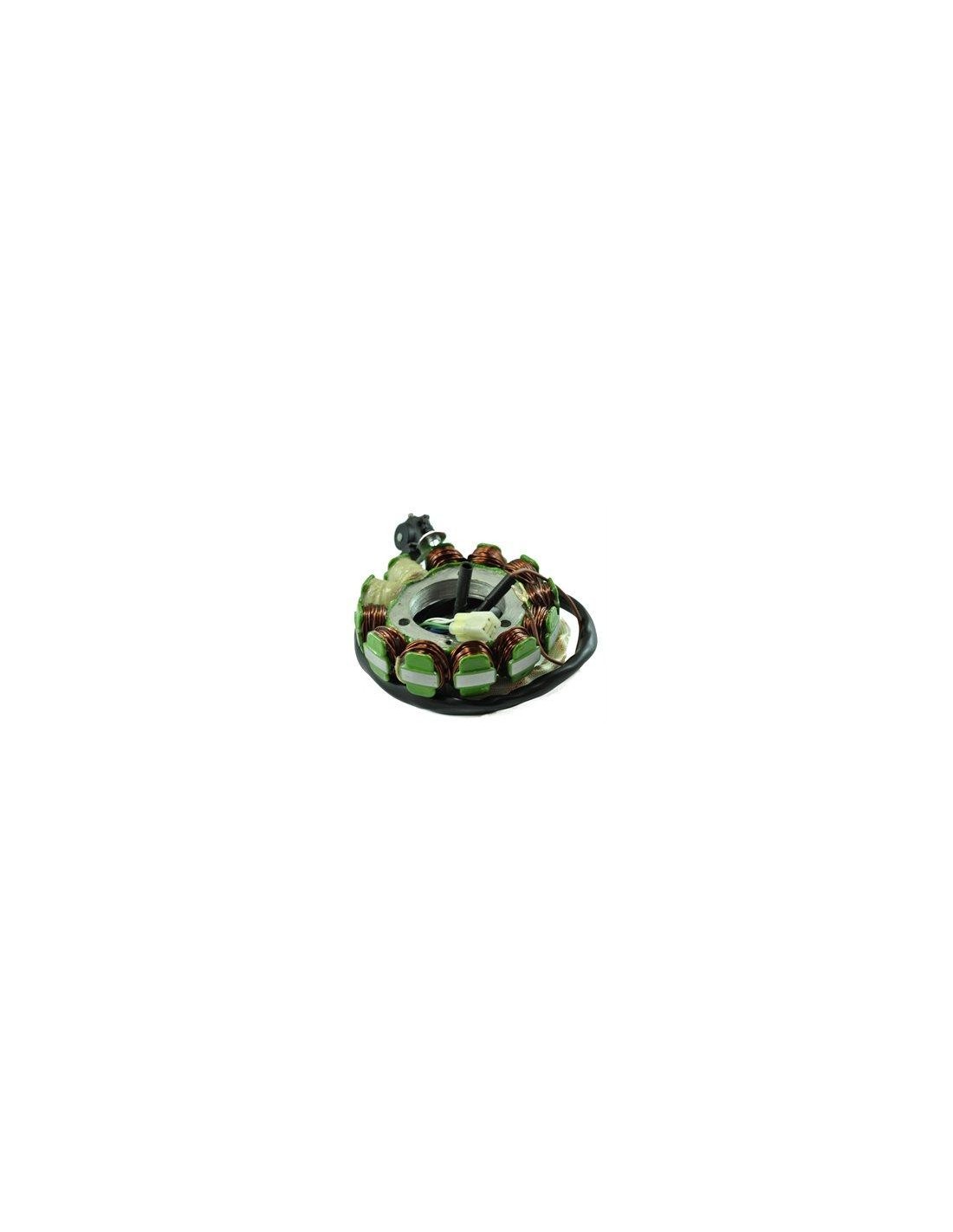

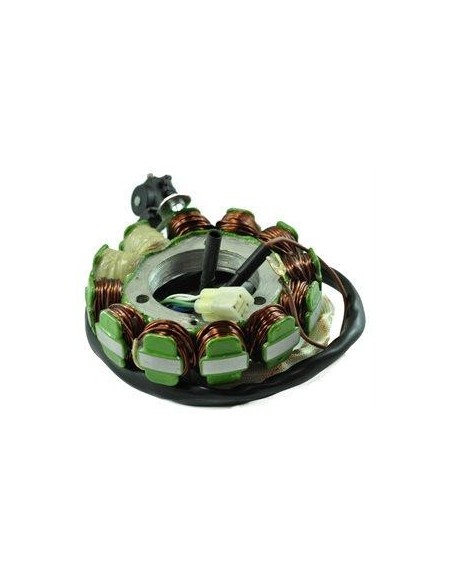

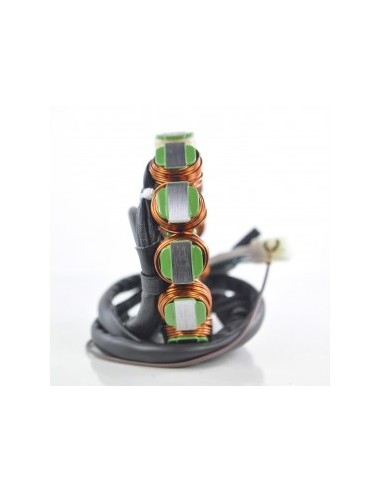

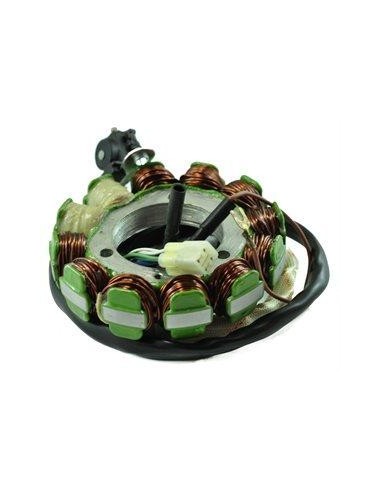

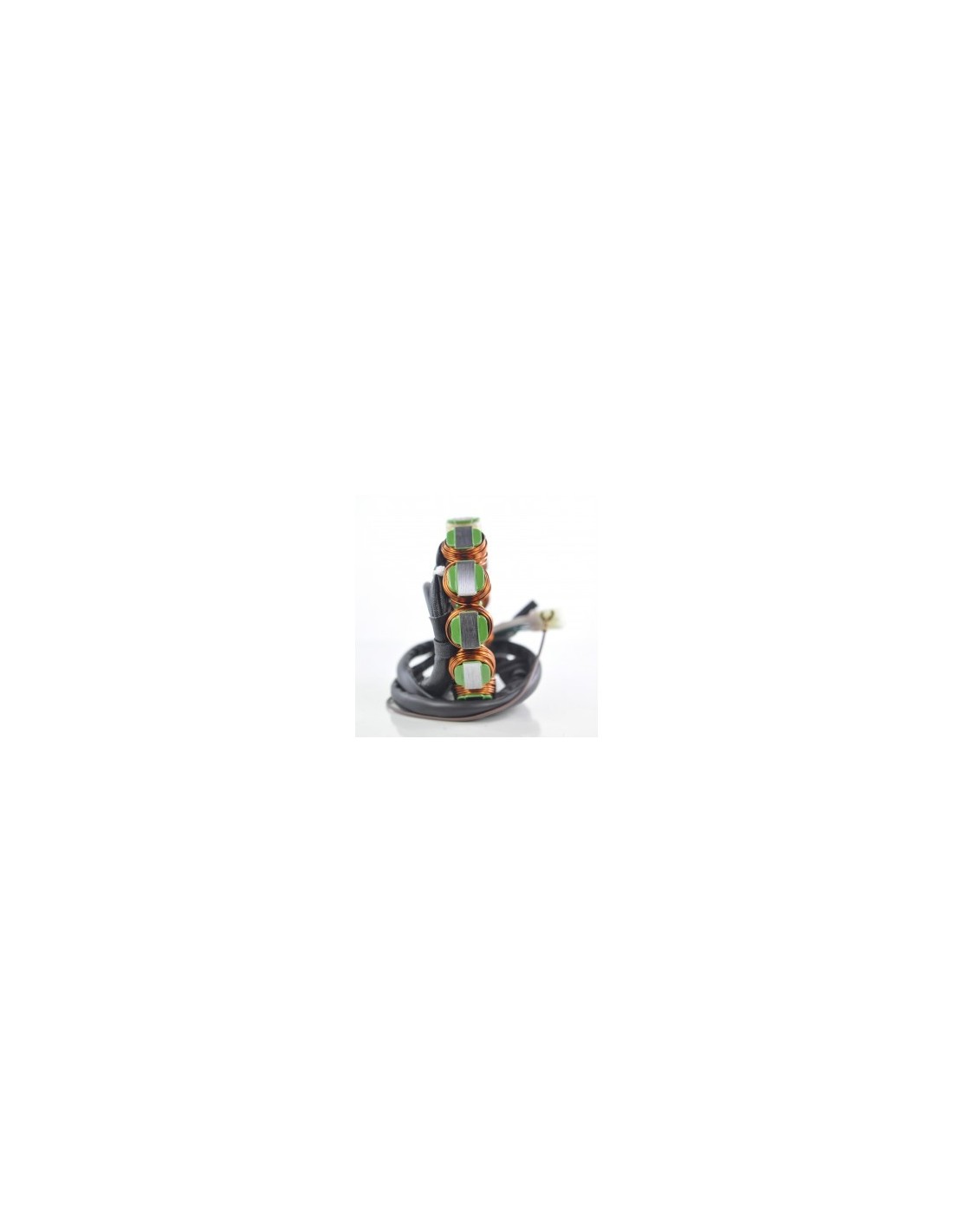

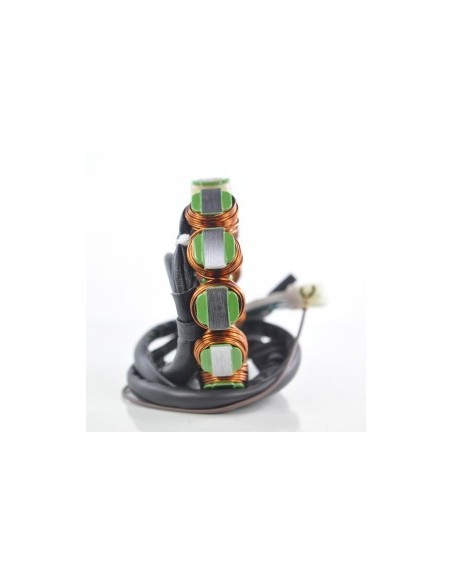

Stator Honda TRX400EX Sportrax TRX400 OEM 31120-HN1-000 31120-HN1-003 31120-HN1-A40 31120-HN1-A41
CARM01022
5-7 Days
€210.00
Tax included
Resistant to 200 degrees Celsius Stator Honda TRX400EX Sportrax TRX400 OEM 31120-HN1-000 31120-HN1-003 31120-HN1-A40 31120-HN1-A41
Stator - 200 Watts
Resistant to 200 degrees Celsius
1999 - 2008 Honda TRX 400 Sportrax EX - Electric Start
2009-2014 Honda TRX 400 X
OEM 31120-hn1-003
31120-hn1-a41
Ext Diameter: 115mm
Int Diameter : 54mm
Thickness : 14mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 560 mm
Length of pickup coil's wire to grommet: 250 mm
Other specifications :
Number of wires: 6

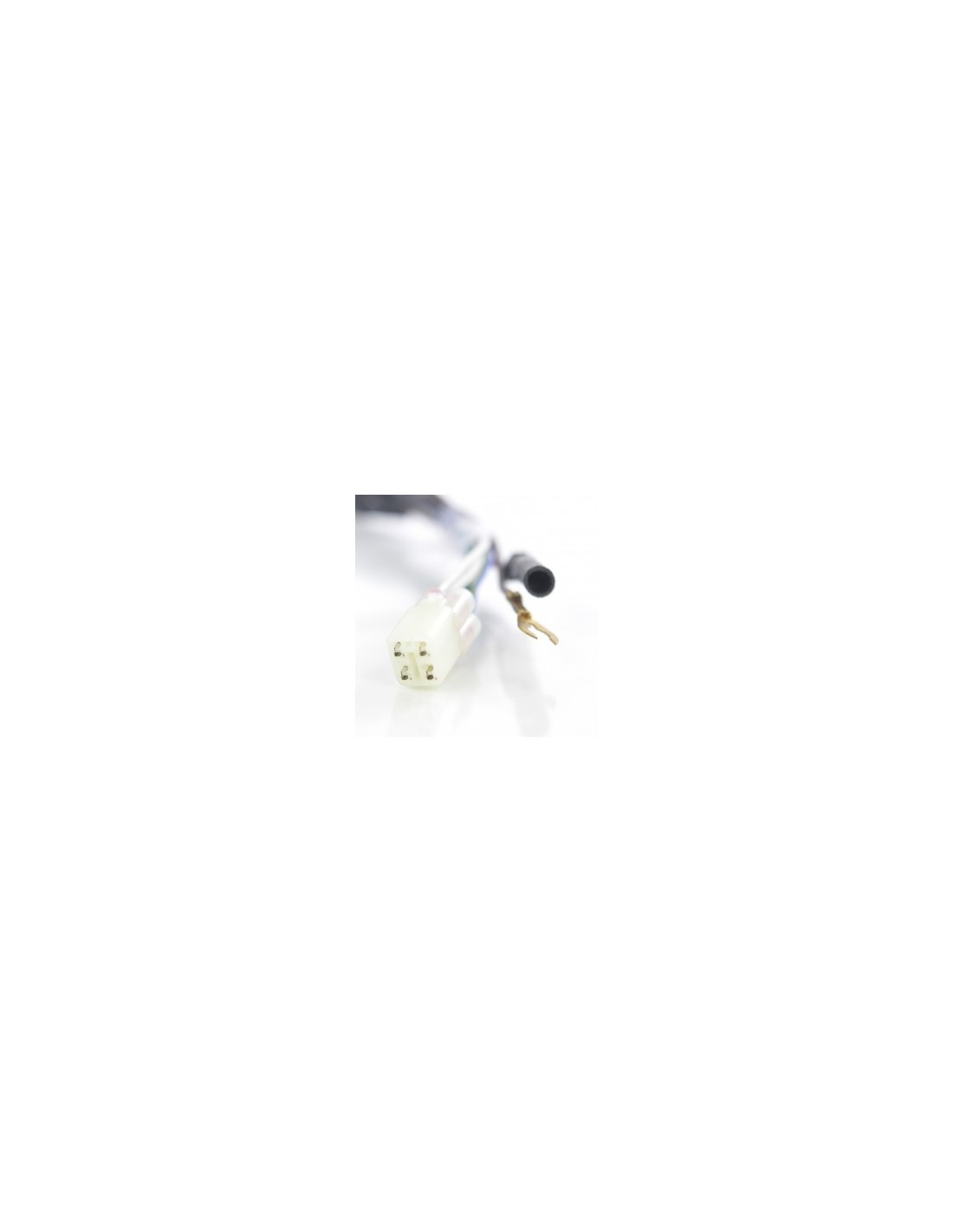

Number of plugs: 2
Number of terminals: 6
Alternator: Green to White = 0.4 ohms +/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms +/-20%
Source: Black/Red to Brown = 90 ohms +/-20%
