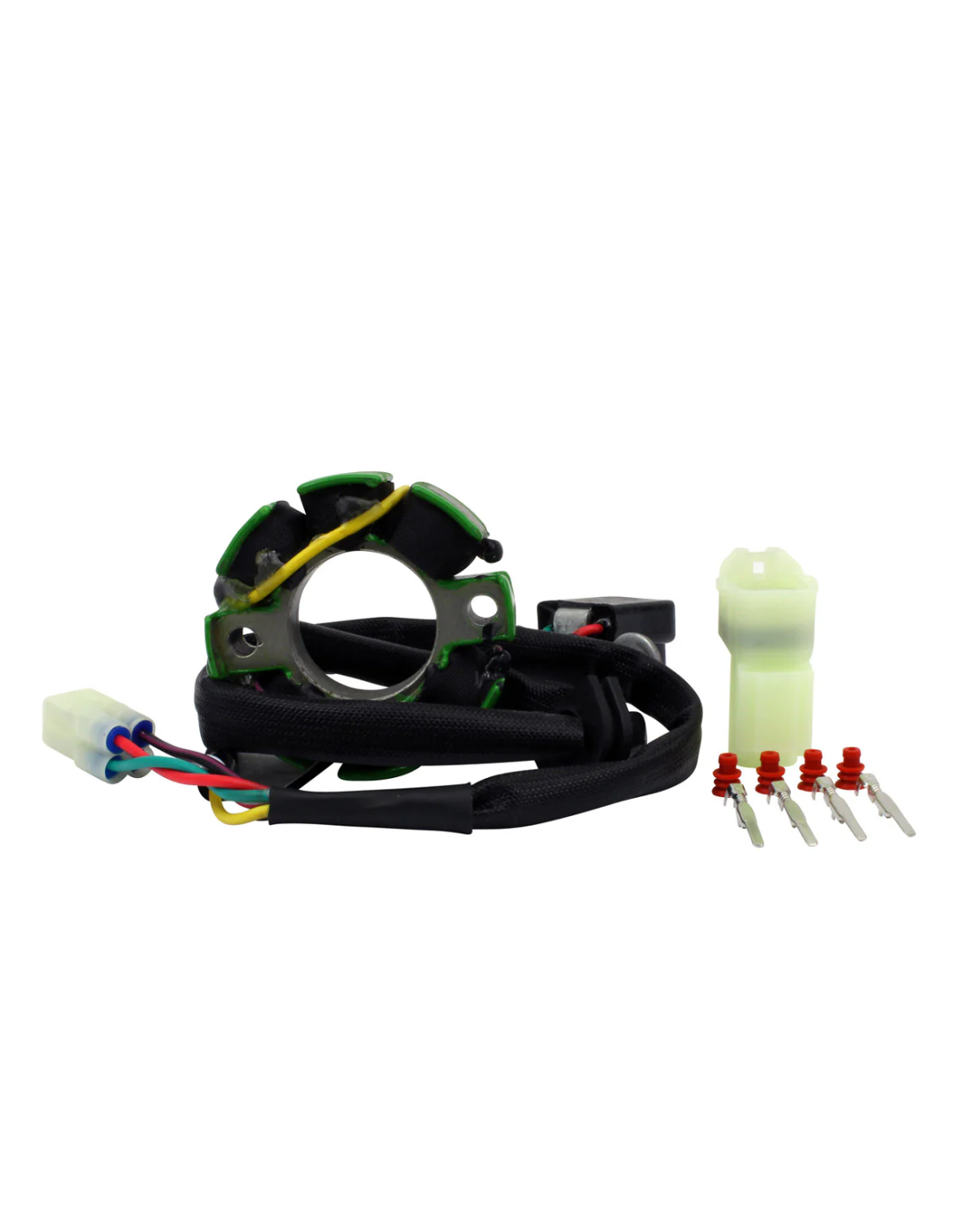

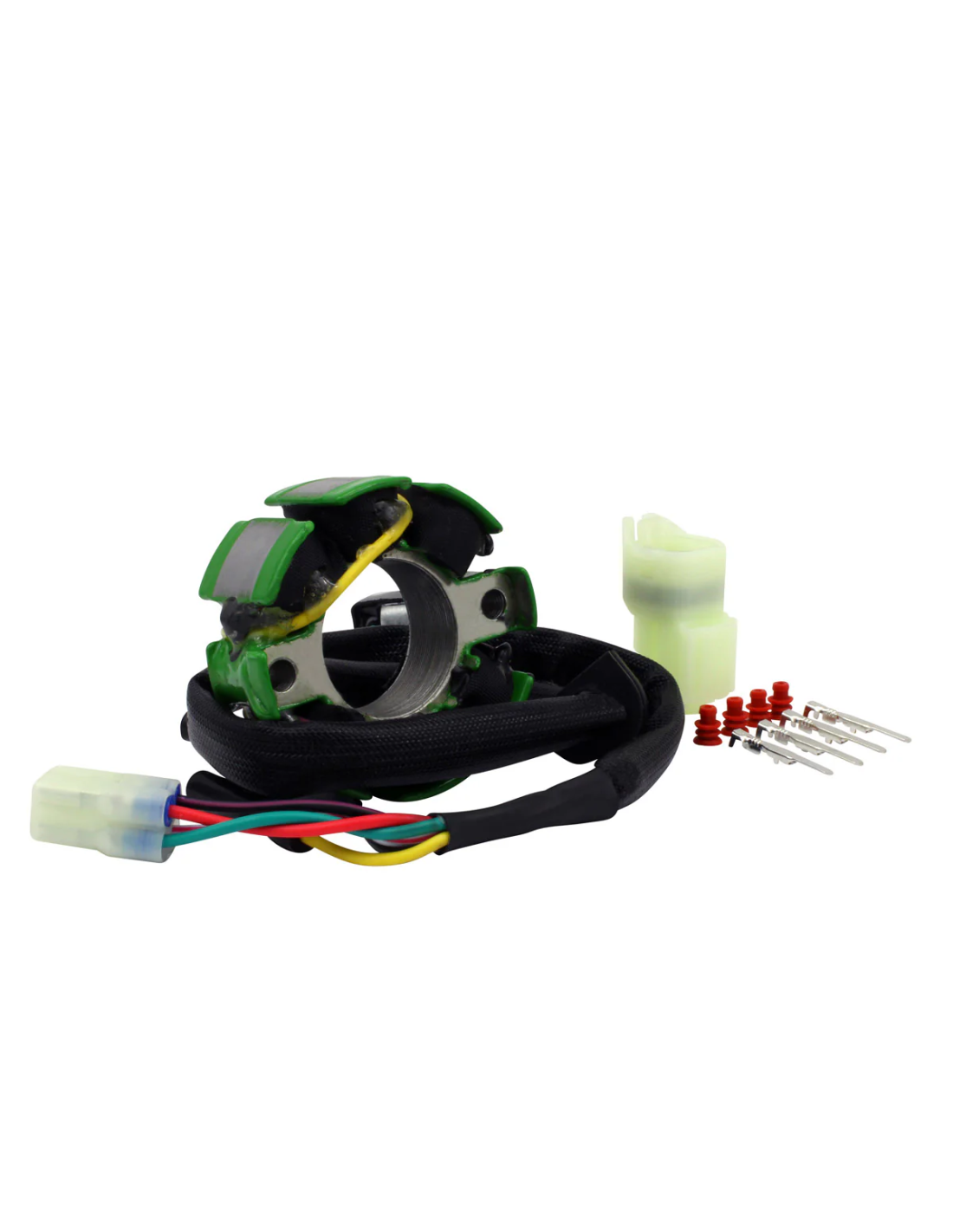

50W Lighting Stator KTM 85 125 150 SX Husqvarna TC 85 125 GasGas MC 85 125 OEM 50439004000

2024 KTM 85 SX

2024 Husqvarna TC 85

2023 KTM 125 SX

2023 KTM 85 SX

2023 KTM 125 XC

2023 Husqvarna TC 85

2023 Gas Gas MC 125

2023 Gas Gas MC 85

2022 Husqvarna TC 125

2022 KTM 125 SX

2022 KTM 150 SX

2022 KTM 85 SX

2022 Husqvarna TC 85

2022 Gas Gas MC 125

2021 Husqvarna TC 125

2021 KTM 125 SX

2021 KTM 150 SX

2021 KTM 85 SX

2021 Husqvarna TC 85

2021 Gas Gas MC 125

2021 Gas Gas MC 85

2020 Husqvarna TC 125

2020 KTM 125 SX

2020 KTM 150 SX

2020 KTM 85 SX

2020 Husqvarna TC 85

2019 Husqvarna TC 125

2019 KTM 125 SX

2019 KTM 150 SX

2019 KTM 85 SX

2019 Husqvarna TC 85

2018 Husqvarna TC 125

2018 KTM 125 SX

2018 KTM 150 SX

2018 KTM 85 SX

2018 Husqvarna TC 85

2017 Husqvarna TC 125

2017 KTM 125 SX

2017 KTM 150 SX

2016 Husqvarna TC 125

2016 KTM 125 SX

2016 KTM 150 SX

OEM 50439004000

Dimensions:

Interior diameter: 28 mm

Exterior diameter: 59 mm

Thickness: 16 mm

Length of wires stator to grommet: 100 mm

Length of wires grommet to plug: 400 mm

Length of pickup coil's wire to grommet: 60 mm

Other specifications:

Number of wires: 4

Number of plugs: 1

Number of pins: 4

Number of poles: 6

Wire to wire resistance:

Pickup: Red to Green = 100 ohms +/-20%

Source: Black/Red to Red/White = 35 ohms +/-20%

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Pick up pulsar coil included

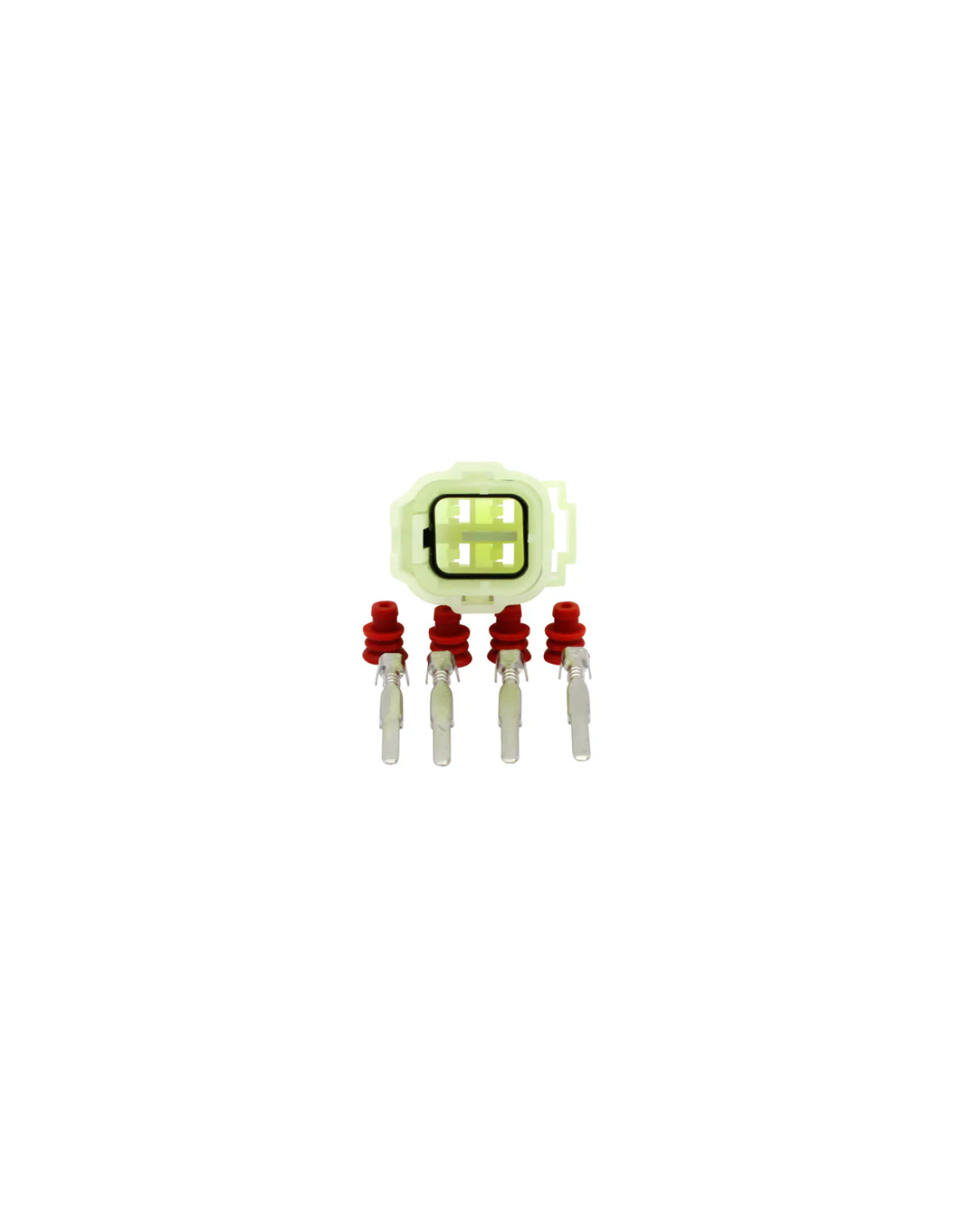

Connectors included

Rubber grommet included
