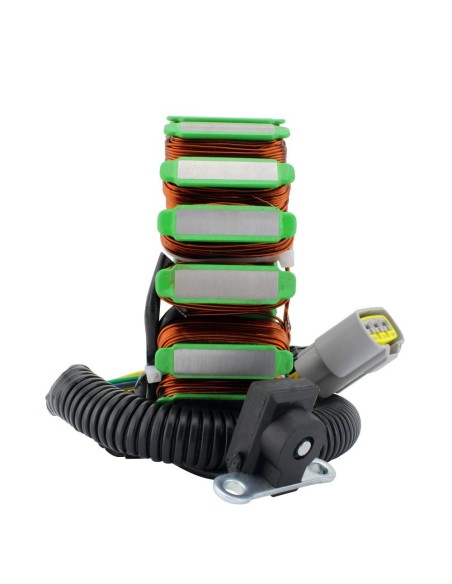

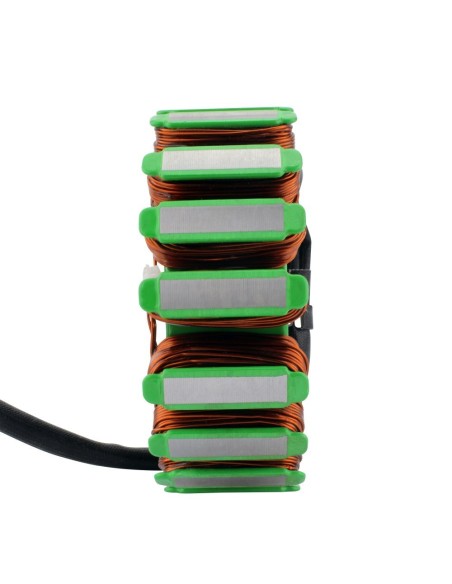

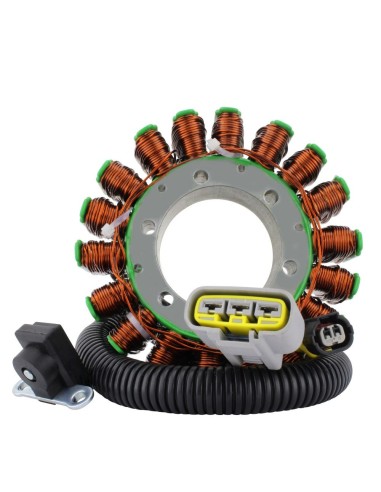

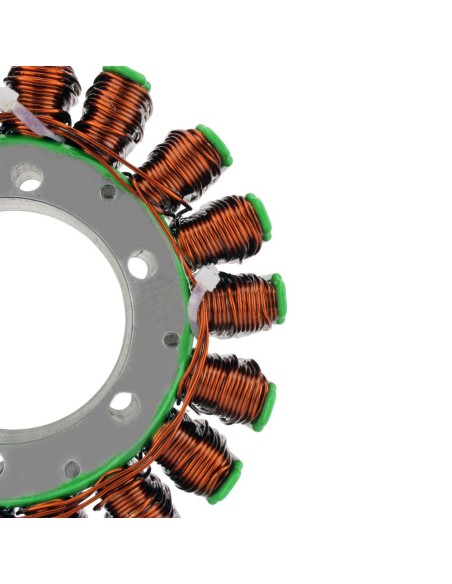

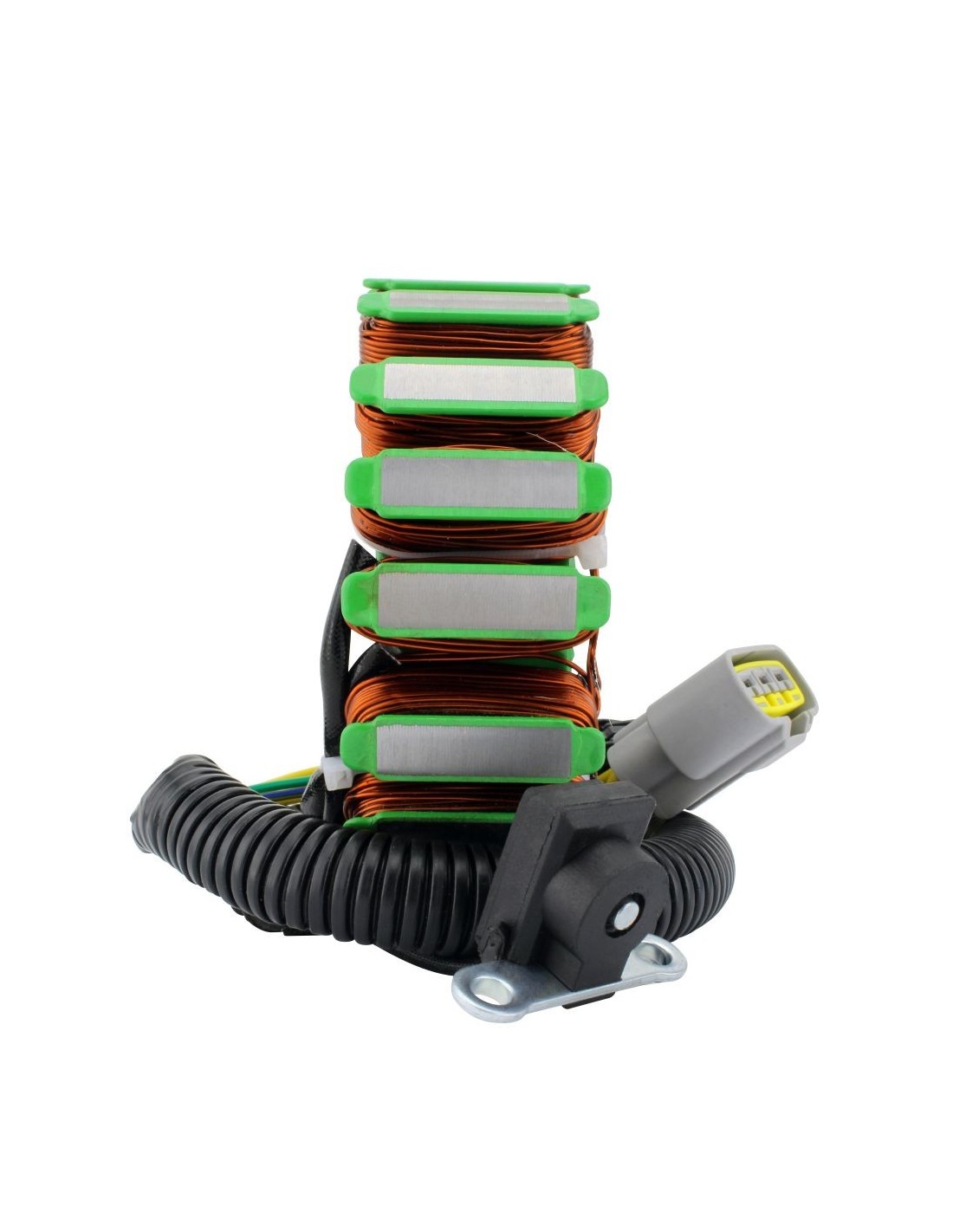

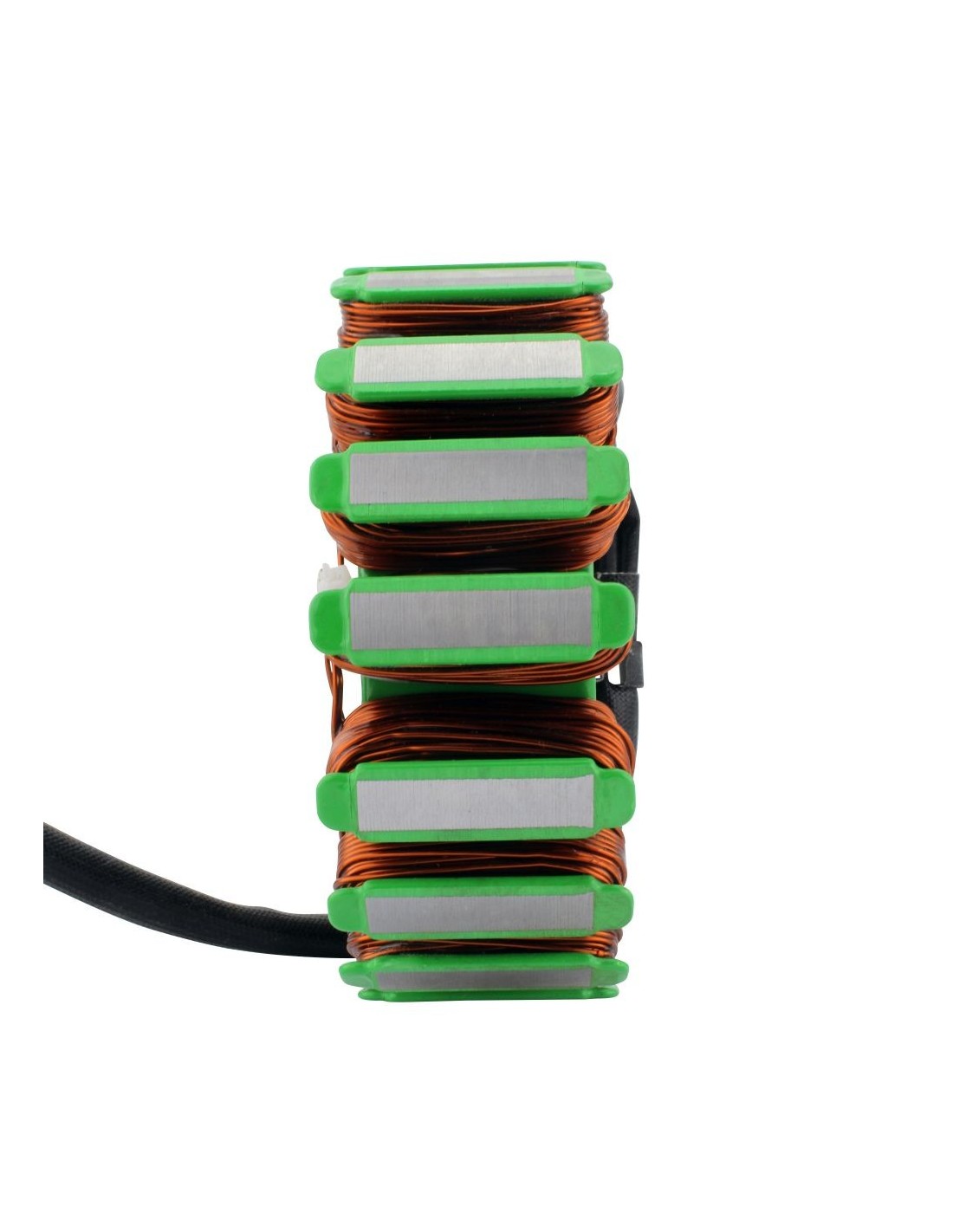

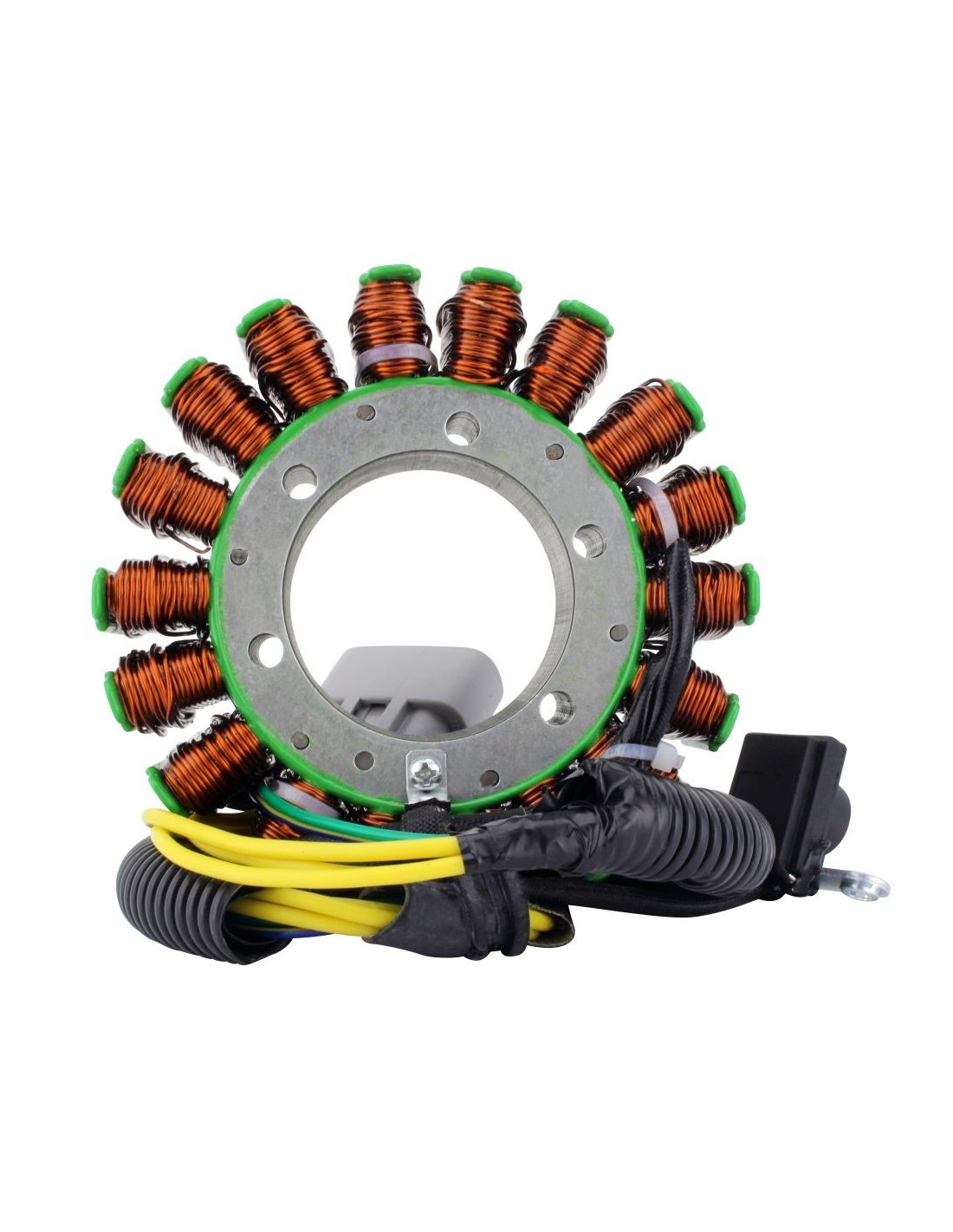

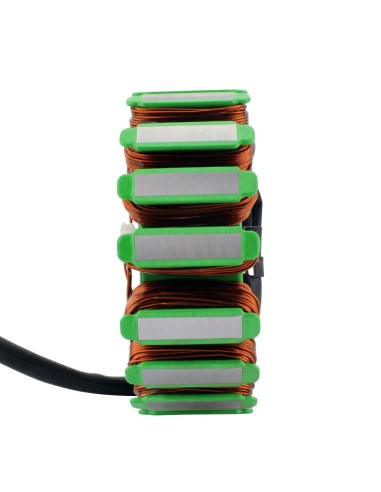

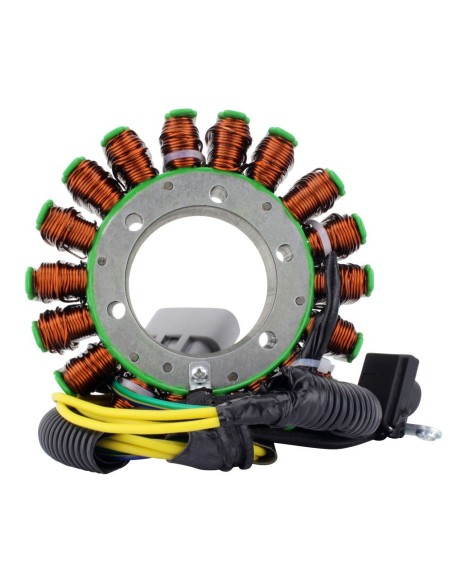

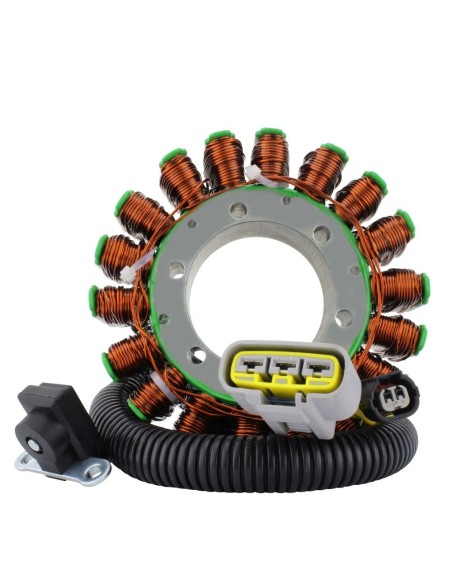

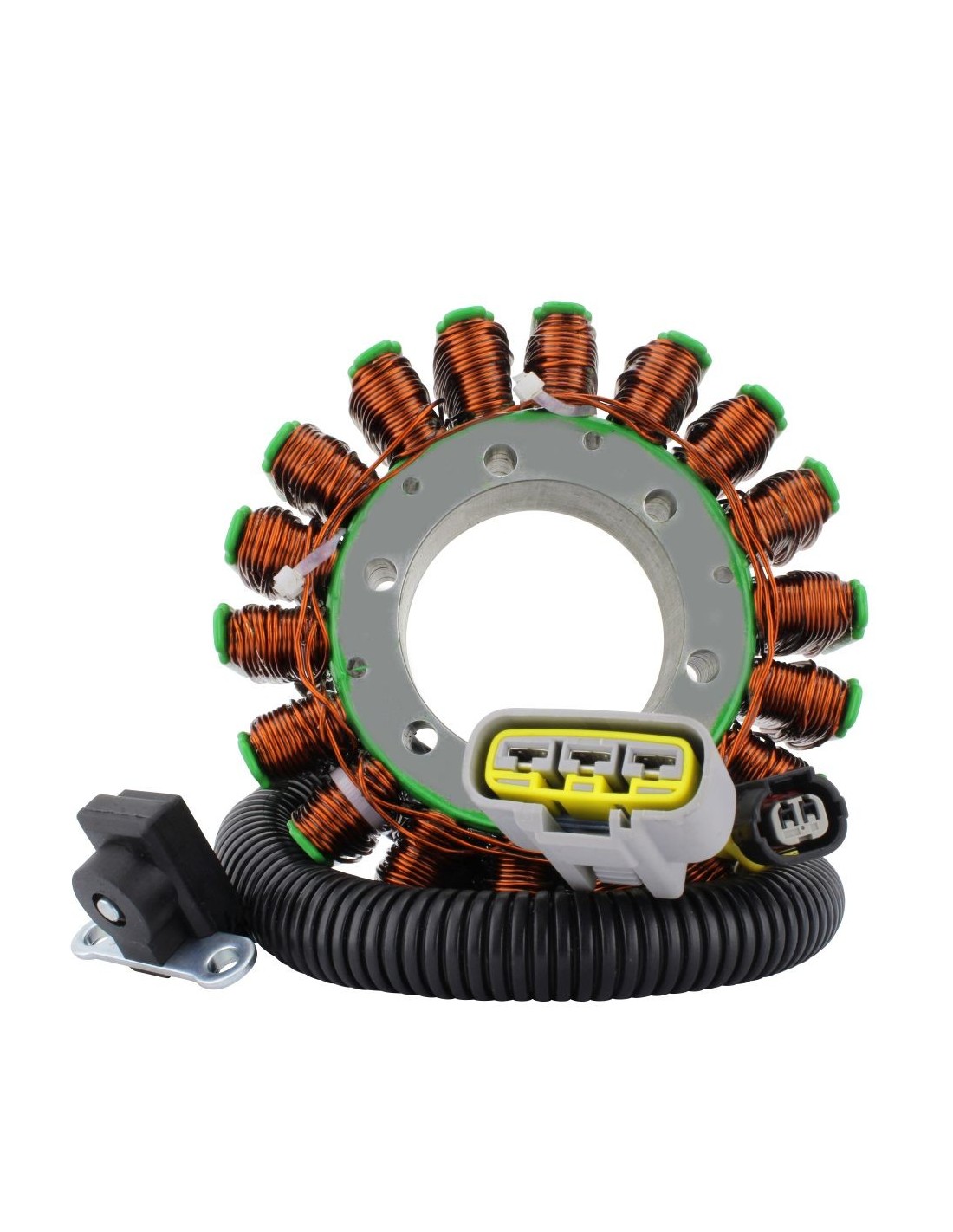

Stator Honda SXS 1000 Pioneer OEM 31120-HL4-003
CARMS010-107377
5-7 Days
€226.80
Tax included
OEM 31120-HL4-003
Stator
2021 Honda SXS 1000 Pioneer
2020 Honda SXS 1000 Pioneer
2019 Honda SXS 1000 Pioneer
2018 Honda SXS 1000 Pioneer
2017 Honda SXS 1000 Pioneer
2016 Honda SXS 1000 Pioneer
OEM 31120-HL4-003
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 124 mm
Thickness : 33 mm
Other specifications :
Number of wires : 5

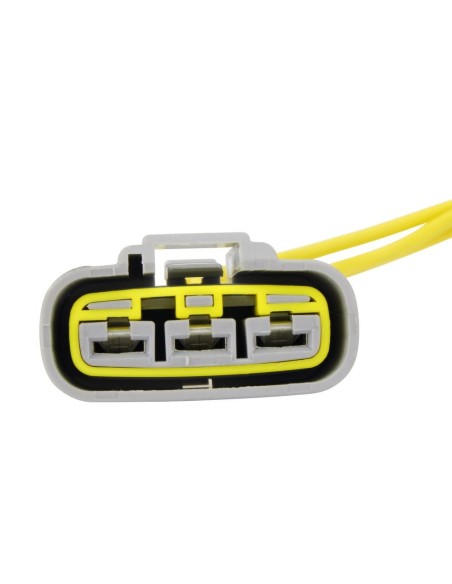

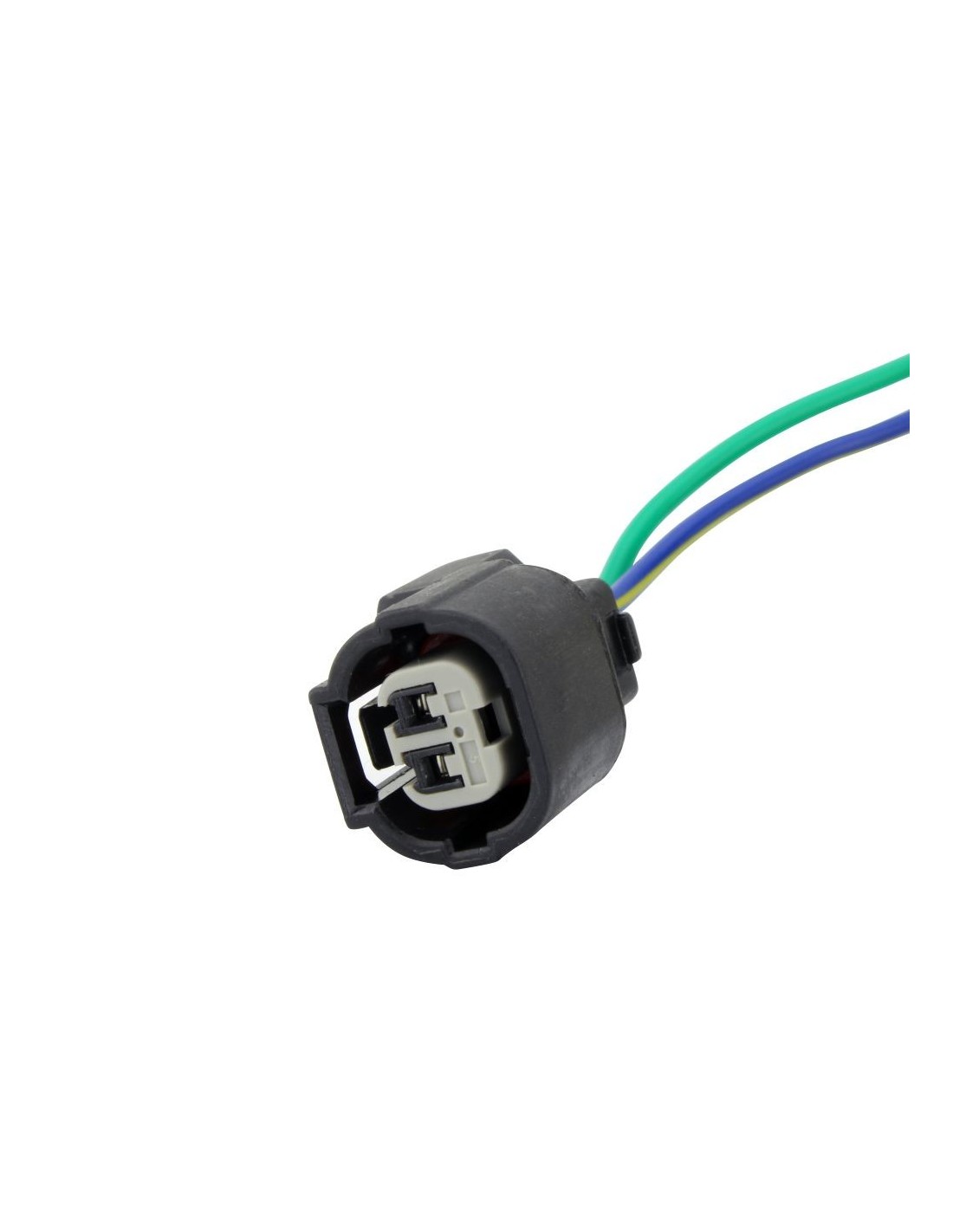

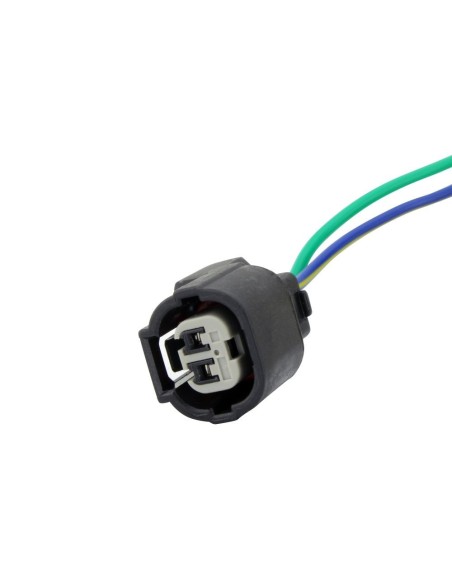

Number of plugs : 2
Number of pins : 5
Number of poles : 18
Interior diameter : 54 mm
Exterior diameter : 124 mm
Thickness : 33 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Source : Blue/Yellow to Green = 117 ohms +-20%
Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Source : Blue/Yellow to Green = 117 ohms +-20%
