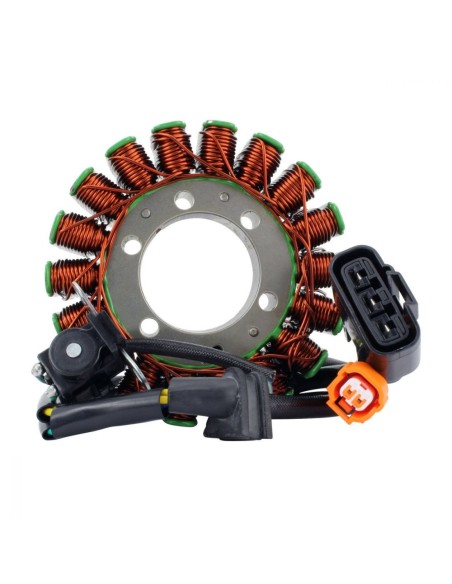

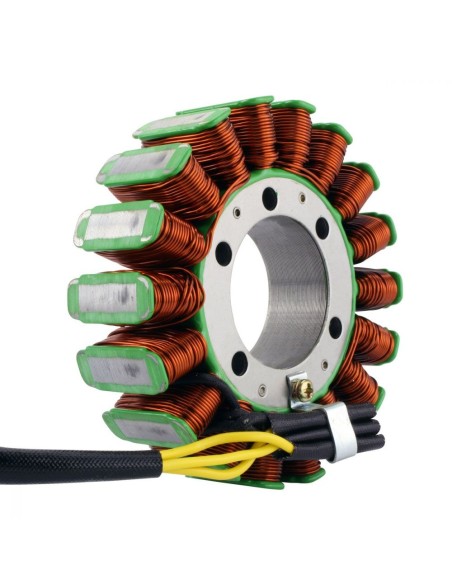

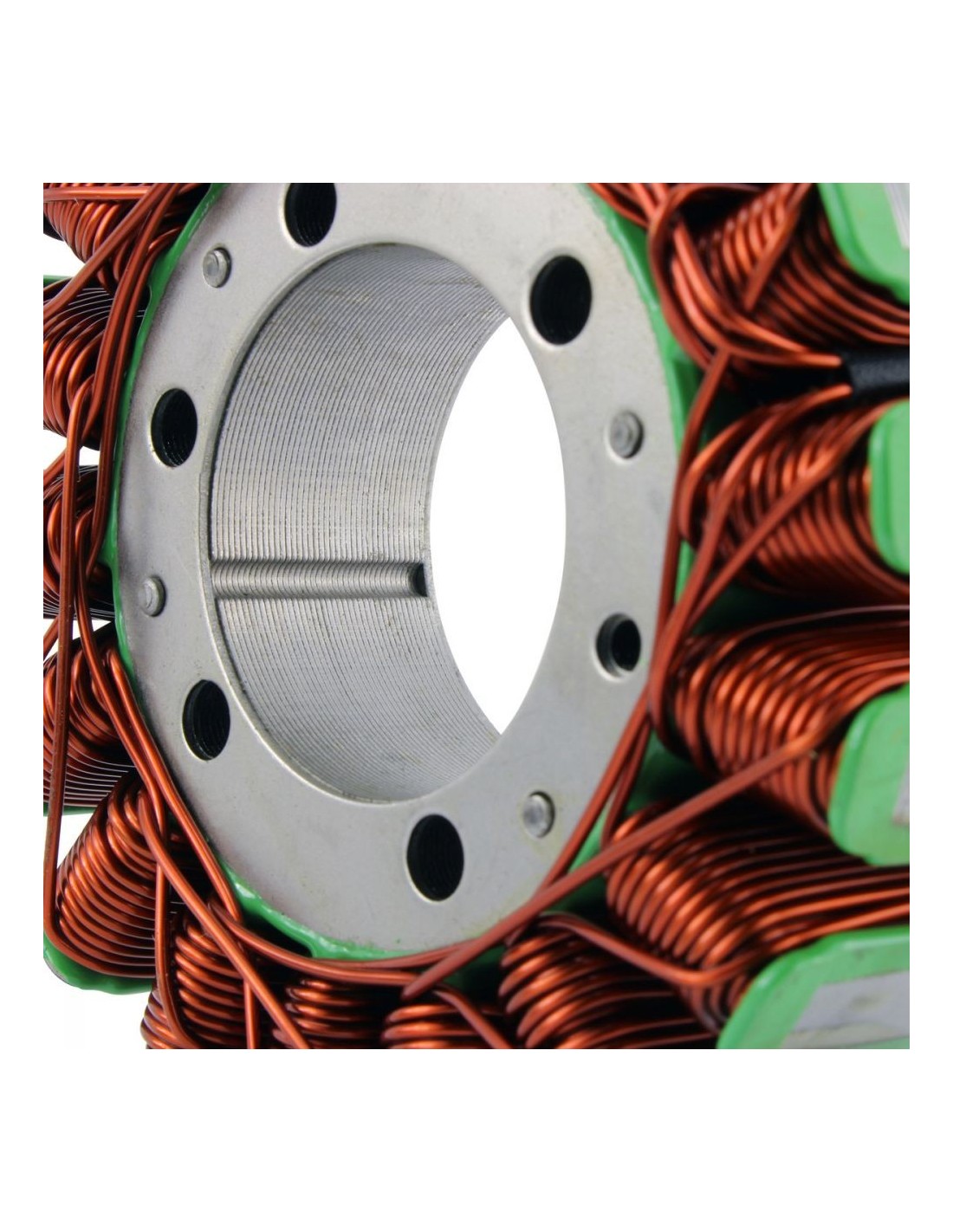

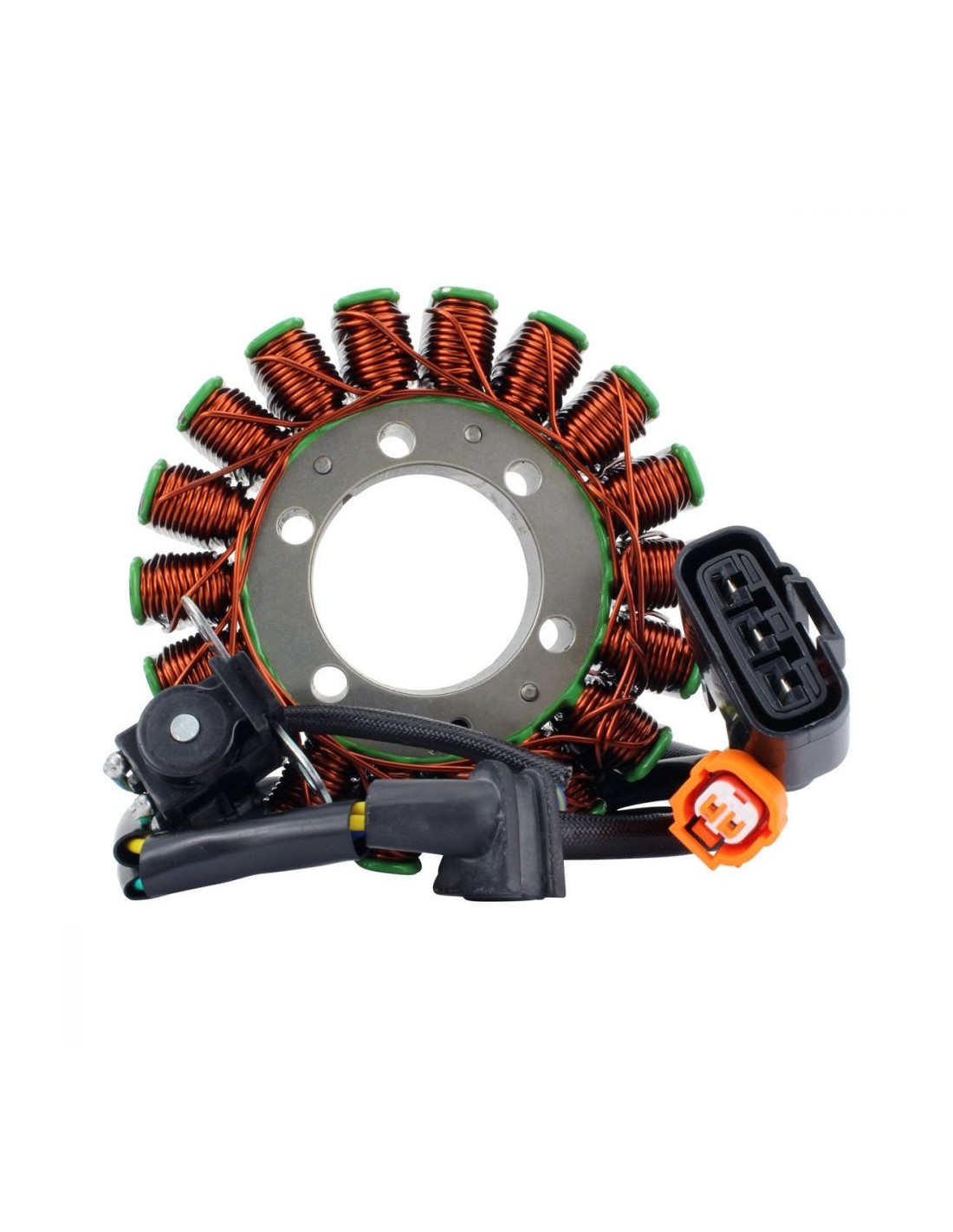

Stator Honda SXS 520 Pioneer SXS 500 Pioneer OEM 31120-HL5-A01
CARMS010-107118
5-7 Days
€236.40
Tax included
OEM 31120-HL5-A01
Stator
2021 Honda SXS 520 Pioneer
2021 Honda SXS 500 Pioneer
2020 Honda SXS 500 Pioneer
2019 Honda SXS 500 Pioneer
2018 Honda SXS 500 Pioneer
2017 Honda SXS 500 Pioneer
2016 Honda SXS 500 Pioneer
2015 Honda SXS 500 Pioneer
OEM 31120-HL5-A01

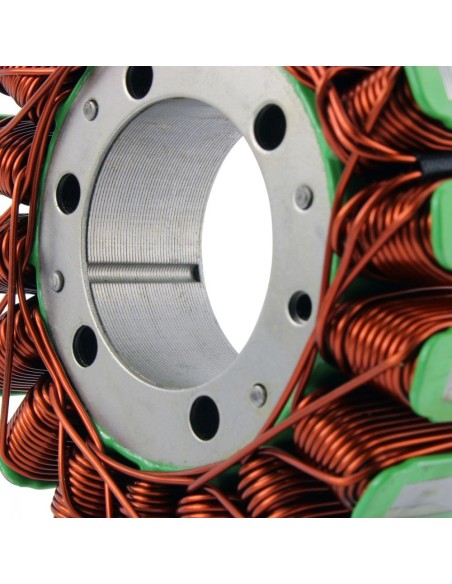

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm

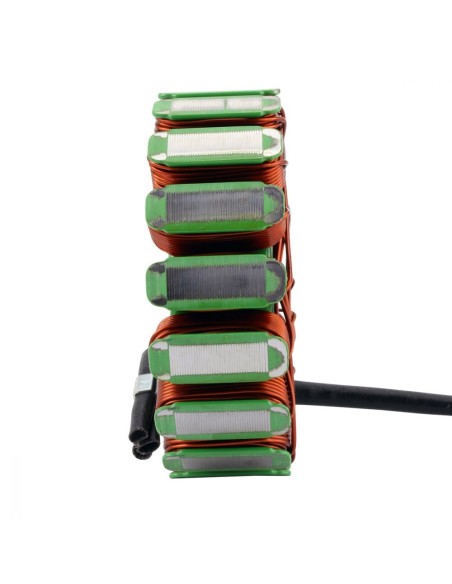

Thickness : 26 mm
Other specifications :
Number of wires : 5

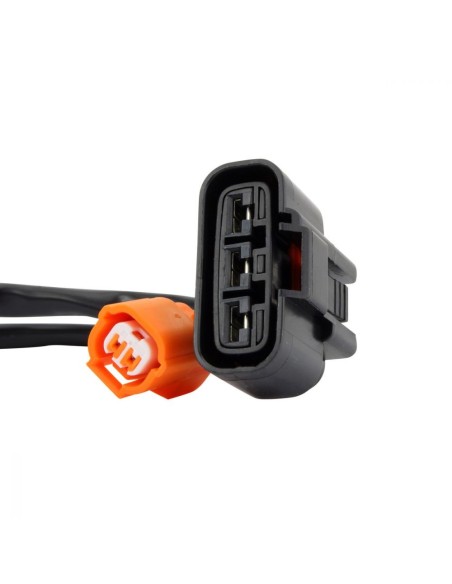

Number of plugs : 2
Number of pins : 5
Number of poles : 18
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 26 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.5 ohms +-20%
Source : Blue/Yellow to Green = 232 ohms +-20%
Alternator 3p : Between each Yellow = 0.5 ohms +-20%
Source : Blue/Yellow to Green = 232 ohms +-20%
