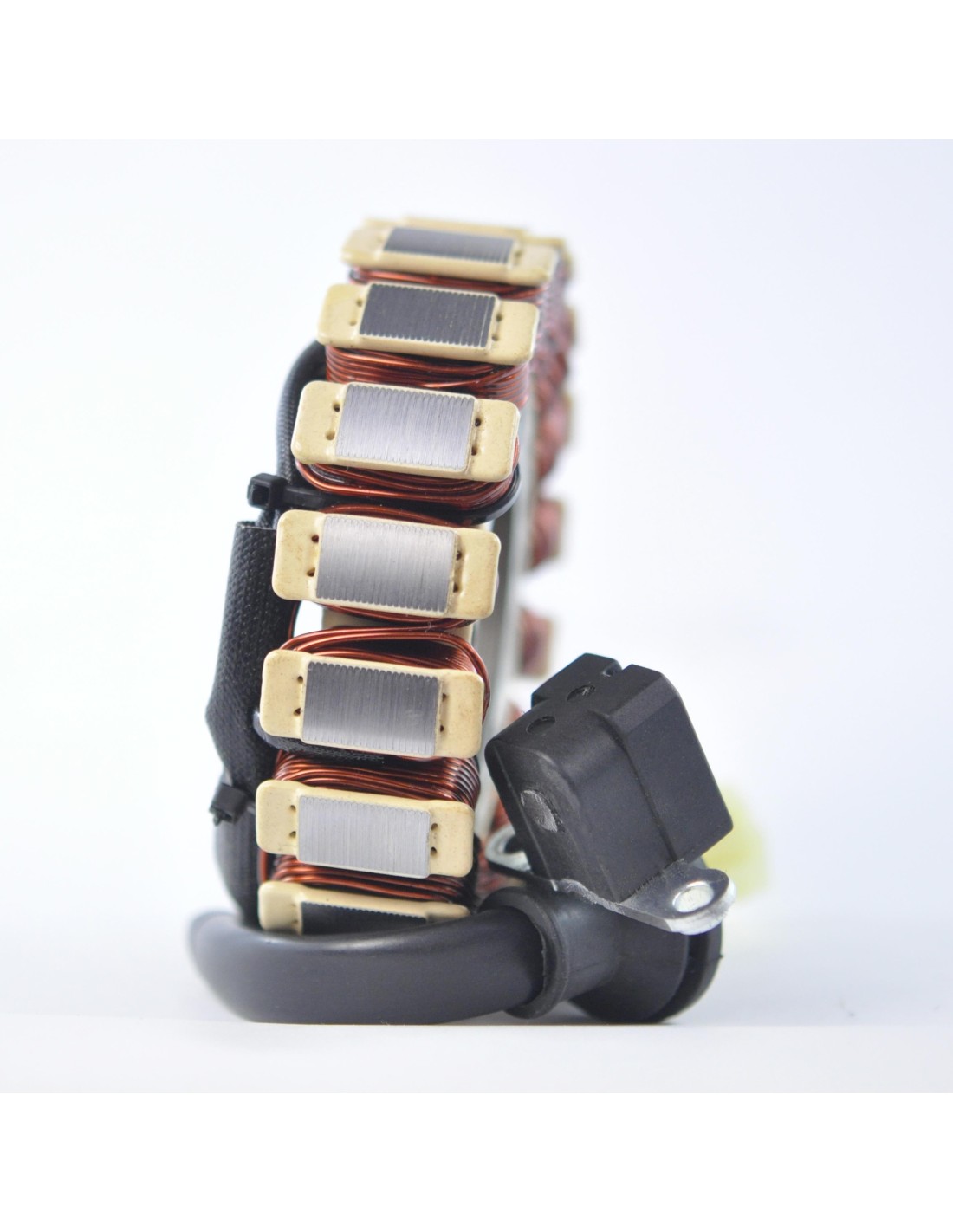

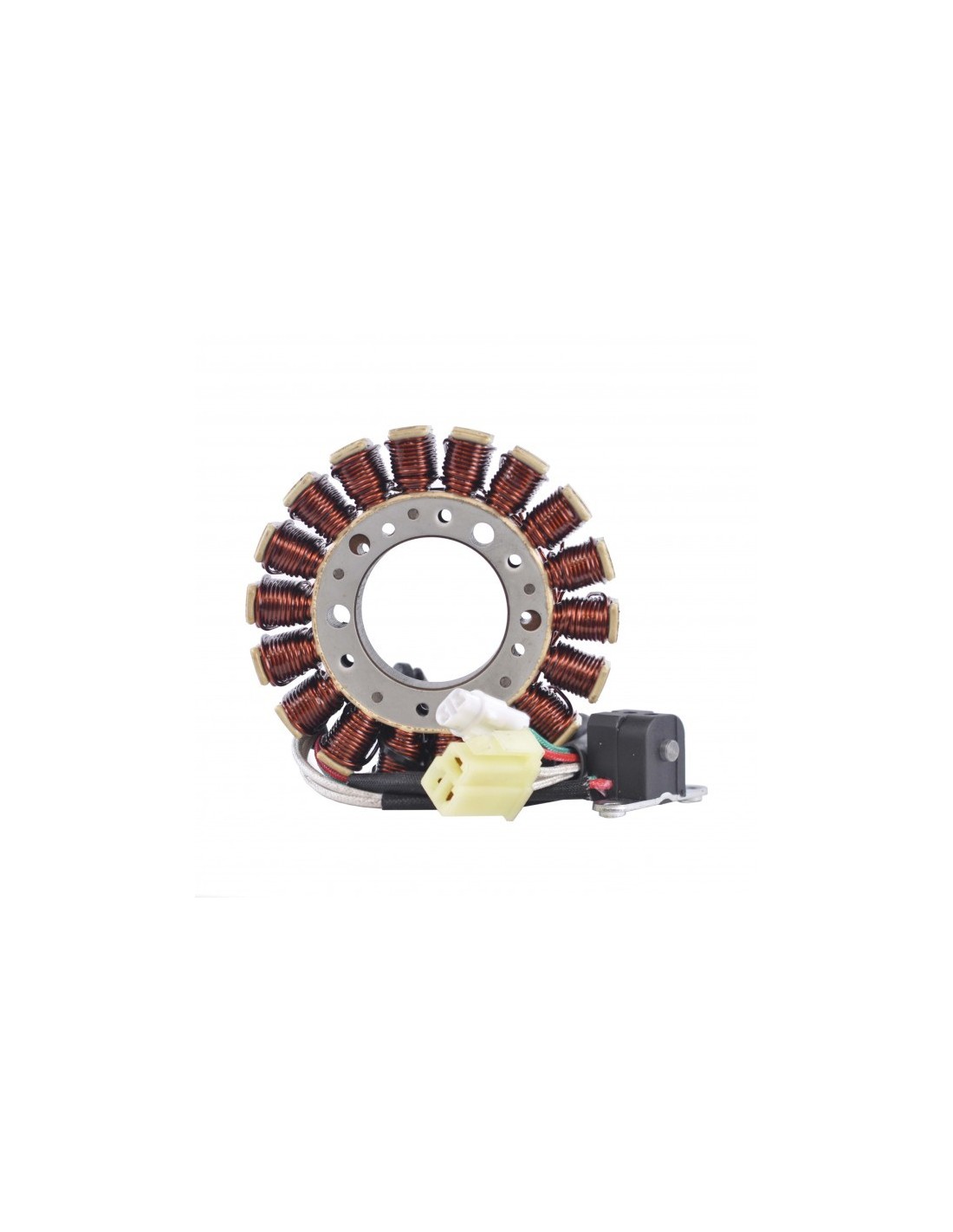

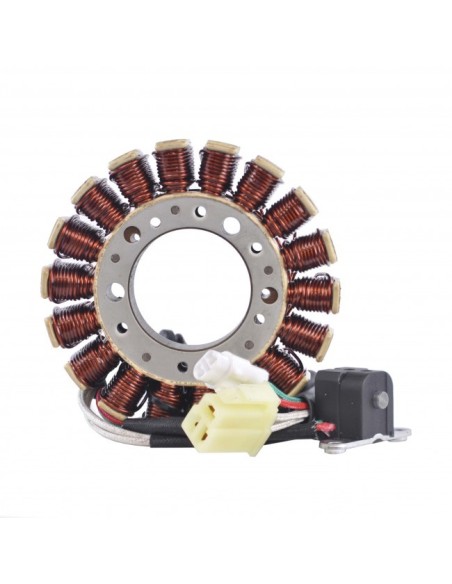

Stator Yamaha Mountain Max SX Venom Venture V Max 600 700 OEM 8DM-81410-00-00

Stator

    2006
        Yamaha
            SX Venom 600 Carb L/C
                Snowmobile 2006 Yamaha SX Venom 600 Carb L/C
            Venture 600 Carb L/C
                Snowmobile 2006 Yamaha Venture 600 Carb L/C
    2005
        Yamaha
            SX Venom 600 Carb L/C
                Snowmobile 2005 Yamaha SX Venom 600 Carb L/C
            SX Venom 600 ER Carb L/C
                Snowmobile 2005 Yamaha SX Venom 600 ER Carb L/C
            Venture 600 Carb L/C
                Snowmobile 2005 Yamaha Venture 600 Carb L/C
                Snowmobile 2005 Yamaha Venture 600 Carb L/C 2-Pass
    2004
        Yamaha
            SX Venom 600 Carb L/C
                Snowmobile 2004 Yamaha SX Venom 600 Carb L/C
            SX Venom 600 ER Carb L/C
                Snowmobile 2004 Yamaha SX Venom 600 ER Carb L/C
            Venture 600 Carb L/C
                Snowmobile 2004 Yamaha Venture 600 Carb L/C
    2003
        Yamaha
            Mountain Max 700 Carb L/C
                Snowmobile 2003 Yamaha Mountain Max 700 Carb L/C
            SX 600 R Carb L/C
                Snowmobile 2003 Yamaha SX 600 R Carb L/C
            V-Max 600 ER Carb L/C
                Snowmobile 2003 Yamaha V-Max 600 ER Carb L/C
            Venture 600 Carb L/C
                Snowmobile 2003 Yamaha Venture 600 Carb L/C
            Venture 700 Carb L/C
                Snowmobile 2003 Yamaha Venture 700 Carb L/C
    2002
        Yamaha
            Mountain Max 600 Carb L/C
                Snowmobile 2002 Yamaha Mountain Max 600 Carb L/C
            Mountain Max 700 Carb L/C
                Snowmobile 2002 Yamaha Mountain Max 700 Carb L/C
            SX 600 Carb L/C
                Snowmobile 2002 Yamaha SX 600 Carb L/C
            V-Max 600 Carb L/C
                Snowmobile 2002 Yamaha V-Max 600 Carb L/C Deluxe
            V-Max 700 Carb L/C
                Snowmobile 2002 Yamaha V-Max 700 Carb L/C Deluxe
            Venture 600 Carb L/C
                Snowmobile 2002 Yamaha Venture 600 Carb L/C
            Venture 700 Carb L/C
                Snowmobile 2002 Yamaha Venture 700 Carb L/C
    2001
        Yamaha
            Mountain Max 700 Carb L/C
                Snowmobile 2001 Yamaha Mountain Max 700 Carb L/C
            SX 700 Carb L/C
                Snowmobile 2001 Yamaha SX 700 Carb L/C
            V-Max 700 Carb L/C
                Snowmobile 2001 Yamaha V-Max 700 Carb L/C Deluxe
            Venture 700 Carb L/C
                Snowmobile 2001 Yamaha Venture 700 Carb L/C


OEM
8DM-81410-00-00

Dimensions :
Interior diameter : 43mm
Exterior diameter : 104mm
Thickness : 19mm
Length of wires stator to grommet : 40mm
Length of wires grommet to plug : 200mm
Length of pickup coil's wire to grommet : 55mm

Other specifications :
Number of wires : 5

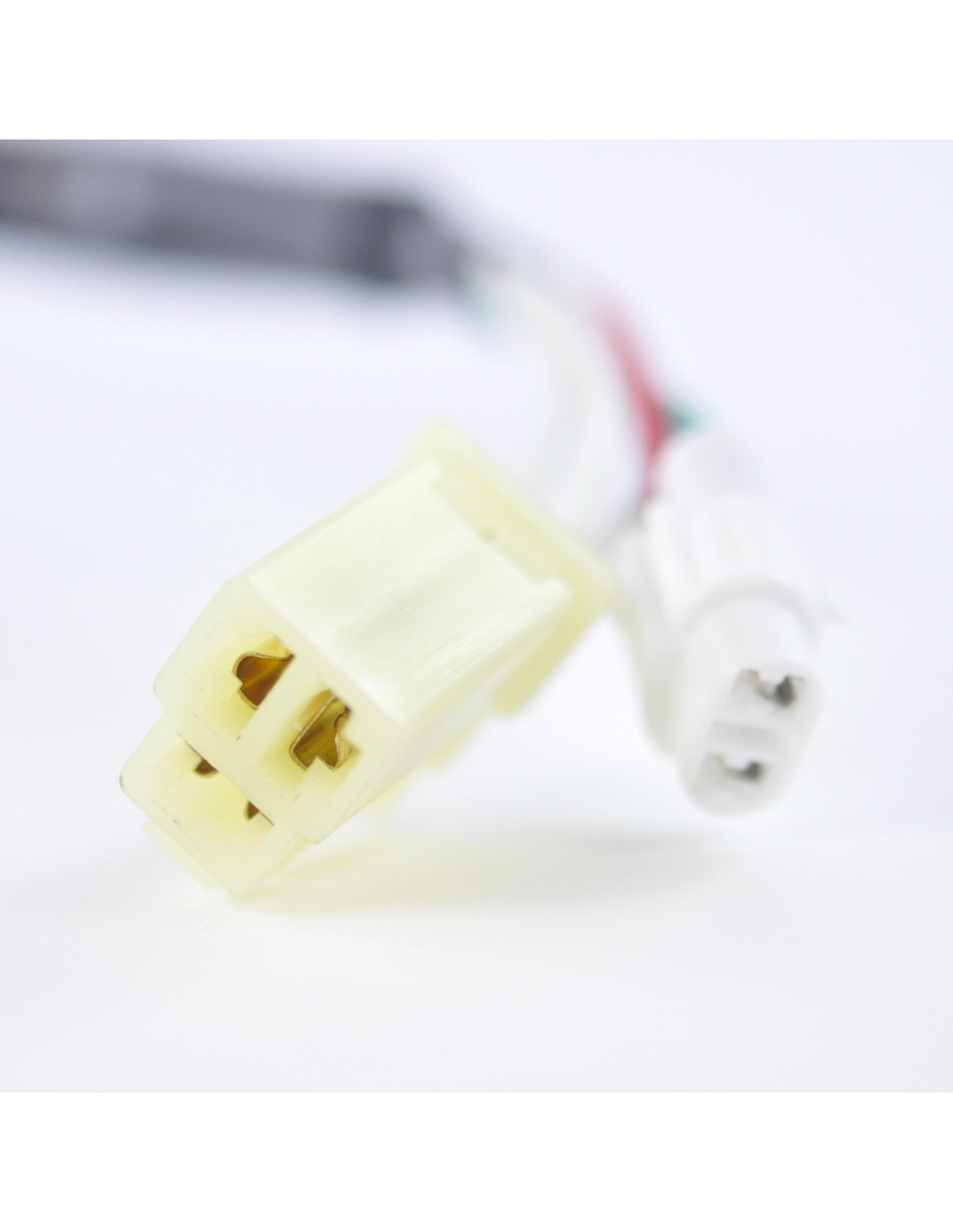

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Green to Red = 213ohms +/-20%
