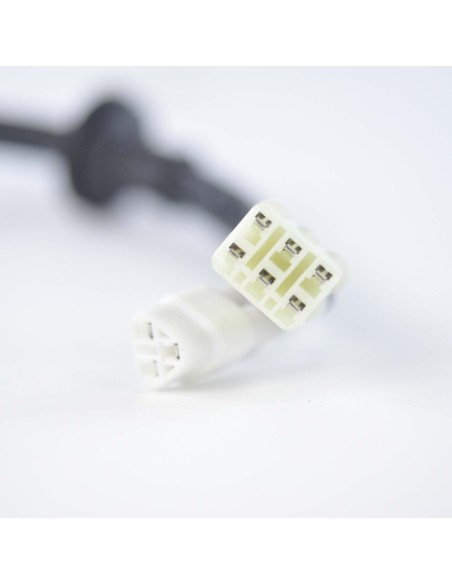

Stator Yamaha SX 600 700 Venture 600 700 VMax 600 700 Mountain Max 600 700 OEM 8CH-85510-02-00 8CH-85510-00-00

Stator

   2001
        Yamaha
            Mountain Max 600 Carb L/C
                Snowmobile 2001 Yamaha Mountain Max 600 Carb L/C
            SX 600 Carb L/C
                Snowmobile 2001 Yamaha SX 600 Carb L/C
            V-Max 600 Carb L/C
                Snowmobile 2001 Yamaha V-Max 600 Carb L/C Deluxe
            Venture 600 Carb L/C
                Snowmobile 2001 Yamaha Venture 600 Carb L/C
    2000
        Yamaha
            Mountain Max 600 Carb L/C
                Snowmobile 2000 Yamaha Mountain Max 600 Carb L/C
            Mountain Max 700 Carb L/C
                Snowmobile 2000 Yamaha Mountain Max 700 Carb L/C
            SX 600 Carb L/C
                Snowmobile 2000 Yamaha SX 600 Carb L/C
            SX 700 Carb L/C
                Snowmobile 2000 Yamaha SX 700 Carb L/C
            V-Max 600 Carb L/C
                Snowmobile 2000 Yamaha V-Max 600 Carb L/C Deluxe
            V-Max 700 Carb L/C
                Snowmobile 2000 Yamaha V-Max 700 Carb L/C
                Snowmobile 2000 Yamaha V-Max 700 Carb L/C Deluxe
            Venture 600 Carb L/C
                Snowmobile 2000 Yamaha Venture 600 Carb L/C
            Venture 700 Carb L/C
                Snowmobile 2000 Yamaha Venture 700 Carb L/C
    1999
        Yamaha
            Mountain Max 700 Carb L/C
                Snowmobile 1999 Yamaha Mountain Max 700 Carb L/C
            V-Max 600 ER Carb L/C
                Snowmobile 1999 Yamaha V-Max 600 ER Carb L/C
            V-Max 600 SX Carb L/C
                Snowmobile 1999 Yamaha V-Max 600 SX Carb L/C
            V-Max 700 Carb L/C
                Snowmobile 1999 Yamaha V-Max 700 Carb L/C
            V-Max 700 ER Carb L/C
                Snowmobile 1999 Yamaha V-Max 700 ER Carb L/C
            V-Max 700 SXB Carb L/C
                Snowmobile 1999 Yamaha V-Max 700 SXB Carb L/C
            Venture 600 Carb L/C
                Snowmobile 1999 Yamaha Venture 600 Carb L/C
            Venture 700 Carb L/C
                Snowmobile 1999 Yamaha Venture 700 Carb L/C
    1998
        Yamaha
            Mountain Max 700 Carb L/C
                Snowmobile 1998 Yamaha Mountain Max 700 Carb L/C
            V-Max 700 SX Carb L/C
                Snowmobile 1998 Yamaha V-Max 700 SX Carb L/C
                Snowmobile 1998 Yamaha V-Max 700 SX Carb L/C Electric Start
            V-Max 700 XT Carb L/C
                Snowmobile 1998 Yamaha V-Max 700 XT Carb L/C
            V-Max 700 XTC Carb L/C
                Snowmobile 1998 Yamaha V-Max 700 XTC Carb L/C
    1997
        Yamaha
            Mountain Max 700 Carb L/C
                Snowmobile 1997 Yamaha Mountain Max 700 Carb L/C
            V-Max 700 SX Carb L/C
                Snowmobile 1997 Yamaha V-Max 700 SX Carb L/C
OEM
8CH-85510-01-00
8CH-85510-00-00
8CH-85510-02-00




Wire to wire resistance
Alternator : Yellow to White = 0.04 ohms +/- 20%
Pickup : Whte to White/Red = 225 ohms +/- 20%
Source 1 : Black to Brown/Redd = 124 ohms +/- 20%
Source 2 : Brown to Black/Red = 443 ohms +/- 20%

Dimension
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 15 mm

Number of wires : 6
Number of terminals : 6
