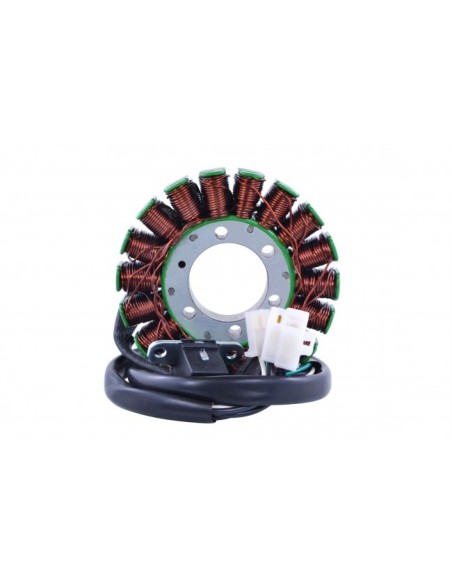

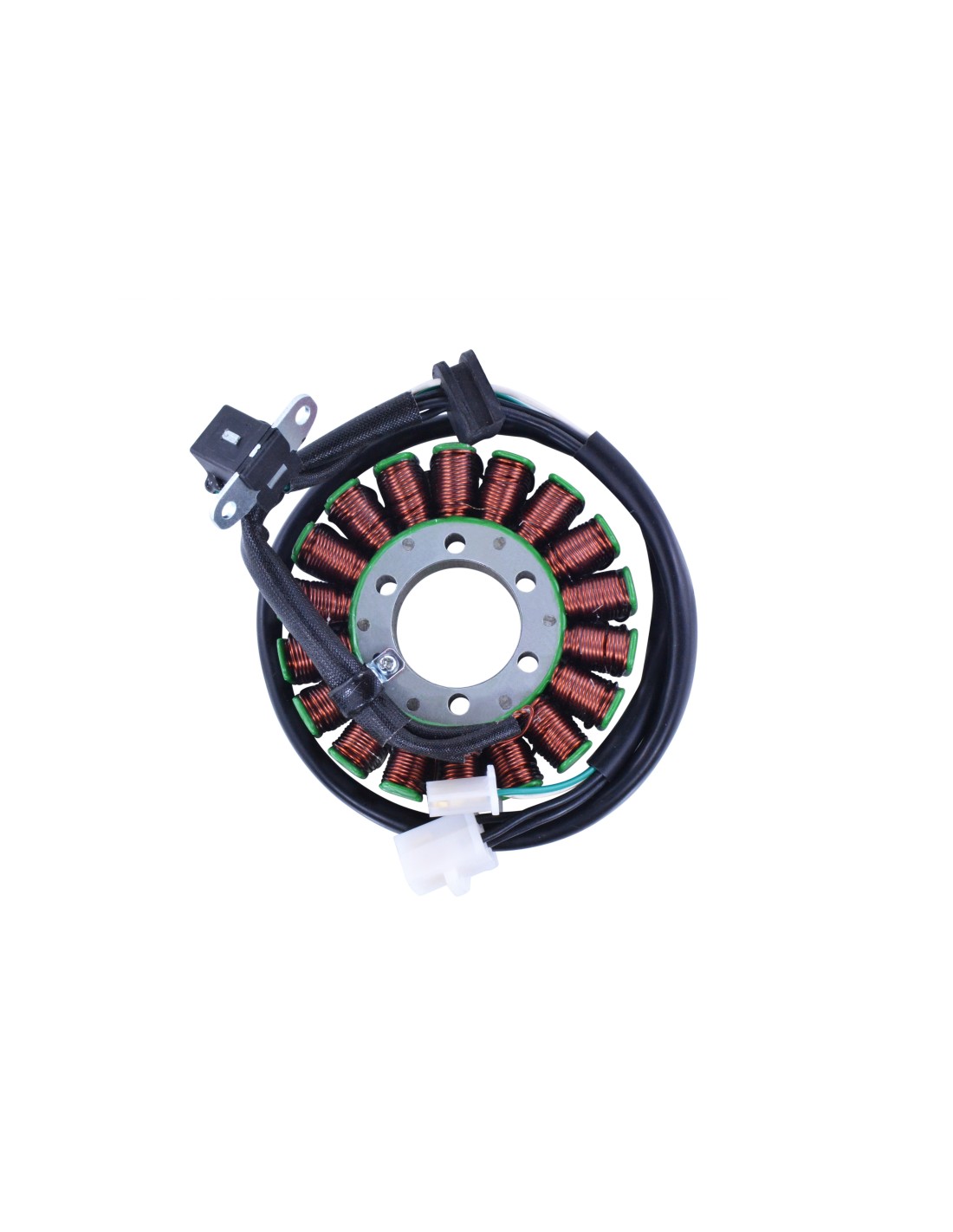

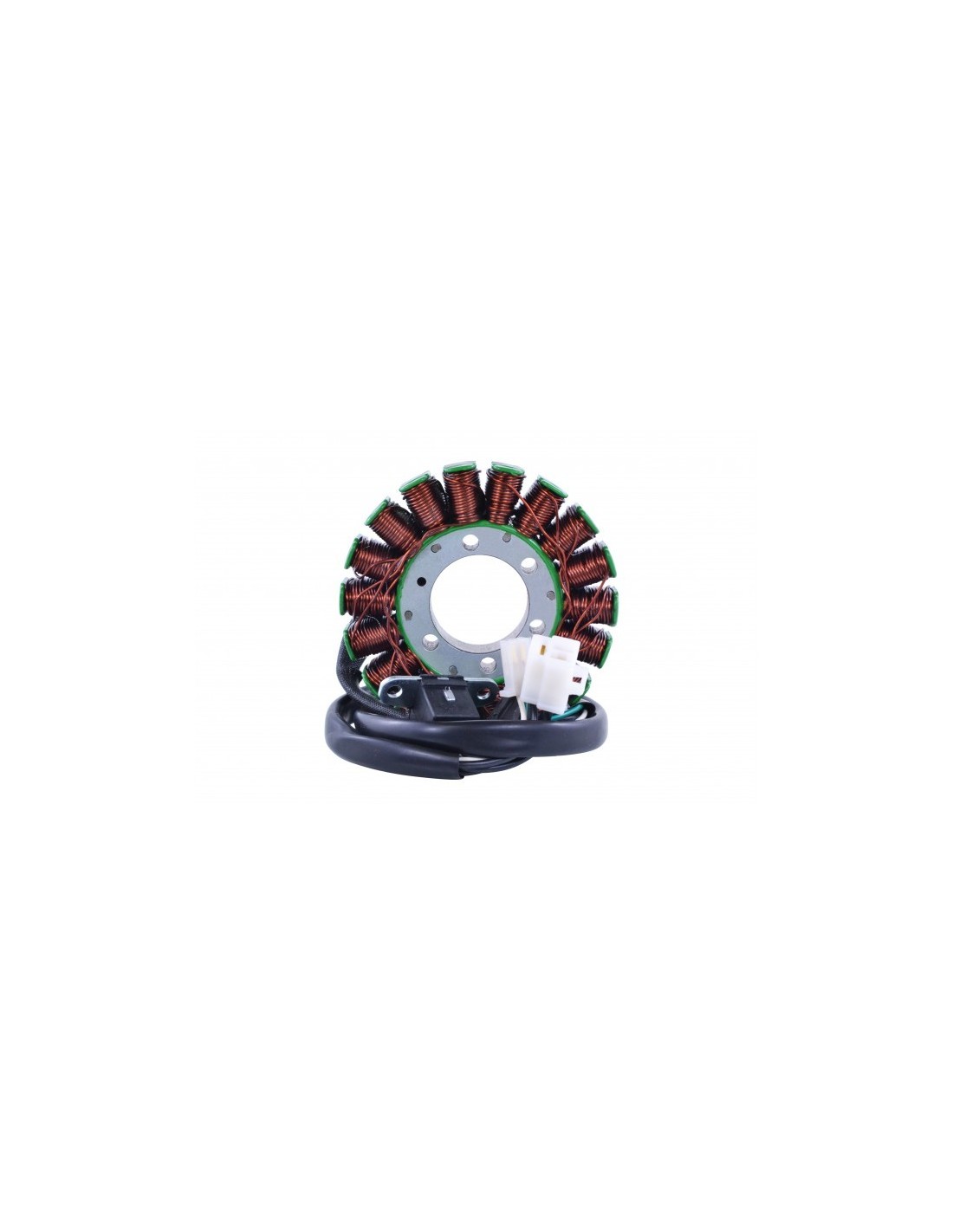

Stator Suzuki SV650A SV650S VStrom OEM 32101-19F00 32101-17G00 32101-17G01 32101-17G02
CARMS010-102166
7-8 Days
€179.00
Tax included
OEM 32101-17G00 32101-17G02
Stator Resistant to 200°C
2009 Suzuki SV 650
2009 Suzuki SV 650 S
2009 Suzuki VStrom 650
2008 Suzuki SV 650
2008 Suzuki SV 650 S
2008 Suzuki VStrom 650
2007 Suzuki SV 650
2007 Suzuki SV 650 S
2007 Suzuki VStrom 650
2006 Suzuki SV 650
2006 Suzuki SV 650 S
2006 Suzuki VStrom 650
2005 Suzuki SV 650
2005 Suzuki SV 650 S
2005 Suzuki VStrom 650
2004 Suzuki SV 650
2004 Suzuki SV 650 S
2004 Suzuki VStrom 650
2003 Suzuki SV 650
2003 Suzuki SV 650 S
OEM 32101-17G00 32101-17G02
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 19 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 550 mm

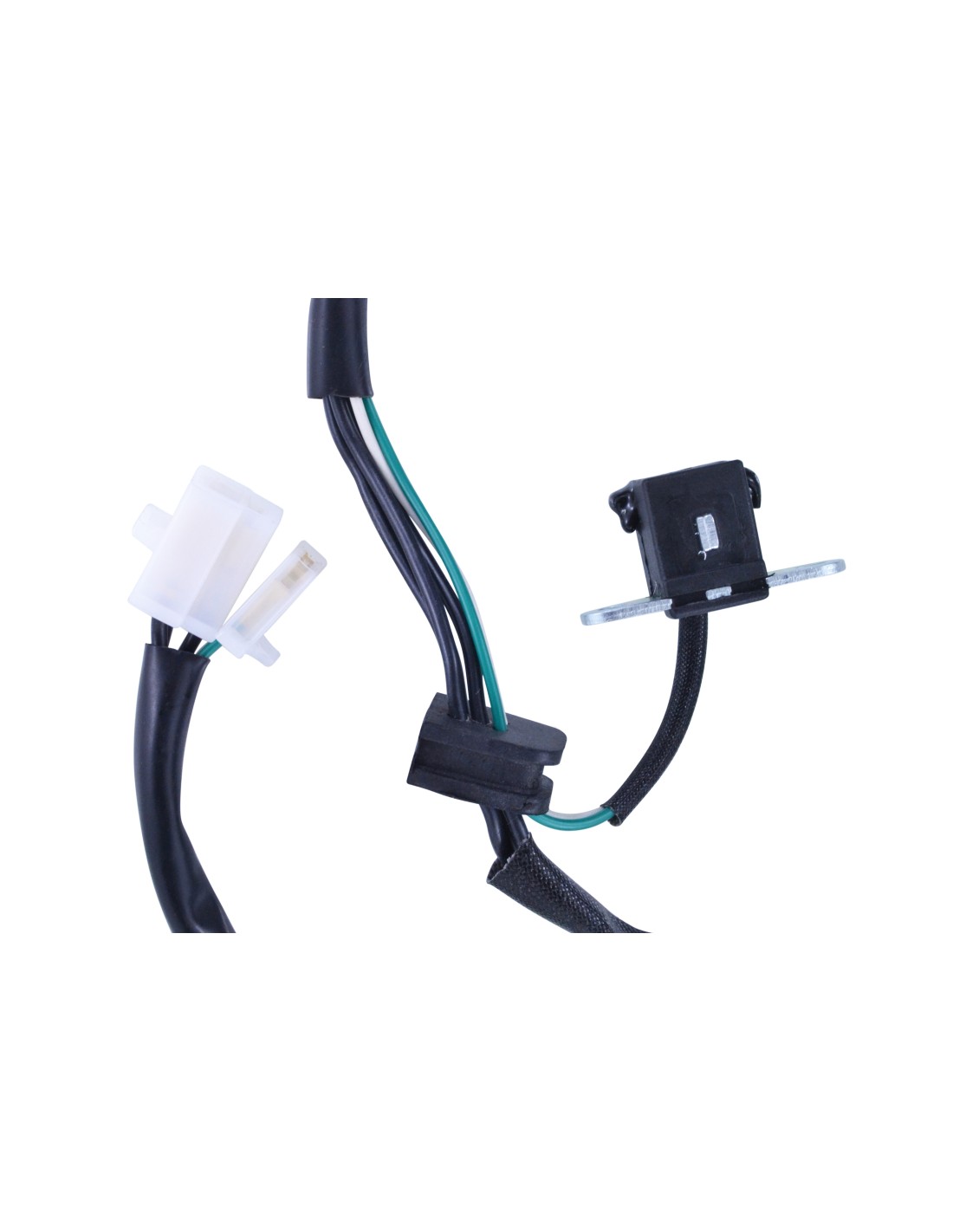

Length of pickup coil's wire to grommet : 59 mm
Other specifications :
Number of wires : 5

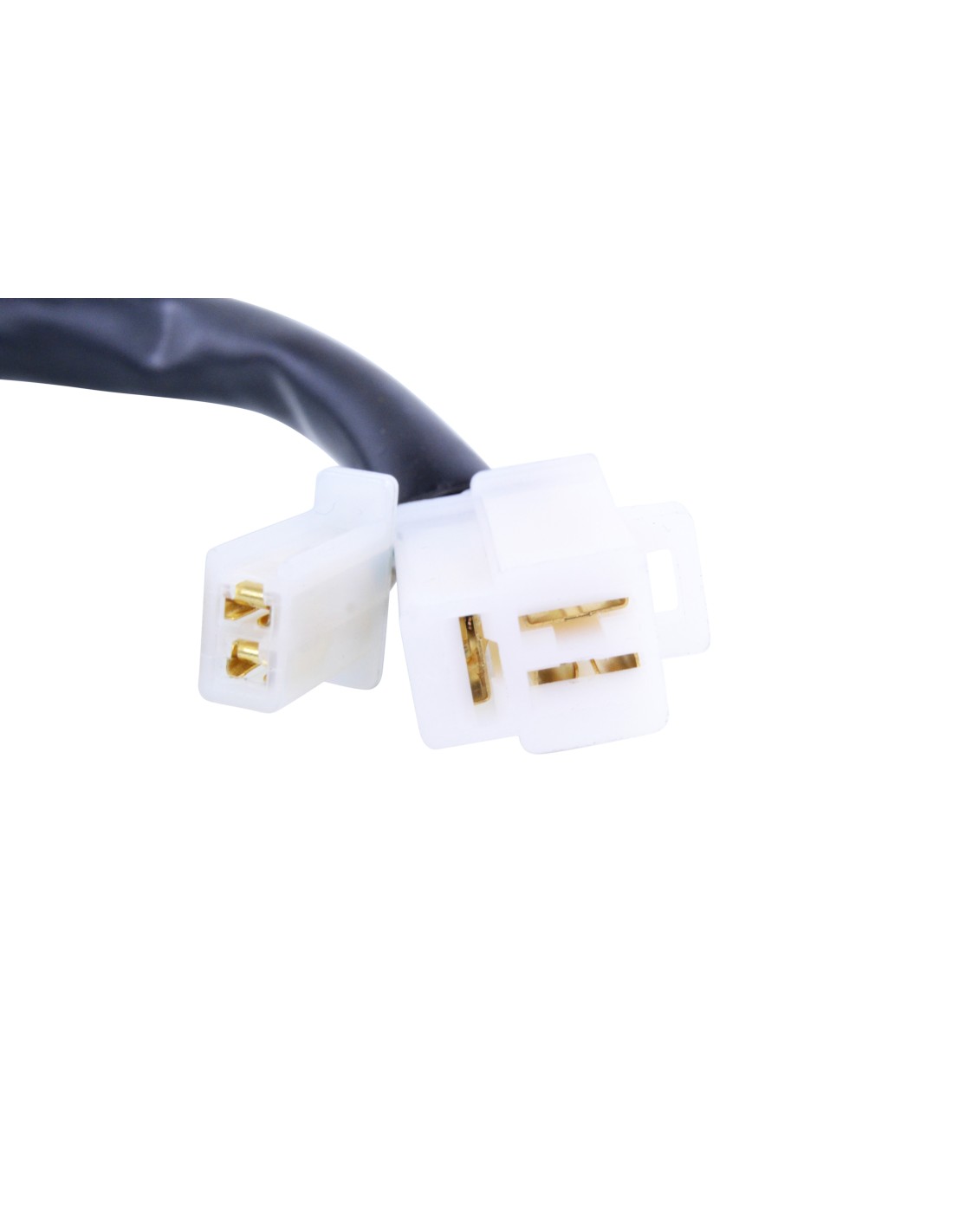

Number of plugs : 2
Number of pins : 5
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 19 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 550 mm
Length of pickup coil's wire to grommet : 59 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Black to Black = 0.5 ohms +-20%
Pickup : Green to White = 194 ohms +-20%
Alternator : Black to Black = 0.5 ohms +-20%
Pickup : Green to White = 194 ohms +-20%
