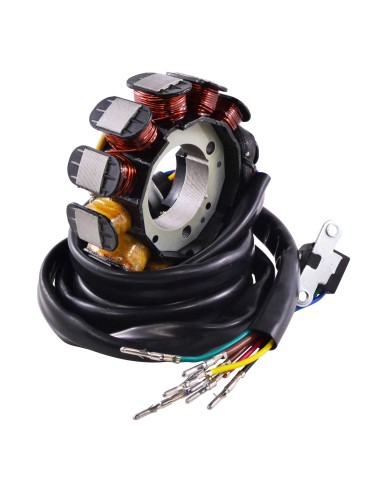

Stator Kawasaki 1100STX 900STX 1100Zxi 900ZXi OEM 21003-3730
CARM01525
7-8 Days
€274.00
Tax included
OEM 21003-3730
Stator - Highest grade copper windings, resistant to 200 degrees Celsius
2003 Kawasaki 1100 Zxi
2002 Kawasaki 1100 Zxi
2001 Kawasaki 1100 Zxi
2000 Kawasaki 1100 Zxi
1999 Kawasaki 1100 Zxi
1998 Kawasaki 1100 STX
1998 Kawasaki 1100 Zxi
1998 Kawasaki Jet Ski 900 STX
1997 Kawasaki 1100 STX
1997 Kawasaki 1100 Zxi
1997 Kawasaki 900 ZXi
1997 Kawasaki Jet Ski 900 STX
1996 Kawasaki 1100 Zxi
1996 Kawasaki 900 ZXi
1995 Kawasaki 900 ZXi
2002 Kawasaki 1100 Zxi
2001 Kawasaki 1100 Zxi
2000 Kawasaki 1100 Zxi
1999 Kawasaki 1100 Zxi
1998 Kawasaki 1100 STX
1998 Kawasaki 1100 Zxi
1998 Kawasaki Jet Ski 900 STX
1997 Kawasaki 1100 STX
1997 Kawasaki 1100 Zxi
1997 Kawasaki 900 ZXi
1997 Kawasaki Jet Ski 900 STX
1996 Kawasaki 1100 Zxi
1996 Kawasaki 900 ZXi
1995 Kawasaki 900 ZXi
OEM 21003-3730
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 15.5 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 1650 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :

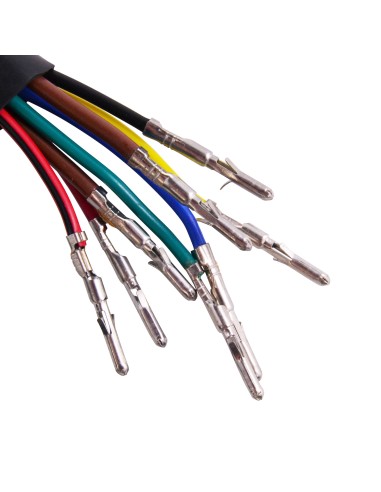

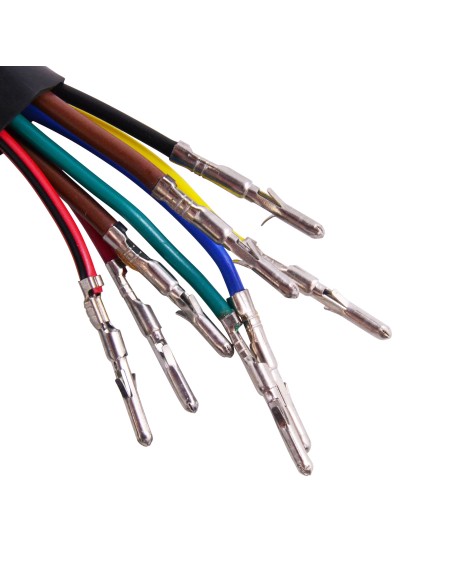

Number of wires : 8
Number of plugs : 2
Number of pins : 8
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 15.5 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 1650 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 8
Number of plugs : 2
Number of pins : 8
Wire to wire resistance :
Alternator : = Brown to Brown = 1.2 ohms +-20%
Pickup : = Green to Blue = 519 ohms +-20%
Source : = Red to Purple = 449 ohms +-20%
Source : = Yellow to Black = 27 ohms +-20%
Alternator : = Brown to Brown = 1.2 ohms +-20%
Pickup : = Green to Blue = 519 ohms +-20%
Source : = Red to Purple = 449 ohms +-20%
Source : = Yellow to Black = 27 ohms +-20%
