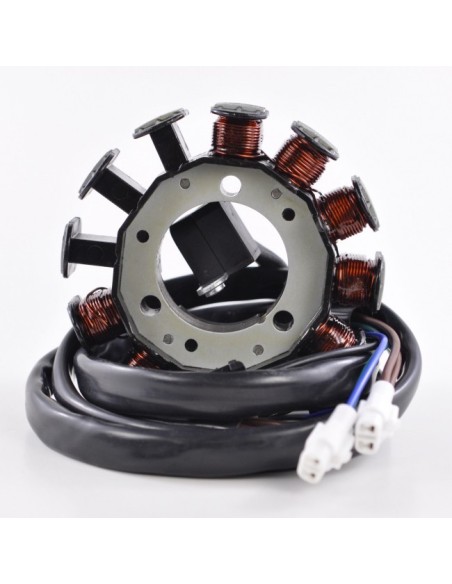

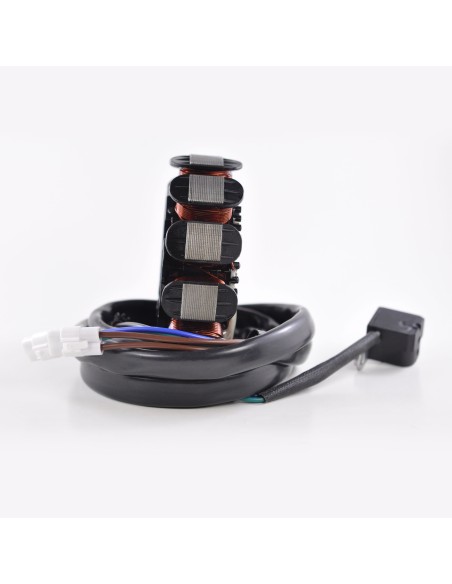

Stator Kawasaki Jet Ski 900 STS 1100 STX 900 STX OEM 21003-3736

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

    2006
        Kawasaki
            Jet Ski 900 STX
                PWC 2006 Kawasaki Jet Ski 900 STX
    2005
        Kawasaki
            Jet Ski 900 STX
                PWC 2005 Kawasaki Jet Ski 900 STX
    2004
        Kawasaki
            Jet Ski 900 STX
                PWC 2004 Kawasaki Jet Ski 900 STX
    2003
        Kawasaki
            Jet Ski 900 STX
                PWC 2003 Kawasaki Jet Ski 900 STX
    2002
        Kawasaki
            Jet Ski 900 STS
                PWC 2002 Kawasaki Jet Ski 900 STS
            Jet Ski 900 STX
                PWC 2002 Kawasaki Jet Ski 900 STX
    2001
        Kawasaki
            Jet Ski 900 STS
                PWC 2001 Kawasaki Jet Ski 900 STS
            Jet Ski 900 STX
                PWC 2001 Kawasaki Jet Ski 900 STX
    2000
        Kawasaki
            Jet Ski 900 STX
                PWC 2000 Kawasaki Jet Ski 900 STX
    1999
        Kawasaki
            1100 STX
                PWC 1999 Kawasaki 1100 STX
            Jet Ski 900 STX
                PWC 1999 Kawasaki Jet Ski 900 STX

OEM 21003-3736

Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 16 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 1270 mm
Length of pickup coil's wire to grommet : 95 mm

Other specifications :

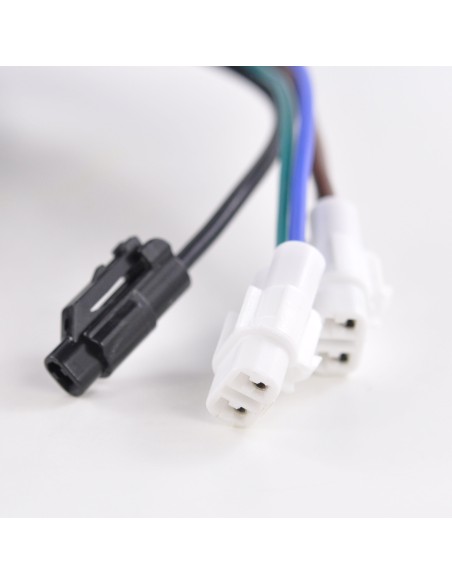

Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : Brown To Brown = 1.2 ohms +-20%
Pickup : Green To Blue = 523 ohms +-20%
