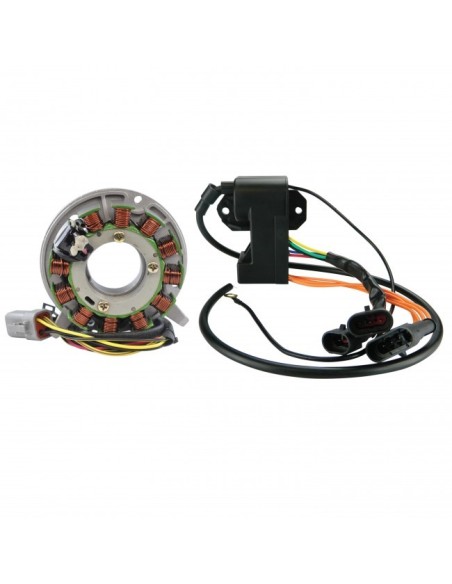

Kit Stator CDI SkiDoo Freestyle 300 Skandic 300 Tundra 280R OEM 420889368 420889366 420889369 512060006 415098300 515175459
CARMS900-105918
5-7 Days
€597.60
Tax included
OEM 420889368 420889366 420889369 512060006 415098300 515175459
2008 Ski-doo Freestyle 300 Electric start Carb F/C
2008 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2008 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2007 Ski-doo Freestyle 300 Electric start Carb F/C
2007 Ski-doo Freestyle 300 Manual Start Carb F/C
2007 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2007 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2006 Ski-doo Freestyle 300 Electric start Carb F/C
2006 Ski-doo Freestyle 300 Manual Start Carb F/C
2006 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2006 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2005 Ski-doo Tundra 280 R Carb F/C
2004 Ski-doo Tundra 280 R Carb F/C
2003 Ski-doo Tundra 280 R Carb F/C
2002 Ski-doo Tundra 280 R Carb F/C
2000 Ski-doo Tundra 280 R Carb F/C
2008 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2008 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2007 Ski-doo Freestyle 300 Electric start Carb F/C
2007 Ski-doo Freestyle 300 Manual Start Carb F/C
2007 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2007 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2006 Ski-doo Freestyle 300 Electric start Carb F/C
2006 Ski-doo Freestyle 300 Manual Start Carb F/C
2006 Ski-doo Skandic 300 Tundra Crank Start Carb F/C
2006 Ski-doo Skandic 300 Tundra Electric Start Carb F/C
2005 Ski-doo Tundra 280 R Carb F/C
2004 Ski-doo Tundra 280 R Carb F/C
2003 Ski-doo Tundra 280 R Carb F/C
2002 Ski-doo Tundra 280 R Carb F/C
2000 Ski-doo Tundra 280 R Carb F/C
OEM Stator
420889368
420889366
420889369
420889365
410922749
420886603
420886602
420889368
420889366
420889369
420889365
410922749
420886603
420886602
OEM CDI
512060006
415098300
515175459
512060006
415098300
515175459

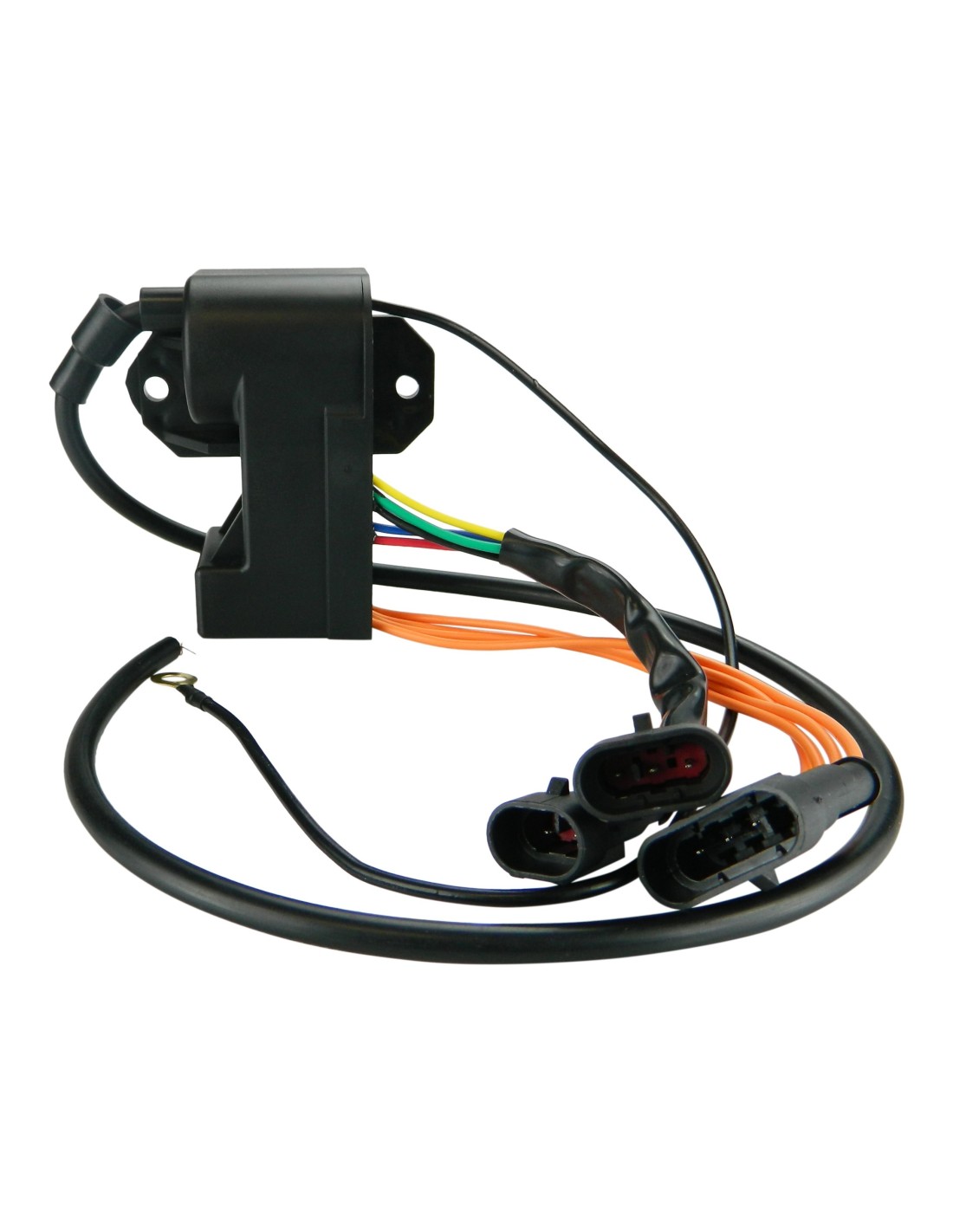

CDI Coil Module Dimensions
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm
Height: 44 mm
Length: 94 mm
Width: 48 mm
Fixation holes center to center: 72 mm

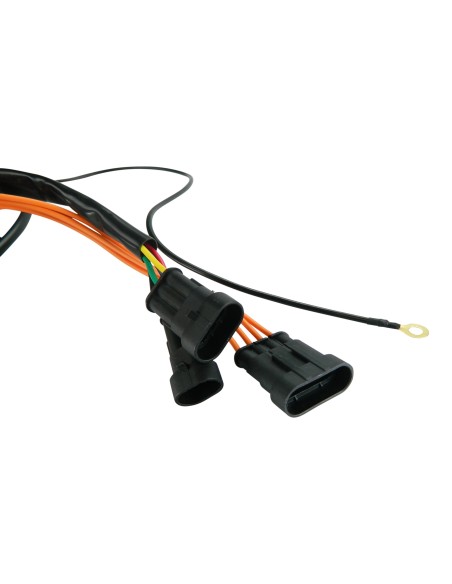

Other specifications:
Number of plugs: 3
Number of pins: 9
Number of plugs: 3
Number of pins: 9
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

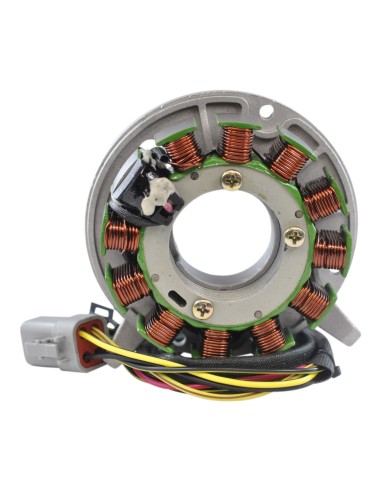

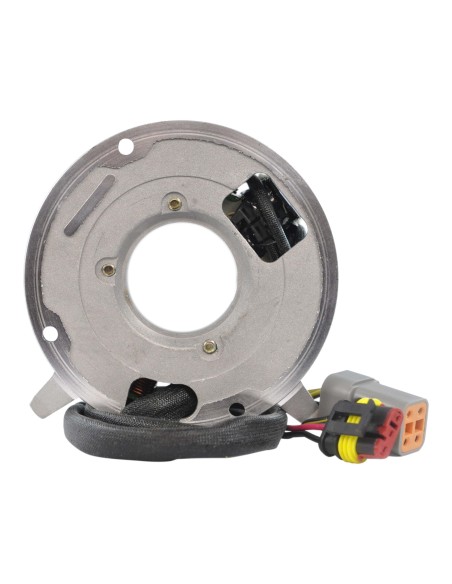

Stator Dimensions
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 500 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black 8 ohms +/-20%
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black 8 ohms +/-20%
