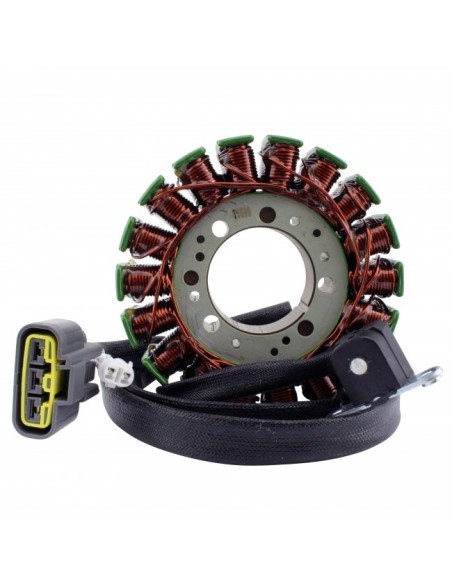

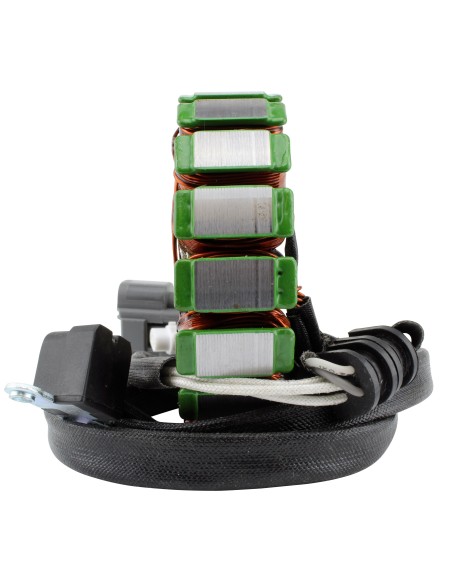

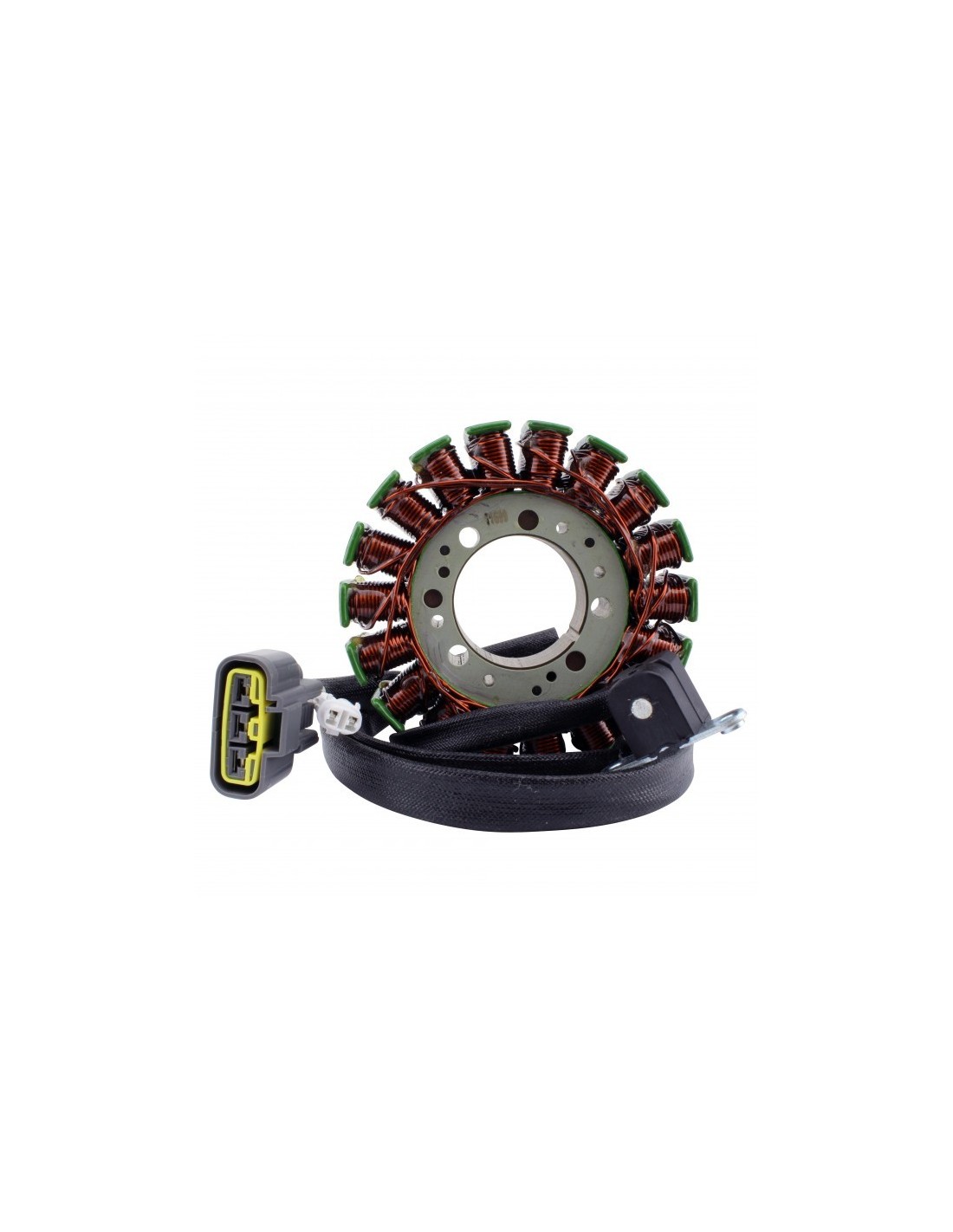

Stator Yamaha 1000 Sidewinder OEM 8KJ-81410-00-00
CARMS010-105040
7-8 Days
€246.00
Tax included
OEM 8KJ-81410-00-00
Stator
2022 Yamaha 1000 Sidewinder EFI L/C
2021 Yamaha 1000 Sidewinder EFI L/C
2020 Yamaha 1000 Sidewinder B TX LE EFI L/C
2020 Yamaha 1000 Sidewinder EFI L/C
2019 Yamaha 1000 Sidewinder EFI L/C
2018 Yamaha 1000 Sidewinder EFI L/C
2017 Yamaha 1000 Sidewinder EFI L/C
OEM 8KJ-81410-00-00
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 34 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 850 mm
Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 5

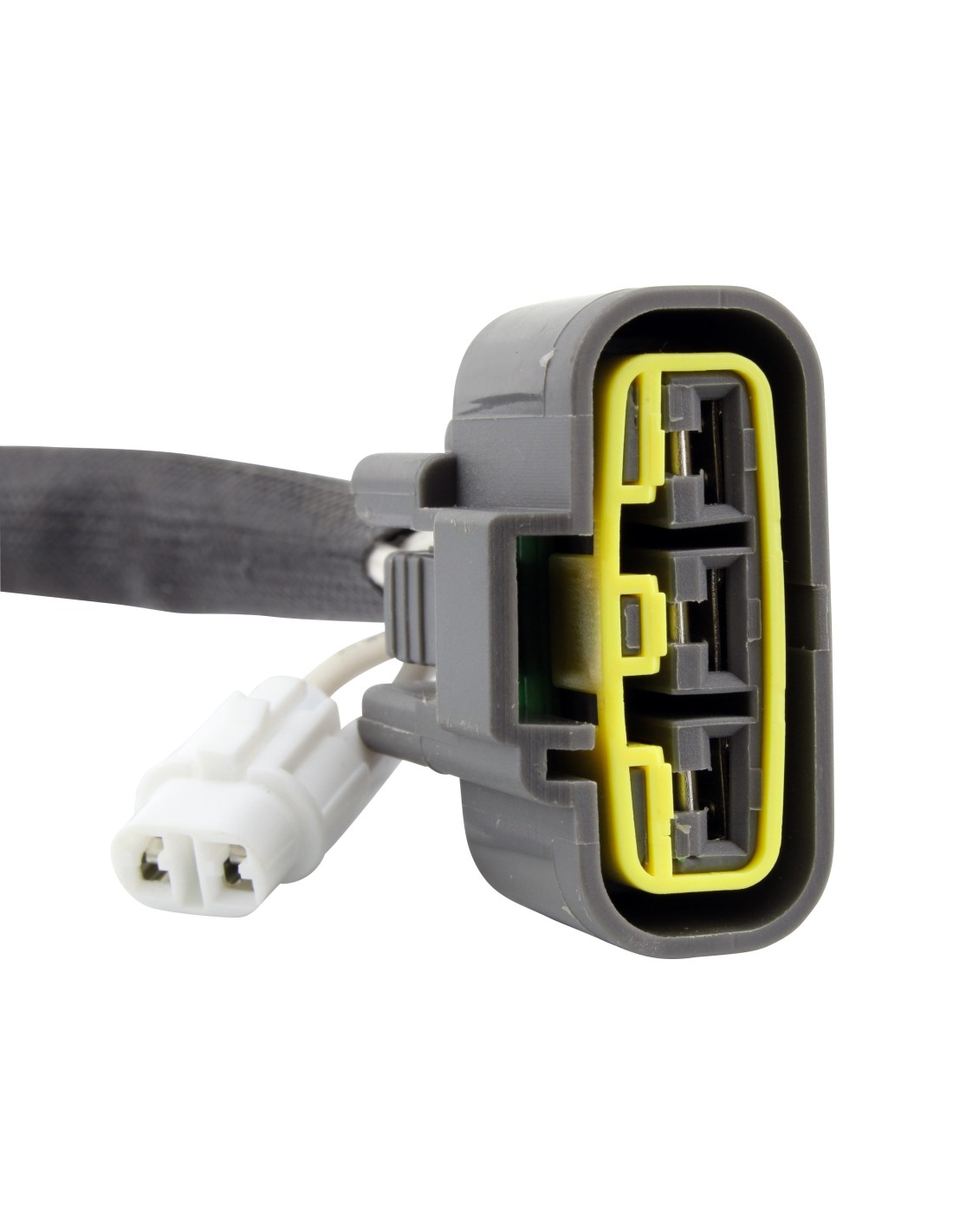

Number of plugs : 2
Number of pins : 5
Number of poles : 18
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 34 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 850 mm
Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Black to Grey = 500 ohms +-20%
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Black to Grey = 500 ohms +-20%
