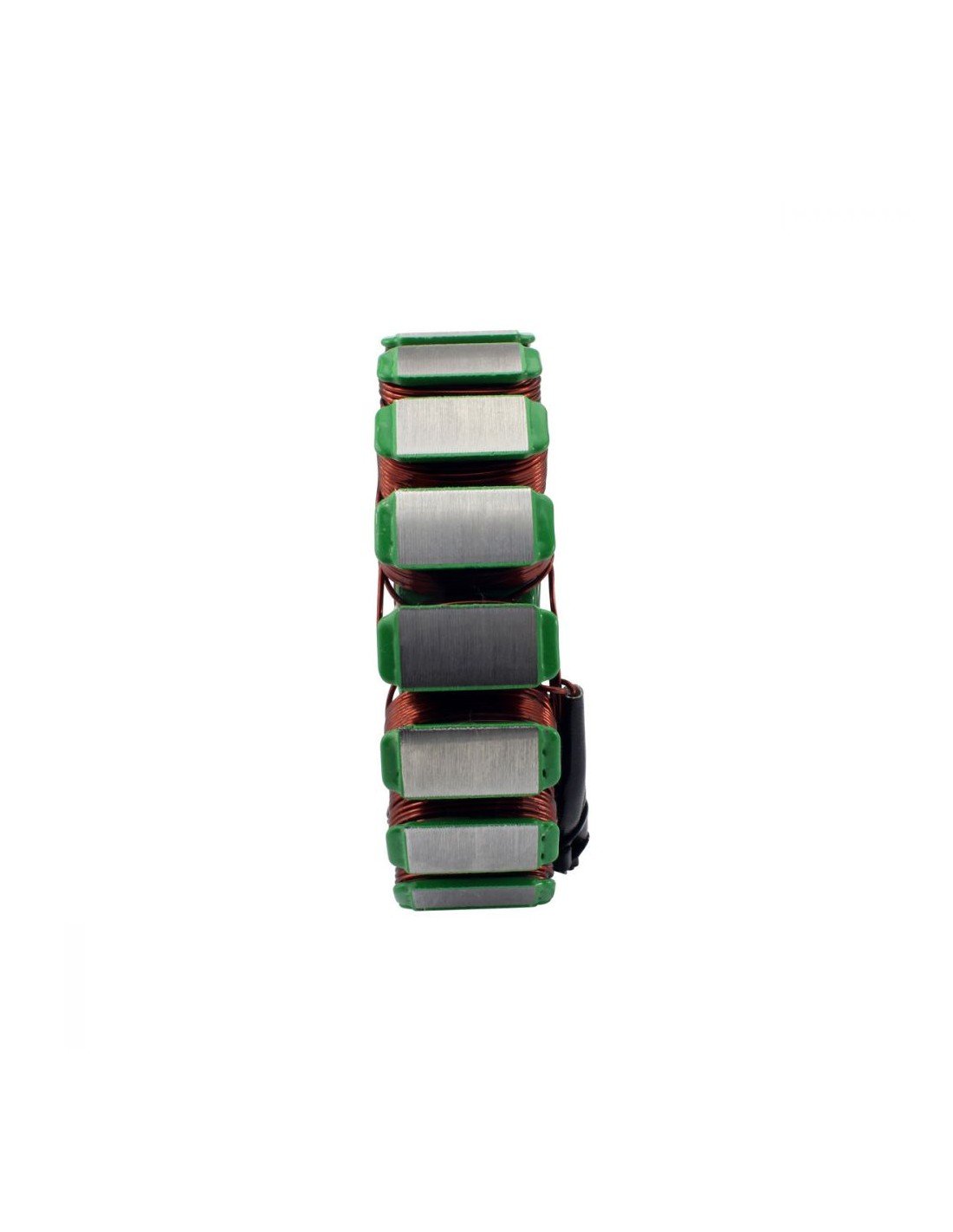

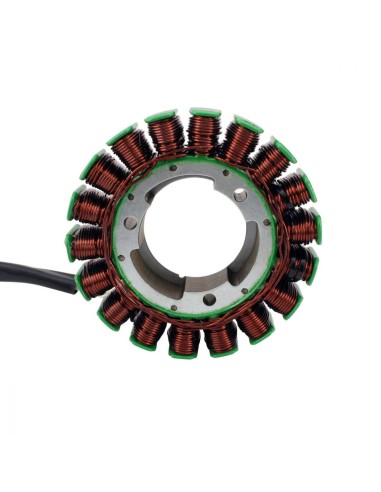

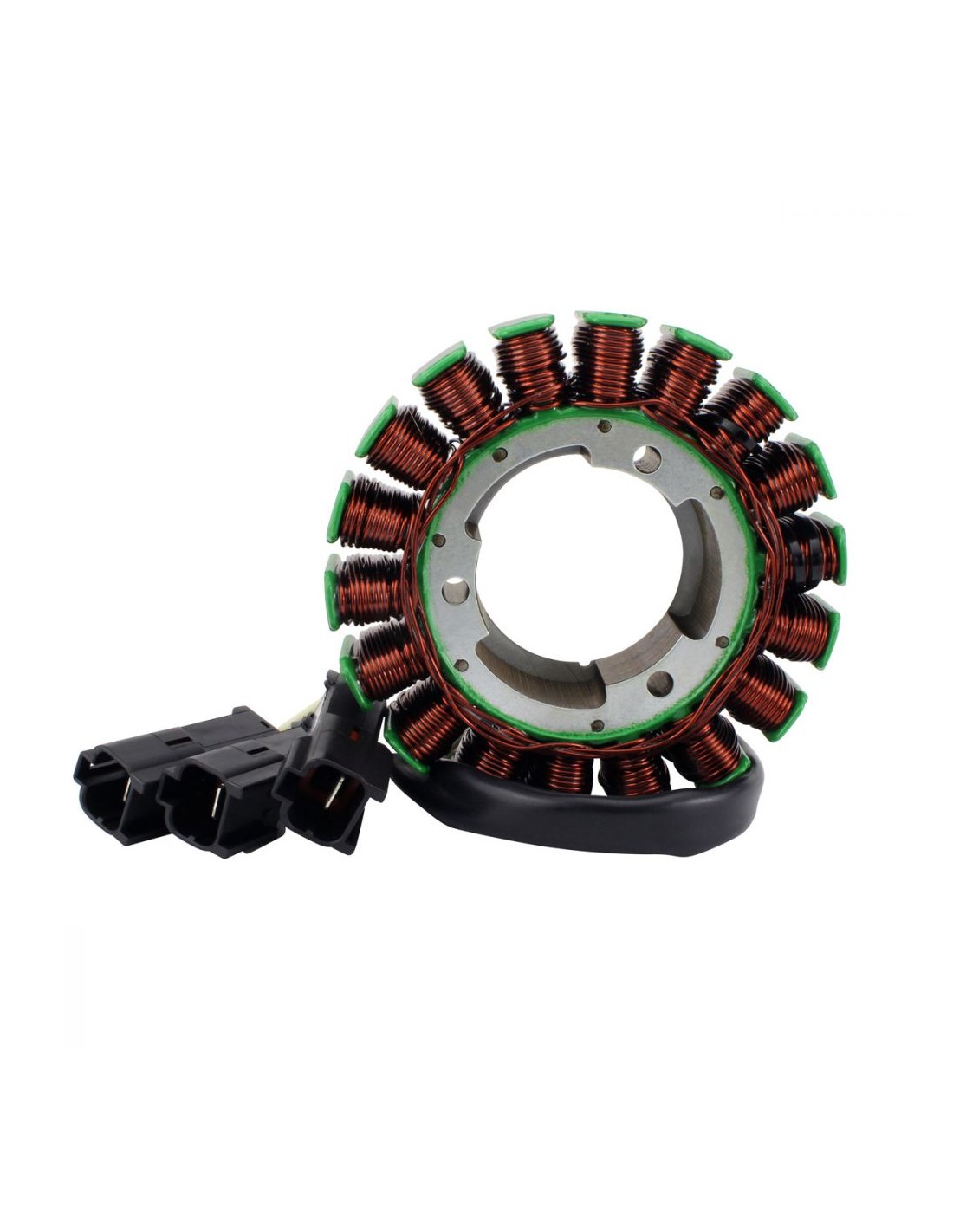

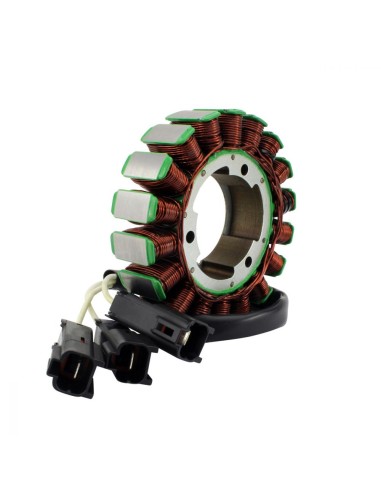

Stator Polaris RZR 4 900 XP RZR900XP OEM 4013224

Stator

Resistant to 200 degrees Celsius

2012 Polaris RZR 900 XP

2012 Polaris RZR 4 900 XP

2011 Polaris RZR 900 XP

OEM 4013224

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 127 mm

Thickness: 28 mm

Length of wires stator to grommet: 90 mm

Length of wires grommet to plug: 320 mm

Other specifications:

Number of wires: 3

Number of plugs: 3

Number of pins: 3

Number of poles: 18

Wire to wire resistance:

Alternator: White between each White = 0.4 ohms +/-20%

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

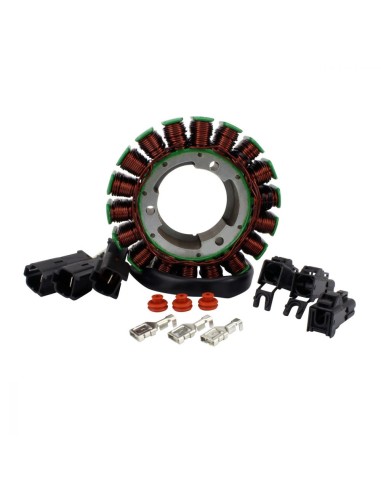

Rubber grommet included

All products shipped are tested

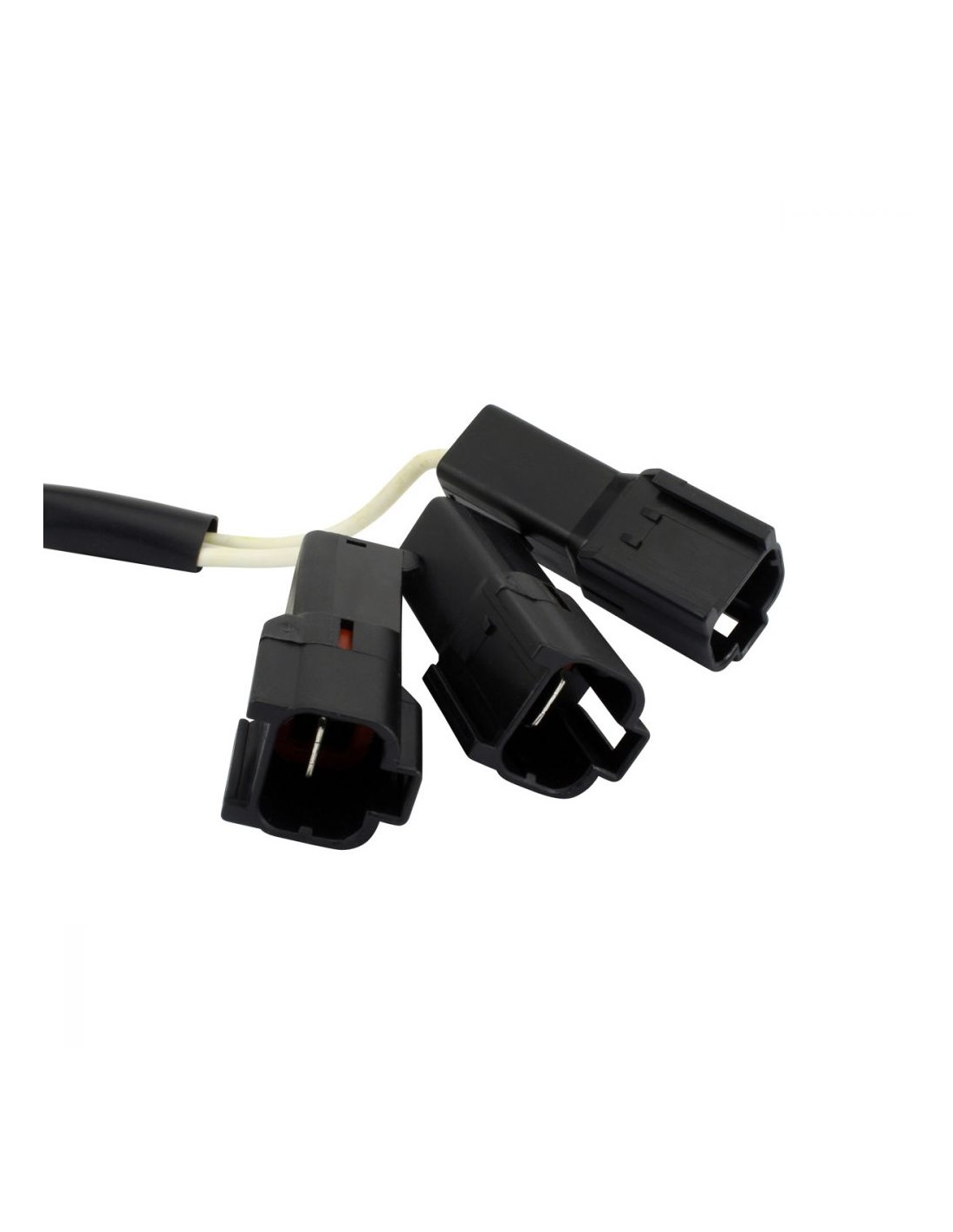

2011-2012 Polaris RZR are outputting a huge 720W of power making the stator failure prone. Our upgraded version now features 3 separate 40A rated waterproof connectors to help manage this much power and extend your stator life

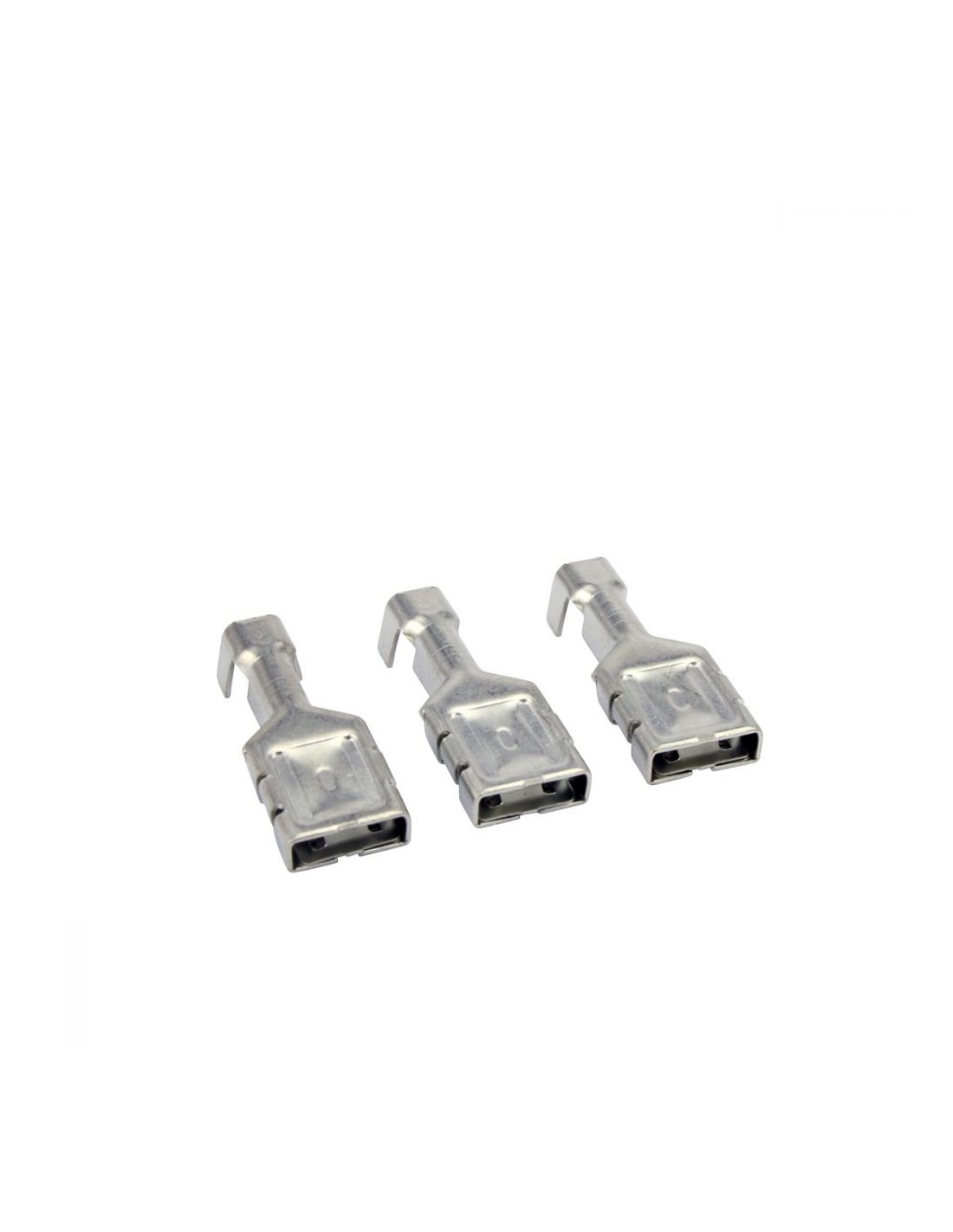

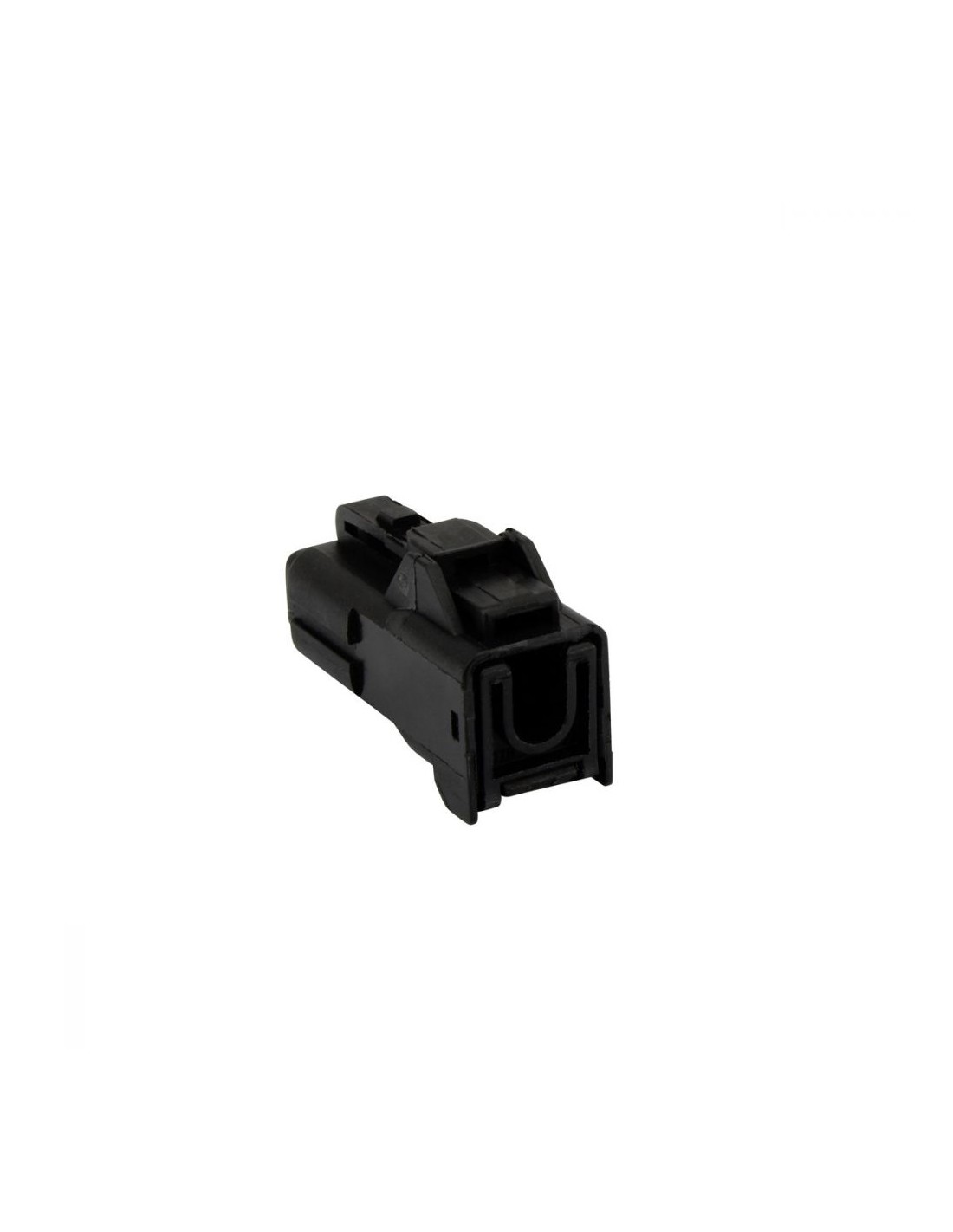

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

There are two possible stators for the RZR XP 900 and RZR 4 XP 900 models. This stator fits models built 3/15/12 and before (OEM# 4013224, stator thickness 28 mm). For the stator built 3/16/12 and after, the right part is CARM01394 (OEM# 4013013, stator thickness 19 mm). Always check in the 'Fits models' section and please compare to your original part before buying.
